| OEC-R3H-MK | ||||||||
| Hardware Specification | ||||||||
| Operating Frequency | 13.56MHz | |||||||
| Interface | Wiegand 26/34, RS485 | |||||||
| Material | PC | |||||||
| Dimensions (L x W x H) | 129*88*21mm | |||||||
| Weight | 145g | |||||||
| Mount Method | 115*73mm junction box, 86*86mm junction box | |||||||
| Operating Temperature | -30°C to 65°C | |||||||
| Operating Humidity | 10% to 90% | |||||||
| Storage Temperature | -40°C to 65°C | |||||||
| Indicator | Steady blue: Normal operation; Steady green for 1s: Card authentication succeeded; Steady red for 1s: Card authentication failed | |||||||
| Power Consumption | 0.864W | |||||||
| Operating Voltage | DC 12V ± 25% | |||||||
| Operating Current | 72mA | |||||||
| Reading Distance | IC card: max. 5cm | |||||||
| Authentication Mode | Card, password | |||||||
| Protection Level | IP65 | |||||||
| Basic Business | ||||||||
| Reading Time | < 1s | |||||||
| Card Type | Mifare card | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2025/8/26 21:39:13 | UNV OEC-R3H-MK Wall Mount Mifare Card Reader with Keypad.pdf | English | Preview | Download A > |
| Class | Date | Title | Type | Download |

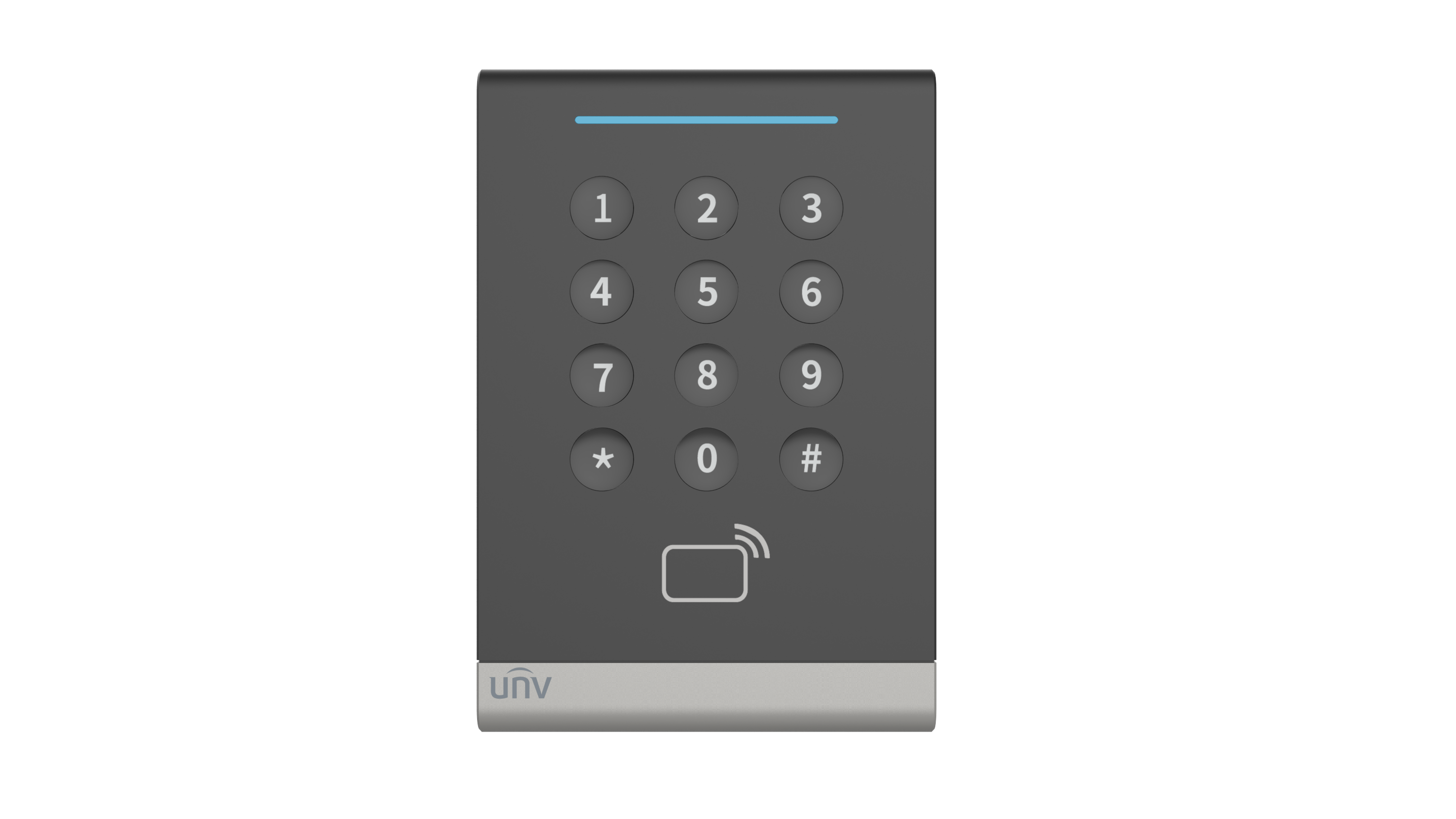

| HD Image | 2025/10/28 3:07:03 | OEC-R3H-MK_HD_Image_1.png | png | Download |

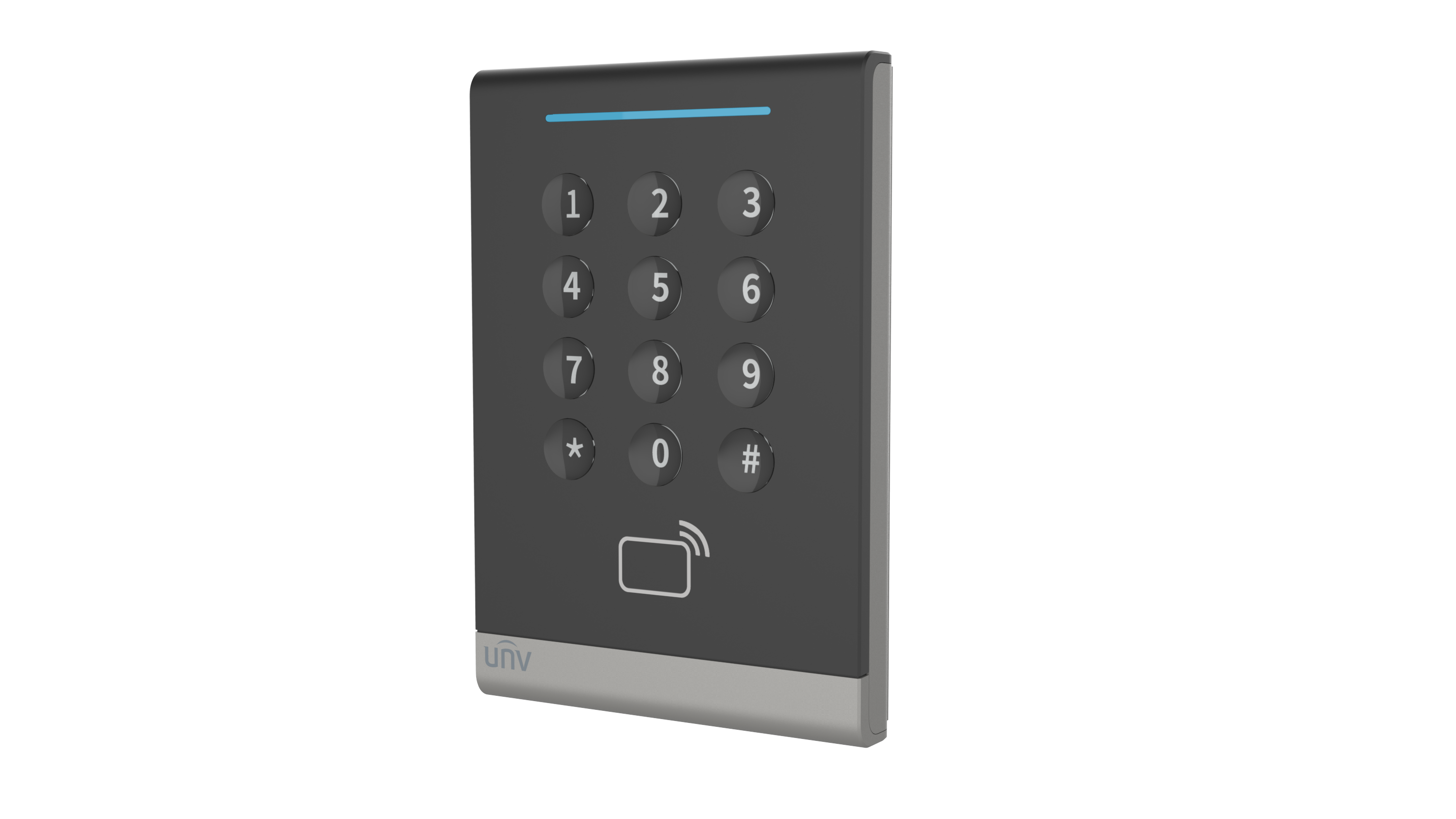

| HD Image | 2025/10/28 3:07:03 | OEC-R3H-MK_HD_Image_2.png | png | Download |

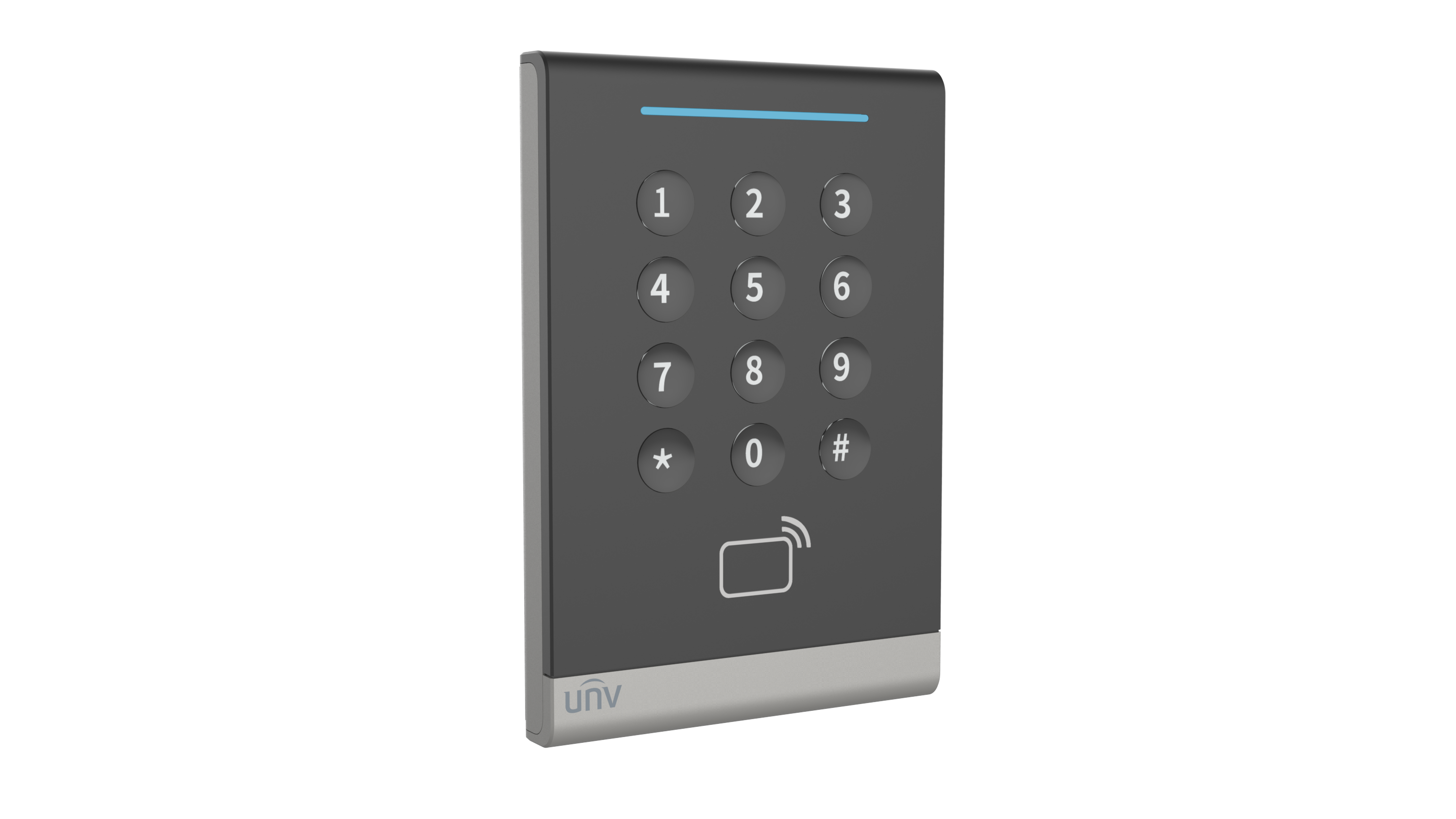

| HD Image | 2025/10/28 3:07:03 | OEC-R3H-MK_HD_Image_3.png | png | Download |
| Class | Date | Title | Language | Type | Preview | Download |
| Quick Guide | 2025/5/11 4:00:18 | Quick Guide.pdf | English | Preview | Download A > |
| Class | Date | Title | Download |
| Dimensions | 2025/10/28 3:07:03 | OEC-R3H-MK_Dimensions_1.png | Download |
