Uho-P1A-M3F4D-U - Uniview - Global AIoT Solutions Provider

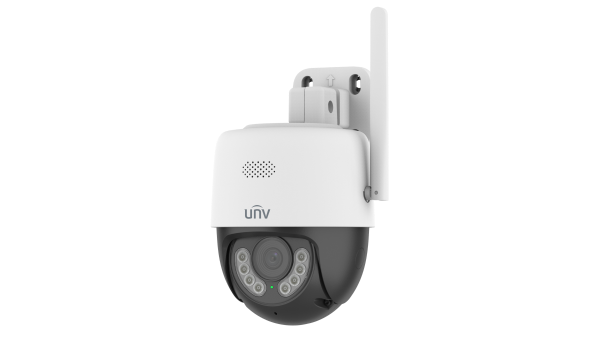

	Uho-P1A-M3F4D-U
Camera
Max Resolution	3 MP
Sensor	1/3.0" CMOS
Min. Illumination	Colour: 0.003Lux (F1.6, AGC ON) 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
S/N	> 52 dB
WDR	DWDR
Lens
Focal Length	4.0 mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	74.3°
Field of View (V)	39.3°
Field of View (D)	79.9°
Lens Type	Fixed
DORI
DORI Distance (Lens)	4.0mm
DORI Distance (Detect)	66.7 m (218.7ft)
DORI Distance (Observe)	26.7 m (87.5ft)
DORI Distance (Recognize)	13.3 m (43.7ft)
DORI Distance (Identify)	6.7 m (21.9ft)
Illuminator
Supplemental Light	Dual light
Illumination Distance (Warm Light)	30 m (98.4 ft.)
Illumination Distance (IR)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual
Video
Video Compression	H.265, H.264
Frame Rate	Main Stream: 3MP (23041296), Max 25fps; 2MP (19201080), Max. 30 fps; 720P(1280720), Max. 30 fps; Sub Stream: 640360, Max 30fps; 2CIF (704288), Max. 30 fps; CIF (352288), Max. 30 fps;
Video Bit Rate	128 Kbps to 2048 Kbps
OSD	Up to 2 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video Stream	Dual streams
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
BLC	Support
Defog	Digital defog
Events
Basic Detection	Ultra motion detection (human/ vehicle detection) , High-Decibel detection
General Function	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Intelligent
Auto Tracking	Support
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR
Network
Wi-Fi	2.4G Wi-Fi (IEEE802.11b/g/n/ax), external antenna
Protocols	IPv4, TCP, UDP, DHCP, DNS, DDNS, HTTP, RTSP, NTP, Websocket
Compatible Integration	API
User/Host	Up to 6 users. 2 user levels: administrator and common user
Client	APP, EZStation
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Wi-Fi
Wireless Standards	IEEE802.11b/g/n/ax
Frequency Range	2.4 GHz to 2.4835 GHz
Channel Bandwidth	20/40 MHz Support
Modulation Mode	802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) 802.11ax: OFDM (256QAM, 64QAM, 16QAM, QPSK, BPSK)
Wi-Fi Security	64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 21±2 dBm@11 Mbps 802.11g: 16±2 dBm @ 54 Mbps 802.11n: 16±2 dBm@MCS7 802.11ax: 16±2 dBm@MCS9
Receive Sensitivity	802.11b: -76 dBm@11 Mbps (Typical)802.11g: -65 dBm@54Mbps (Typical)802.11n: -61 dBm@MCS7, HT40 (Typical)802.11ax: -54 dBm@MCS9, HE40 (Typical)
Transmission Rate	802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: up to 150 Mbps 802.11ax: up to 229 Mbps
PTZ
Pan Range	0° ~ 345°
Pan Speed	1°/s ~ 40°/s Preset speed: 40°/s
Tilt Range	0° ~ 90°
Tilt Speed	1°/s ~ 30°/s Preset speed: 30°/s
Number of Presets	20
Interface
Audio I/O	N/A
Alarm I/O	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B)
RF	FCC ID (FCC CFR 47 part15 C) CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN IEC 62311)
Safety	CE LVD (EN IEC 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection	IP66 (IEC 60529)
General
Power Interface	Ø5.5 mm coaxial power plug
Power	DC 12V±25%
Power Consumption	Max 11.5W
Surge Protection	4 KV
Dimensions	Φ118mm*199mm (Φ4.6”x 7.8”)
Weight	0.53kg (1.17lb)
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 ℃ to 70 ℃ (-22 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Reset Button	Support
LED Indicator	1, green

Datasheet
HD Image
Quick Guide
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/7/30 17:59:50	UNV Uho-P1A-M3F4D-U 3MP Wi Fi Dual light Outdoor PT Camera.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/7/17 3:02:00	Uho-P1A-M3F4D-U_HD_Image_1.png	png	Download
HD Image	2026/7/17 3:02:00	Uho-P1A-M3F4D-U_HD_Image_2.png	png	Download
HD Image	2026/7/17 3:02:00	Uho-P1A-M3F4D-U_HD_Image_3.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2026/7/3 5:26:02	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2026/7/17 3:02:00	Uho-P1A-M3F4D-U_Dimensions_1.png	Download
