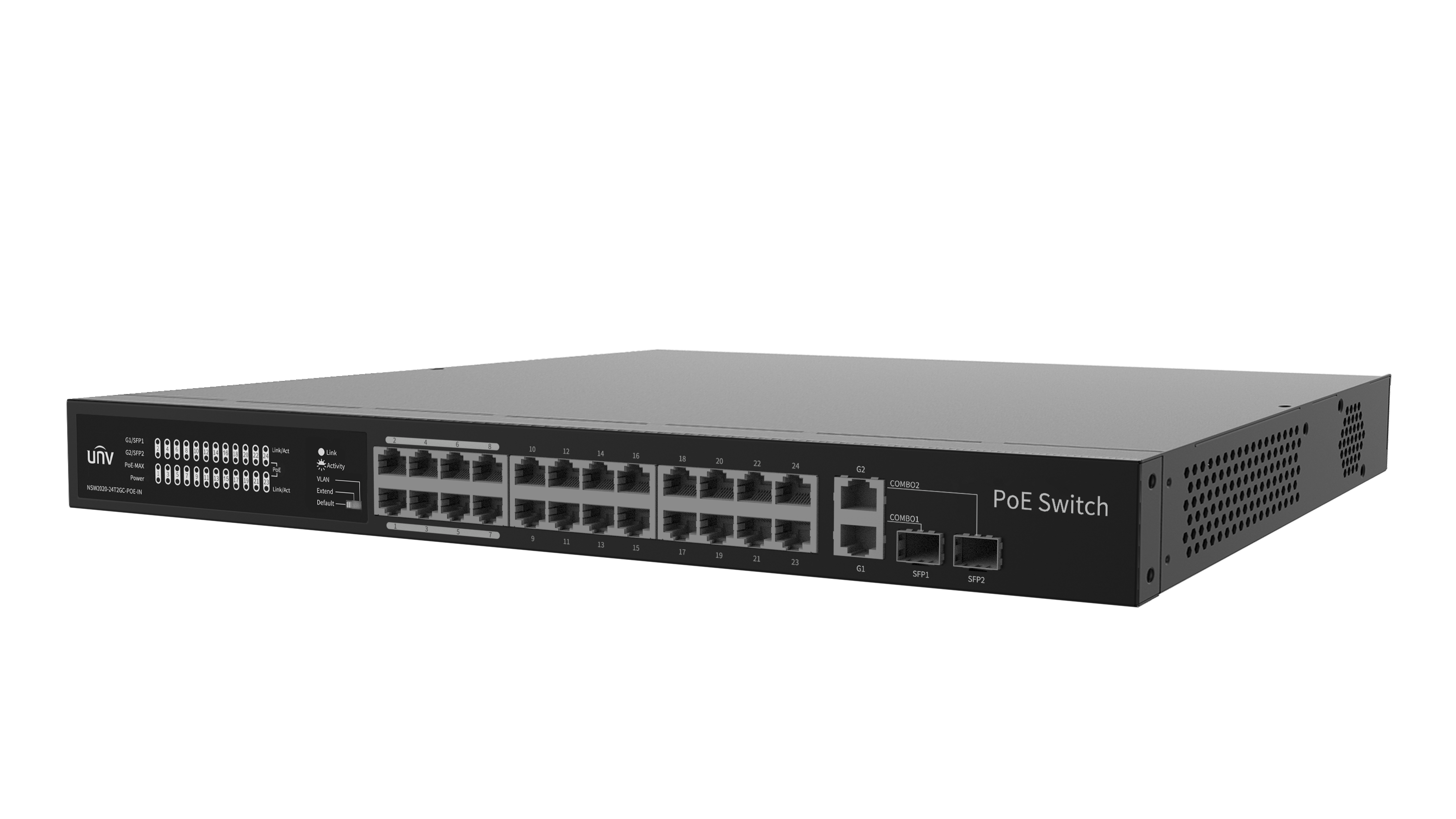

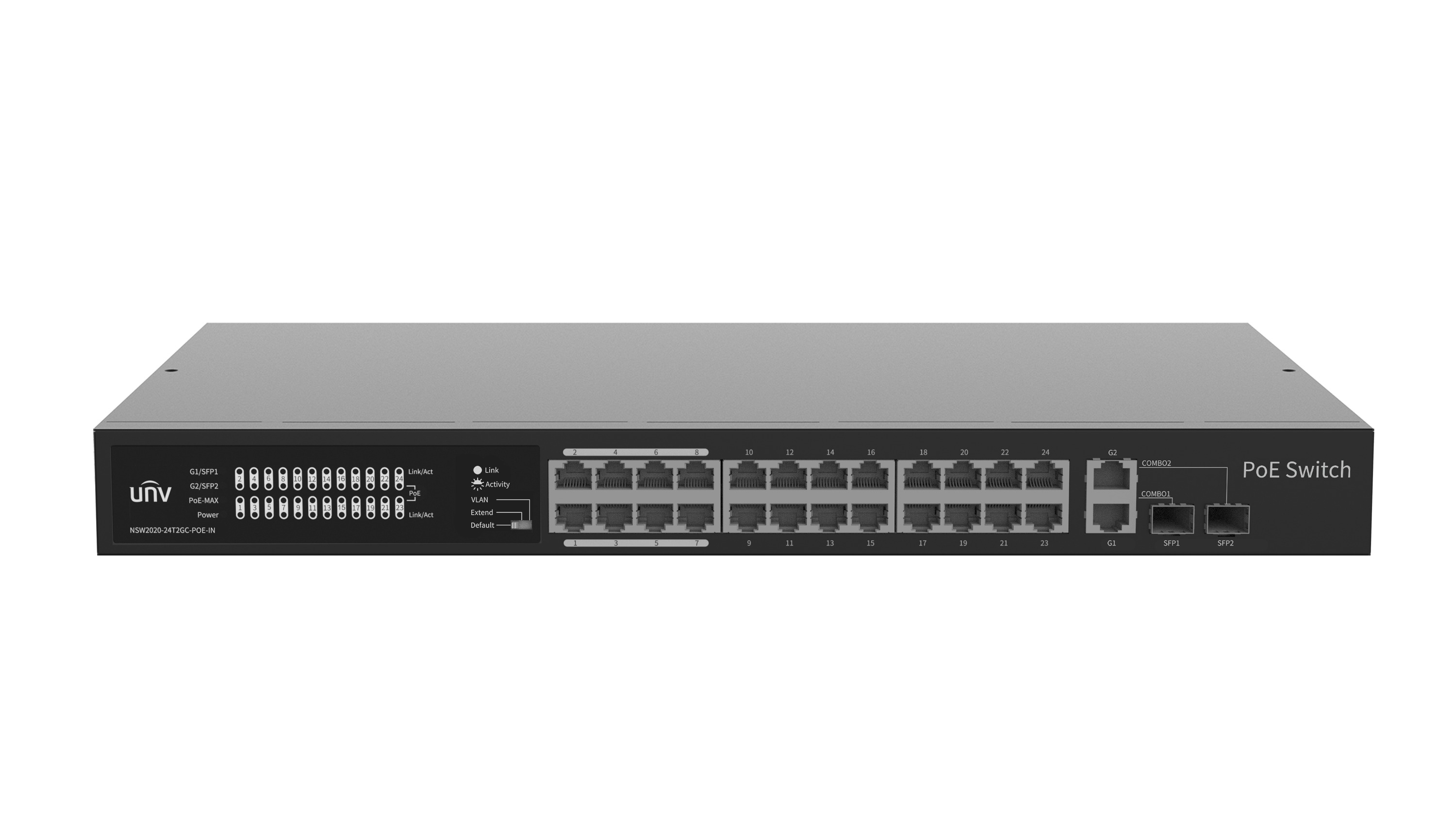

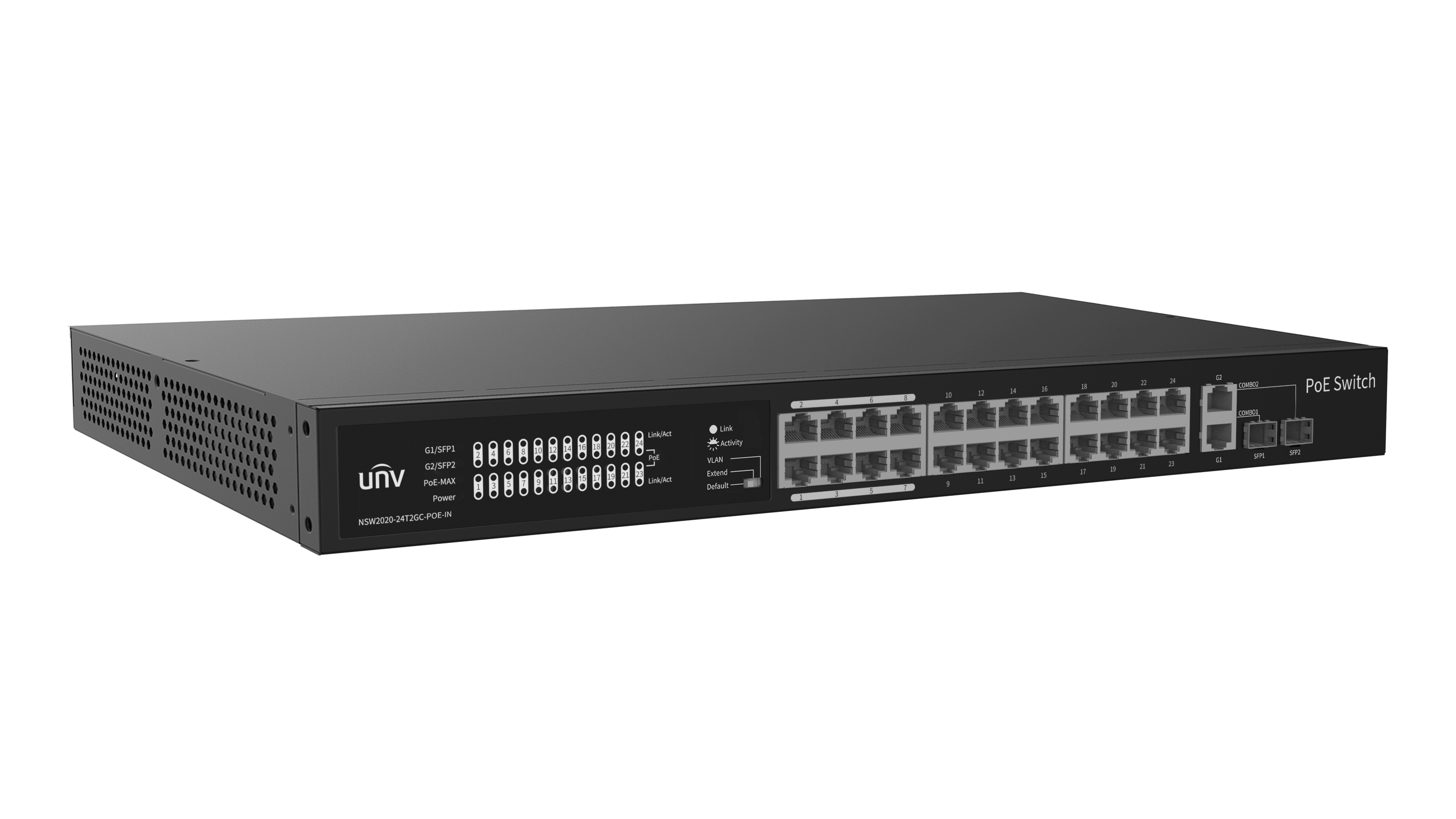

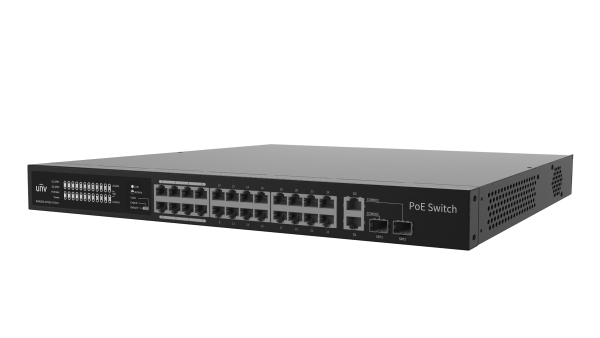

NSW2020-24T2GC-POE-IN

Unmanaged Ethernet Switch(PoE)

• Multiple working modes to address your business needs: Default (Normal mode), VLAN (Secure mode), EXTEND (Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable

Specification

Download

How to buy

Datasheet
HD Image
Quick Guide
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/6/3 7:04:27	UNV NSW2020-24T2GC-POE-IN Unmanaged Ethernet PoE Switches.pdf	English	pdf	Preview	Download
Datasheet	2026/6/3 7:04:26	UNV NSW2020-24T2GC-POE-IN Unmanaged Ethernet PoE Switches.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/6/4 3:02:20	NSW2020-24T2GC-POE-IN_HD_Image_1.png	png	Download
HD Image	2026/6/4 3:02:20	NSW2020-24T2GC-POE-IN_HD_Image_2.png	png	Download
HD Image	2026/6/4 3:02:20	NSW2020-24T2GC-POE-IN_HD_Image_3.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2026/5/2 6:04:33	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2026/6/4 3:02:20	NSW2020-24T2GC-POE-IN_Dimensions_1.png	Download

Want to learn more?

Contact sales

0%

	NSW2020-24T2GC-POE-IN
Hardware Specification
Ports Type	24×100Mbps PoE ports (RJ45) + 2×1000Mbps Combo ports
Switching capacity	8.8 Gbps
Packet Buffer	4 M bit
Forwarding performance	6.55Mpps
Power Supply	AC: 100 to 240V, 50/60Hz
MAC	16K
PoE Standard	IEEE 802.3af,IEEE 802.3 at
PoE Mode	ModeA (1236), ModeB (4578)
Max.PoE Power	Max capacity:370W Max capacity for single port: 30W
Prior Ports	1 to 8
Standards	IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Cooling Fans	1
Max.Power	390W
Operating Temperature	0°C to 45°C (32°F to 113°F)
Operating Humidity	10% to 90% (noncondensing)
Indicator	POWER: Steady on: AC input is normal Off: No AC input PoE: Off: No PoE power supply Steady on: PoE power supply is normal PoE-MAX： off ：The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data
Dimensions (W×D×H)	44024544mm
Weight	2.90KG
Working Mode	Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports
Compliance
NDAA Compliant	Support
