| CAB-LC3100B-E1-CCA-IN | ||||||||
| Cable | ||||||||
| Product model | CAB-LC3100B-E1-CCA-IN | |||||||
| Test Standard | None | |||||||
| Packing length | 305±1 m | |||||||
| Rip-cord | Yes | |||||||
| Seperator | Yes | |||||||
| Ambient temperature | -20℃~75℃ | |||||||
| Conductor | ||||||||
| Material | CCA (copper content 19%-23%) | |||||||
| AWG | 24 | |||||||
| Nom.O.D.(mm) | 0.50±0.01 mm | |||||||
| Insulation | ||||||||
| Material | HDPE | |||||||
| Diameter | 0.87±0.03 mm | |||||||
| Color | Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown | |||||||
| Sheath | ||||||||
| Material | PVC | |||||||
| External O.D. | 5.2±0.4 mm | |||||||
| Thickness | 0.45±0.05 mm | |||||||
| Color | White | |||||||
| Surface Printing | ||||||||
| Letter height | 3.0±0.3 mm | |||||||
| Print error / Space  | 1±0.005 m | |||||||
| Color | Black | |||||||
| Packing | ||||||||
| Packing | Pallet | |||||||
| Once packing dimension | 420mm*205mm*420mm | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2025/9/19 13:38:53 | UNV CAB-LC3100B-E1-CCA-IN UTP Category 6 CCA Cables(0.50mm).pdf | English | Preview | Download A > |
| Class | Date | Title | Type | Download |

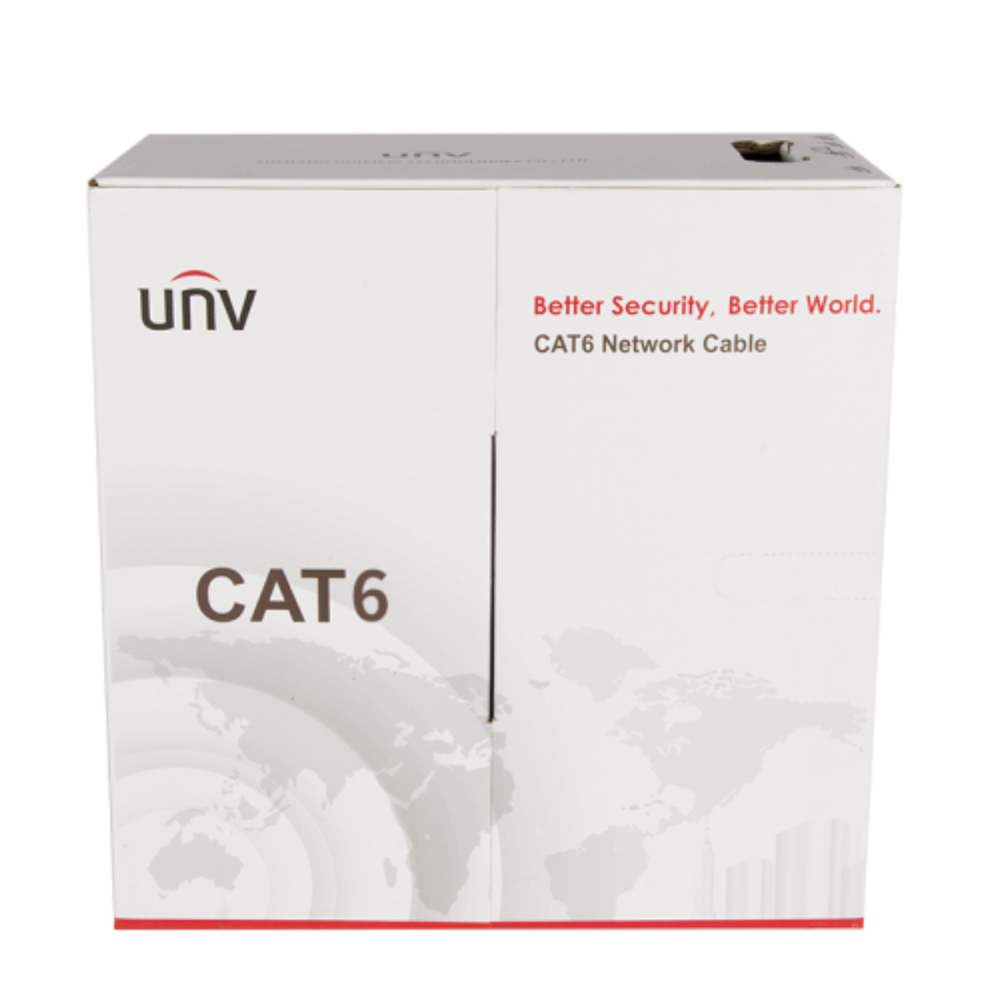

| HD Image | 2025/10/28 3:10:46 | CAB-LC3100B-E1-CCA-IN_HD_Image_1.png | png | Download |
