CAB-LC3100A-IN | ||||||||
Cable | ||||||||
Product model | CAB-LC3100A-IN | |||||||
Test Standard | ISO/IEC11801 ED.2 ANSI/TIA-568-C.2 | |||||||
Product specification | Cat6. U/UTP. 4×2×0.57mm | |||||||
Packing length | 305±1m | |||||||
Ambient temperature | -20℃~60℃ | |||||||
Rip-cord | Yes | |||||||
Crossing backbone | Yes | |||||||
Conductor | ||||||||
AWG | 23 | |||||||
Nom.O.D.(mm) | 0.57±0.005 mm | |||||||
DC resistance | ≤95 Ω/km | |||||||
Material | Solid-Bare Copper | |||||||
Insulation | ||||||||
Diameter | 1.02±0.05 mm | |||||||
Material | HDPE | |||||||
Thickness | 0.2±0.02 mm | |||||||
Color | Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown | |||||||
Pitch | ||||||||
Offset pitch | ≤20 mm | |||||||
Cable pitch | ≤120 mm | |||||||
Sheath | ||||||||
Material | PVC(complies RoHS/REAC) | |||||||
Thickness | 0.6±0.05 mm | |||||||
External O.D. | 6.2±0.3 mm | |||||||
Tensile strength | >13.5 Mpa | |||||||
Color | Blue(RAL5015) | |||||||
Surface Printing | ||||||||
Color | Black | |||||||
Letter height | 3.0±0.3 mm | |||||||
Print error / Space | 1±0.005 m | |||||||
Case number | Yes | |||||||
Packing | ||||||||

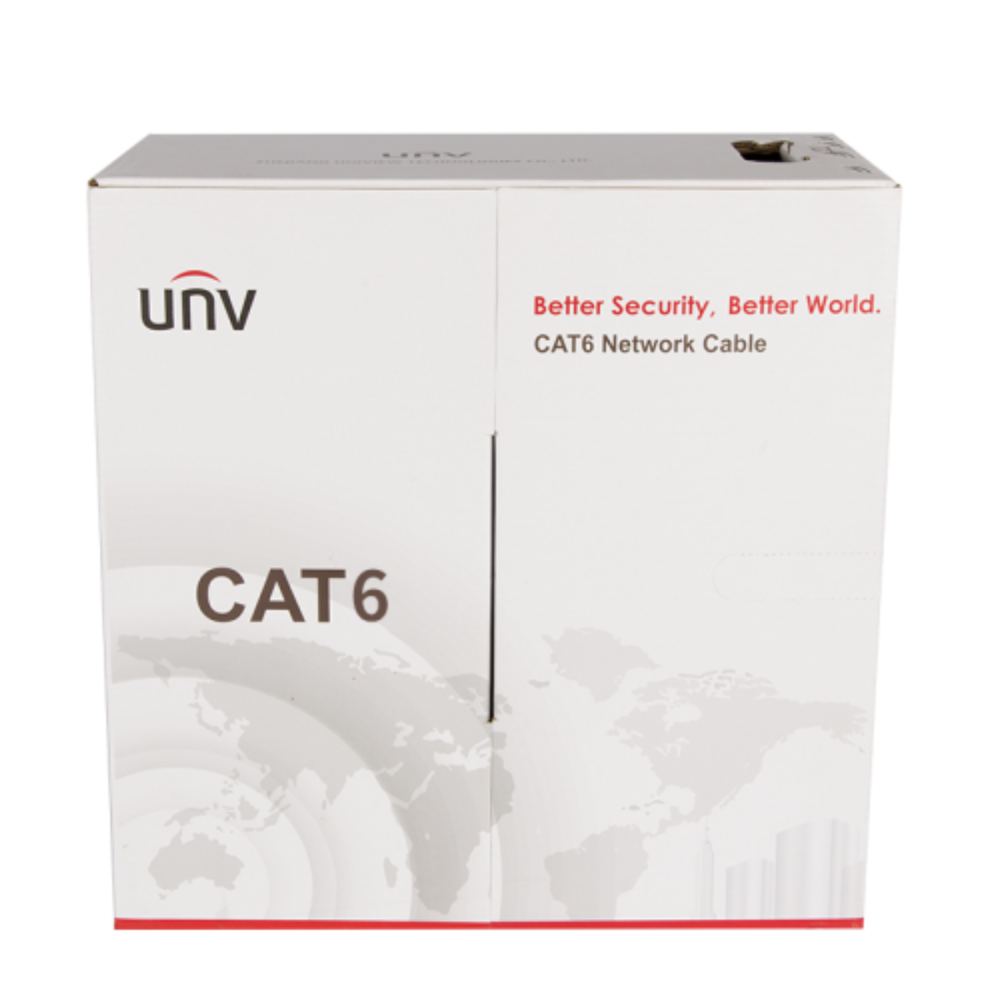

Packing | Carton | |||||||
Once packing dimension | 420mm*205mm*420mm | |||||||
Twice packing dimension | 450mm*440mm*445mm | |||||||
Twice packing quantity | 2 cases |
