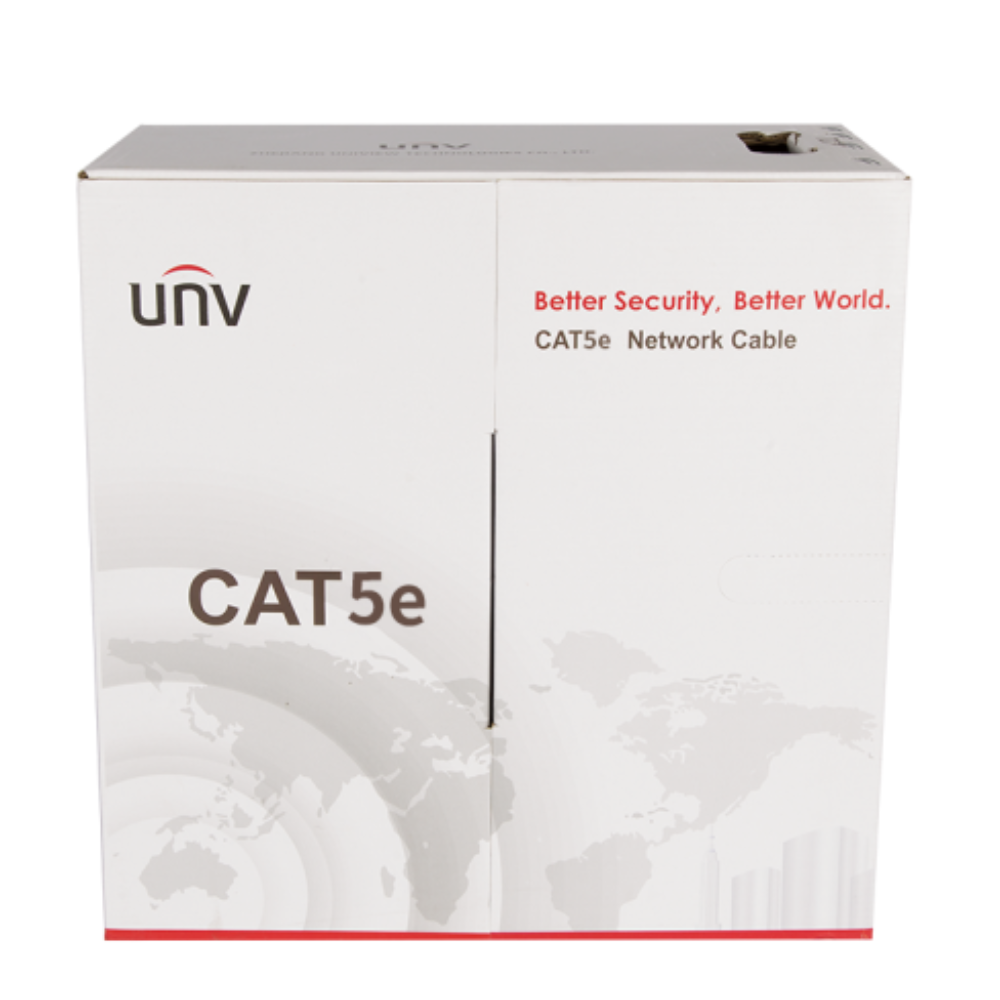

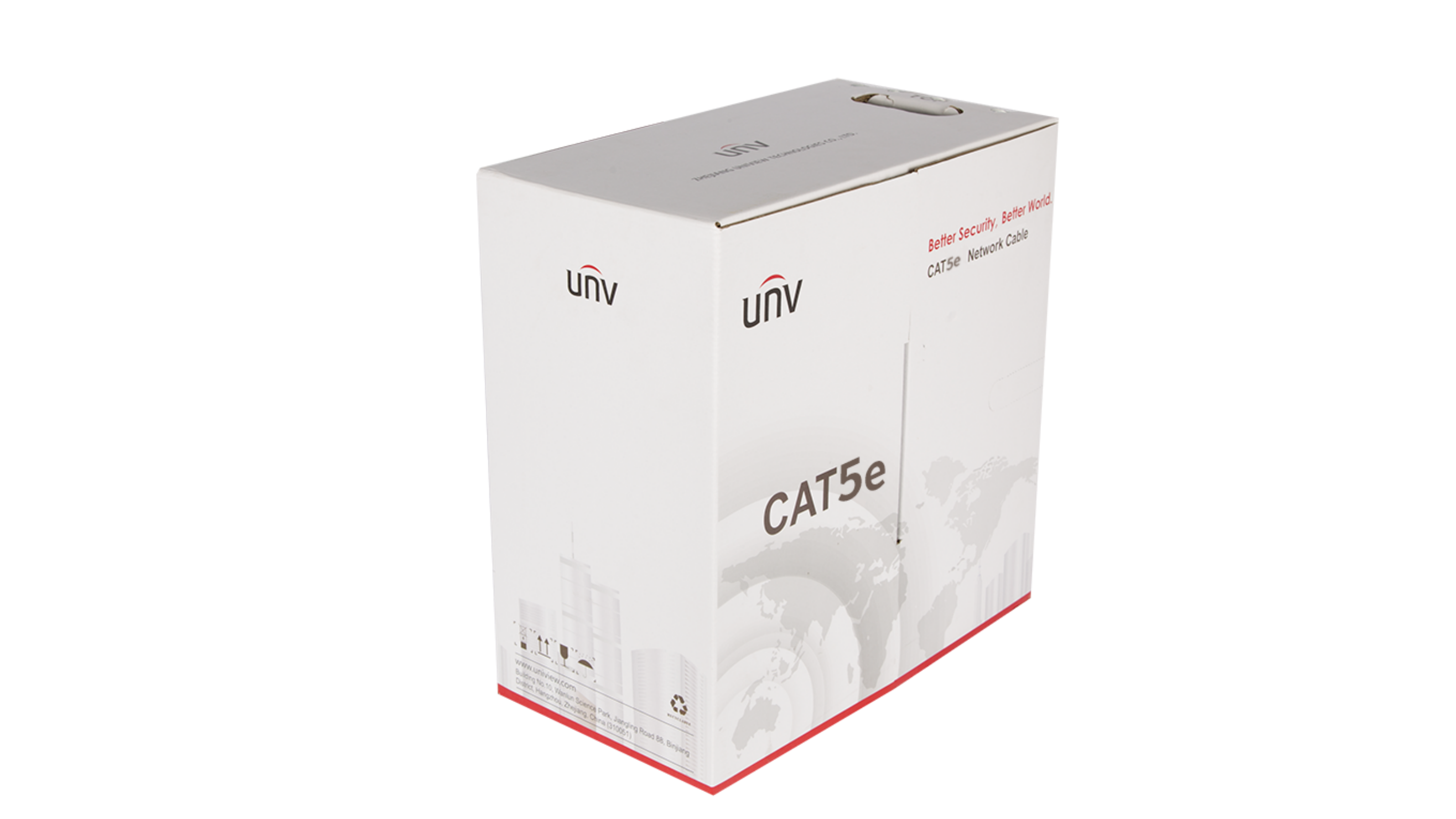

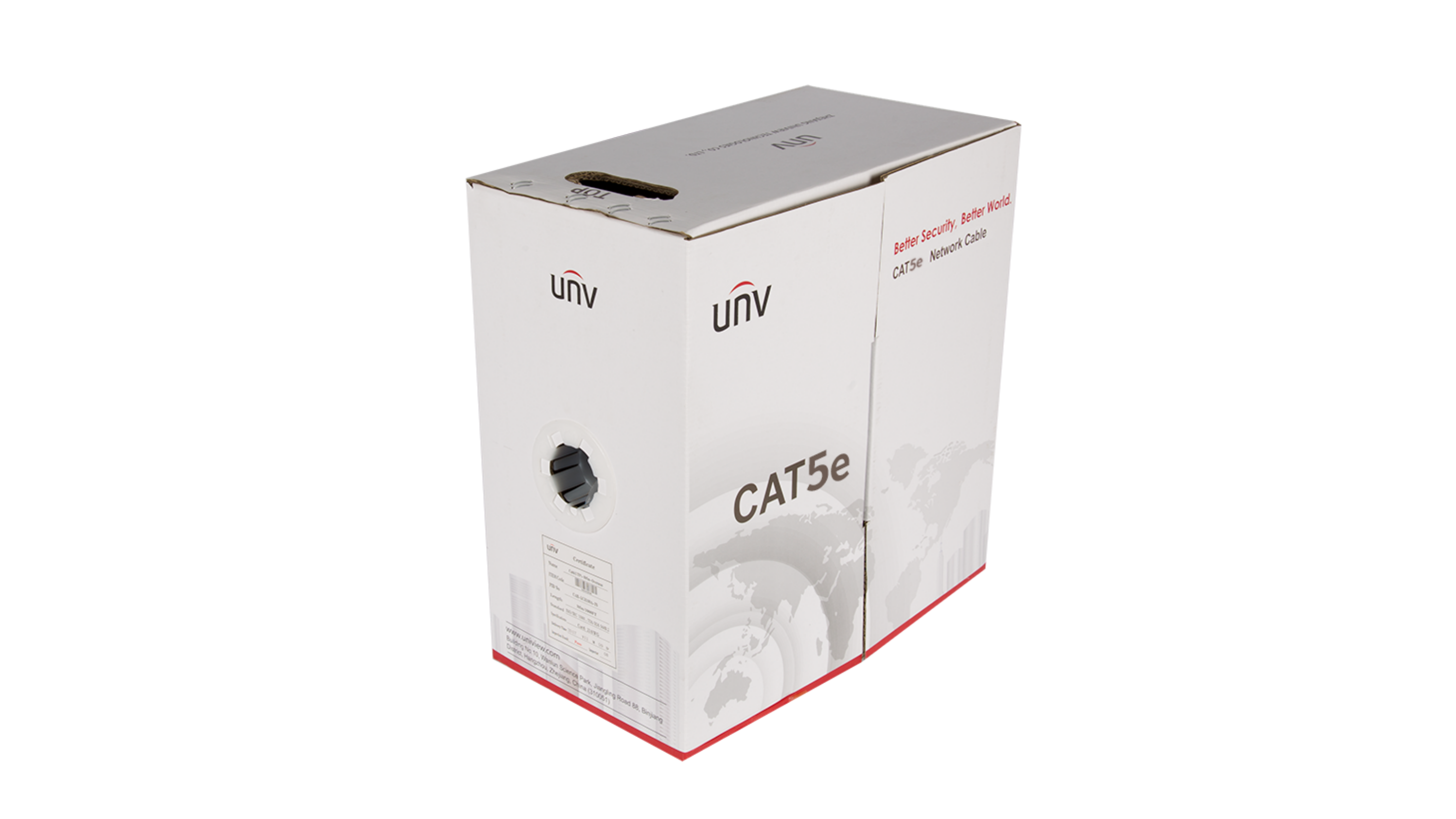

CAB-LC2100A-IN | ||||||||
Cable | ||||||||
Product model | CAB-LC2100A-IN | |||||||
Test Standard | YD/T1019-2013 | |||||||
Product specification | HSYV-5e 4×2×0.50 | |||||||
Packing length | 305±1 m | |||||||
Ambient temperature | -20℃~60℃ | |||||||
Rip-cord | Yes | |||||||
Conductor | ||||||||
Material | Solid-Bare Copper | |||||||
AWG | 24 | |||||||
Nom.O.D.(mm) | 0.5±0.005 mm | |||||||
DC resistance | ≤95 Ω/km | |||||||
Insulation | ||||||||
Diameter | 0.9±0.05 mm | |||||||
Material | HDPE | |||||||
Thickness | 0.2±0.02 mm | |||||||
Color | Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown | |||||||
Pitch | ||||||||
Offset pitch | ≤25 mm | |||||||
Cable pitch | ≤140 mm | |||||||
Sheath | ||||||||
Material | PVC(complies RoHS/REACH) | |||||||
Thickness | 0.55±0.05 mm | |||||||
External O.D. | 5.1±0.3 mm | |||||||
Tensile strength | >13.5 Mpa | |||||||
Color | Gray(RAL7046) | |||||||
Surface Printing | ||||||||
Color | Black | |||||||
Letter height | 3.0±0.3 mm | |||||||
Print error / Space | 1±0.005 m | |||||||
Case number | Yes | |||||||
Packing | ||||||||
Packing | Carton | |||||||
Once packing dimension | 350mm*216mm*350mm | |||||||
Twice packing dimension | 370mm*460mm*370mm | |||||||
Twice packing quantity | 2 cases |
