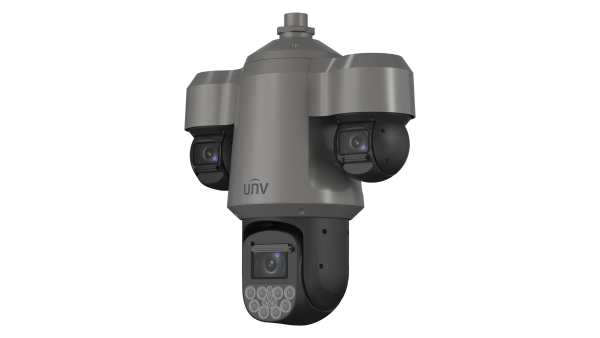

| | IPC98544EFW-X42-X25-W-VH |
| Channel | Channel 1 (Panorama) | Channel 2 (Panorama) | Channel 3 (Detail) |
| Camera |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0005lux (F1.5, AGC ON) IR: 0.0001lux (F1.5, AGC ON) |
| Max Resolution | 4 MP |
| WDR | 120 dB |
| Lens |
| Focal Length | 6 to 150 mm | 6 to 150 mm | 6 to 240 mm |
| Field of View (V) | 36.4° to 1.85° | 36.4° to 1.85° | 35.62° to 1.23° |
| Field of View (H) | 60.62° to 3.29° | 60.62° to 3.29° | 59.47° to 2.2° |
| Optical Zoom | 25X | 25X | 42X |
| DORI |
| DORI Distance (Lens) | 6 ~ 150 mm | 6 ~ 150 mm | 5.7 ~ 240 mm |
| DORI Distance (Detect) | 93.1 m to 2327.6 m (305.5 ft. to 7636.4 ft.) | 93.1 m to 2327.6 m (305.5 ft. to 7636.4 ft.) | 88.4 m to 3724.1 m (290.2 ft. to 12218.3 ft.) |
| DORI Distance (Observe) | 37.2 m to 931 m (122.2 ft. to 3054.6 ft.) | 37.2 m to 931 m (122.2 ft. to 3054.6 ft.) | 35.4 m to 1489.7 m (116.1 ft. to 4887.3 ft.) |
| DORI Distance (Recognize) | 18.6 m to 465.5 m (61.1 ft. to 1527.3 ft.) | 18.6 m to 465.5 m (61.1 ft. to 1527.3 ft.) | 17.7 m to 744.8 m (58 ft. to 2443.7 ft.) |
| DORI Distance (Identify) | 9.3 m to 232.8 m (30.5 ft. to 763.6 ft.) | 9.3 m to 232.8 m (30.5 ft. to 763.6 ft.) | 8.8 m to 372.4 m (29 ft. to 1221.8 ft.) |
| Illuminator |
| Light On/Off Control | Auto/Manual |
| Illumination Distance | IR : 150m (492.13 ft.) | IR : 150m (492.13 ft.) | WH : 80m (262.47 ft.) IR : 500m (1640.42 ft.)
|
| Video |
| U-code | Support |
| ROI | Up to 8 areas |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 4 MP (2688 × 1520), max. 30 fps Sub Stream: 1080P (1920 × 1080), max. 30 fps Third Stream: D1 (720 × 576), max. 30 fps |
| OSD | Up to 10 OSDs |
| Audio |
| Audio Compression | G.711A, G.711U | G.711U, G.711A | G.711U, G.711A |
| Sampling Rate | 8 kHz, 16 kHz |
| Storage |
| Edge Storage | MicroSD, up to 512 GB |
| Network |
| Protocols | IGMP, SMTP, IPv6, ICMP, ARP, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, 802.1x, SNMP, SSL/TLS, SSH, IPv4, RTP, RTCP, RTMP, HTTPS, FTP, QoS | IGMP, SMTP, IPv6, ICMP, ARP, TCP, UDP, DHCP, RTSP, DNS, DDNS, UPnP, NTP, HTTP, 802.1x, SNMP, QoS, SSL/TLS, SSH, RTCP, IPv4, RTP, RTMP, HTTPS, FTP | IGMP, SMTP, IPv6, ICMP, ARP, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, 802.1x, SNMP, QoS, SSL/TLS, SSH, IPv4, RTP, RTCP, RTMP, FTP, HTTPS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | SDK, API, ONVIF (Profile S, Profile G, Profile T, Profile M) | SDK, API, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| Security | TLS 1.3, Password protection, Strong Password, HTTPS encryption, Export operation logs, Basic and Digest Authentication for RTSP, TLS 1.2, Digest SHA256 Authentication for HTTP, WSSE and Digest Authentication for ONVIF | TLS 1.3, Password protection, Strong Password, HTTPS encryption, Export operation logs, TLS 1.2, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF, Basic and Digest Authentication for RTSP | TLS 1.2, TLS 1.3, Password protection, HTTPS encryption, Basic and Digest Authentication for RTSP, WSSE and Digest Authentication for ONVIF, Digest Authentication for HTTP, Digest SHA256 Authentication for HTTP, Strong Password |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| PTZ |
| Pan Range | -10° ~ 190° | -10° ~ 190° | 360° |
| Pan Speed | 0.1°/s ~ 80°/s | 0.1°/s ~ 80°/s | 0.1°/s ~ 180°/s |
| Tilt Range | -9° ~ 90° | -9° ~ 90° | -15° ~ 90° |
| Tilt Speed | 0.1°/s ~ 80°/s | 0.1°/s ~ 80°/s | 0.1°/s ~ 180°/s |
| Number of Presets (IPC) | 1024 |
| Live View |
| Maximum Bitstream | 35 |
| Maximum Bandwidth | 50 Mbps |
| General |
| Power | DC48V±25% |
| Power Consumption | Max. 88 W |
| Dimensions | 523mm*270mm*630mm |
| Weight | 14.41Kg |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Interface |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 7/2 |
| Serial Port | 1 × RS485 |
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet |
