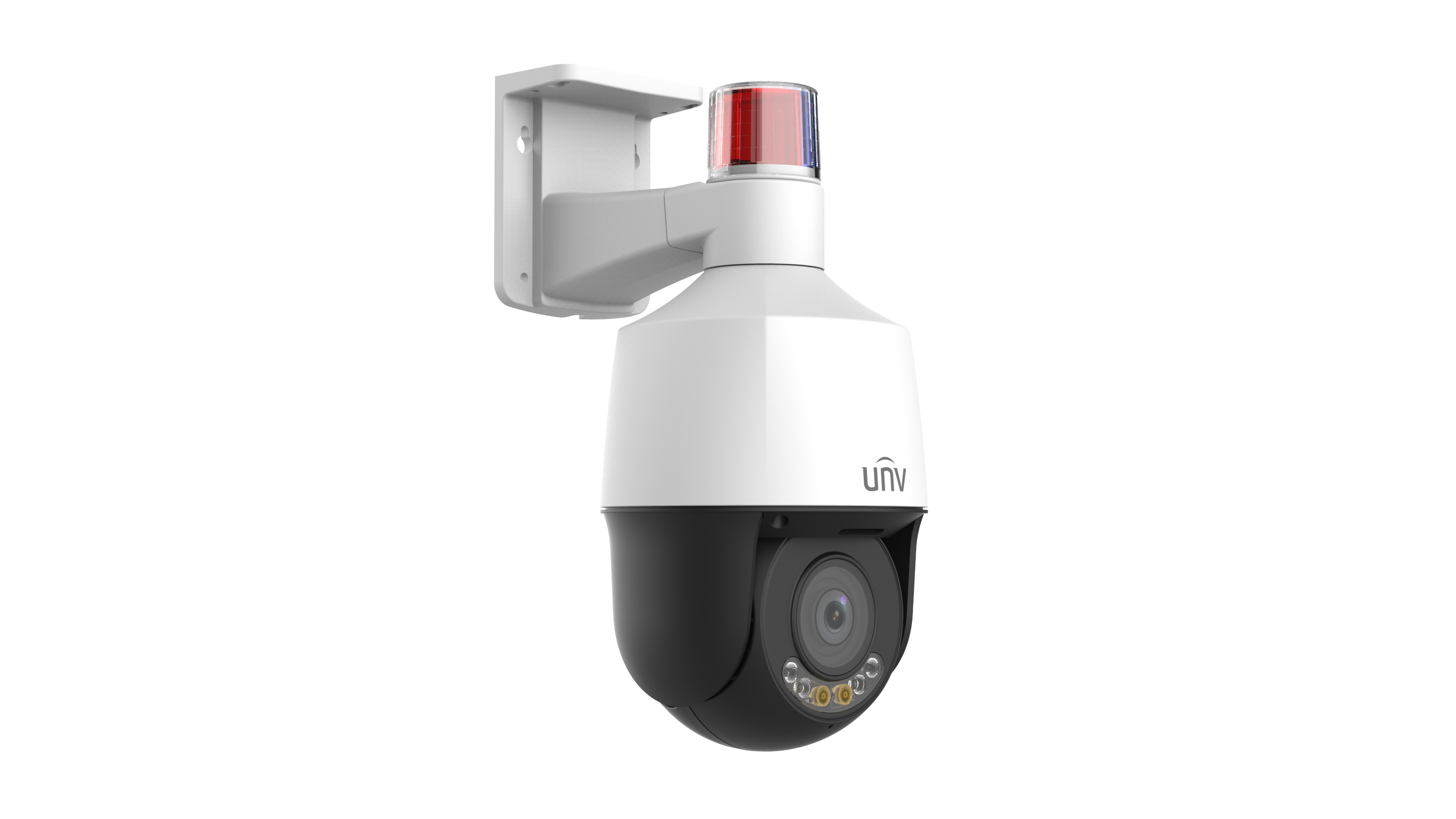

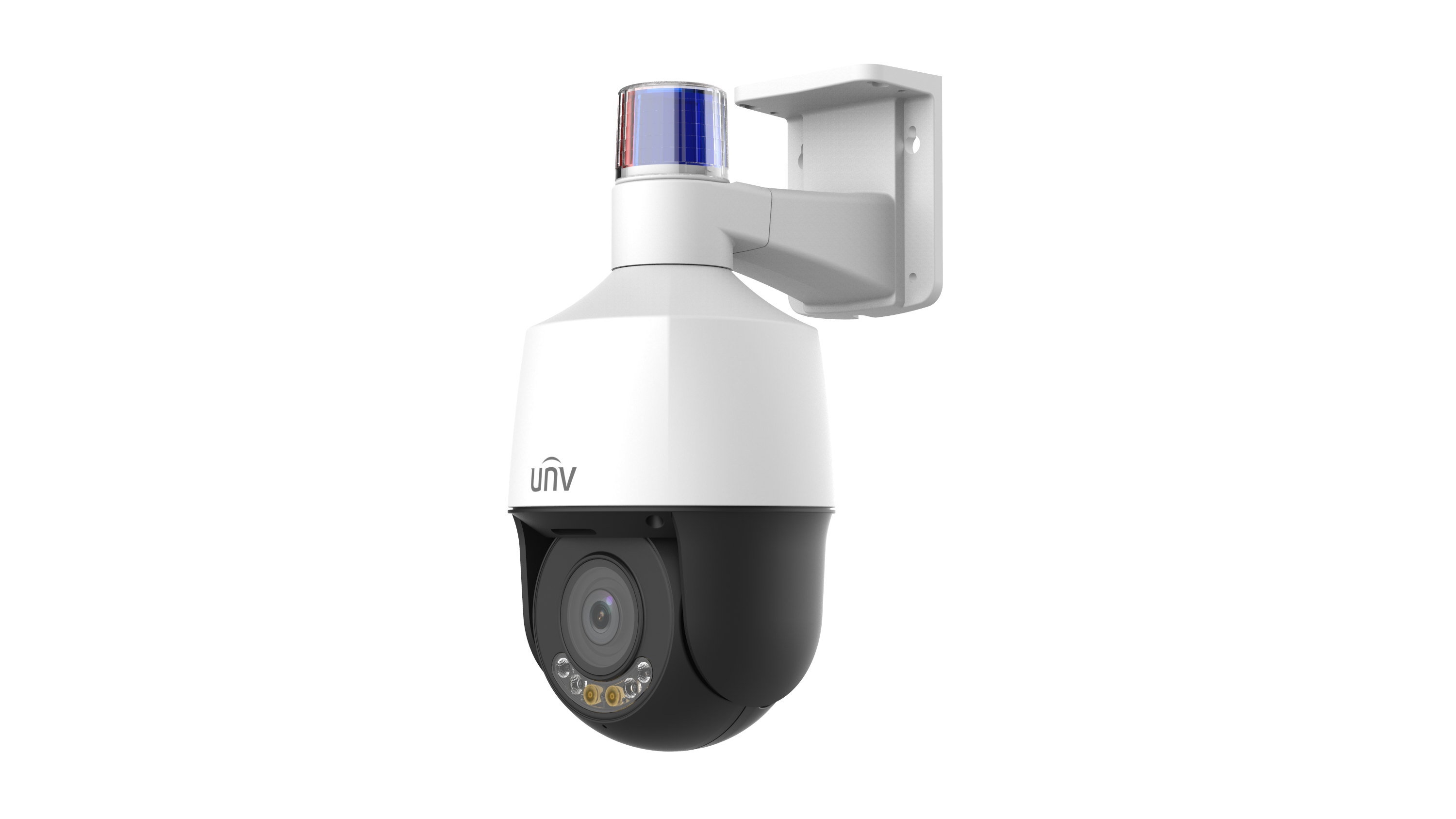

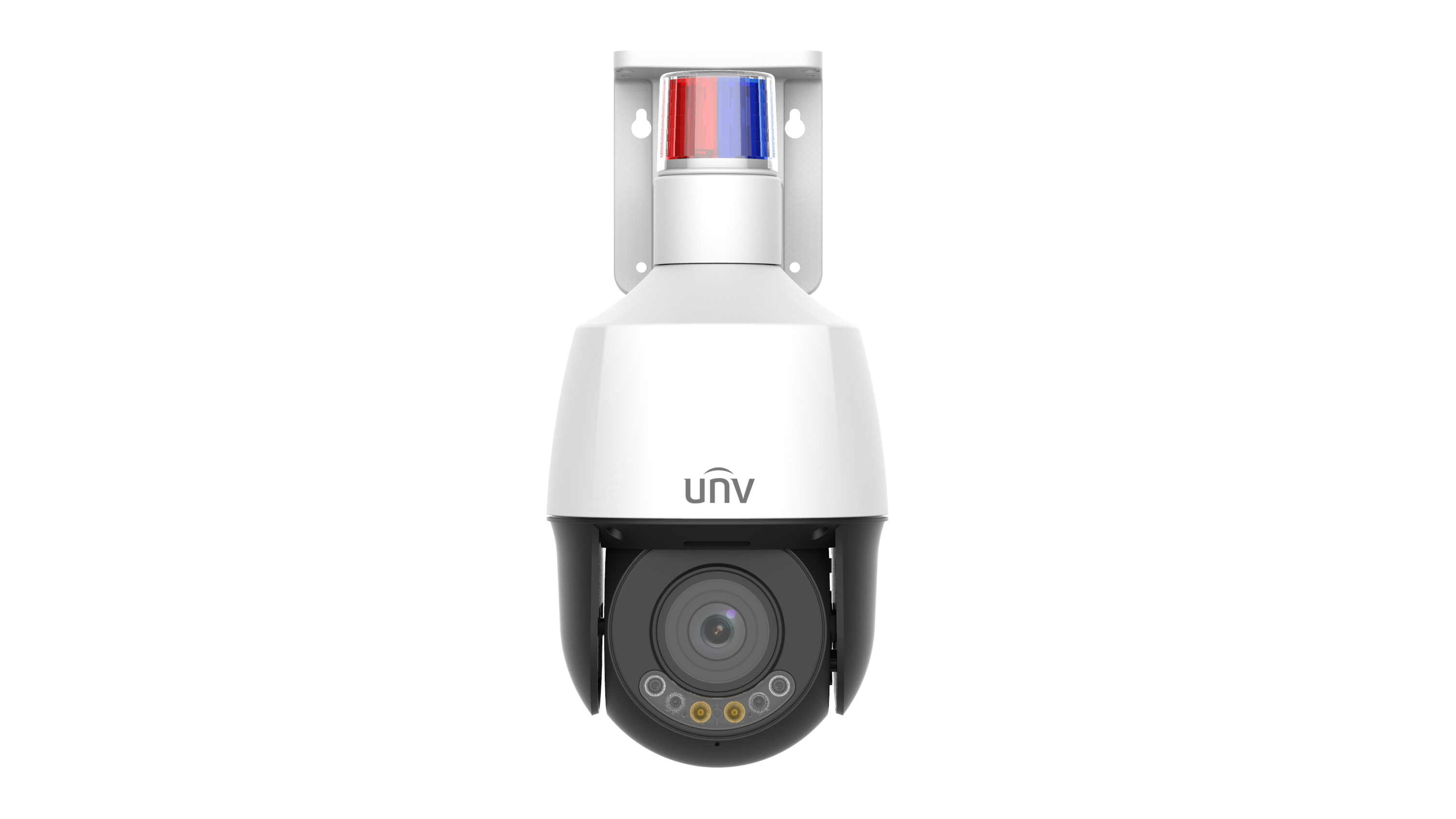

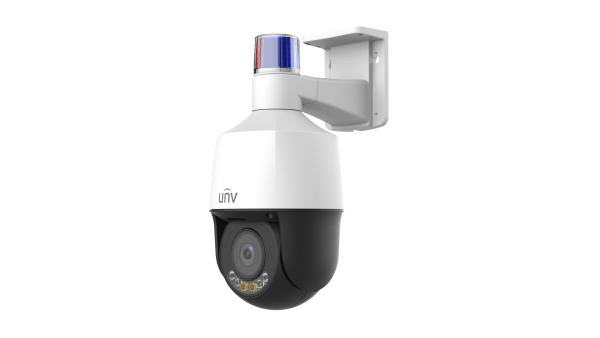

IPC6322LFW-AX5C-VG | ||||||||
Camera | ||||||||
Max Resolution | 2 MP | |||||||
Sensor | 1/2.8" CMOS | |||||||
Min. Illumination | Color: 0.003 Lux (F1.2, AGC ON), 0 Lux with IR on | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
WDR | 120 dB | |||||||
S/N | >52 dB | |||||||
Lens | ||||||||
Focal Length | 2.7 to 13.5 mm | |||||||
Optical Zoom | 5X | |||||||
Iris | F1.2 | |||||||
Field of View (H) | 105.2° to 29.32° | |||||||
Field of View (V) | 52.6° to 16.38° | |||||||
Field of View (D) | 136.8° to 36.1° | |||||||
DORI | ||||||||
DORI Distance (Detect) | 48.9 m to 170.7 m (160.4 ft. to 560.0 ft) | |||||||
DORI Distance (Observe) | 19.6 m to 68.3 m (64.4 ft. to 224 ft) | |||||||
DORI Distance (Recognize) | 9.8 m to 34.1 m (32.1 ft. to 112 ft) | |||||||
DORI Distance (Identify) | 4.9 m to 17.1 m (16.1 ft. to 56.1 ft) | |||||||
Illuminator | ||||||||
Illumination Distance (Warm Light) | 15 m (49.2 ft) | |||||||
Light On/Off Control | Auto/Manual | |||||||
Illumination Distance (IR) | 50 m (164.0 ft) | |||||||
Wavelength | 850 nm | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
Frame Rate | Main Stream: 1080P (1920 × 1080), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps Third Stream: D1 (720 × 576), max. 30 fps | |||||||
Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
U-code | Support | |||||||
ROI | Support | |||||||
Video Stream | Triple streams | |||||||
Privacy Mask | Up to 4 areas | |||||||
OSD | Up to 8 OSDs | |||||||
Events | ||||||||
Basic Detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection | |||||||
General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 128 Kbps | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 16KHZ | |||||||
Storage | ||||||||
Edge Storage | MicroSD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Intelligent | ||||||||
Exception Detection | Object removed, Object Left Behind, Scene change, Defocus detection | |||||||
Auto Tracking | Support, target filtering: human only | |||||||
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
People Counting | Support people flow counting and crowd density monitoring | |||||||
Network | ||||||||
Protocols | TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
Web Browser | Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above | |||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Smart IR | Support | |||||||
Defog | Digital defog | |||||||
PTZ | ||||||||
Number of Presets | 1024 | |||||||
Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
Patrol Stay Time | 120 s to 1800 s | |||||||
Home Position | Support | |||||||
Pan Range | 0° to 345° | |||||||
Pan Speed | 1°/s to 50°/s | |||||||
Tilt Range | -10° to 100° | |||||||
Tilt Speed | 1°/s to 40°/s | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
Alarm I/O | 1/1 | |||||||
Built-in Mic | Support | |||||||
Built-in Speaker | Support | |||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032: 2015+A11: 2020+A1: 2020, EN 50130-4: 2011+A1: 2014, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021) | |||||||
Safety | CE LVD (EN 62368-1: 2020+A11: 2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||||||
Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
General | ||||||||
Power | DC 12 V (±25%), PoE (IEEE 802.3at) | |||||||
Power Consumption | 18 W | |||||||
Power Interface | Ø5.5 mm coaxial power plug | |||||||
Dimensions | 185 mm × 133 mm × 286 mm (7.3" × 5.2" × 11.3") (L × W × H) | |||||||
Weight | 1.32 kg (2.91 lb) | |||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
Storage Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||||||
Surge Protection | 2 KV | |||||||
Reset Button | Support | |||||||
Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
Heater | Support |
