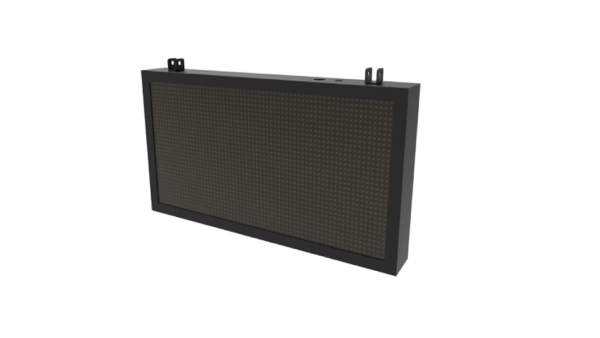

| PKS2501-RG | ||||||||
| Module | ||||||||
| Pixel Pitch | 4.75mm | |||||||
| Module Resolution (W × H) | 64*32 | |||||||
| Display Parameters | ||||||||
| Display size | 64*32 | |||||||
| Display character | Numbers, letters, symbols | |||||||
| Display color | Red, green, yellow | |||||||
| Processing Image | ||||||||
| Brightness (nits) | 1500 | |||||||
| Color Temperature (K) | 4500~5500K | |||||||
| Processing performance | ||||||||
| Scanning Mode (S) | 16S | |||||||
| Drive Mode | Constant current | |||||||
| Refresh Rate (Hz) | 1920 | |||||||
| Interface | ||||||||
| Network interface | 100M*1 | |||||||
| Serial port | RS485*1 | |||||||
| Electrical | ||||||||
| Power Supply | AC100 ~ 240V | |||||||
| General | ||||||||
| Product Dimensions (W × H × D) (mm) | 528*306*65 | |||||||
| Ingress Protection | IP31 | |||||||
| Operating Temperature | -20℃~50℃ | |||||||
| Operating Humidity | 10% ~ 95% RH (no condensation) | |||||||
| Accessories Included | Hanging rod *2, Key*2, Quick guide*1 | |||||||
