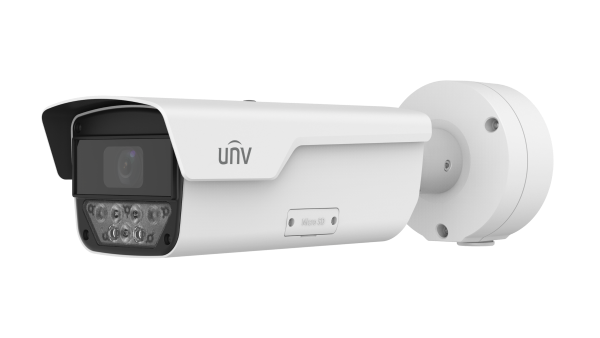

| PKC1540-Z28-P | ||||||||
| Camera | ||||||||
| Sensor | 1/1.8" 4MP CMOS | |||||||
| Focal length | 2.8mm ~ 12mm | |||||||
| Shutter | 1/100000 to 1/30s | |||||||
| Lens type | Zoom lens | |||||||
| Iris | F1.4 ~ F2.15 | |||||||
| Display Parameters | ||||||||
| Resolution | Main stream: 2688*1520, 1080P, 720P, D1 Sub stream: 1080P, 720P, D1, 2CIF, CIF | |||||||
| Image | ||||||||
| Frame rate | 30, 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1 | |||||||
| Video compression | H.264 (default), H.265 | |||||||
| ROI | Support, up to 8 areas | |||||||
| Video OSD | Supports custom OSD on live view and image | |||||||
| Image OSD | Supports custom OSD on live view and image | |||||||
| Smart | ||||||||
| Application scenario | Parking Space Statistics Mode: Parking space counting, Illegal vehicle parking detection, Vehicle congestion detection License Plate Recognition Mode: License plate recognition, Parking space occupancy/vacancy detection, Cross-parking violation alert | |||||||
| Parking space detection | Parking Space Statistics Mode: Supports detection of up to 50 parking spaces. License Plate Recognition Mode: Supports license plate recognition for up to 4 parking spaces. | |||||||
| Interface | ||||||||
| Network interface | 1 × 100M/10M adaptive Ethernet copper port | |||||||
| Serial port | 2 × RS485 | |||||||
| Boolean output | 2 × alarm output | |||||||
| Boolean input | 2 × alarm input | |||||||
| Audio interface | 1 × Line Input, 1 × Line Output | |||||||
| Structure | ||||||||
| Mount method | Rear-mounted tri-axis installation with standard concealed wiring box. | |||||||
| Fill Light | 4 white LED fill lights | |||||||
| General | ||||||||
| Power supply | DC 12V ±25%, PoE (802.3at) | |||||||
| Weight | 1.87KG | |||||||
| Ingress protection | IP67 | |||||||
| Dimensions (L×W×H) | 406*125*130mm | |||||||
| Operating environment | -30℃ ~ 60℃; ≤90% RH | |||||||
| Compliance | ||||||||
| NDAA Compliant | Support | |||||||
