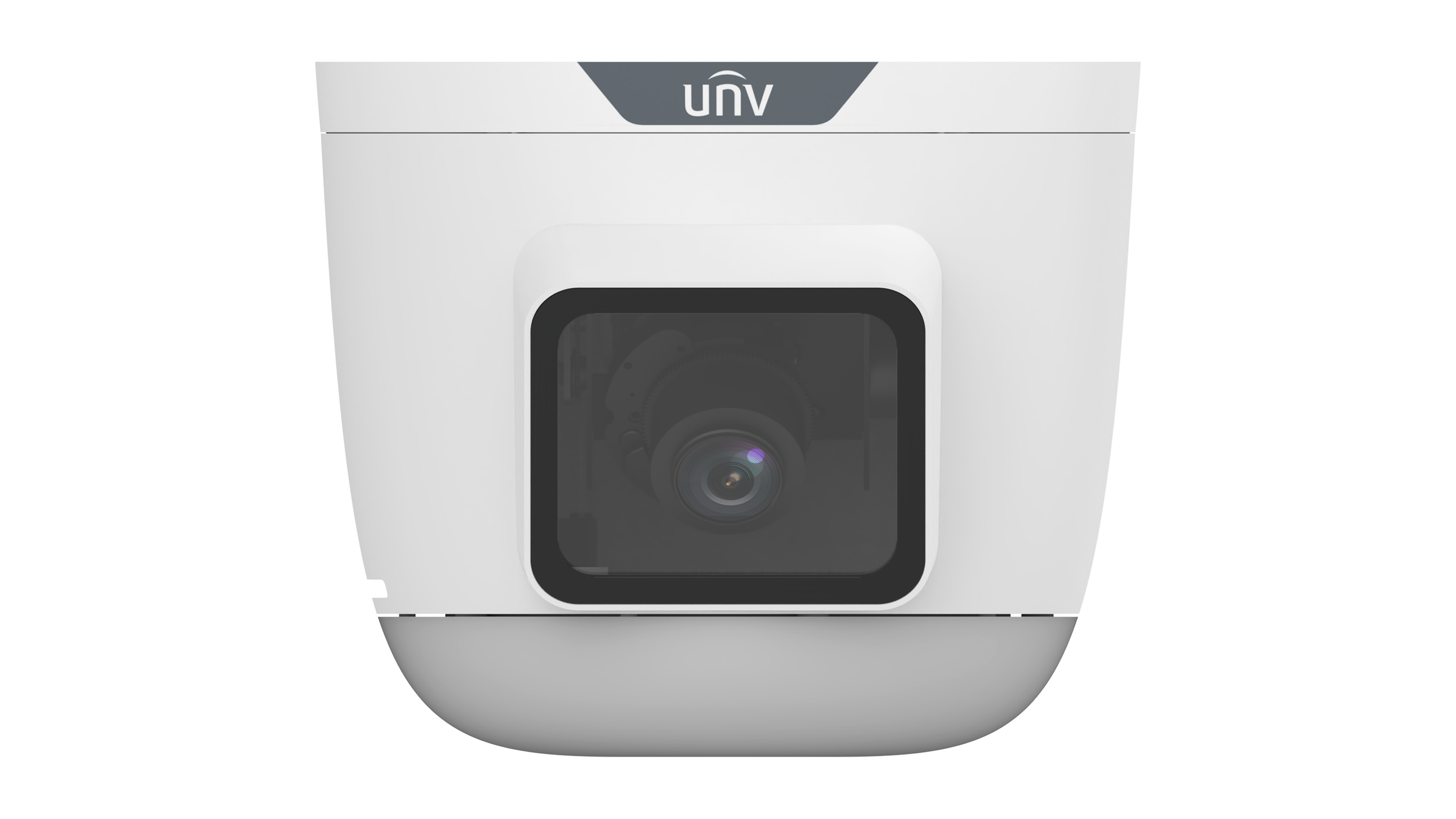

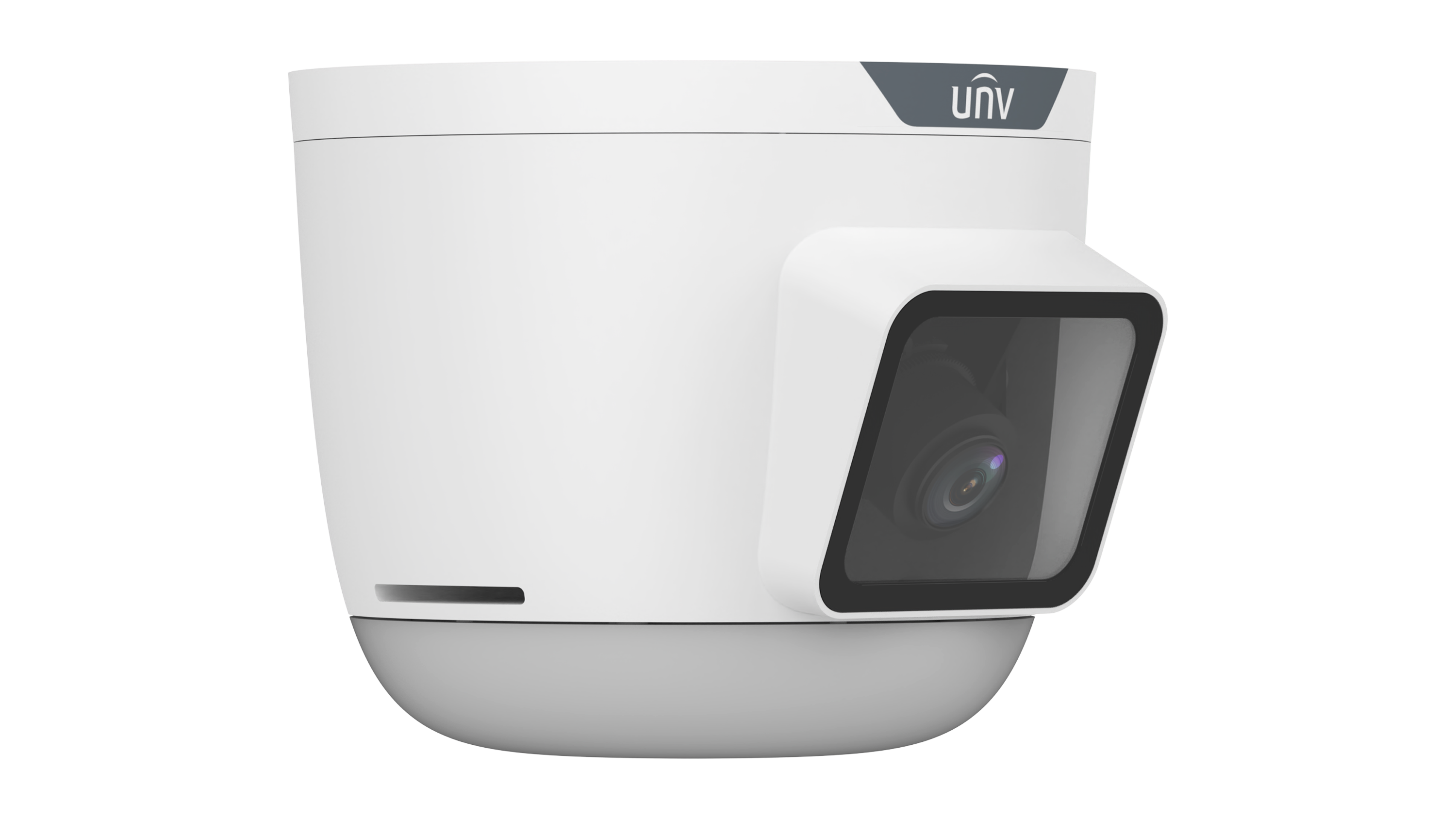

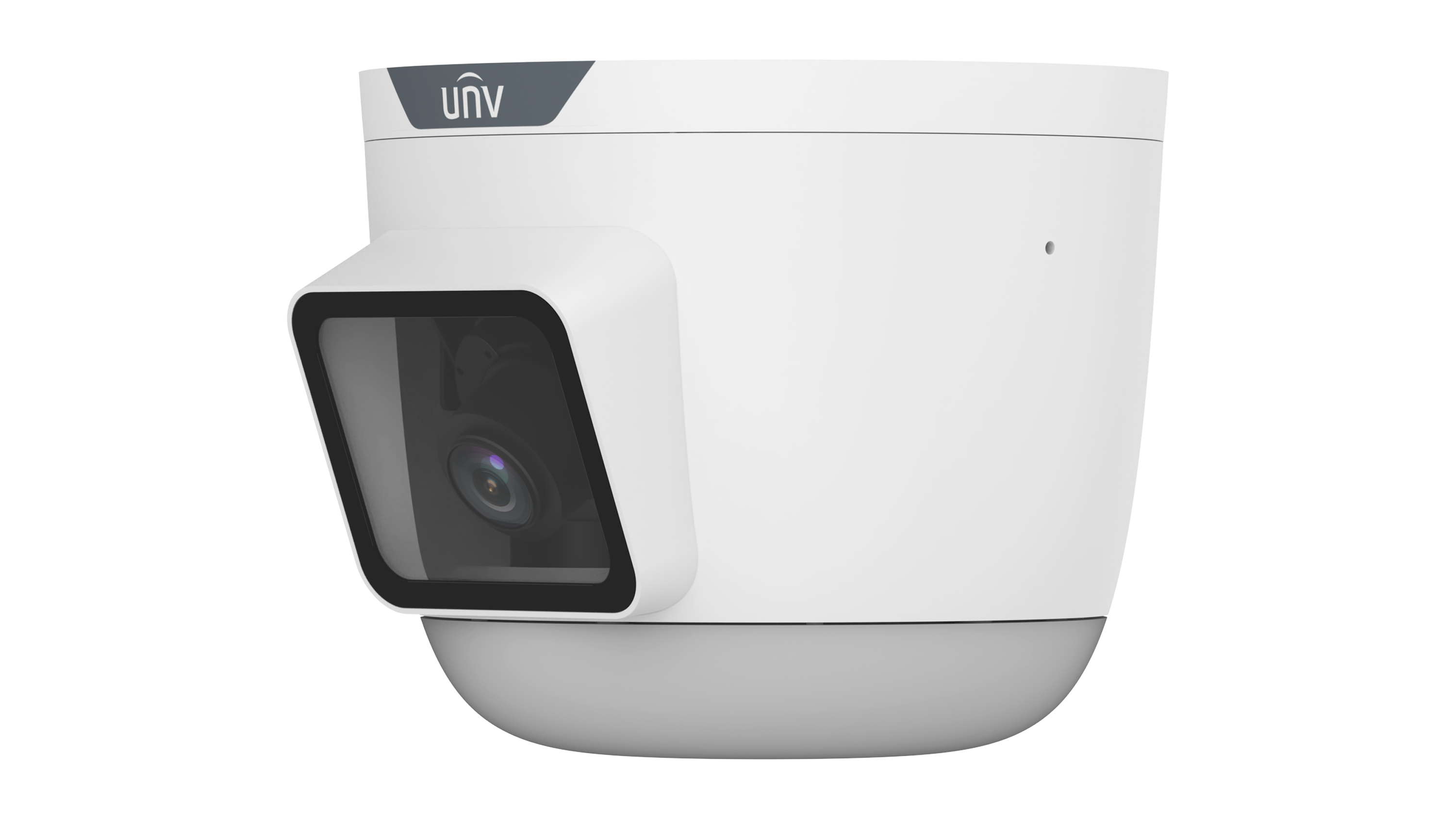

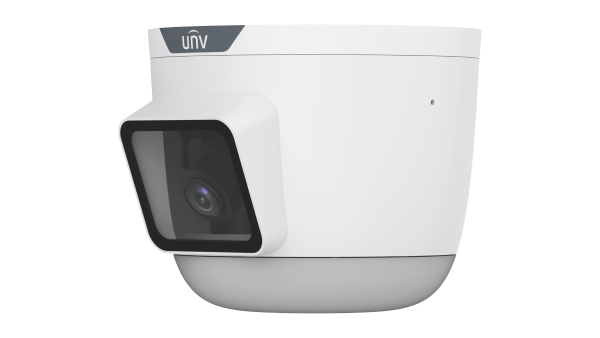

PKC1150@4-Z28-C-P | ||||||||
Camera | ||||||||
Sensor | 1/2.7" 5MP CMOS | |||||||
Focal length | 2.8mm to 12mm zoom lens | |||||||
Shutter | 1/100000 to 1/25s | |||||||
Lens type | zoom lens | |||||||
Minimum illumination | 0.002lux (F1.35-F2.68) | |||||||
FOV | Horizontal FOV: 107.8° to 33.8°, Vertical FOV: 55.9° to 17.6°, Diagonal FOV: 129.4° to 42.4° | |||||||
Image | ||||||||
Resolution | Main stream: 2880*1620, 2304*1296, 1080P, 720P; Sub stream: 1080P, 720P, D1, 2CIF, CIF; Third stream: D1, 2CIF, CIF | |||||||
Frame rate | 30, 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1 | |||||||
Video compression | H.264 (default), H.265 | |||||||
ROI | Support, up to 8 areas | |||||||
Video OSD | Supports customized OSD on live view and photo | |||||||
Image OSD | Supports customized OSD on live view and photo | |||||||
Privacy mask | Support, up to 4 areas | |||||||
Interface | ||||||||
Network interface | 1 x 10M/100M adaptive Ethernet electrical interface | |||||||
Serial port | 1 xRS485 | |||||||
Boolean output | 1 x alarm output | |||||||
Boolean input | 2 x alarm input | |||||||
Built-in mic | Support | |||||||
Built-in speaker | Support | |||||||
Service Config | ||||||||
Third-party server | Two photo servers via HTTP, VIID, and FTP protocols; MQTT server via MQTT protocol | |||||||
Smart | ||||||||
Parking space detection | Supports 4 parking space detection and 4 plate recognition | |||||||
Parking space detection rate | 99.5% | |||||||
Structure | ||||||||
Dimensions (D x W x H) | 152mm x 167mm x 128mm | |||||||
Indicator | 7-color LED indicator, displays the parking space status | |||||||
Electric PTZ | Pan range: -10° to -35° | |||||||
Mount method | Adapter panel | |||||||
General | ||||||||
Power supply | DC 12V±25%, PoE (802.3af), supports 12V 100mA power backfeed | |||||||
Weight | 0.9kg | |||||||
Operating environment | -30°C to 60°C | |||||||
Ingress protection | IP66 |
