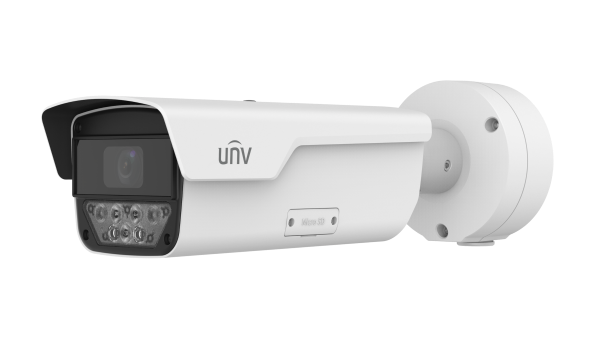

| PKC2650S-Z28-WH-P | ||||||||
| Camera | ||||||||
| Sensor | 1/2.7 inch 5MP CMOS | |||||||
| Focal length | 2.8 to 12mm | |||||||
| Shutter | Auto/Manual, range: 1/25 to 1/100000s | |||||||
| Minimum illumination | 0.001lux (F1.6) | |||||||
| FOV | Horizontal FOV: 107.6° to 57.8°, Vertical FOV: 57.8° to 21.3°, Diagonal FOV: 128.3° to 42.9° | |||||||
| WDR | 120 dB | |||||||
| Image | ||||||||
| Image collection format | 2880*1620@30(default), 2880*1620@25, 1920*1080@60,1920*1080@50 | |||||||
| Frame rate | 60, 50, 30 , 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1 | |||||||
| Video compression | H.264 (default), H.265 | |||||||
| ROI | Supports up to 8 regions | |||||||
| Video OSD | Supports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents | |||||||
| Image OSD | Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location | |||||||
| Display Parameters | ||||||||
| Resolution | Main stream: 2880*1620, 1080P, 720P, D1; Sub stream: 720P (default), D1, 2CIF, CIF; Third stream: D1 (default), 2CIF, CIF | |||||||
| Smart | ||||||||
| Vehicle detection mode | Supports video detection | |||||||
| License plate number recognition | Supports recognition of license plates with numbers and letters by default | |||||||
| List configuration | Supports allowlist and blocklist configuration, each list allows 10,000 items Supports import, export, add, and delete operations | |||||||
| Barrier opening policy | Open barrier only for the recognized vehicles Open barrier for all vehicles Open barrier only for vehicles on the allowlist Open barrier for vehicles not on the blocklist Configurable Boolean output ID | |||||||
| Storage | ||||||||
| Edge storage | Supports ANR with a Micro SD card, up to 512GB | |||||||
| Structure | ||||||||
| Illumination | Built-in integrated illumination module, including 4 WarmLight LEDs, 50m illumination distance, automatic on/off control | |||||||
| Bracket | 3-axis mounting bracket | |||||||
| Junction box | The camera comes with a junction box for storing tail cable | |||||||
| Network | ||||||||
| Protocols | IGMP,IPv6,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTSP,DNS,DDNS,NTP,UPnP,HTTP,HTTPS,802.1x,SNMP,QoS,SSL/TLS,SSH,IPv4 | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T),SDK, API | |||||||
| Interface | ||||||||
| Network interface | 1×10M/100M RJ45 | |||||||
| Serial port | 1 × RS485 | |||||||
| Boolean output | 1 x output | |||||||
| Boolean input | 1 x input | |||||||
| Audio interface | 1 × audio input, 1 × audio output | |||||||
| Storage interface | 1 × Micro SD card slot | |||||||
| Reset button | Support | |||||||
| General | ||||||||
| Weight | 1.42kg | |||||||
| Ingress protection | IP67, IK10 | |||||||
| Power supply | DC12V + 25% - 10% Max. Supports PoE (802.3at, class 4) | |||||||
| Dimensions (L×W×H) | 262mm*125mm*101mm | |||||||
| Operating environment | -40℃ to 60℃, ≤90% RH | |||||||
| Heater | N/A | |||||||
| Compliance | ||||||||
| NDAA Compliant | Support | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032:2015+A11:2020+A1:2020,EN 61000-3-3:2013+A1:2019+A2:2021,EN IEC 61000-3-2:2019+A1:2021, EN 50130-4:2011+A1:2014) FCC(FCC CFR 47 part15 B,ANSI C63.4 2014) | |||||||
| Safety | EN IEC 62368-1:2020+A11:2020 UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863);WEEE (2012/19/EU) | |||||||
| Protection | IP67(IEC60529:1989+AMD1:1999+AMD2:2013) IK10(IEC 62262:2002+AMD1:2021) | |||||||
