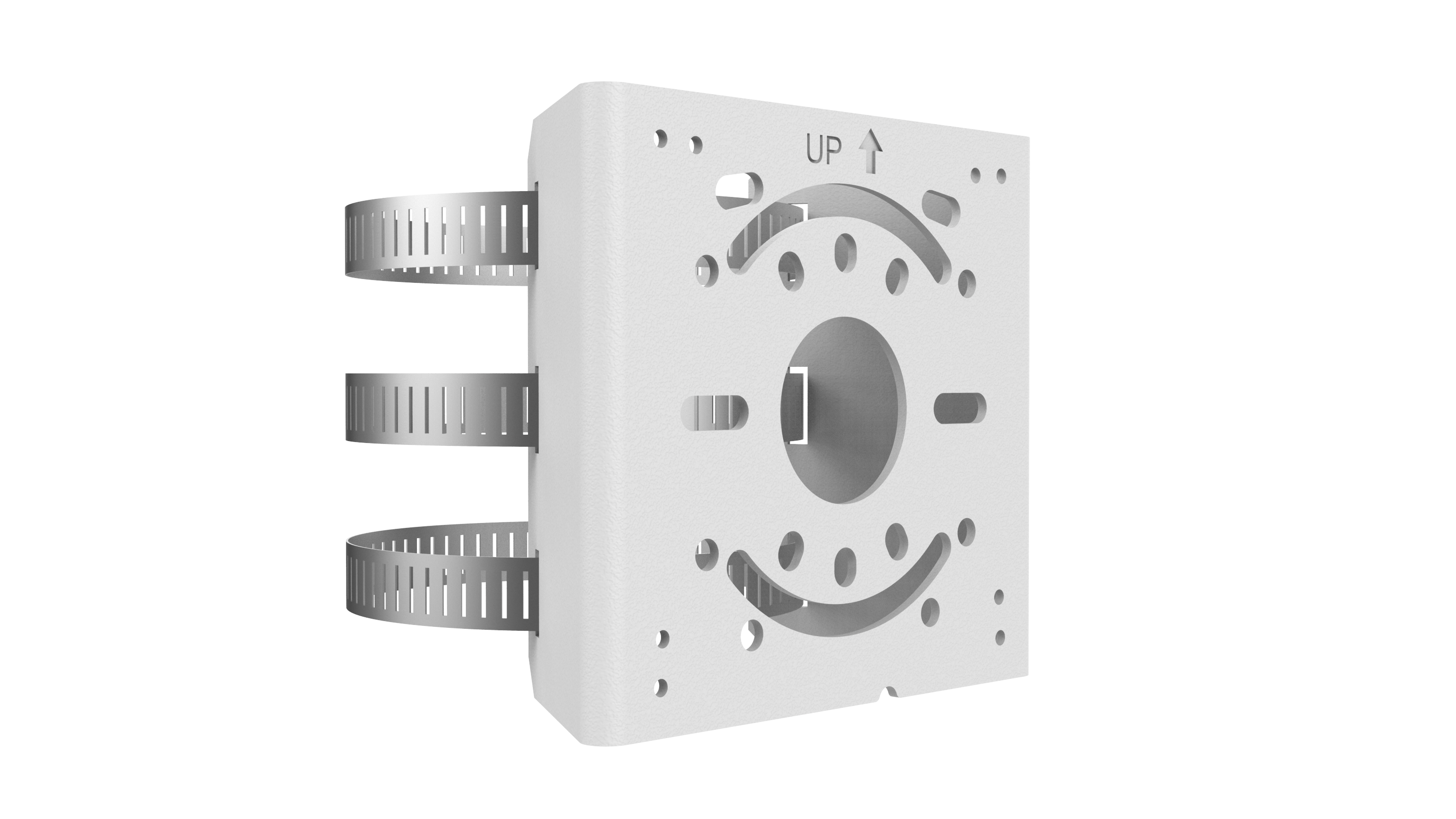

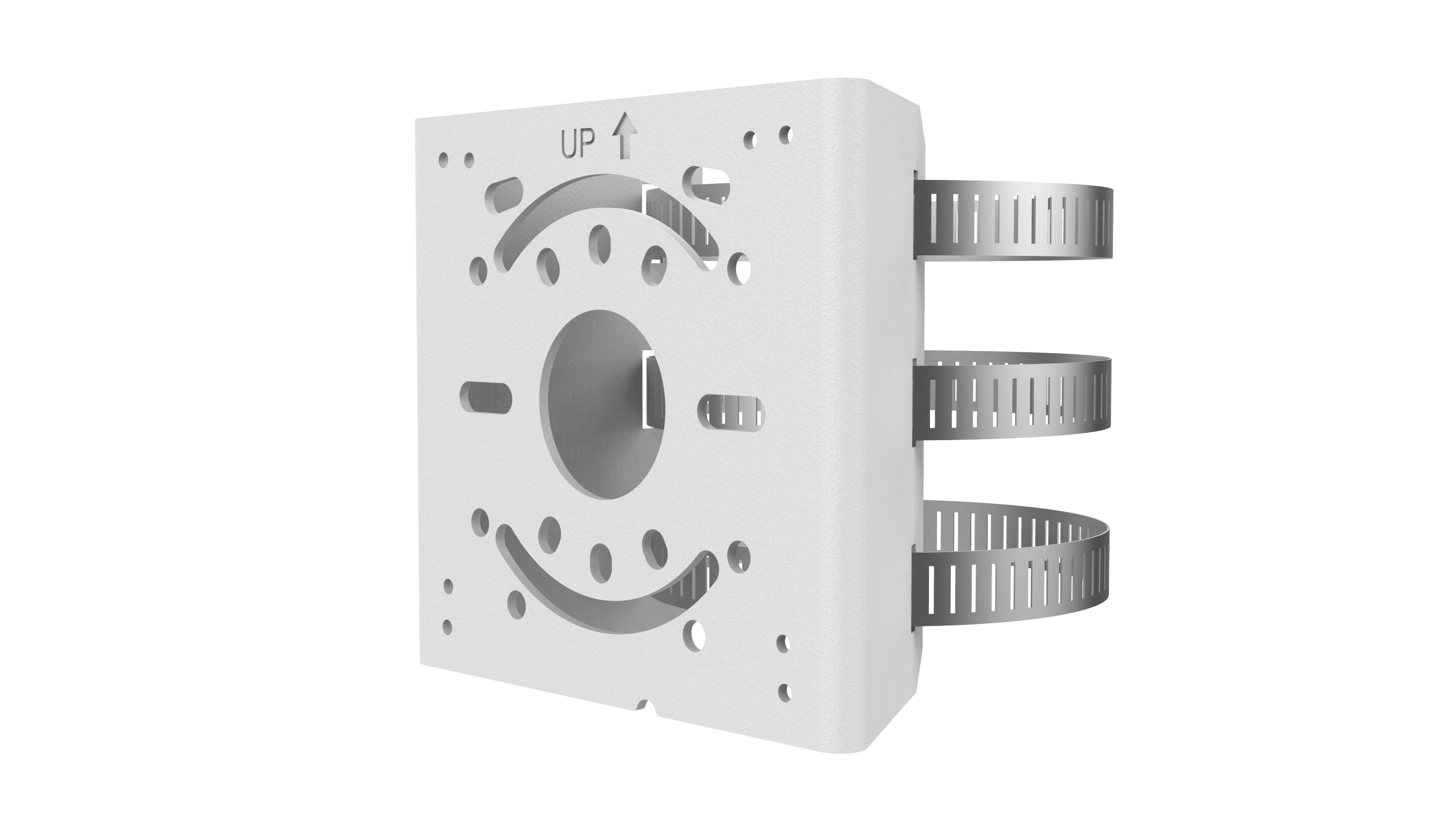

| TR-UP0627 | ||||||||
| BOM | ||||||||
| BOM | 2115C07U | |||||||
| Specifications | ||||||||
| Application | Outdoor | |||||||
| Dimensions | 136mmx127mmx63.6mm | |||||||
| Maximum load-bearing capacity | 15 kg | |||||||
| Material | Galvanized steel plate | |||||||
| Adijustable range | Hoop diameter: 100 to 300mm, adjustable (slightly larger than pole diameter) | |||||||
| Compatible product | 2D bracket, 3D bracket, box camera mount bracket, horizontal or vertical pole for illuminator mount | |||||||
| General Features | ||||||||
| Weight | 0.77kg (with 3 hoops) | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2025/8/26 21:50:19 | UNV TR-UP0627 TR-UP0627 Universal Extended Pole Bracket 20240201.pdf | English | Preview | Download A > |
| Class | Date | Title | Type | Download |
| HD Image | 2025/2/25 1:10:07 | TR-UP0627_HD_Image_1.png | png | Download |
| HD Image | 2025/2/25 1:10:07 | TR-UP0627_HD_Image_2.png | png | Download |
| HD Image | 2025/2/25 1:10:07 | TR-UP0627_HD_Image_3.png | png | Download |
| Class | Date | Title | Download |
| Dimensions | 2025/2/25 1:10:07 | TR-UP0627_Dimensions_1.png | Download |
