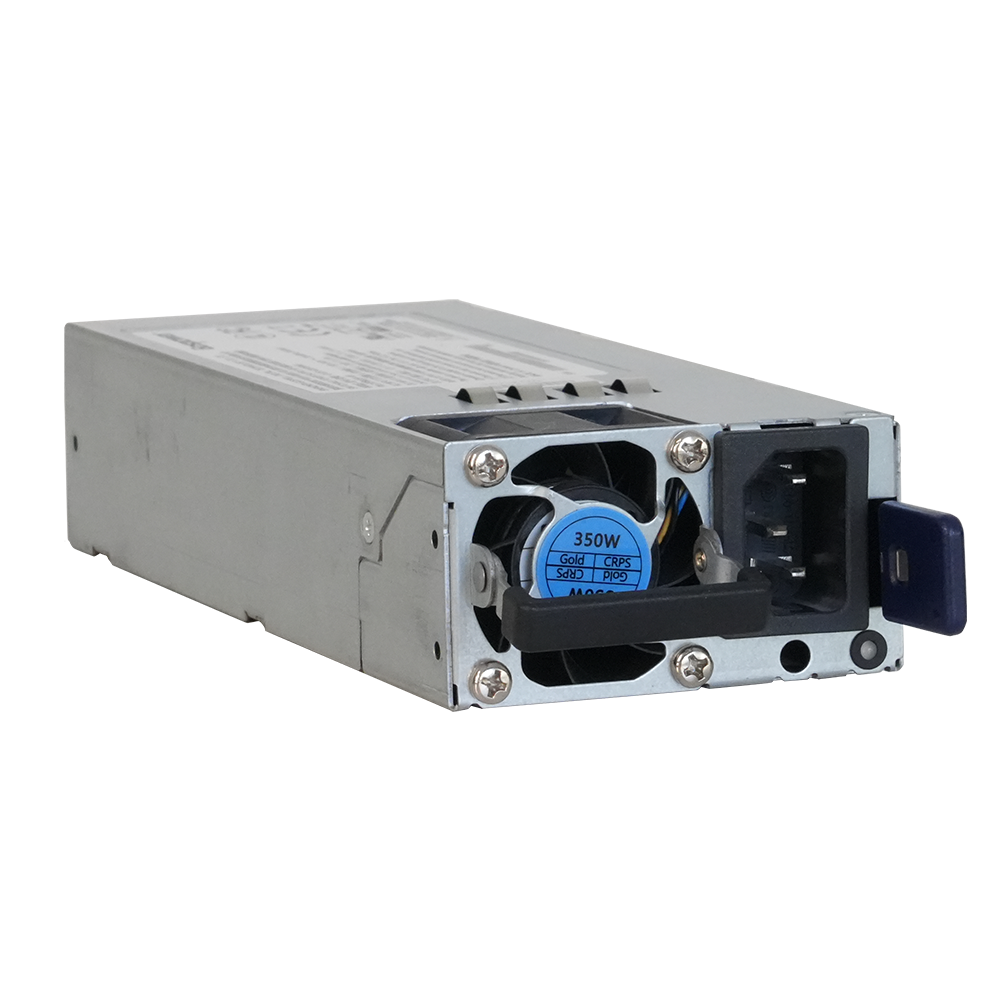

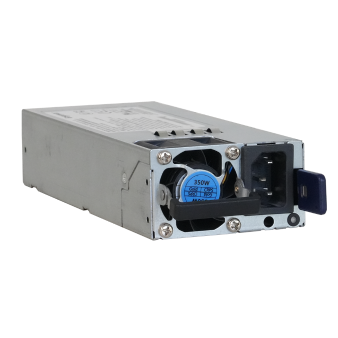

PWR-DC12-350A-IN | ||||||||
AC Input | ||||||||
Voltage | 90~264V AC | |||||||
Frequency | 47~63Hz | |||||||
Power Factor | ≥0.95 | |||||||
Input Current | ≤6.3A@100-240VAC | |||||||
Input Protection | Input undervoltage, Input overvoltage | |||||||
DC Output | ||||||||
Voltage/Current | +12VDC/29A, +12VStandby/2.1A | |||||||
Output Power | 350W | |||||||
Output Efficiency | ≥89%, 220V AC/29A | |||||||
Line Regulation | ±5% | |||||||
Load Regulation | ±5% | |||||||
Regulated Voltage Accuracy | ±5% | |||||||
Dynamic Response Overshoot | ±5% | |||||||
Current Sharing Rate | ±5% | |||||||
Output Protection | Short Circuit Protection, Overload Protection, Overvoltage Protection, Hot Plug Protection, Over Temperature Protection | |||||||
Other | ||||||||
Indicator light | Normal: green on, Abnormal: Yellow on | |||||||
Working Temperature | 0~50℃ | |||||||
Storage Temperature | -40~70℃ | |||||||
Working Humidity | 10%~90% | |||||||
Heat dissipation | Ventilating fan design, heat emission at back | |||||||
Dimension (D×H×W) | 185mm×40mm×73.5mm | |||||||
Certification | ||||||||
EMC standards | EN55032, EN 61000-3-2, EN55035 | |||||||
NEBS standards | SR-332 ISSUE 2 | |||||||
Approved standards | CB, FCC, UL |
