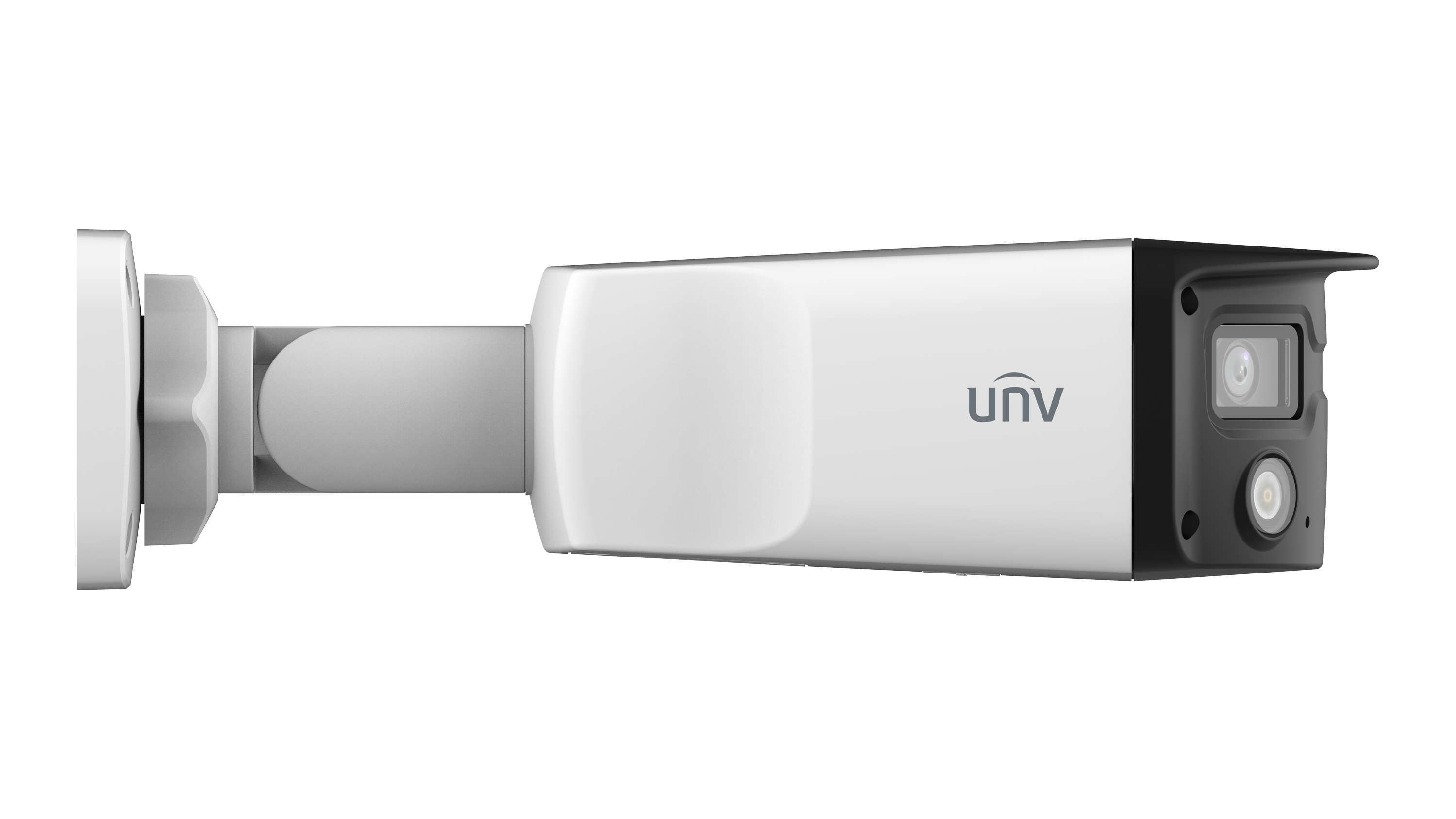

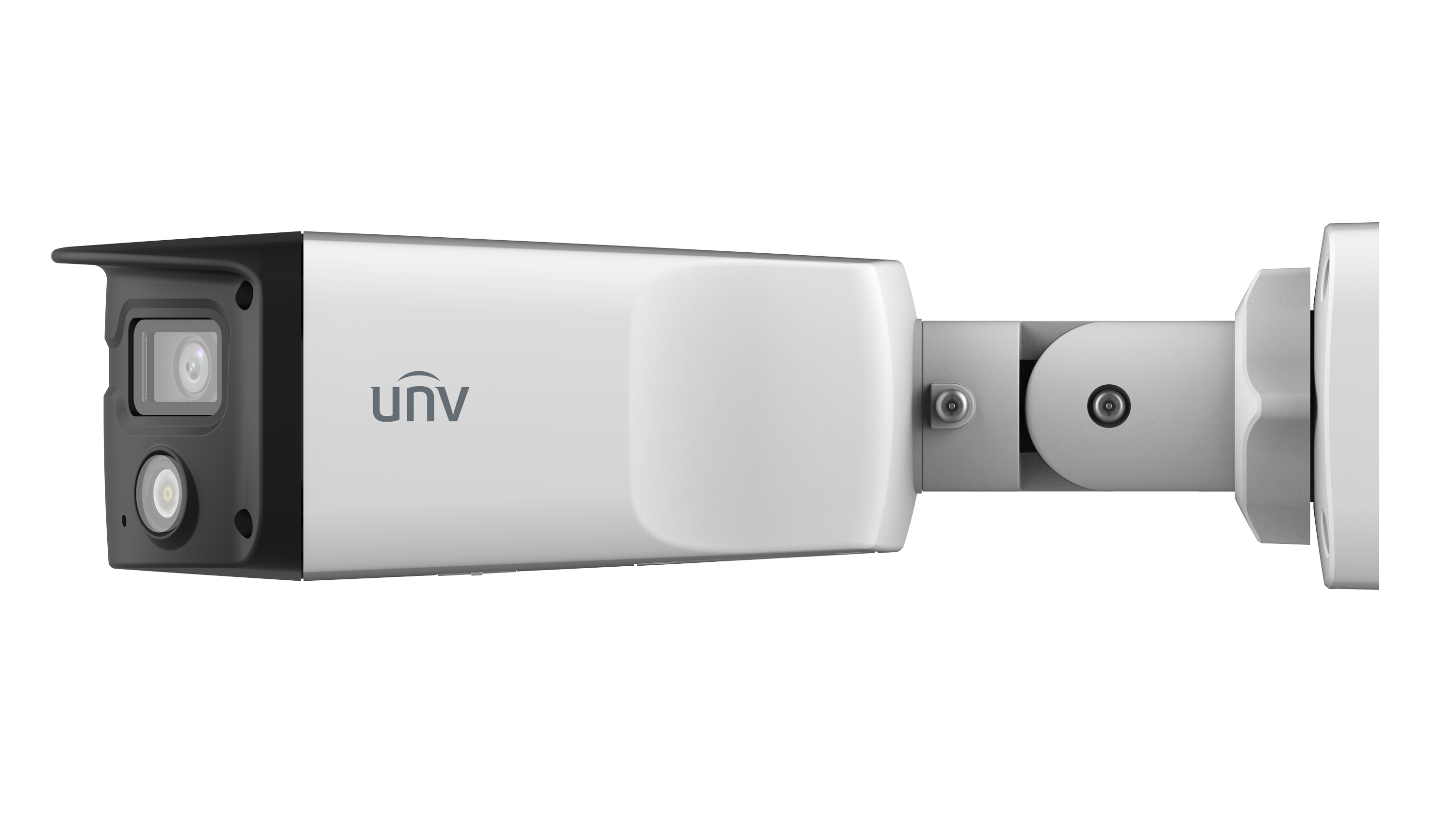

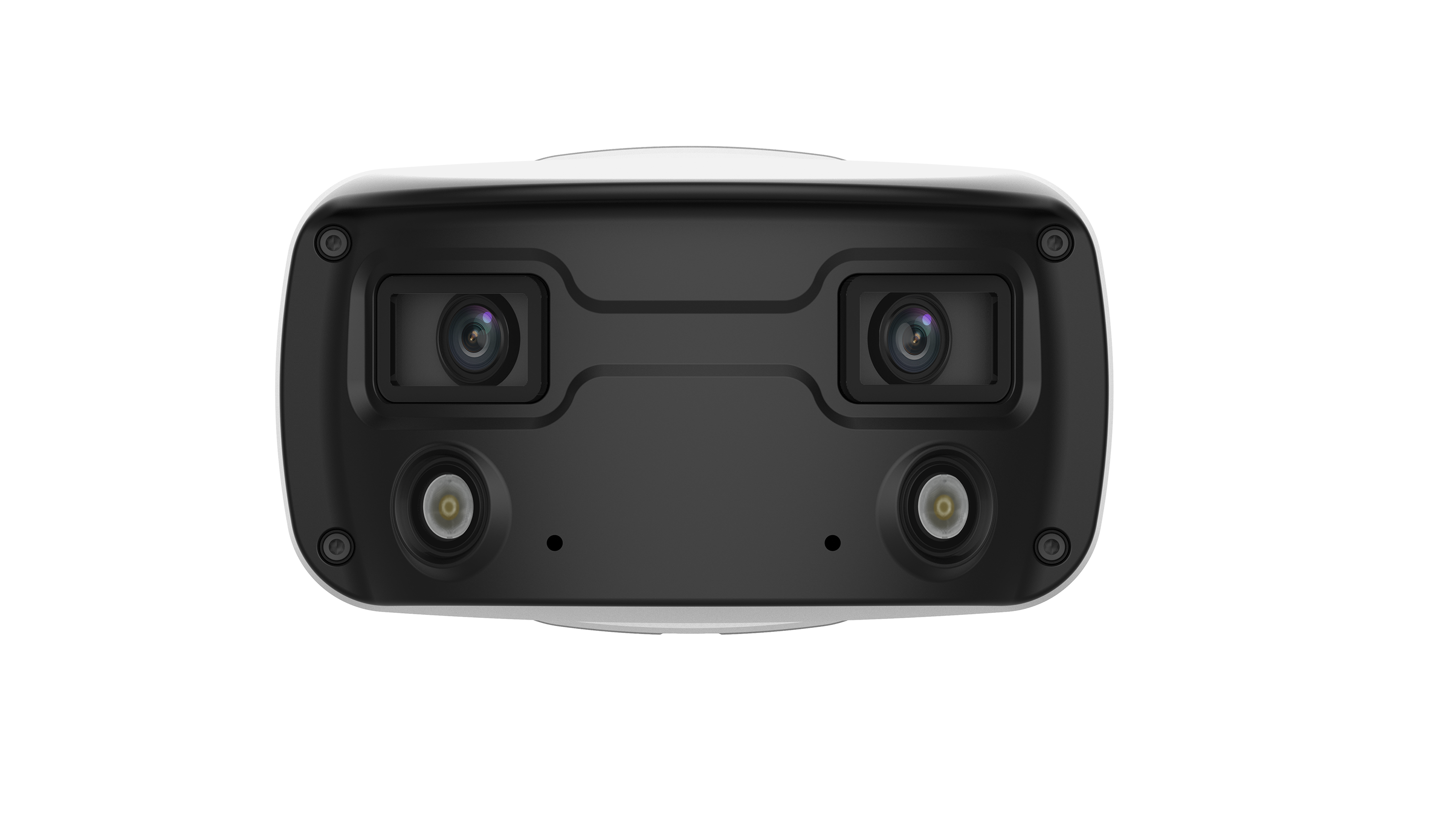

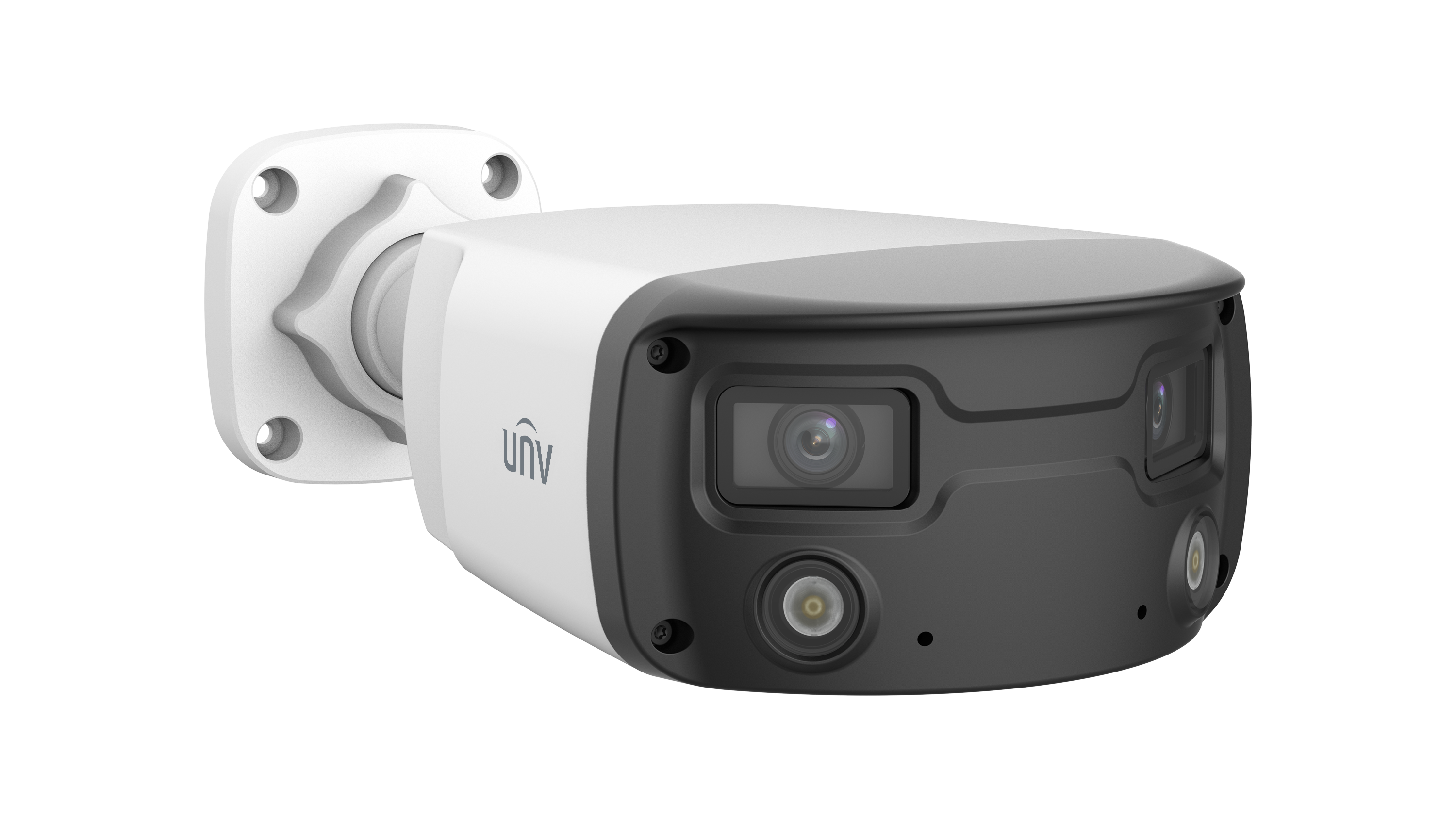

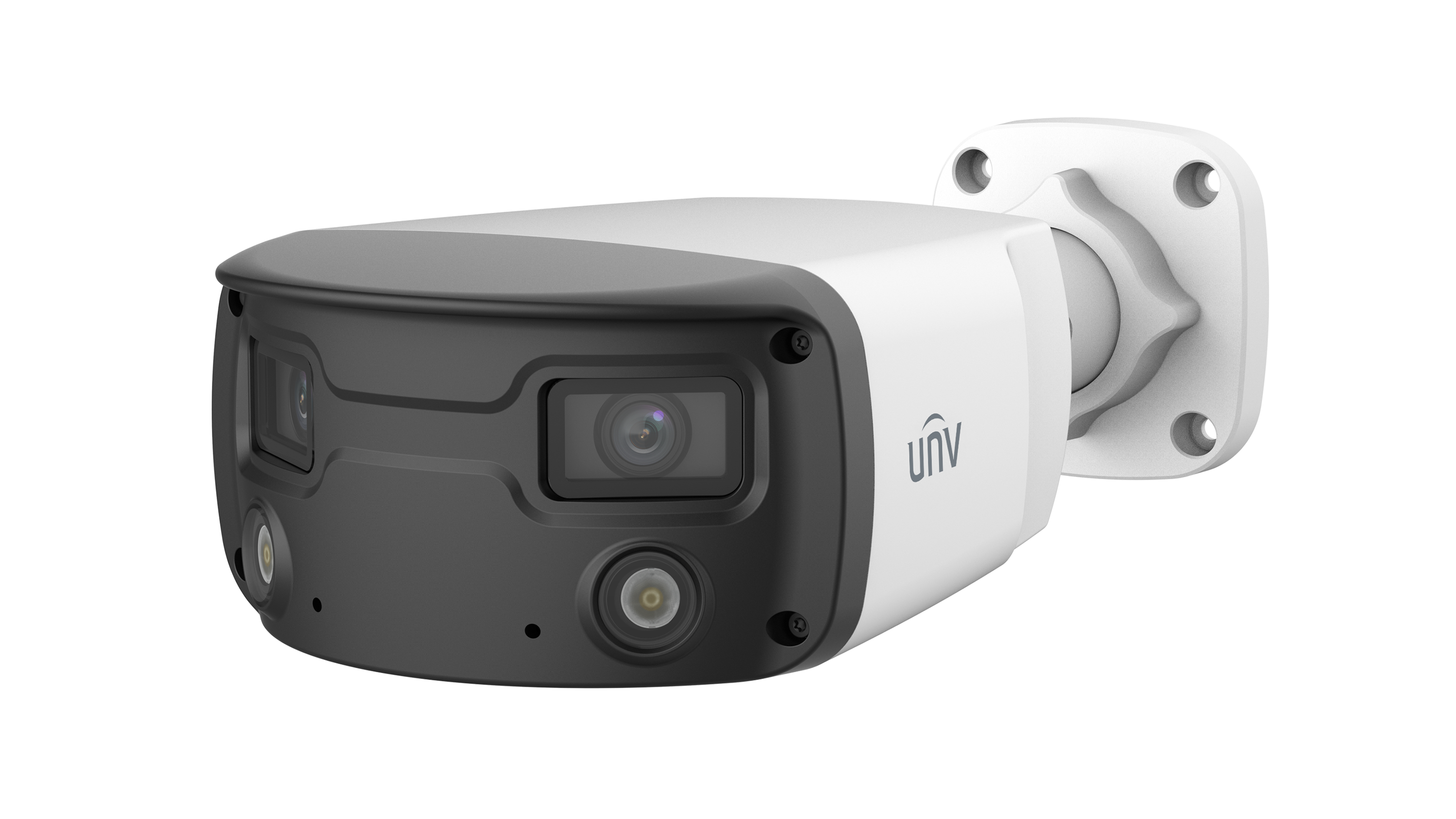

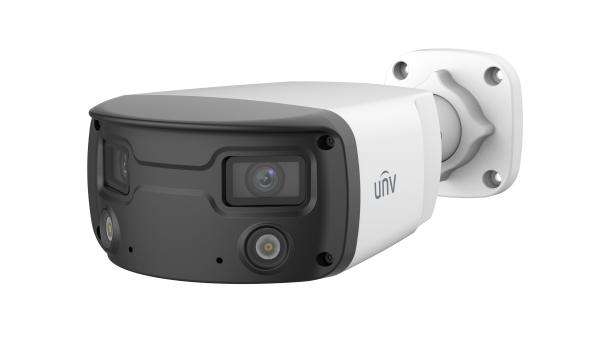

IPC2K28SE-ADF40KMC-WL-I0 | ||||||||
Camera | ||||||||
Sensor | 1/2.7" CMOS | |||||||
Min. Illumination | Colour: 0.0005 lux (F1.0, AGC ON) | |||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | |||||||
S/N | >52dB | |||||||
WDR | 130dB | |||||||
Lens | ||||||||
Focal Length | 2 x 4.0 mm | |||||||
Iris | F1.0 | |||||||
Field of View (H) | 180°±10° | |||||||
Field of View (V) | 47.41° | |||||||
Field of View (D) | 180.13°±10° | |||||||
Lens Type | Fixed | |||||||
DORI | ||||||||
DORI Distance (Lens) | 4.0mm | |||||||
DORI Distance (Detect) | 90m(259.3ft) | |||||||
DORI Distance (Observe) | 36m(118.1ft) | |||||||
DORI Distance (Recognize) | 18m(59.1ft) | |||||||
DORI Distance (Identify) | 9m(29.5fft) | |||||||
Illuminator | ||||||||
Supplemental Light | Warm Light | |||||||
Illumination Distance (Warm Light) | 30 m (98.4 ft) | |||||||
Light On/Off Control | Auto/Manual | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
Frame Rate | Main Stream: 8MP (5120*1440), Max 20fps Sub Stream: 2560*720, Max 20fps | |||||||
Video Bit Rate | 128 Kbps ~ 16 Mbps | |||||||
U-code | Support | |||||||
OSD | Up to 8 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Support | |||||||
Video Stream | Double streams | |||||||
Image | ||||||||
Smart Illumination | Support | |||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Auto Scene Match (ASM) | Support (Only WDR) | |||||||
Flip | N/A | |||||||
Dewarping | N/A | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Defog | Digital Defog | |||||||
Image Stabilization | N/A | |||||||
Intelligent | ||||||||
Smart Intrusion Prevention | Cross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
Statistical Analysis | N/A | |||||||
People Counting | Support People Flow Counting and Crowd Density Monitoring | |||||||
Attribute Collection | SIP with color retrieval | |||||||
Events | ||||||||
Basic Detection | Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 64 Kbps | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 8 KHz | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | UNV-Link, UNV-Link Pro, EZStation | |||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p], 1 Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
Alarm I/O | 1/1 | |||||||
Serial Port | N/A | |||||||
Built-in Mic | Built-in two mics | |||||||
Built-in Speaker | Support | |||||||
WIFI | N/A | |||||||
Network | 1 x RJ45 10M/100M Base-TX Ethernet | |||||||
Video Output | N/A | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||
Protection | IP67 (IEC 60529: 1989+AMD1: 1999+AMD2: 2013) | |||||||
General | ||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
Power Consumption | Max 13W | |||||||
Power Interface | Ø 5.5 mm coaxial power plug | |||||||
Dimensions | 273 × 130 × 76mm (10.7” × 5.1” × 3.0”) (L x W x H) | |||||||
Weight | 0.96kg (2.12lb) | |||||||
Material | Metal | |||||||
Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||
Storage Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||
Surge Protection | 4KV | |||||||
Reset Button | Support | |||||||
Web Client Language | 20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
Class | Date | Title | Language | Type | Download |
Datasheet | 11/18/2024 16:29:33 | UNV IPC2K28SE-ADF40KMC-WL-I0 4K HD ColorHunter Omniview Series Fixed Bullet Network Camera.pdf | English | Download |
Class | Date | Title | Type | Download |
HD Image | 10/22/2024 09:34:20 | IPC2K28SE-ADF40KMC-WL-I0_HD_Image_1.png | png | Download |
HD Image | 10/22/2024 09:34:20 | IPC2K28SE-ADF40KMC-WL-I0_HD_Image_2.png | png | Download |
HD Image | 10/22/2024 09:34:20 | IPC2K28SE-ADF40KMC-WL-I0_HD_Image_3.png | png | Download |
HD Image | 10/22/2024 09:34:20 | IPC2K28SE-ADF40KMC-WL-I0_HD_Image_4.png | png | Download |
HD Image | 10/22/2024 09:34:20 | IPC2K28SE-ADF40KMC-WL-I0_HD_Image_5.png | png | Download |
Class | Date | Title | Language | Type | Download |
User Manual | 11/21/2024 10:04:23 | UNV-Network Camera User Manual.pdf | English | Download |
Class | Date | Title | Language | Type | Download |
Quick Guide | 9/10/2024 05:22:45 | Quick Guide.pdf | English | Download |
Class | Date | Title | Download |
Dimensions | 10/22/2024 09:34:20 | IPC2K28SE-ADF40KMC-WL-I0_Dimensions_1.png | Download |
