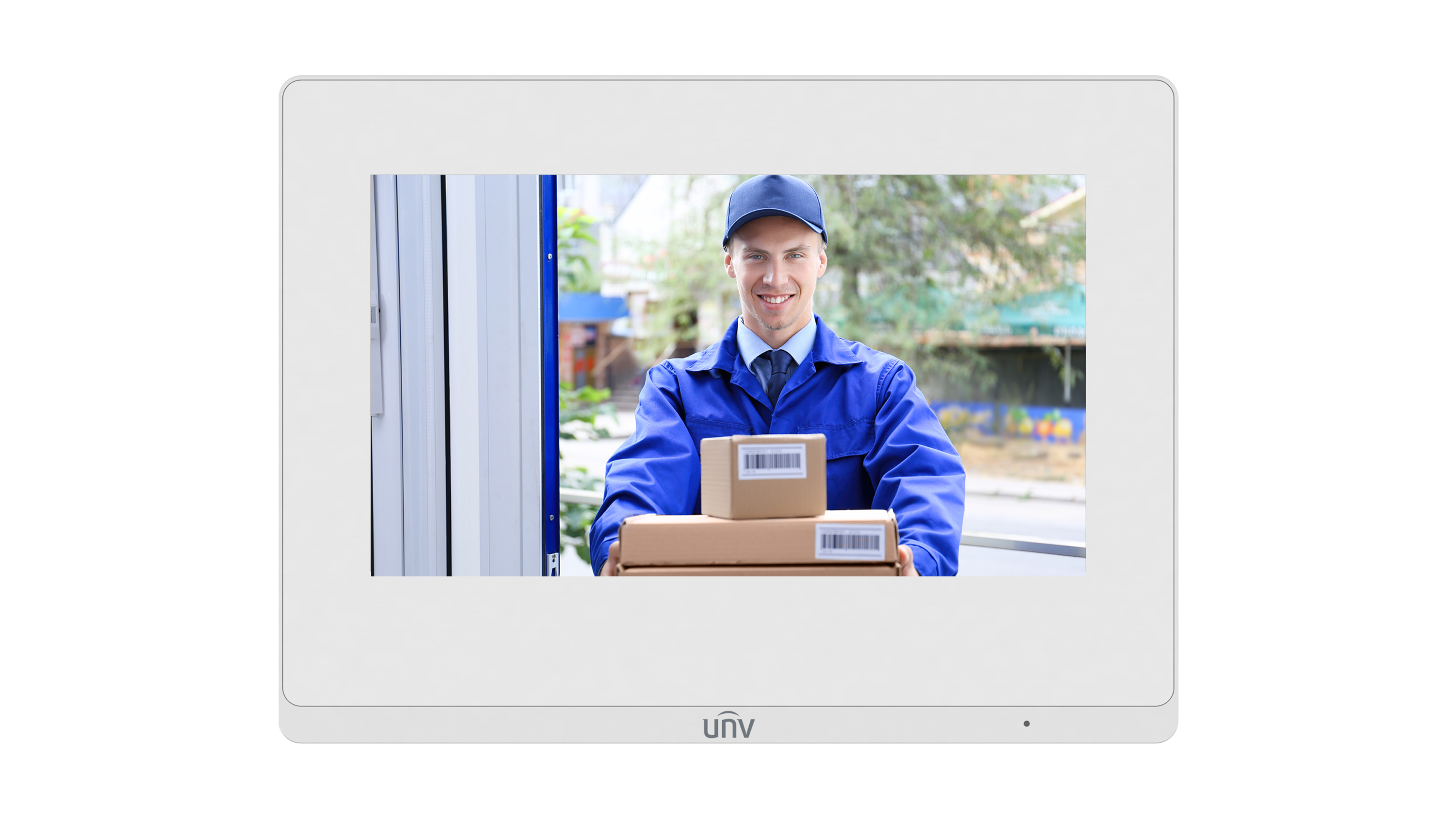

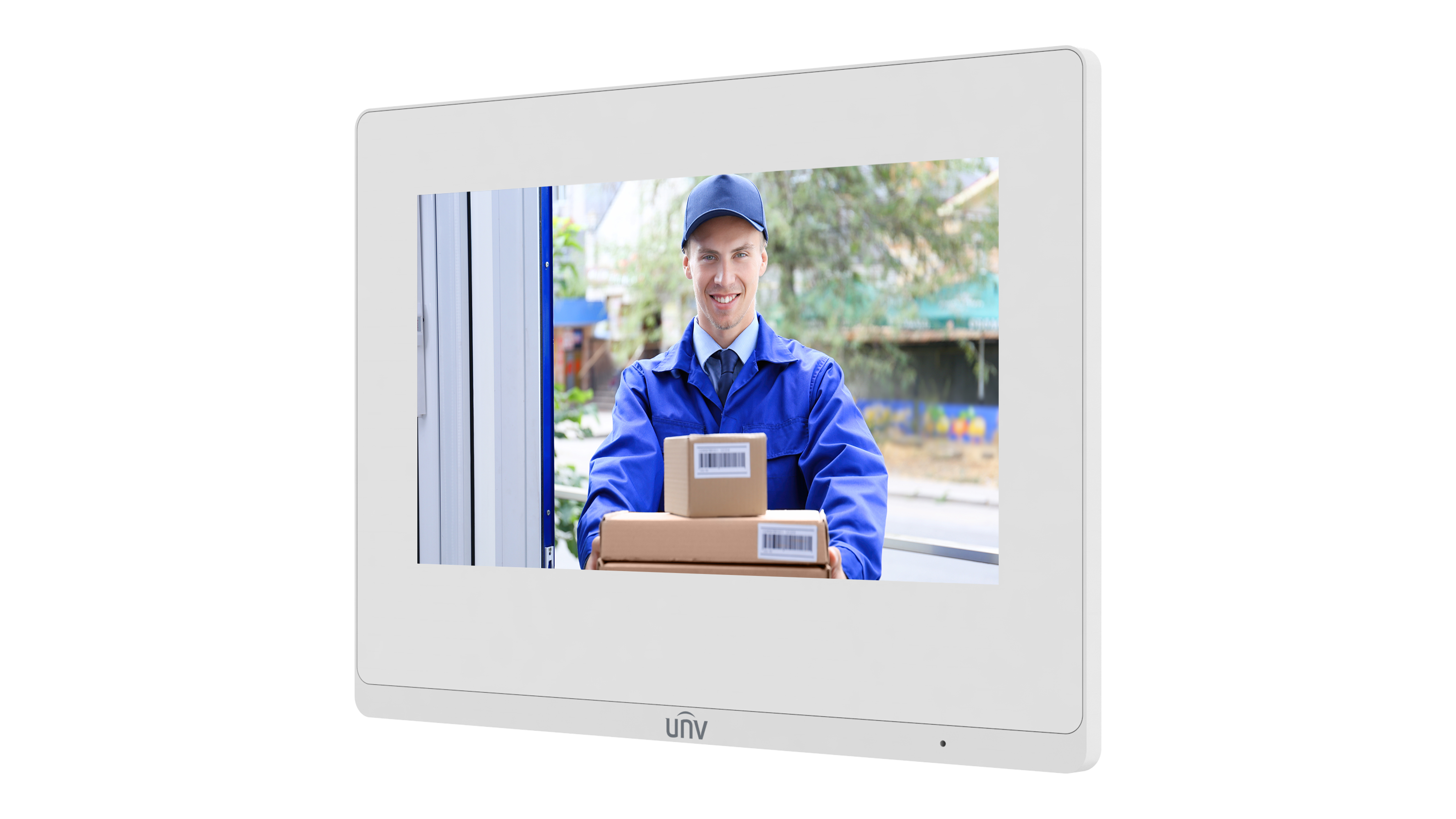

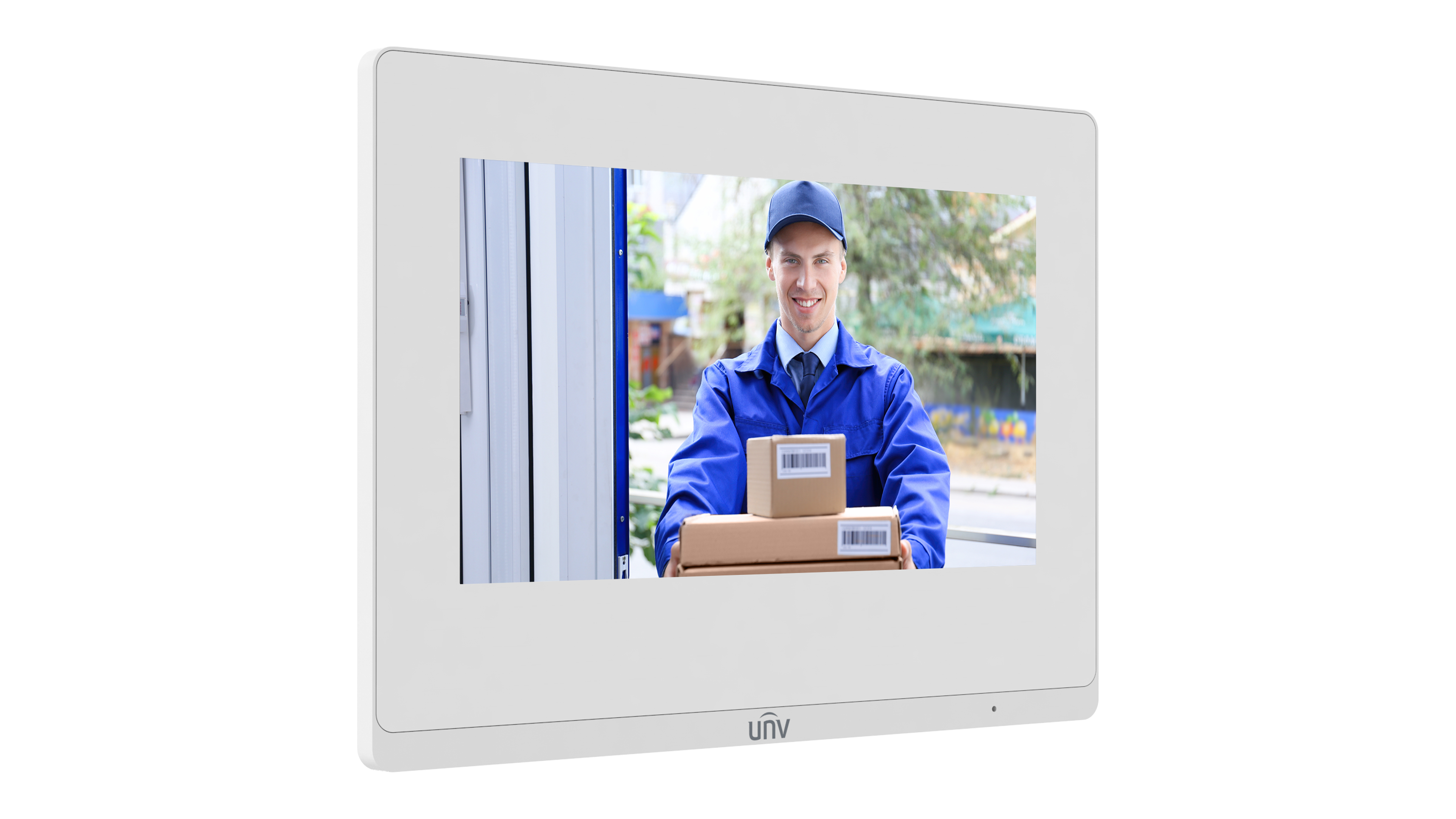

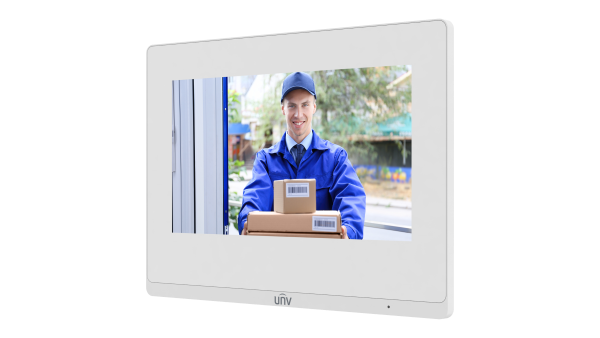

OEI-372S-H-W-Z | ||||||||
Hardware Specification | ||||||||
Power Supply | DC12V±25%,IEEE802.3af, Standard PoE | |||||||
Power Consumption | <10W | |||||||
Screen | 7-inch ultra-thin TFT LCD screen | |||||||
Screen Resolution | 1024×600 | |||||||
Operation System | Linux | |||||||
Audio Quality | Noise suppression,echo cancellation and AGC | |||||||
Audio Input | 1 built-in omnidirectional microphone | |||||||
Audio Output | 1 built-in speaker | |||||||
Audio Compression Standard | MP3 G711 | |||||||
Audio Compression Bitrate | 128Kbps | |||||||
Interface | Power*1, network*1, WiFi*1,RS485*1, IO output*2, IO input*8, TF card slot*1 | |||||||
Network | 100Mbps network port, supports IEEE802.3af PoE power supply,WIFI4、2.4GHZ | |||||||
Weight | 360g | |||||||
Dimensions (L x W x H) | 193mm×143mm×25mm | |||||||
Operating Environment | -10°C to +55°C, 10% to 90%, non-condensing, indoor | |||||||
Basic Business | ||||||||
Protocol | UNV private protocol | |||||||
Network protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP | |||||||
Specification Index | ||||||||
Capacity | 200 ScreenShots 200 Zone Alarms A total of 20 connected devices, including IPCs, entrance stations, NVRs (up to 2), and Doorbells | |||||||
Linked Indoor Station Capacity | 19 extensions |
