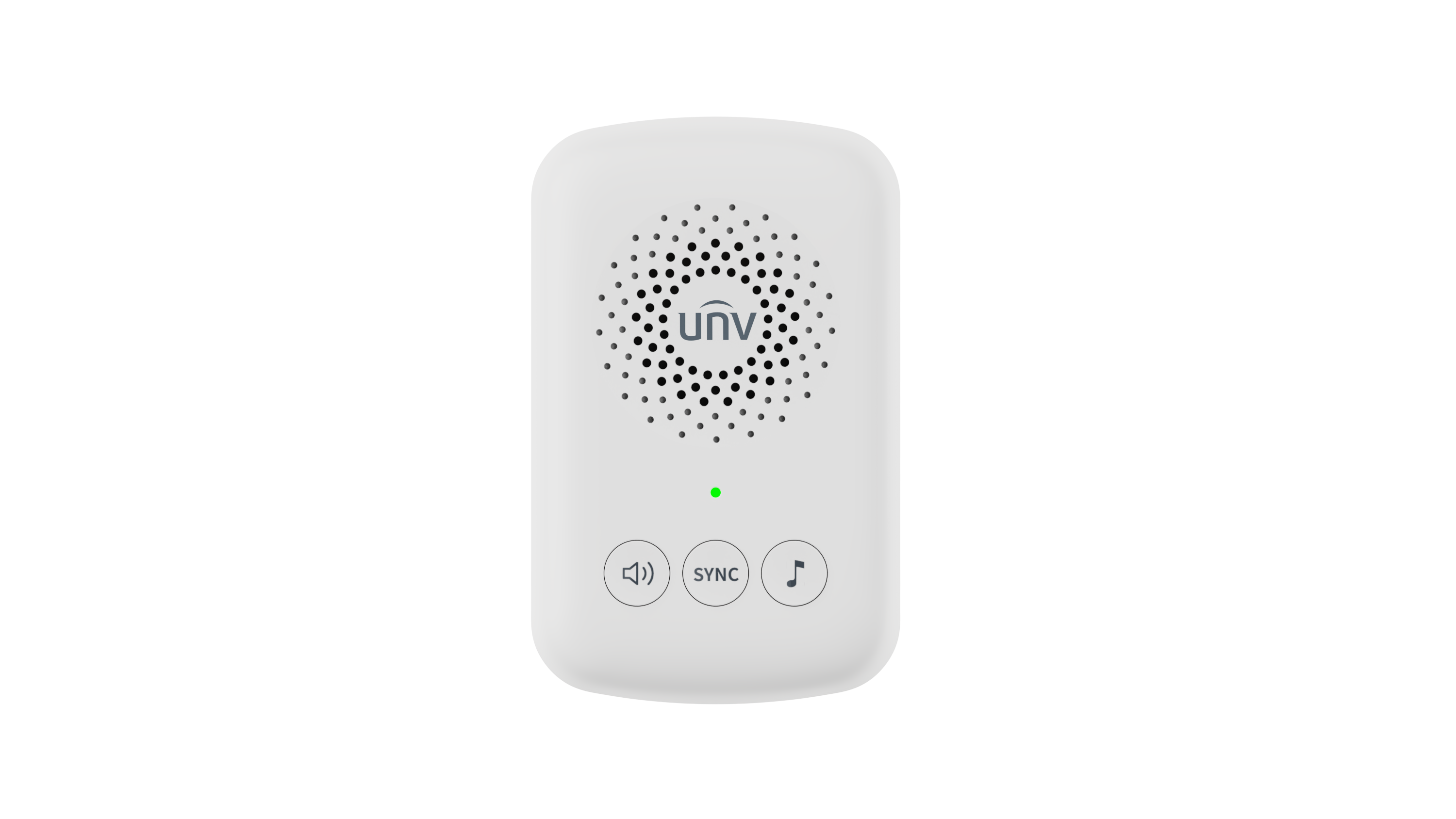

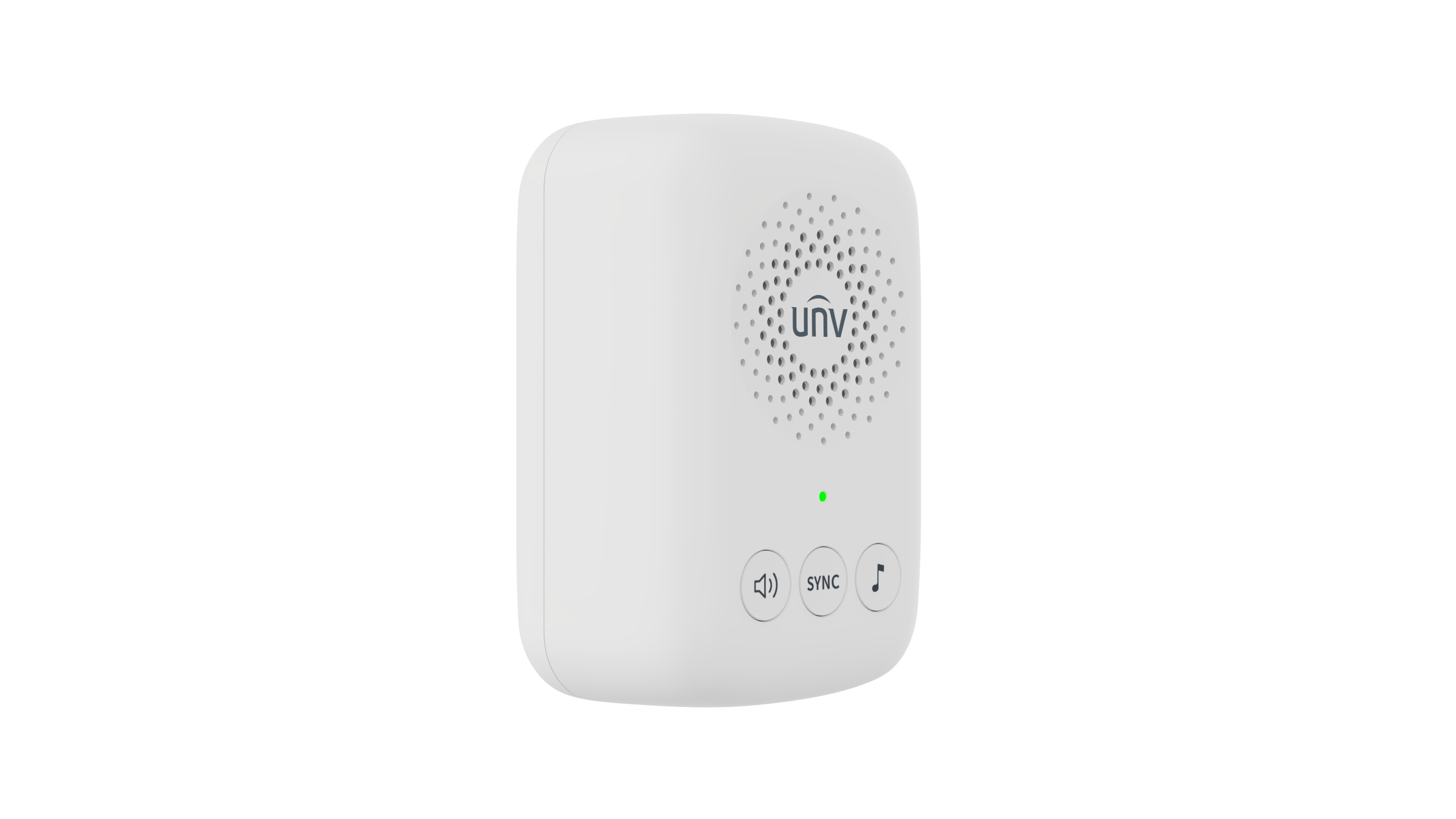

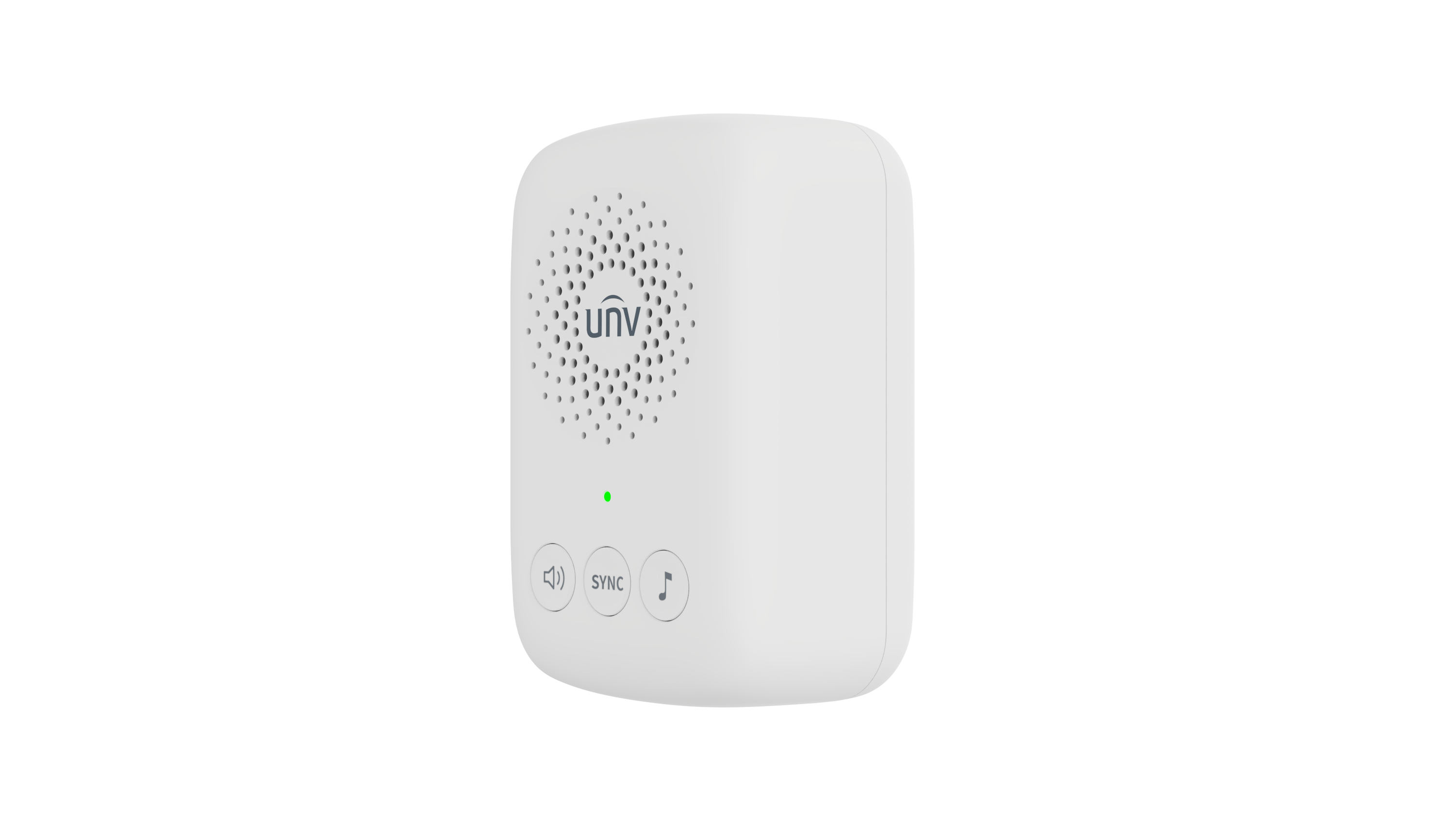

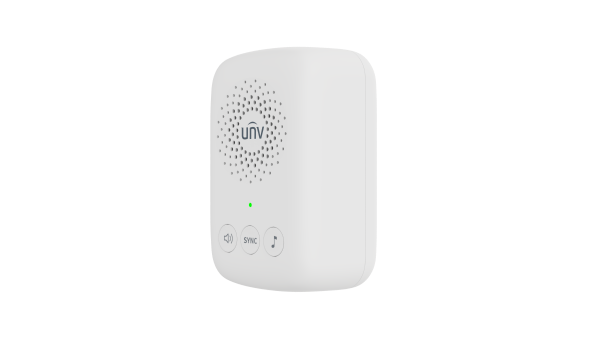

| ED-R1 | ||||||||
| Chime | ||||||||
| Connection method | Sub-1 GHz | |||||||
| Speaker | Built-in speaker | |||||||
| General | ||||||||
| Dimensions | 53.6 mm × 85.6 mm × 39.8 mm | |||||||
| Weight | Net weight: 80g Gross weight: 125g | |||||||
| Power consumption | 3W | |||||||
| Installation method | Install the plug directly into the socket | |||||||
| Button | From left to right: volume adjustment, reset status, change ringtone | |||||||
| Power source | As per definitions by different countries/regions | |||||||
| Operating temperature | -20 °C to 50 °C | |||||||
| Compliance | ||||||||
| NDAA Compliant | Support | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2025/10/10 11:15:37 | UNV ED-R1 Chime.pdf | English | Preview | Download A > |
| Class | Date | Title | Type | Download |
| HD Image | 2025/10/28 3:12:33 | ED-R1_HD_Image_1.png | png | Download |
| HD Image | 2025/10/28 3:12:33 | ED-R1_HD_Image_2.png | png | Download |
| HD Image | 2025/10/28 3:12:33 | ED-R1_HD_Image_3.png | png | Download |
| Class | Date | Title | Language | Type | Preview | Download |
| Quick Guide | 2025/5/8 4:00:14 | Quick Guide.pdf | English | Preview | Download A > |
| Class | Date | Title | Download |
| Dimensions | 2025/10/28 3:12:33 | ED-R1_Dimensions_1.png | Download |
