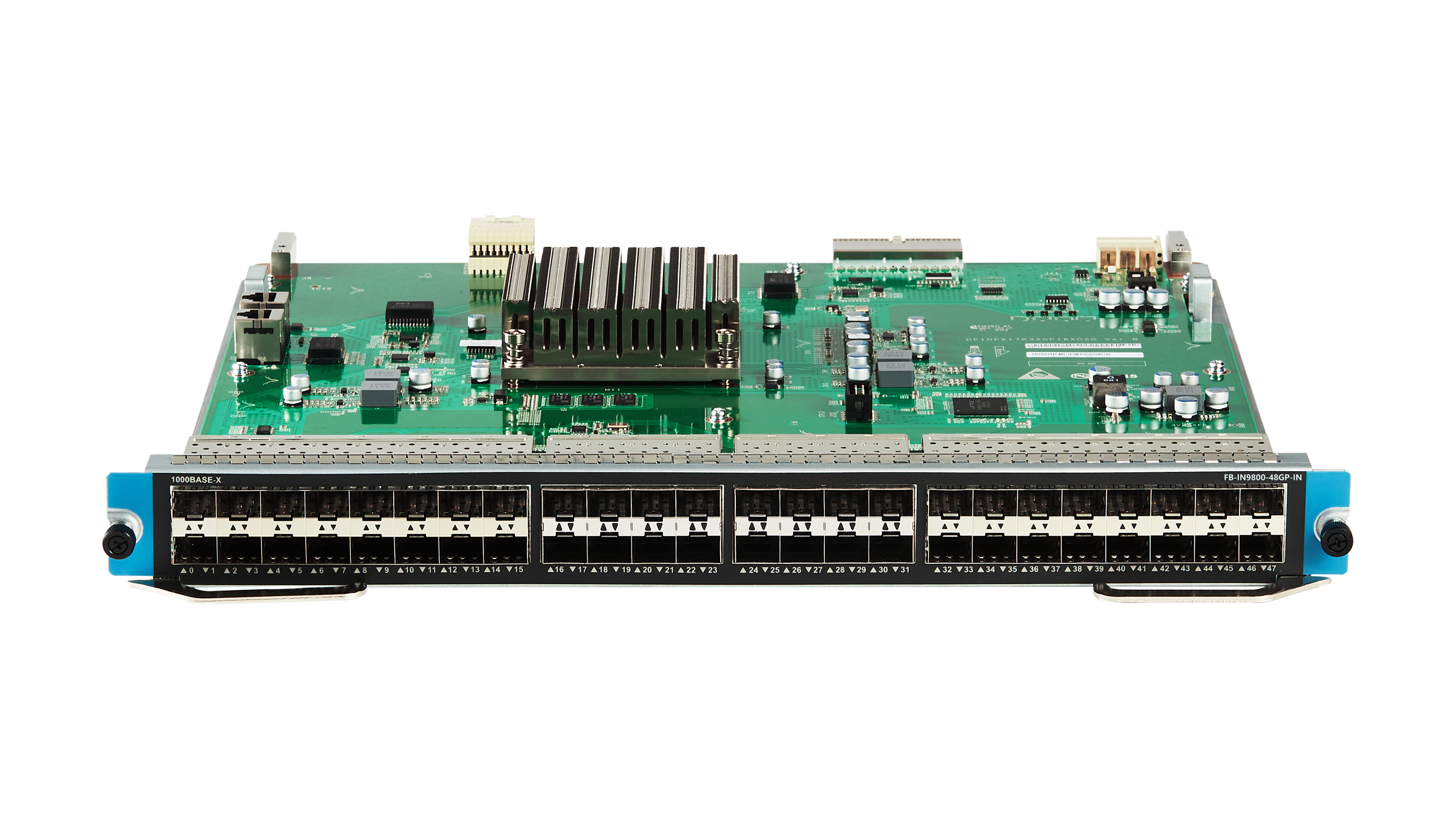

FB-IN9800-48GP-IN | ||||||||
Hardware Specification | ||||||||
Dimensions | 400mm*415mm*40mm | |||||||
Weight | 3.8kg | |||||||
Port | 48×100M/1000M optical port (SFP) | |||||||
Switching Capacity | 96Gbps | |||||||
Forwarding Performance | 71.424Mpps | |||||||
Max.Power | 70W | |||||||
Jumbo Frame | 9216B | |||||||
MAC | 128K ( including 4K static) | |||||||
Software Specification | ||||||||
ARP | 24K | |||||||
IP Route | IPv4: 64K, IPv6: 15K |
Class | Date | Title | Language | Type | Preview | Download |
Datasheet | 3/17/2025 11:50:45 PM | UNV FB-IN9800-48GP-IN Ethernet Interface Module.pdf | English | Preview | Download A > |
Class | Date | Title | Type | Download |
HD Image | 2/27/2025 1:10:54 AM | FB-IN9800-48GP-IN_HD_Image_1.png | png | Download |
