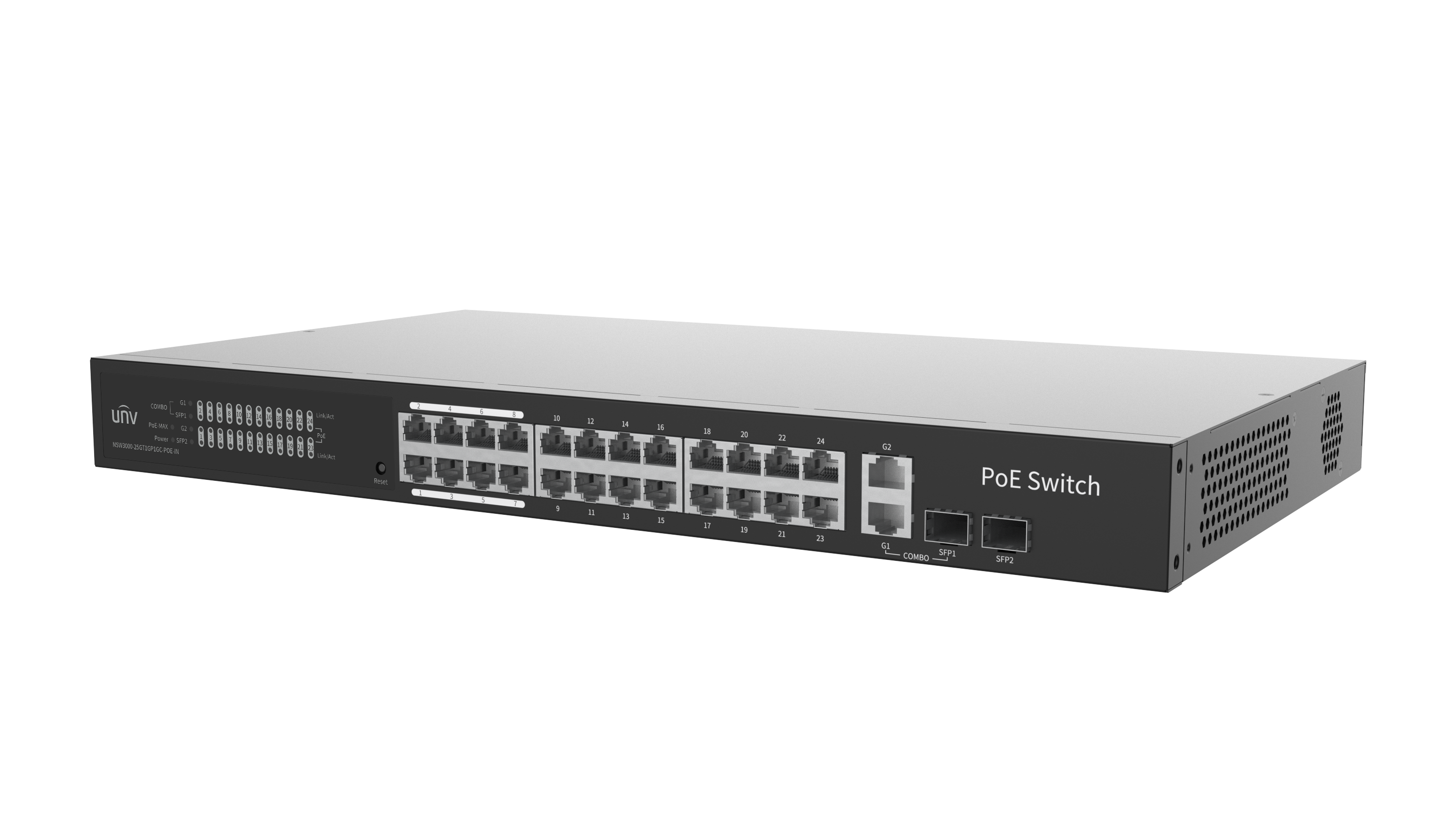

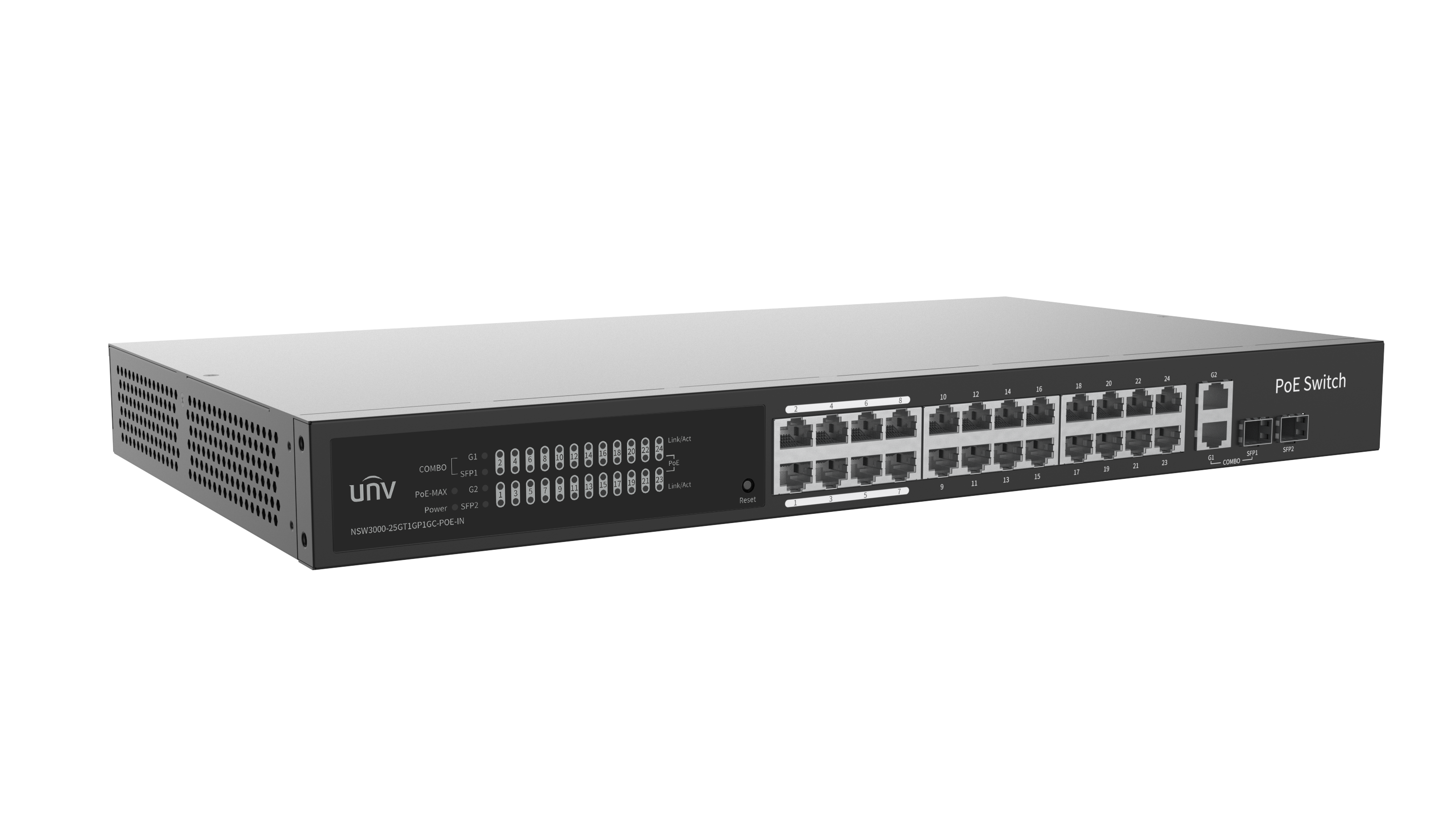

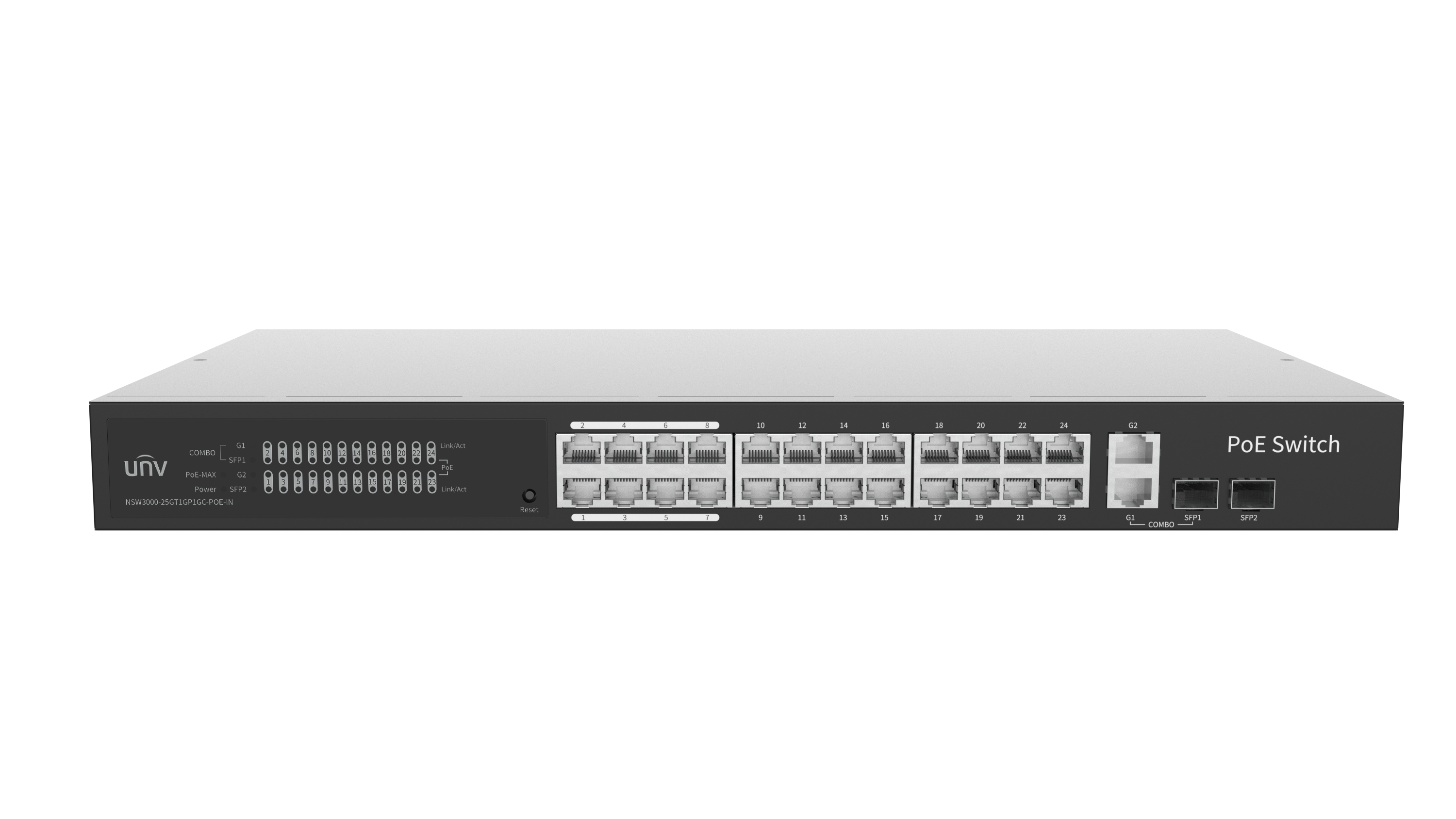

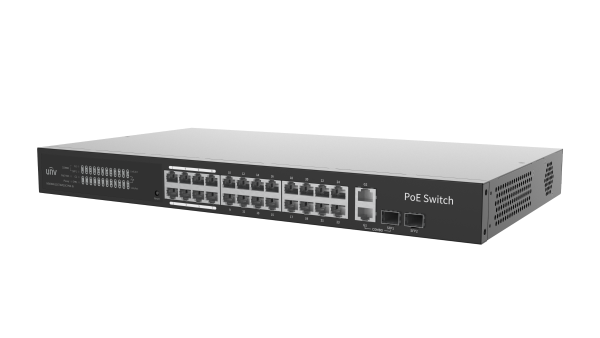

NSW3000-25GT1GP1GC-POE-IN | ||||||||
Hardware Specification | ||||||||
Ports Type | 24 x 10/100/1000Mbps PoE port (RJ45) 1 x 10/100/1000Mbps port (RJ45) 1 x Gigabit SFP 1 x Gigabit Combo | |||||||
Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az | |||||||
Switching capacity | 54Gbps | |||||||
Forwarding performance | 40.176Mpps | |||||||
Packet Buffer | 4 M bit | |||||||
MAC | 8K | |||||||
Weight | 2.98kg | |||||||
Dimensions (W×D×H) | 440*244.8*44mm | |||||||
PoE Standard | IEEE 802.3af, IEEE 802.3 at | |||||||
Max.PoE Power | Maximum total power: 370W Maximum PoE power for single port: 30W | |||||||
PoE Mode | ModeA (1236), ModeB (4578) | |||||||
Power Supply | AC: 100 to 240V, 50/60Hz | |||||||
Max.Power | 390W | |||||||
Prior Ports | 1 to 8 | |||||||
Cooling Fans | 1 | |||||||
Operating Humidity | 5% to 90% RH, noncondensing | |||||||
Operating Temperature | 0°C to 40°C (32°F to 104°F) | |||||||
Indicator | Power: Off: Abnormal power input. Green: Normal power input. PoE: Off: The PoE port is not supplying power Steady on: The PoE port is supplying power normally Link/Act: Off: Disconnected to the port On: Connected to the port Blinking: Transmitting data MAX: Off: The total PoE power is less than 80% of the total power of the device Steady on: The total PoE power is higher than 85% of the total power of the device | |||||||
Software Specification | ||||||||
Ethernet | Supports full duplex, half duplex, and auto-negotiation working modes. Supports port auto-negotiation rate. Supports port priority flow control. Supports a link aggregation group (consist of two uplink ports) Supports port flow statistics Supports enabling/disabling ports | |||||||
VLAN | Supports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4094 | |||||||
MAC | Support (up to 8K) . Supports clearing the dynamic MAC address | |||||||
POE | Allows to view PoE status and power. Allows to enable/disable PoE power supply. | |||||||
Loop Detection | Loop Detection | |||||||
QoS | Supports port rate limitation. Supports broadcast storm control. | |||||||
Security | Supports port isolation (only for the downlink ports) Supports locking login IP address, up to 64 addresses can be locked | |||||||
Maintenance | Supports N: 1 port mirroring Supports unified software configuration, management, and search Supports discovering the connected video devices and generating a network topology on the software. Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software. | |||||||
System | Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc. Allows to edit and manage the IP address and device name Supports single-user management, user authentication, and password modification Allows to view other switches information on the same network, up to 32 switches Allows to view the connected video devices information, up to 64 devices |
