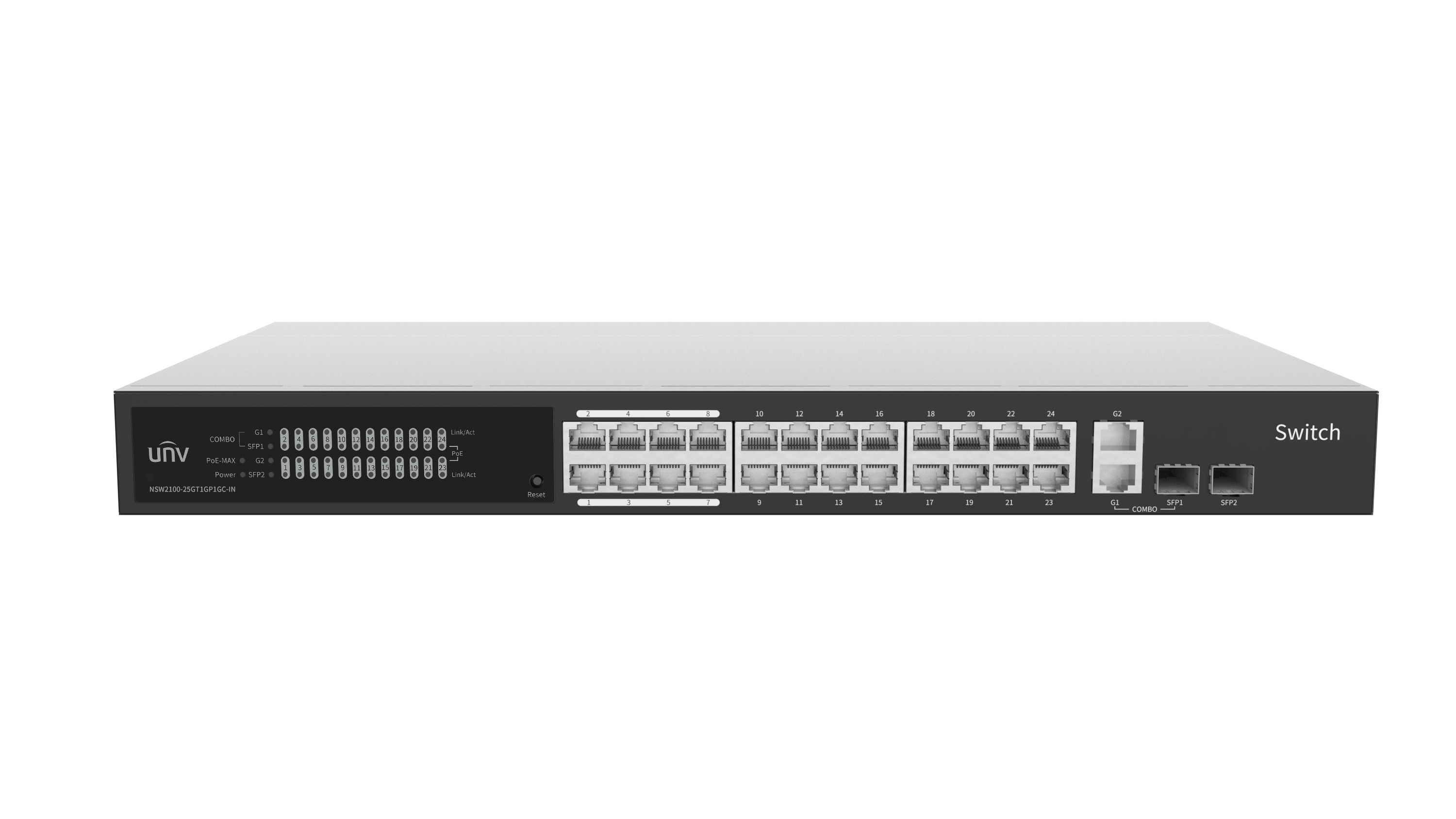

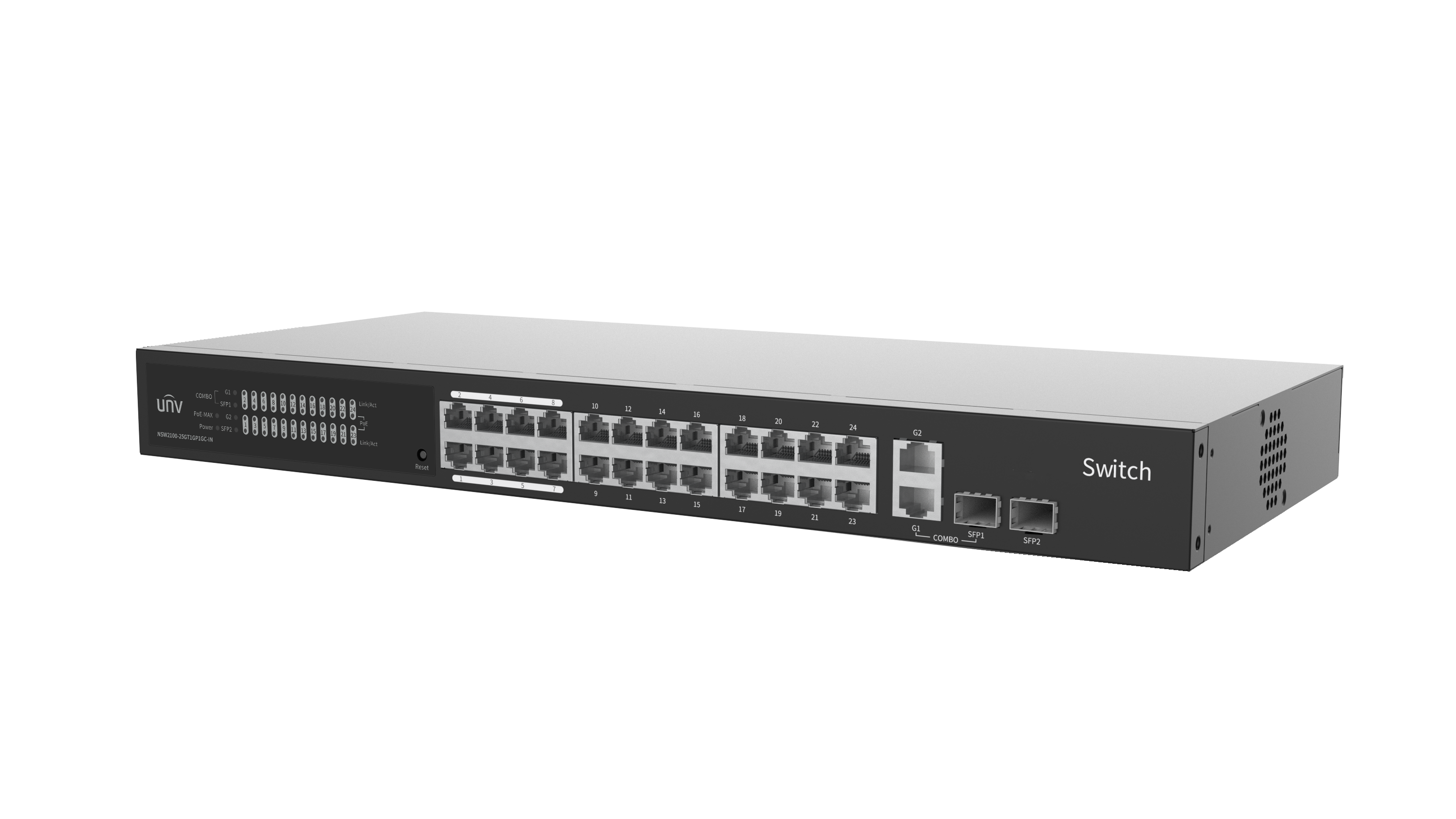

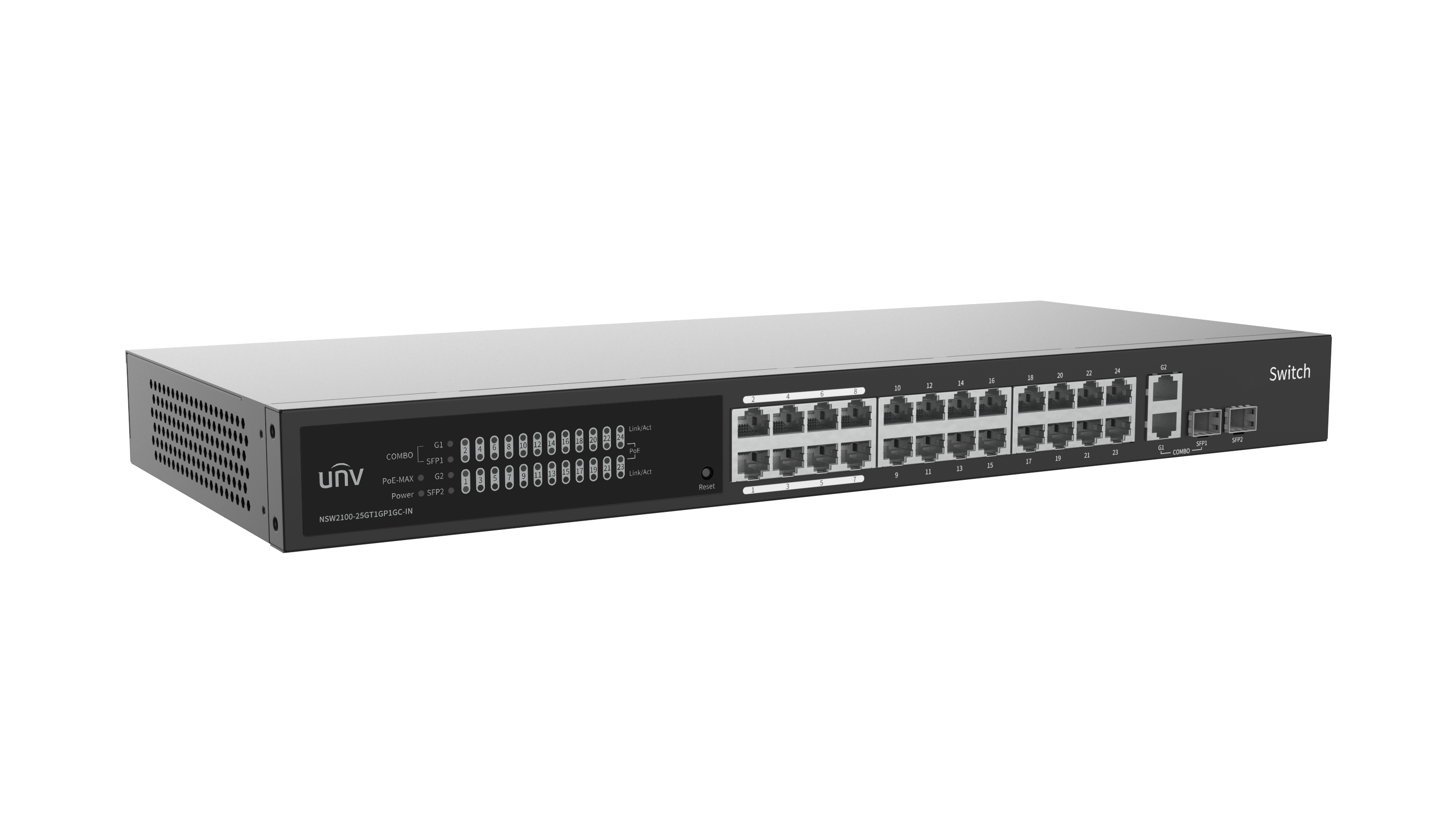

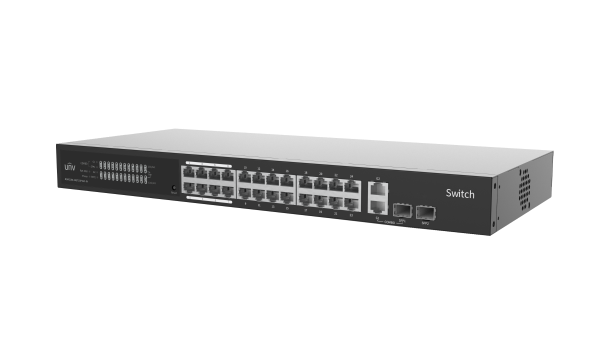

NSW2100-25GT1GP1GC-IN

Lite Cloud Managed Gigabit Ethernet Switch

• Supports device configuration and management on the Web interface.
• Supports visiting the cloud by scanning the QR code. Allows to view the device status in real time on the APP.
• Supports the extend mode for up to 250m communication range and 10Mbps auto-negotiation rate.
• All metal casing, secure and reliable.

Datasheet
HD Image

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/9/11 11:19:15	UNV NSW2100-25GT1GP1GC-IN Lite Cloud Managed Gigabit Ethernet Switch.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/9/30 3:00:46	NSW2100-25GT1GP1GC-IN_HD_Image_1.png	png	Download
HD Image	2025/9/30 3:00:46	NSW2100-25GT1GP1GC-IN_HD_Image_2.png	png	Download
HD Image	2025/9/30 3:00:46	NSW2100-25GT1GP1GC-IN_HD_Image_3.png	png	Download

	NSW2100-25GT1GP1GC-IN
Hardware Specification
Ports Type	24 x 10/100/1000Mbps port (RJ45), 1 x 10/100/1000Mbps port (RJ45) , 1 x Gigabit SFP, 1 x Gigabit Combo
Switching capacity	54Gbps
Forwarding performance	40.176Mpps
Packet Buffer	4 M bit
MAC	8K
Dimensions (W×D×H)	440189.844mm
Power Supply	AC: 100V to 240V, 50/60Hz
Max.Power	18W
Cooling Fans	0
Weight	1.78kg
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10% to 90% (noncondensing)
Indicator	Power: Off: Abnormal power input. Green: Normal power input. Link/Act: Off: Disconnected to the port. On: Connected to the port. Blinking: Transmitting data.
Software Specification
Ethernet	Supports full duplex, half duplex, and auto-negotiation working modes. Supports enabling/disabling ports. Supports port auto-negotiation rate. Supports port flow statistics.
VLAN	allows up to 32 VLANs with IDs from 1 to 4094.
MAC	Support static MAC, up to 32.
Loop Detection	Loop Detection
Security	Supports port isolation
Maintenance	Supports N:1 port mirroring. Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software.
System	Allows to view the device name, current version, IP address, MAC address, DNS, etc. Allows to edit and manage the IP address and device name.
