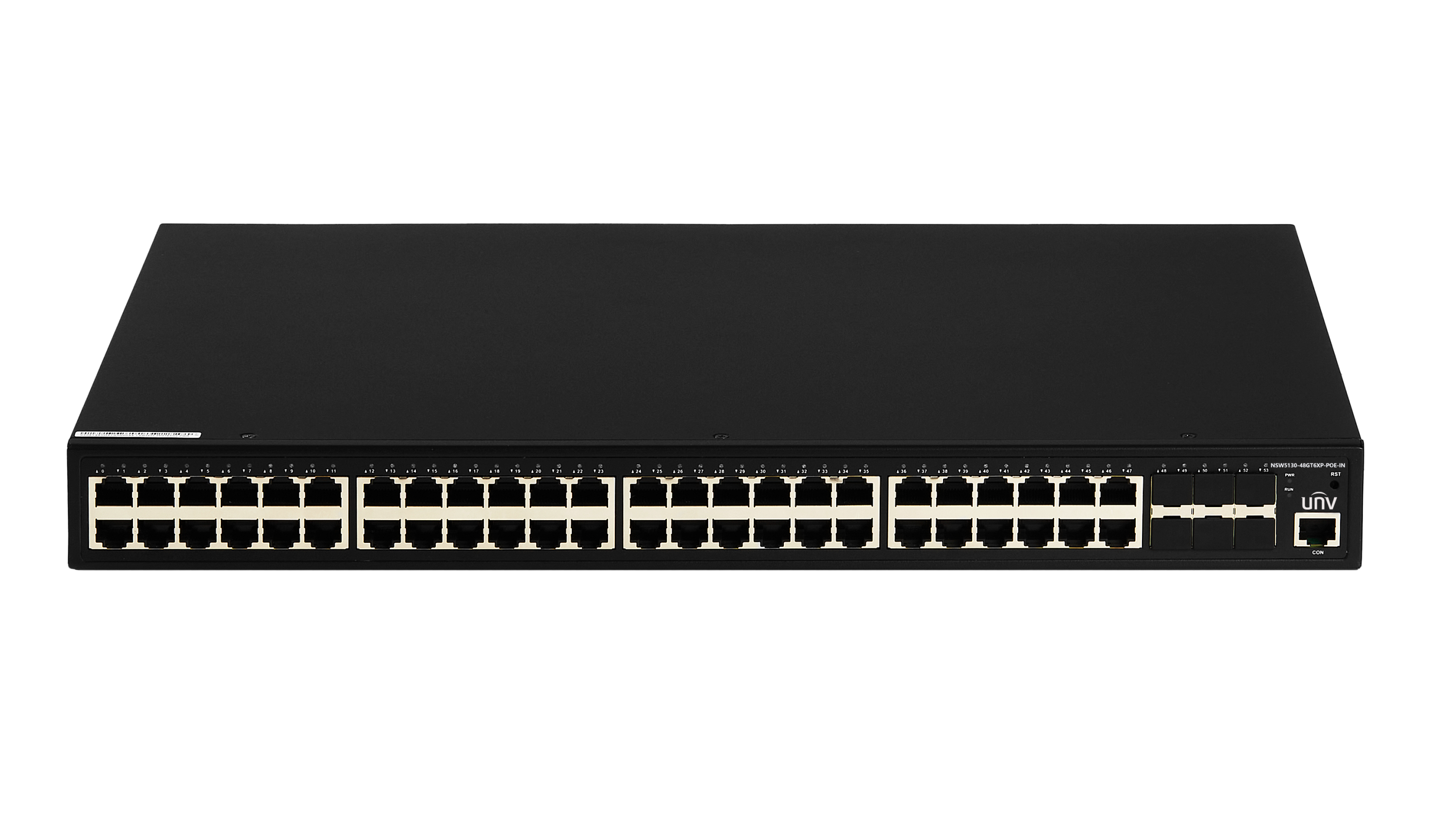

NSW5130-48GT6XP-POE-IN | ||||||||
Hardware Specification | ||||||||
Dimensions (W×D×H) | 442*330*44mm | |||||||
Ports Type | 48*10/100/1000Mbps RJ45 PoE port, 6*1G/10Gbps SFP+ | |||||||
Switching capacity | 216G | |||||||
Forwarding performance | 160.7Mpps | |||||||
Cooling Fans | 3 | |||||||
Operating Temperature | 0℃ to 45℃ | |||||||
Operating Humidity | 5% to 95%, non-condensing | |||||||
Indicator | PWR, RUN, LINK/ACT | |||||||
Max.PoE Power | 459W | |||||||
Power Supply | AC: 100 to 240V, 50/60Hz | |||||||
Weight | 5.3kg | |||||||
Max.Power | 60W (excluding PoE) | |||||||
Software Specification | ||||||||
MAC | Support static, dynamic, black hole MAC entries Support source MAC address filtering | |||||||
Maintenance | Support real-time temperature detection and alarm Support SNMP, CLI, Web management, Support local and remote output of system logs, operation logs, debugging information | |||||||
Security | Support local and centralized authentication based on MAC address Support local and centralized authentication based on 802.1x Support dynamic ARP detection, one-click ARP binding, authorized ARP, ARP source suppression, ARP source address inspection Support port isolation, port security Support broadcast storm suppression Support SSH2.0 | |||||||
QoS | Support 8 priority queues per port Support traffic classification based on 802.1p/DSCP/TOS Support speed limit on ports and streams Support SP, WRR, SP + WRR queue scheduling | |||||||
Ethernet | Support port aggregation, port mirroring, RSPAN, port isolation, port traffic identification | |||||||
VLAN | Support 4K VLAN Support VLAN based on MAC/ IP subnet/authentication policy/interface VLAN Support QinQ |
Class | Date | Title | Language | Type | Preview | Download |
Datasheet | 6/20/2025 5:56:58 PM | UNV NSW5130-48GT6XP-POE-IN Gigabit Ethernet PoE Switch.pdf | English | Preview | Download A > |
Class | Date | Title | Type | Download |
HD Image | 7/22/2025 3:01:15 AM | NSW5130-48GT6XP-POE-IN_HD_Image_1.png | png | Download |
