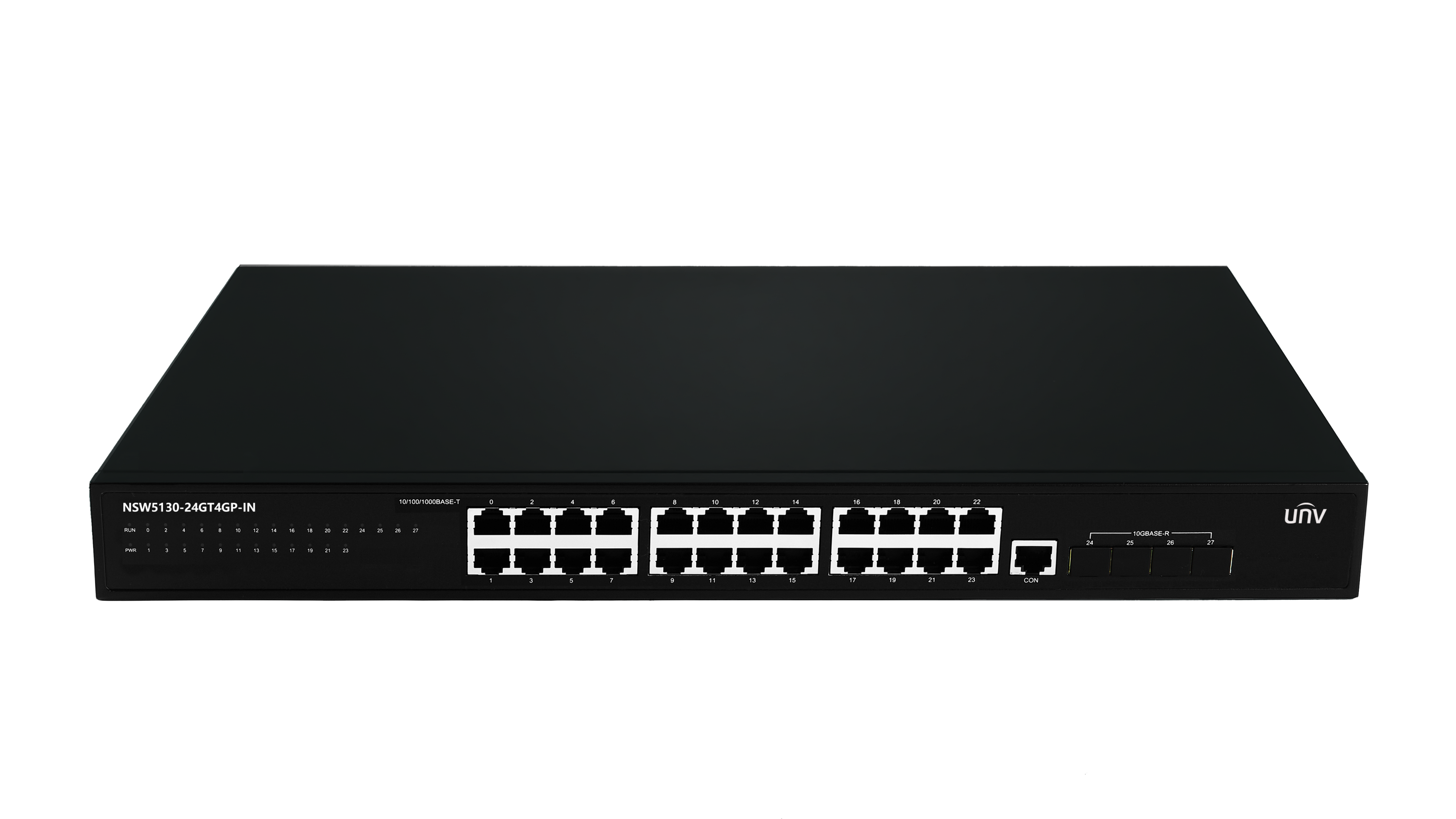

NSW5130-24GT4GP-IN | ||||||||
Hardware Specification | ||||||||
Dimensions (W×D×H) | 440×208×44 | |||||||
Ports Type | 24*10/100/1000Mbps RJ45 port, 4*1000Mbps SFP port | |||||||
Switching capacity | 56Gbps | |||||||
Forwarding performance | 41.66Mpps | |||||||
Cooling Fans | 0 | |||||||
Operating Temperature | 0℃ to 45℃ | |||||||
Operating Humidity | 5% to 95%, non-condensing | |||||||
Indicator | PWR, RUN, LINK/ACT | |||||||
Power Supply | AC: 100 to 240V, 50/60Hz | |||||||
Weight | 2.5kg | |||||||
Max.Power | 22W | |||||||
Software Specification | ||||||||
MAC | Support static, dynamic, black hole MAC entries Support source MAC address filtering | |||||||
Maintenance | Support real-time temperature detection and alarm Support SNMP, CLI, Web management, Support local and remote output of system logs, operation logs, debugging information | |||||||
Security | Support authentication modes based on MAC, 802.1x, and Portal; support local and support local and centralized authentication Support dynamic ARP detection, one-click ARP binding, authorized ARP, ARP source suppression, ARP source address inspection Support port isolation, port security Support broadcast storm suppression Support SSH2.0 | |||||||
QoS | Support 8 priority queues per port Support traffic classification based on 802.1p/DSCP/TOS Support speed limit on ports and streams Support SP, WRR, SP + WRR queue scheduling | |||||||
Ethernet | Support port aggregation, port mirroring, RSPAN, port isolation, port traffic identification | |||||||
VLAN | Support 4K 802.1Q VLAN Support VLAN based on MAC/ IP subnet/authentication policy/interface VLAN Support GVRP Support QinQ |
