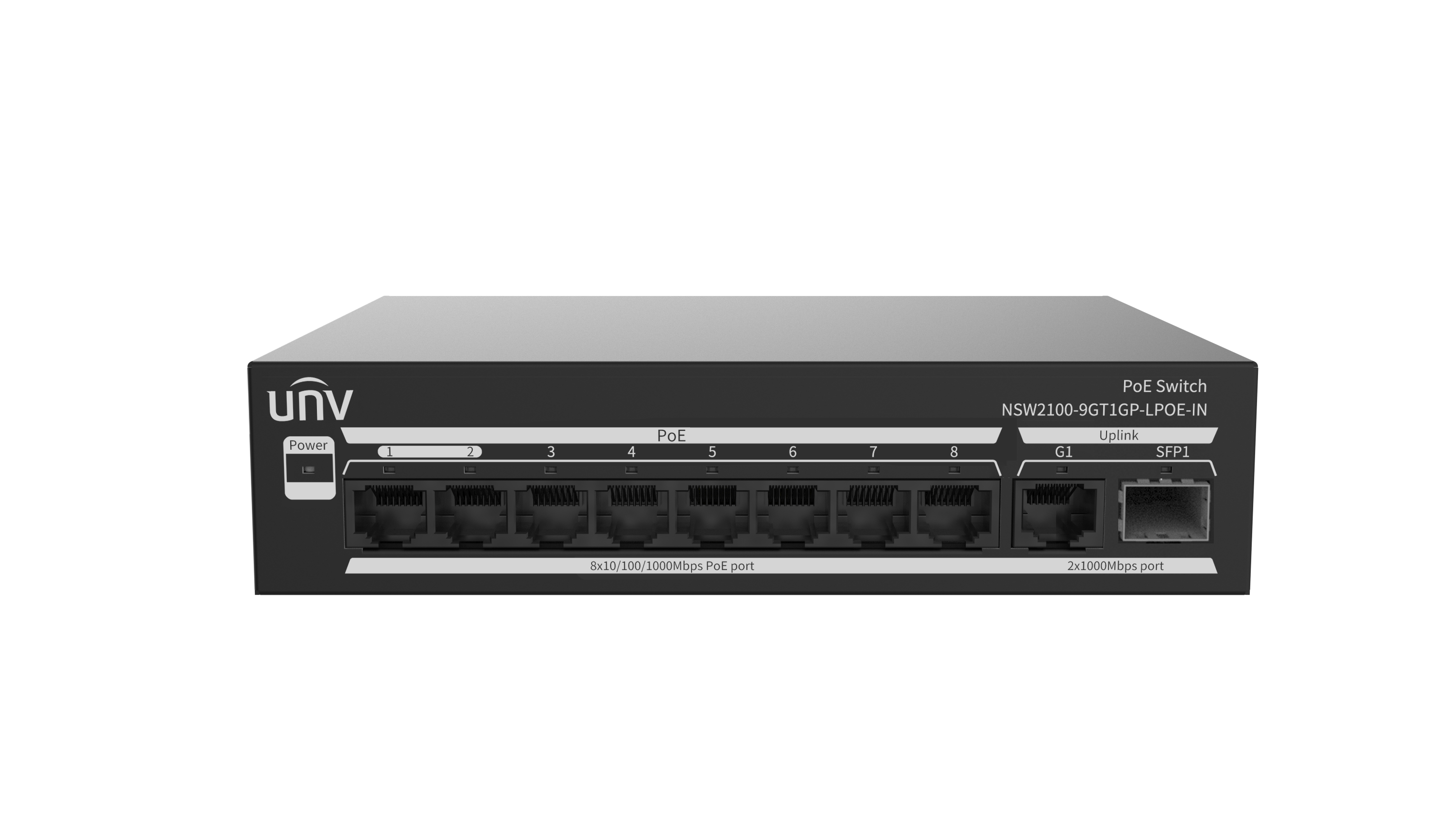

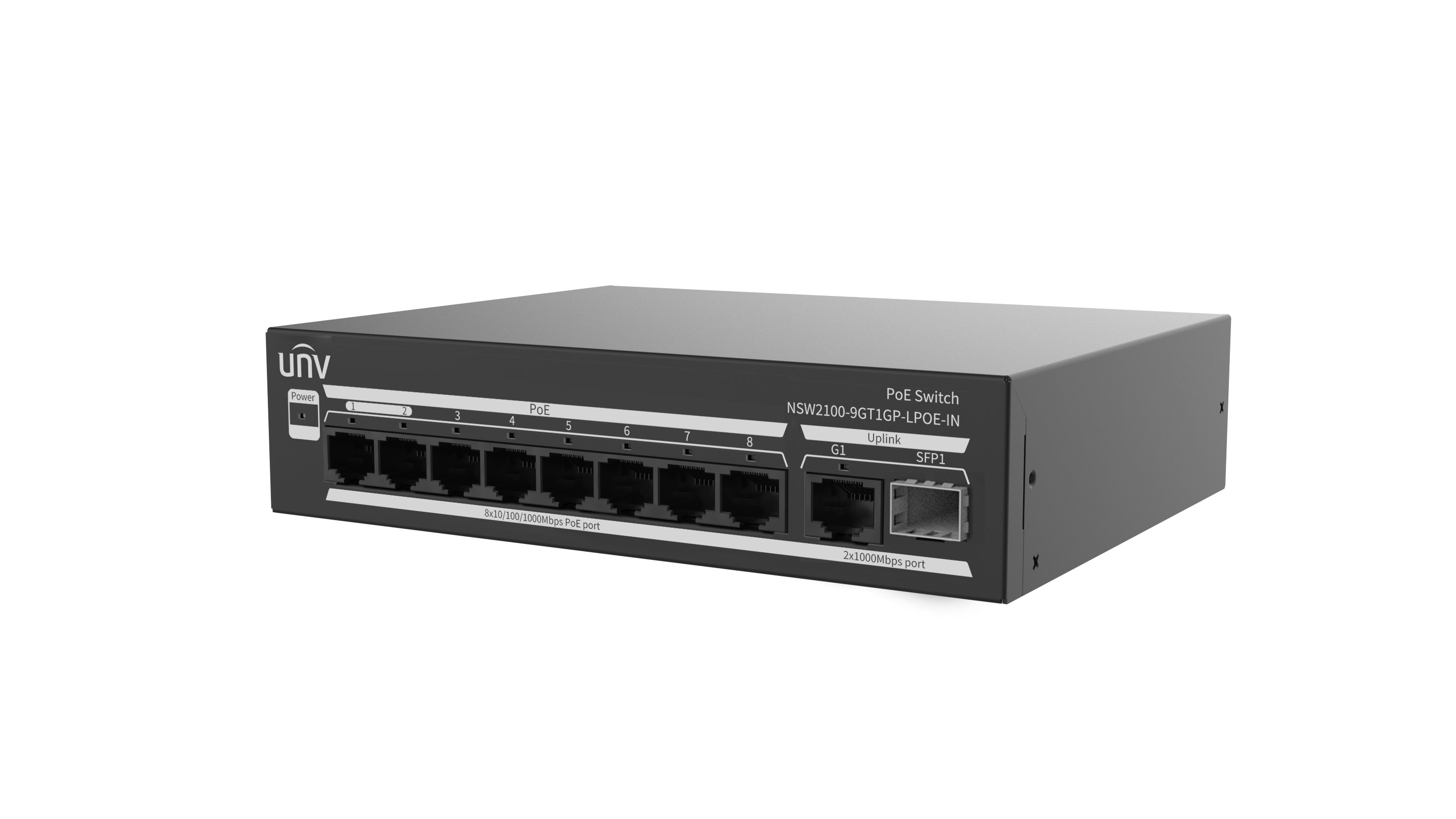

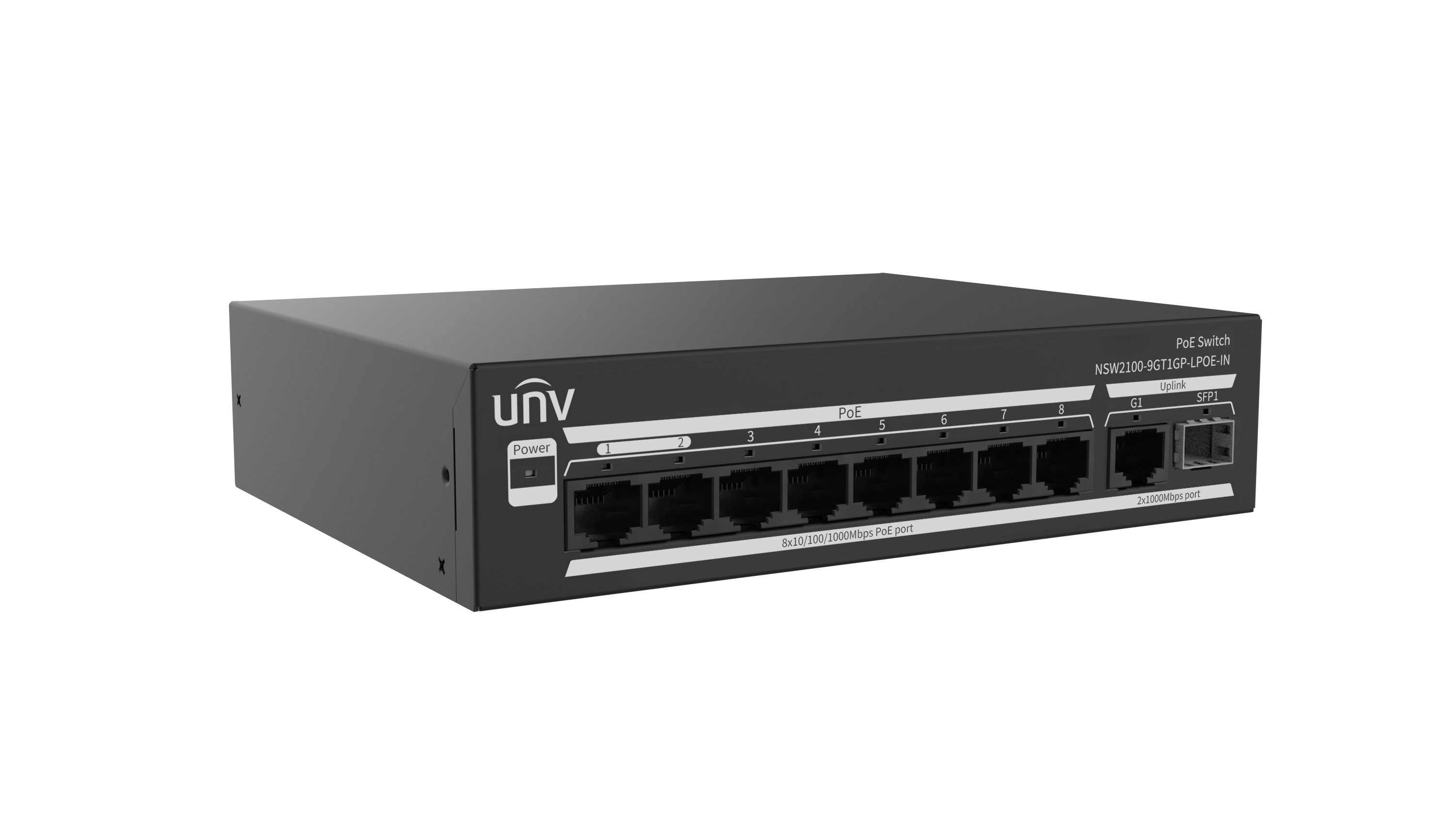

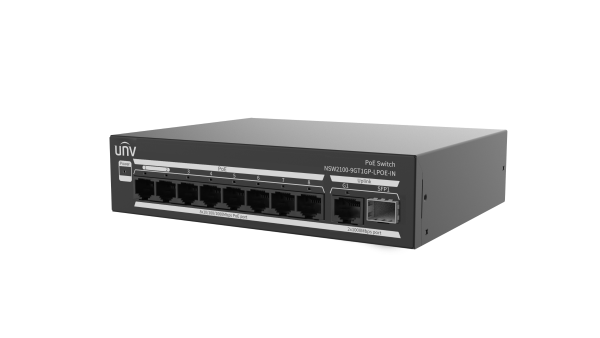

NSW2100-9GT1GP-LPOE-IN | ||||||||
Hardware Specification | ||||||||
Ports Type | 8x 10/100/1000Mbps PoE port (RJ45) 1 x 10/100/1000Mbps port (RJ45) 1 x Gigabit SFP | |||||||
Switching capacity | 20Gbps | |||||||
Forwarding performance | 14.88Mpps | |||||||
Packet Buffer | 4 M bit | |||||||
MAC | 8K | |||||||
Prior Ports | 1 to 2 | |||||||
Standards | IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at | |||||||
Dimensions (W×D×H) | 169*132*40mm | |||||||
Power Supply | AC: 100V to 240V, 50/60Hz | |||||||
PoE Standard | IEEE 802.3af, IEEE 802.3 at | |||||||
PoE Mode | ModeA (1236),ModeB (4578) | |||||||
Max.PoE Power | Max capacity:65W Maximum PoE power for single port: 30W | |||||||
Max.Power | 70W | |||||||
Cooling Fans | 0 | |||||||
Weight | 0.71KG | |||||||
Operating Temperature | 0°C to 40°C (32°F to 104°F) | |||||||
Operating Humidity | 10% to 90% (noncondensing) | |||||||
Indicator | Power: Off: Abnormal power input. Green: Normal power input. Yellow: The total PoE power is higher than 85% of the total power of the device. Link/Act: Off: Disconnected to the port On: Connected to the port Blinking: Transmitting data | |||||||
Software Specification | ||||||||
Ethernet | Supports full duplex, half duplex, and auto-negotiation working modes Supports enabling/disabling ports Supports port auto-negotiation rate Supports port priority flow control. Supports port flow statistics Supports four link aggregation groups (up to eight ports) | |||||||
VLAN | allows up to 10 VLANs with IDs from 1 to 4094 | |||||||
MAC | Support static MAC, up to 32. | |||||||
POE | Allows to view PoE status and enable/disable PoE power supply in the APP | |||||||
Loop Detection | Loop Detection | |||||||
Security | Supports port isolation | |||||||
Maintenance | Supports N:1 port mirroring Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software. | |||||||
System | Allows to view the device name, current version, IP address, MAC address, DNS, etc. Allows to edit and manage the IP address and device name |
