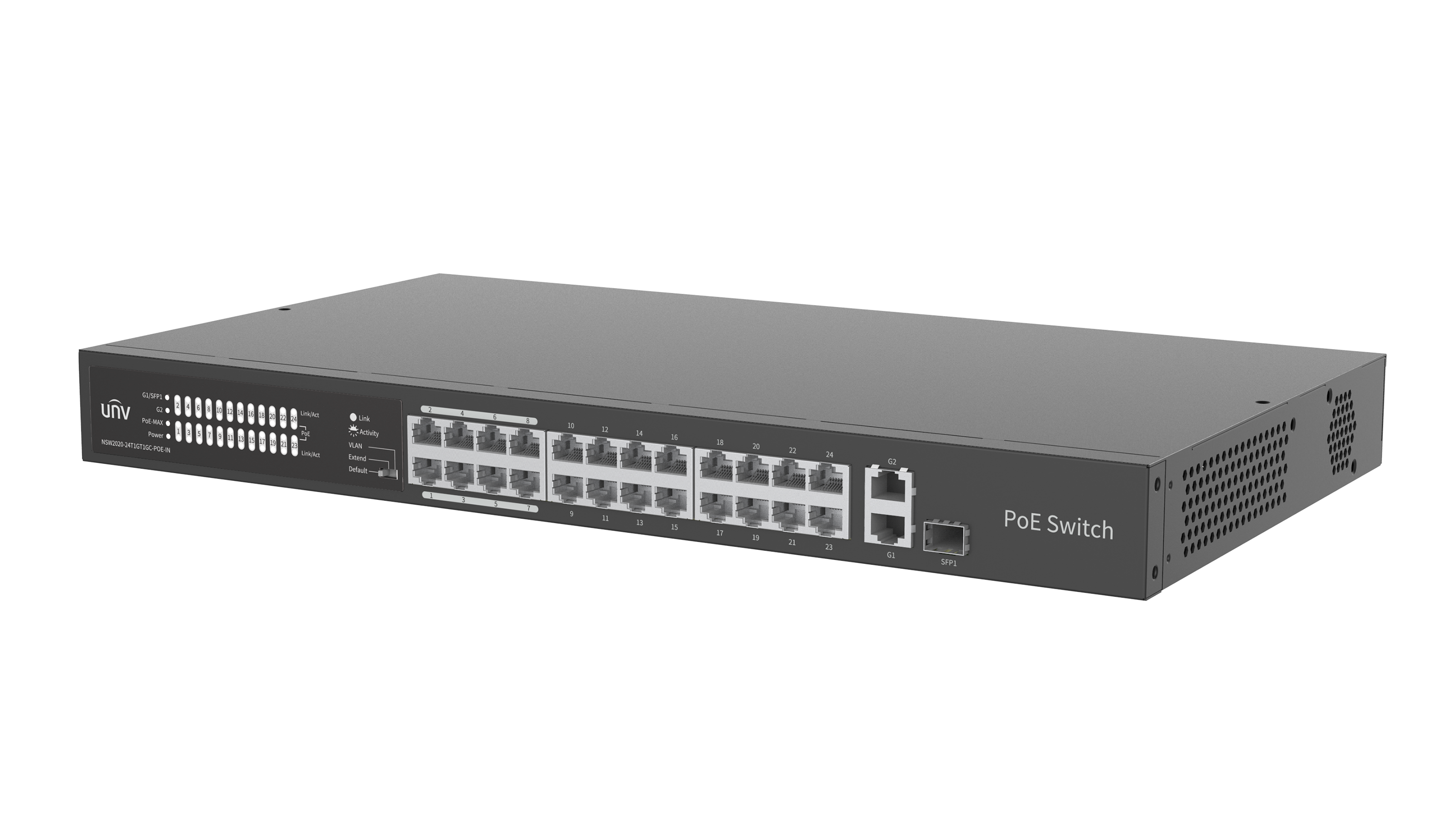

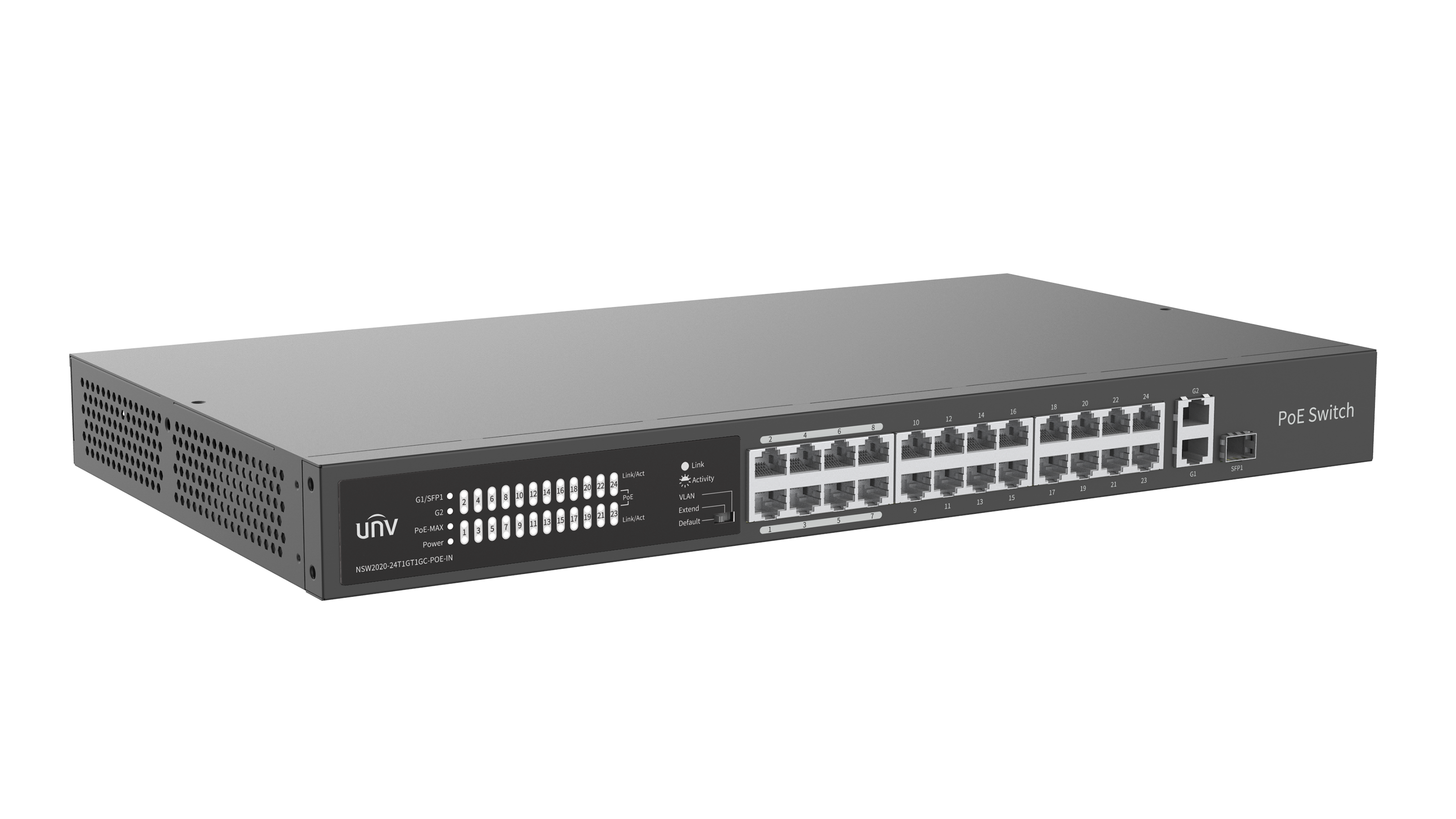

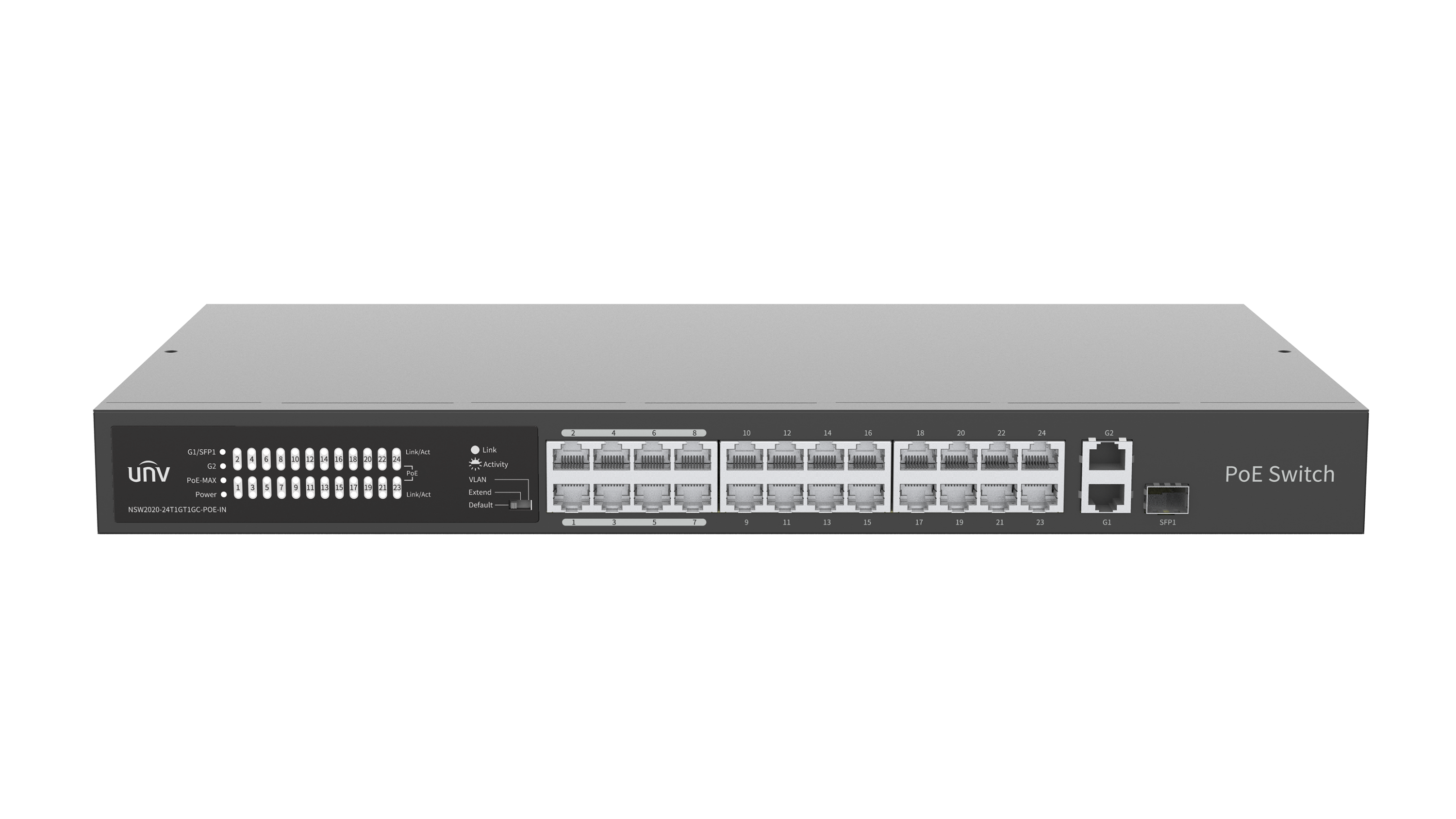

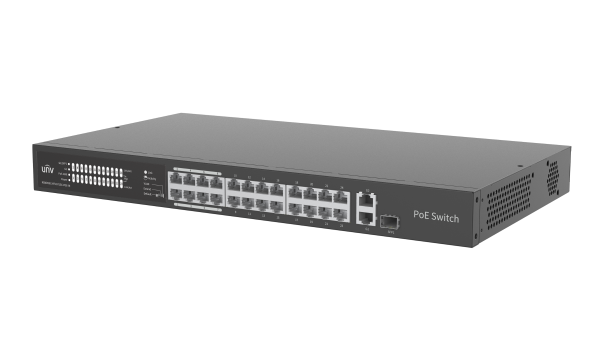

NSW2020-24T1GT1GC-POE-IN

Unmanaged Ethernet Switch(PoE)

• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable

Specification

Download

How to buy

Datasheet
HD Image
Quick Guide

Class	Date	Title	Language	Type	Download
Datasheet	12/19/2024 8:22:06 PM	UNV NSW2020-24T1GT1GC-POE-IN Unmanaged Ethernet PoE Switches.pdf	English	pdf	Download

Class	Date	Title	Type	Download
HD Image	12/14/2024 2:49:50 AM	NSW2020-24T1GT1GC-POE-IN_HD_Image_1.png	png	Download
HD Image	12/14/2024 2:49:50 AM	NSW2020-24T1GT1GC-POE-IN_HD_Image_2.png	png	Download
HD Image	12/14/2024 2:49:50 AM	NSW2020-24T1GT1GC-POE-IN_HD_Image_3.png	png	Download

Class	Date	Title	Language	Type	Download
Quick Guide	9/5/2024 5:37:50 AM	Quick Guide.pdf	English	pdf	Download

Want to learn more?

Contact sales

0%

	NSW2020-24T1GT1GC-POE-IN
Hardware Specification
Ports Type	24×100Mbps PoE ports (RJ45) + 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
Standards	IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Switching capacity	8.8 Gbps
Forwarding performance	6.55Mpps
Packet Buffer	4 M bit
MAC	16K
Max. PoE Power	Max capacity: 370 W, Max capacity for single port: 30 W
PoE	support POE
Prior Ports	1 to 8
Indicator	POWER Steady on: AC input is normal, POWER Off: No AC input, PoE Off: No PoE power supply, PoE Steady on: PoE power supply is normal, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification, PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data
Power supply	AC: 100-240 V, 50/60 Hz
Max.Power	390W
Storage Temperature	-40 ℃ to 70 ℃
Operating temperature	0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Cooling Fans	1
Mean Time Between Failure (MTBF)	>50000 hours
Dimensions (W×D×H)	44025044mm
Weight	2.93KG
Storage humidity	5%～90% (non-condensing)
Operating humidity	10%～90% (non-condensing)
Working Mode	Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports
