NSW2020-10T-LPOE-IN - Uniview - Leader of AIoT Solution

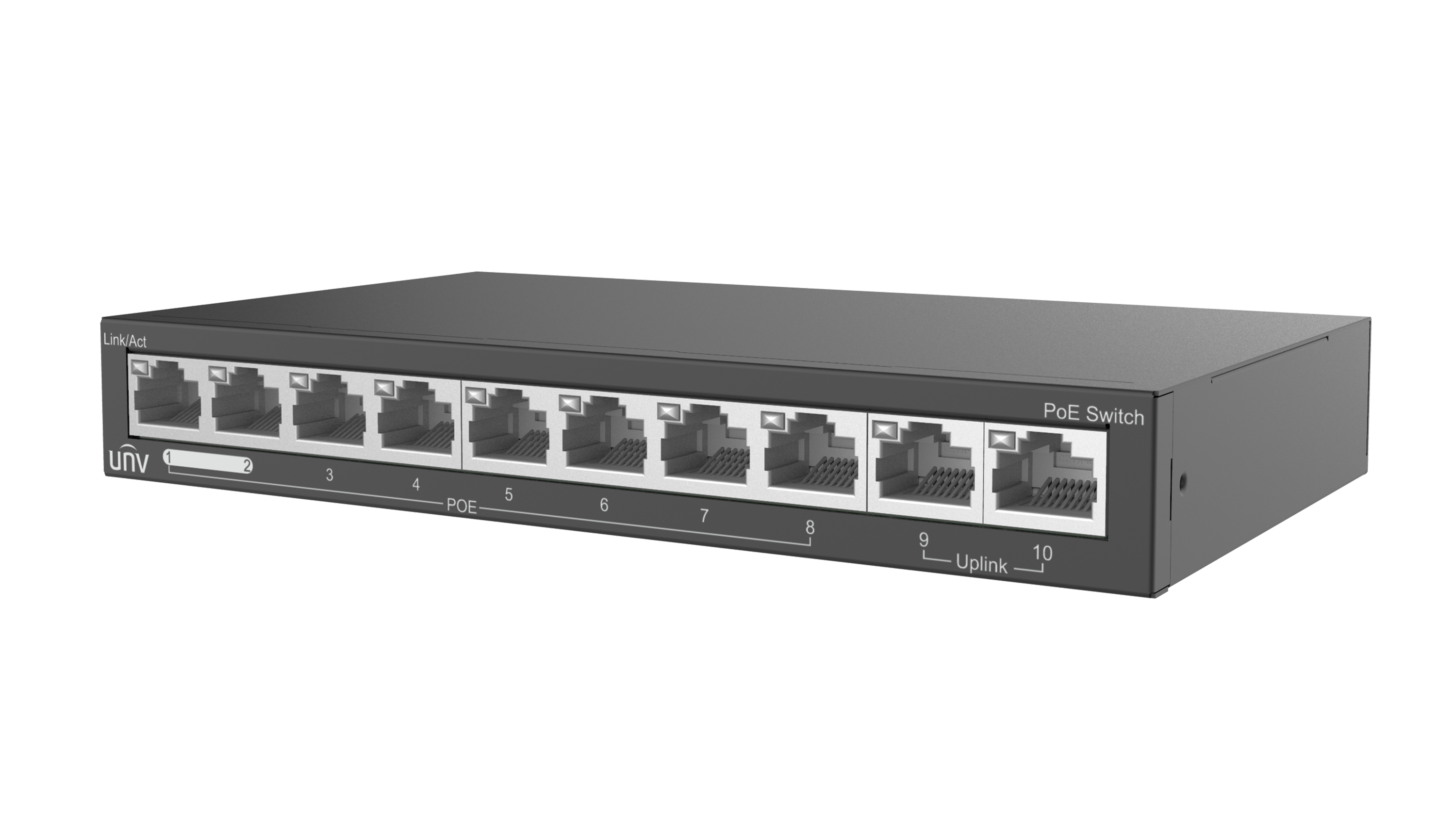

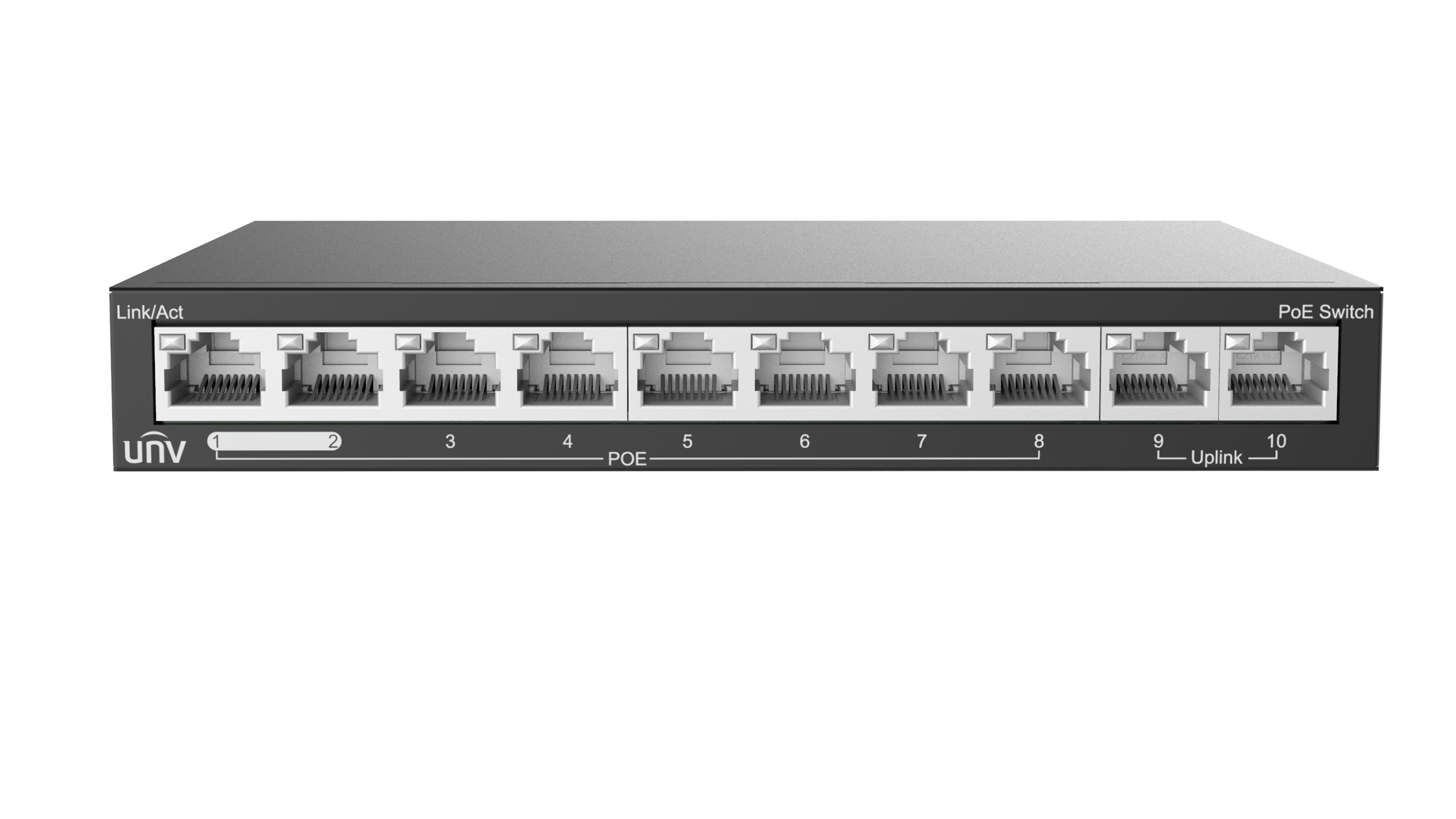

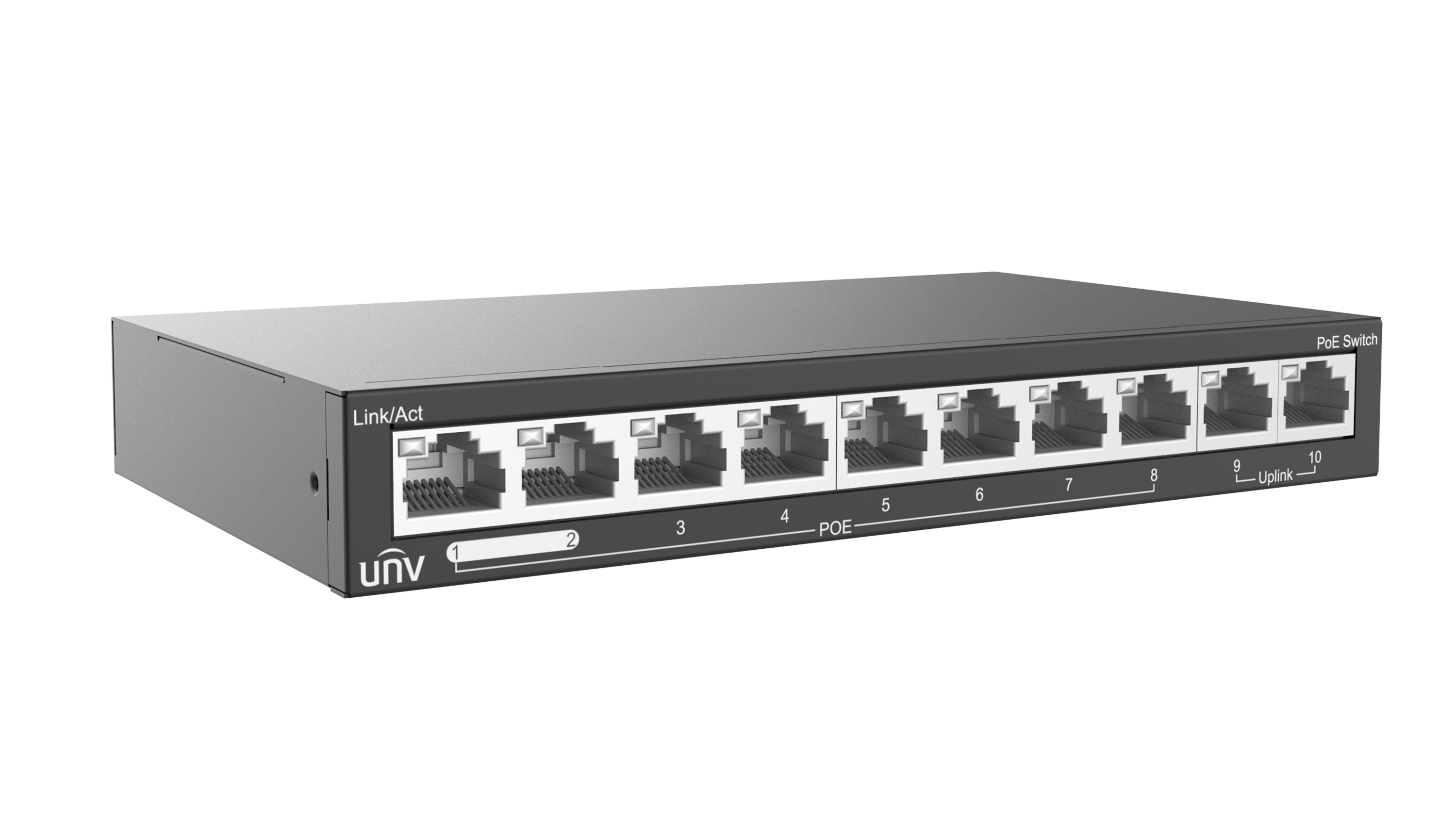

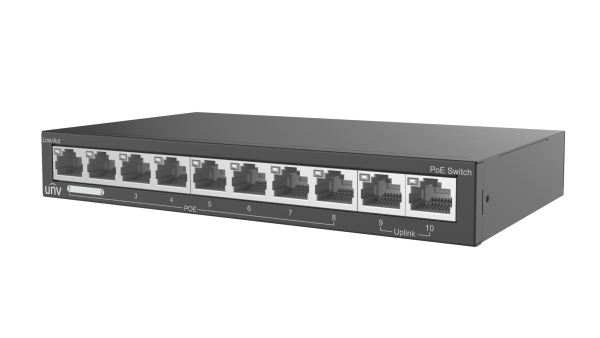

NSW2020-10T-LPOE-IN

Unmanaged Ethernet Switch(PoE)

• Multiple working modes to address your business needs: Default(Normal mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable

Datasheet
HD Image
Quick Guide

Class	Date	Title	Language	Type	Download
Datasheet	12/19/2024 10:35:42 PM	UNV NSW2020-10T-LPOE-IN Ethernet Low Power PoE Switches.pdf	English	pdf	Download

Class	Date	Title	Type	Download
HD Image	12/14/2024 2:49:55 AM	NSW2020-10T-LPOE-IN_HD_Image_1.png	png	Download
HD Image	12/14/2024 2:49:55 AM	NSW2020-10T-LPOE-IN_HD_Image_2.png	png	Download
HD Image	12/14/2024 2:49:55 AM	NSW2020-10T-LPOE-IN_HD_Image_3.png	png	Download

Class	Date	Title	Language	Type	Download
Quick Guide	9/5/2024 5:37:50 AM	Quick Guide.pdf	English	pdf	Download

	NSW2020-10T-LPOE-IN
Hardware Specification
Ports Type	10×100Mbps network ports (RJ45), including 8 PoE ports
Standards	IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching capacity	2 Gbps
Forwarding performance	1.49Mpps
Packet Buffer	448K bit
MAC	1K
Dimensions (W×D×H)	17110325mm
Weight	0.29KG
Power Supply	DC：48/51V
Max.Power	65W
PoE	802.3at/af (4/5+, 7/8-)
Max. PoE Power	Max capacity: 60 W, Max capacity for single port: 30 W
Prior Ports	1 to 2
Cooling Fans	0
Operating temperature	0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Operating humidity	10%～90% (non-condensing)
Indicator	POWER Steady on: AC input is normal, POWER Off: No AC input, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification, PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data, No PoE Indicator
Working Mode	Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters
