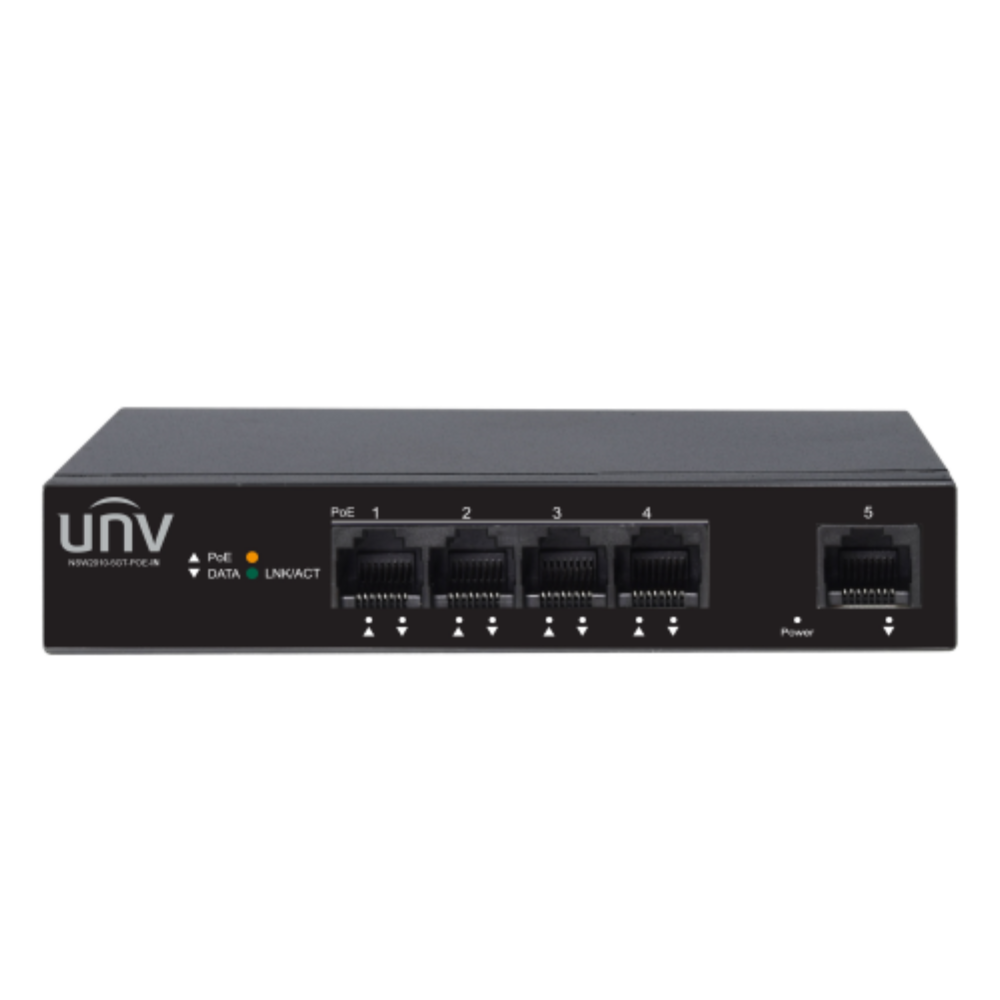

NSW2010-5GT-POE-IN | ||||||||
Hardware Specification | ||||||||
Ports Type | 4×1000Mbps PoE ports (RJ45)+1×1000Mbps ports(RJ45) | |||||||
Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at | |||||||
Switching capacity | 10 Gbps | |||||||
Forwarding performance | 7.44Mpps | |||||||
Packet Buffer | 1 M bit | |||||||
MAC | 2K | |||||||
Weight | <1 kg | |||||||
Dimensions (W×D×H) | 140mm x 76.7mm x 27.7mm (5.5"×3"×1.1") | |||||||
Power supply | AC: 100-240 V, 50/60 Hz | |||||||
PoE | support POE | |||||||
Max. PoE Power | Max capacity: 60 W, Max capacity for single port: 30 W | |||||||
Cooling Fans | 0 | |||||||
Storage Temperature | -40 ℃ to 70 ℃ | |||||||
Operating temperature | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) | |||||||
Operating humidity | 10%~90% (non-condensing) | |||||||
Storage humidity | 5%~90% (non-condensing) | |||||||
Indicator | PWR (Green), LNK/ACT (Green), PoE (Orange) |
