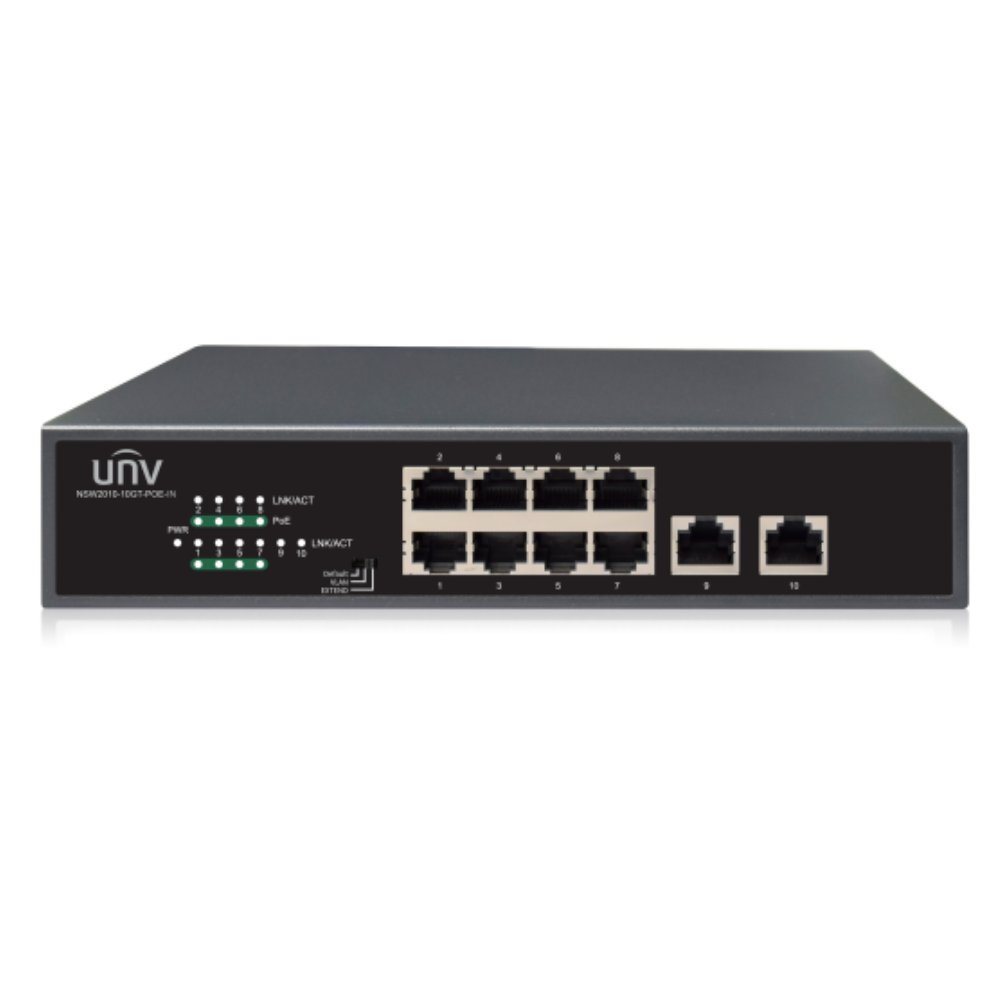

| NSW2010-10GT-POE-IN | ||||||||
| Hardware Specification | ||||||||
| Ports Type | 8×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45) | |||||||
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at | |||||||
| Switching capacity | 20 Gbps | |||||||
| Packet Buffer | 2 M bit | |||||||
| Forwarding performance | 14.88Mpps | |||||||
| MAC | 2K | |||||||
| PoE | support POE | |||||||
| Cooling Fans | 1 | |||||||
| Weight | <1.24kg | |||||||
| Operating humidity | 10%~90% (non-condensing) | |||||||
| Dimensions (W×D×H) | 220mm x 150mm x 44mm (8.7"×5.9"×1.7") | |||||||
| Working Mode | Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports., Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports | |||||||
