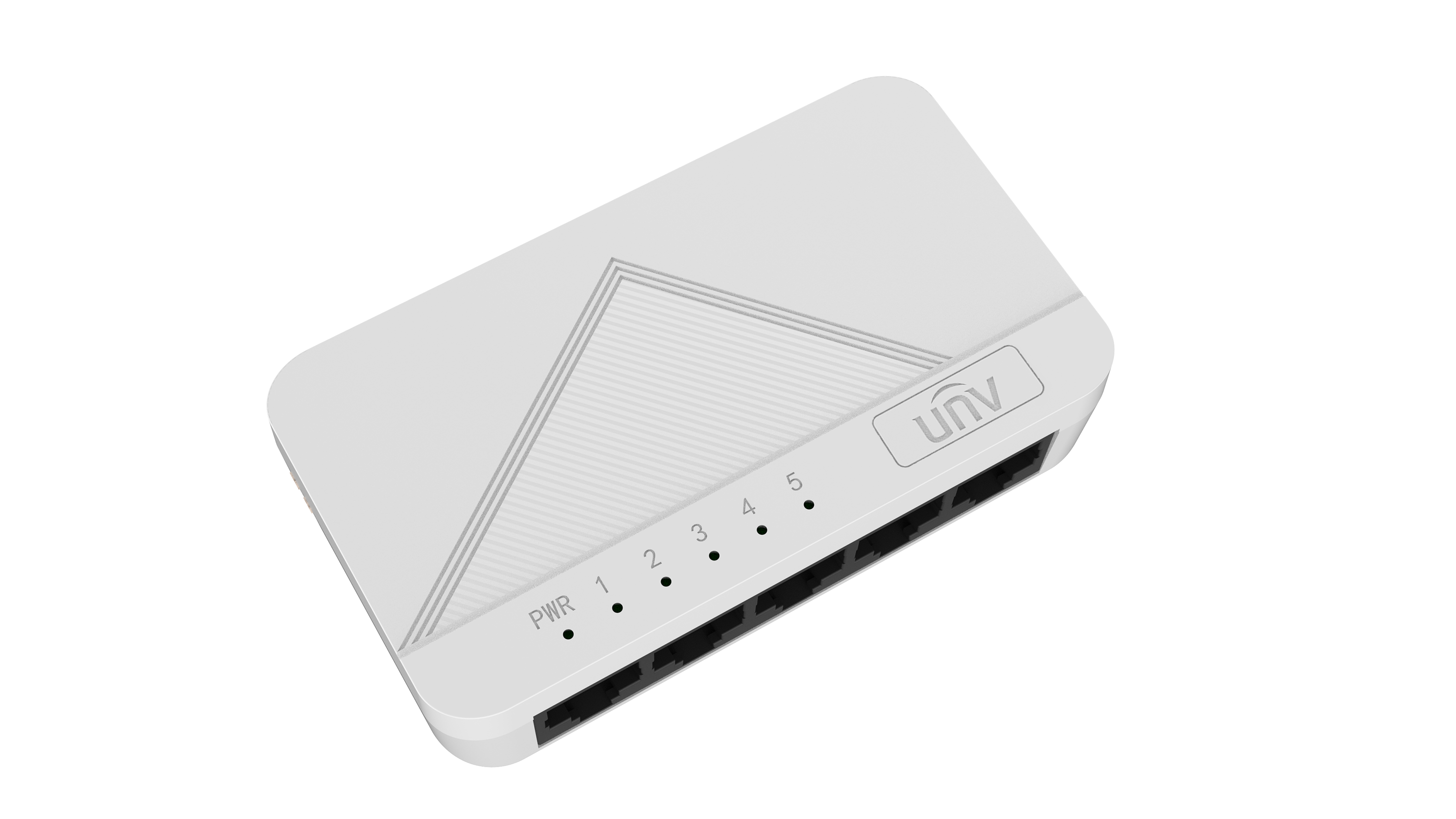

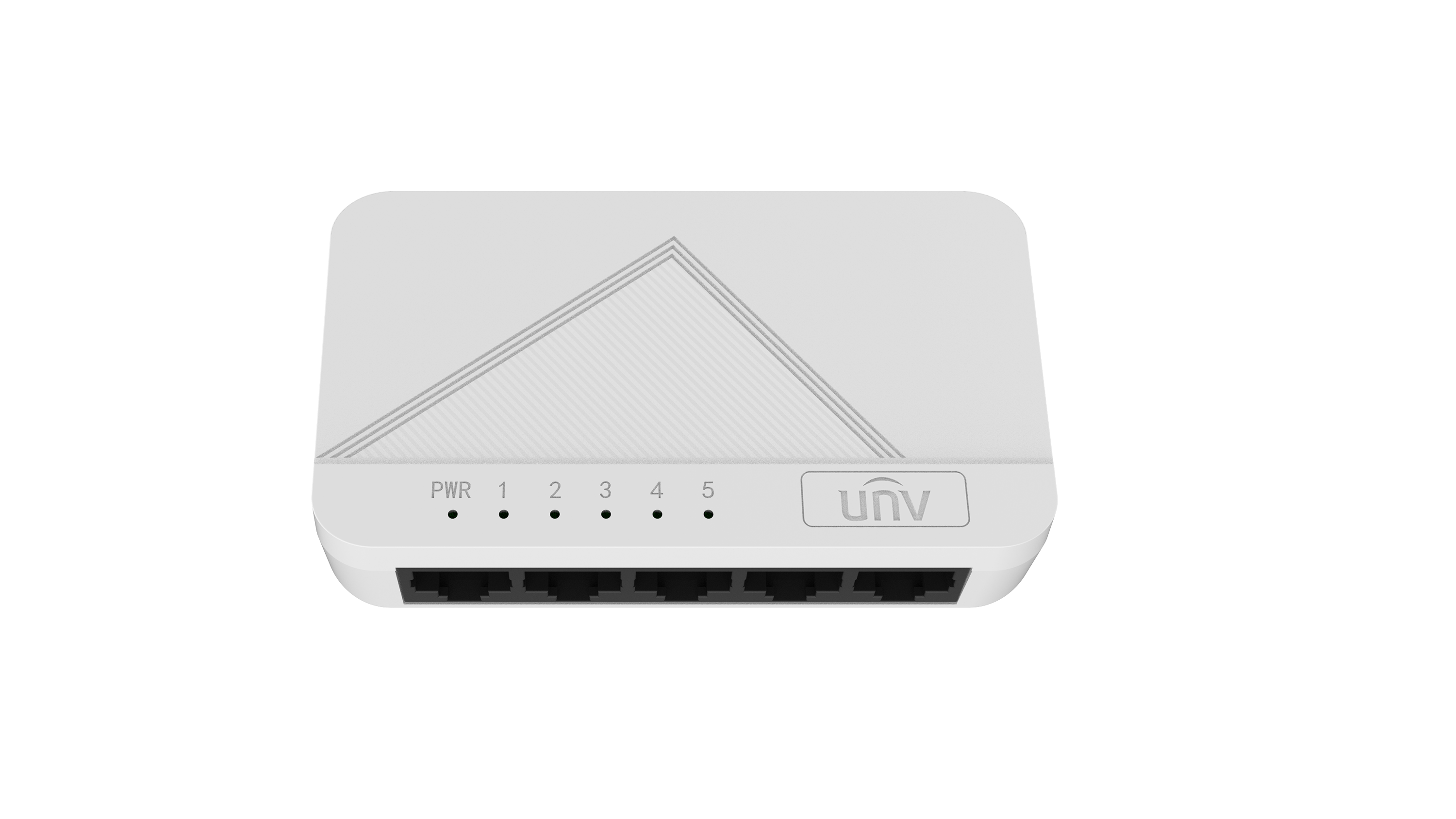

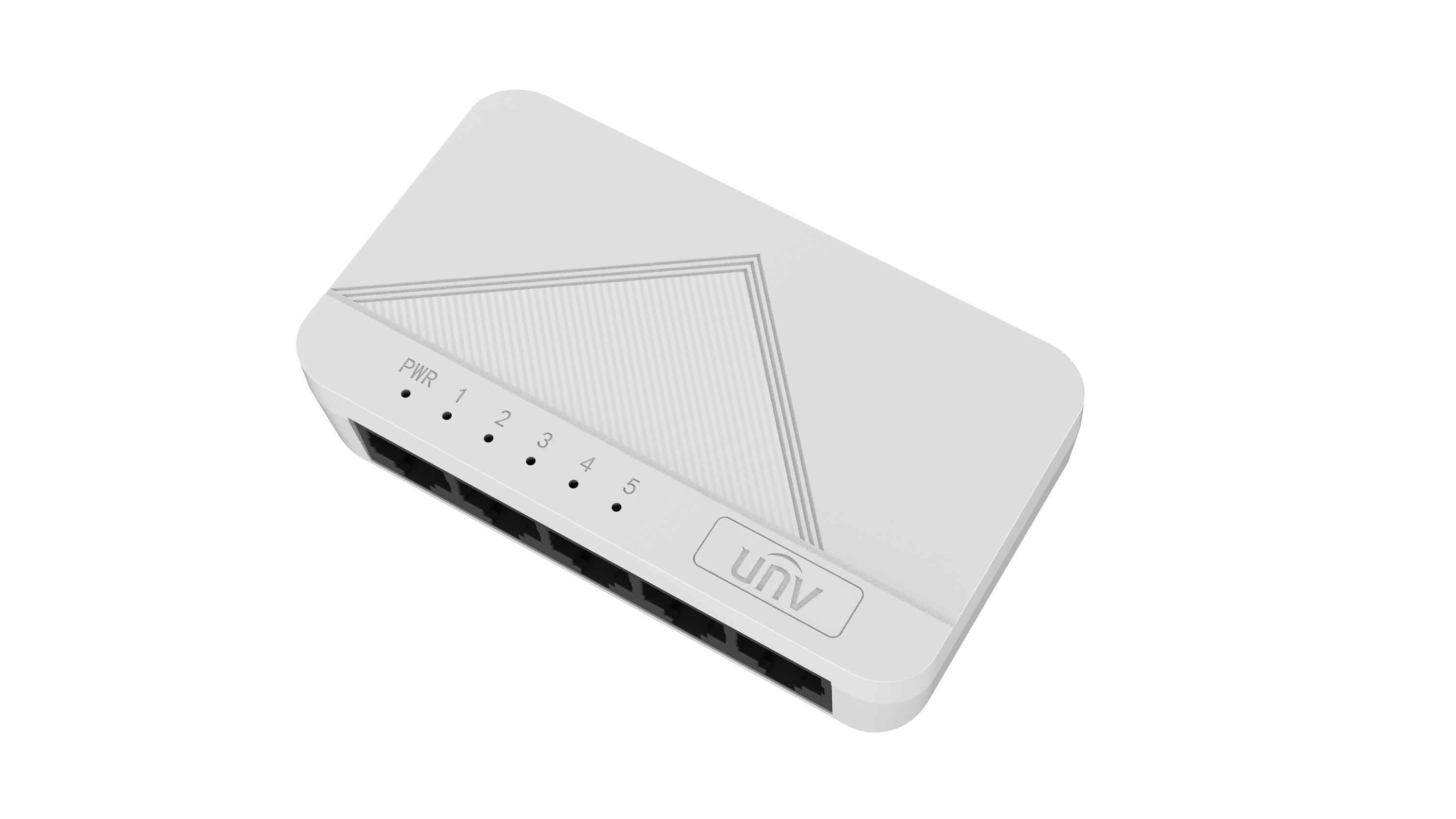

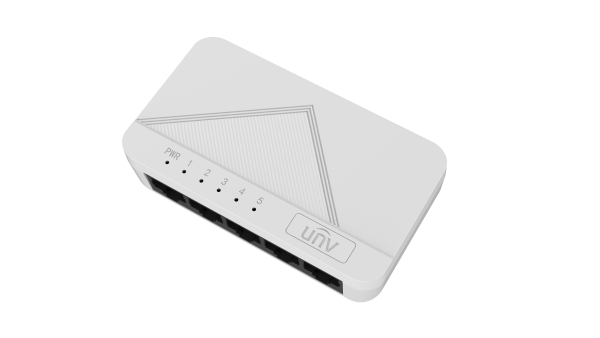

NSW1010-5T-IN

5-Port 100 Megabit Plastic Shell Switch

• Supports IEEE802.3 and IEEE802.3u standards.
• Supports 10/100Mbps or 10/100/1000Mbps self-adaptive Ethernet port.
• Supports auto MDI/MDIX.
• Supports IEEE802.3 flow control for full-duplex mode and backpressure for half-duplex mode.

	NSW1010-5T-IN
Hardware Specification
Ports Type	5 x 10/100Mbps port (RJ45)
Network Media	10Base-T: Cat3, 4, 5 or higher UTP/STP (≤100m) 100Base-TX: Cat5 or higher UTP/STP (≤100m)
Switching capacity	1Gbps
Forwarding performance	0.744Mpps
MAC	2K
Jumbo Frame	15K
Transfer Mode	Store-and-forward
Dimensions (W×D×H)	Product: 925121.5mm Packaging: 938251mm
Carton Information	Carton dimensions: 435280395mm Carton quantity: 100PCS Carton weight: 14.2kg
Weight	Product: 0.062kg Packaging: 0.132kg
Power Supply	Adapter input voltage: AC 100V to 240V Switch input voltage: 5V, 1A
Mount Method	Desktop mount, wall mount
Cooling Fans	0
Operating temperature	0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Operating humidity	10%～90% (non-condensing)
Storage Temperature	-20°C to 70°C
Storage Humidity	5% to 90% RH, noncondensing
Indicator	POWER Steady on: AC input is normal, POWER Off: No AC input, LINK/ACT Off: No link, LINK/ACT Flashing: Transmitting data, LINK/ACT Steady on: Linked
