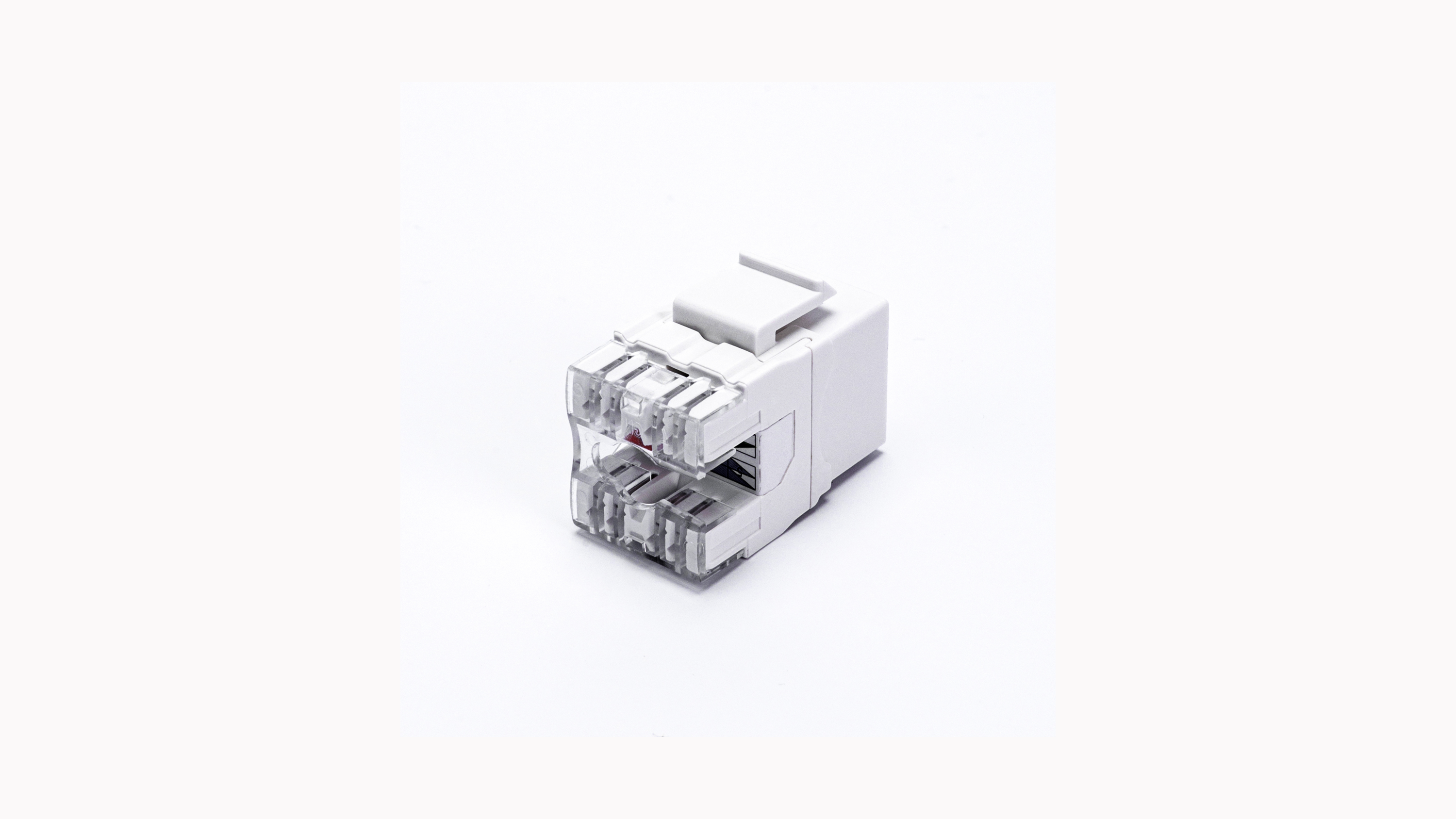

| GC-MD5e-IN | ||||||||
| Physical | ||||||||
| Product Type | UTP CAT5e Punch-down Module | |||||||
| Packing | Once Packing: 1 PCS / packet Twice Packing: 100 PCS / Box | |||||||
| Mechanical | ||||||||
| Shell Material | PC | |||||||
| Termination Contact Plating | Phosphor Bronze, 3μ inches gold-plated | |||||||
| IDC Material | Phosphor Bronze | |||||||
| Plug to Jack Mating Cycles | ≥750 times | |||||||
| IDC Cycles | ≥200 times | |||||||
| Compatible Conductor Gauge,solid | 0.35mm -- 0.6mm | |||||||
| OD. of Connector Calbe | 5.0mm -- 7.5mm | |||||||
| Termination Type | IDC, 110 Block tools or Krone tools, Support T568A&T568B wiring | |||||||
| Installation | Standard face plates , blank patch panels | |||||||
| Electrical | ||||||||
| Voltage Rating | 125V AC RMS | |||||||
| Current Rating at Temperature | 1.5 A @ 20 °C | |||||||
| Contact Resistance | ≤20mΩ | |||||||
| Insulation Resistance | ≥500MΩ,100V DC | |||||||
| Withstand Voltage | DC 1000V or AC 700V @ 60s | |||||||
| Standard | ANSI/TIA568C.2-2009 | |||||||
| Environment | ||||||||
| Operating Temperature | -25℃ to 70℃ | |||||||
| Store Temperature | 10 to 90%RH | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2025/8/27 7:56:46 | UNV GC-MD5e-IN UTP Keystone Jcaket.pdf | English | Preview | Download A > |
| Class | Date | Title | Type | Download |
| HD Image | 2025/10/28 3:14:39 | GC-MD5e-IN_HD_Image_1.png | png | Download |
| Class | Date | Title | Download |
| Dimensions | 2025/10/28 3:14:39 | GC-MD5e-IN_Dimensions_1.png | Download |
