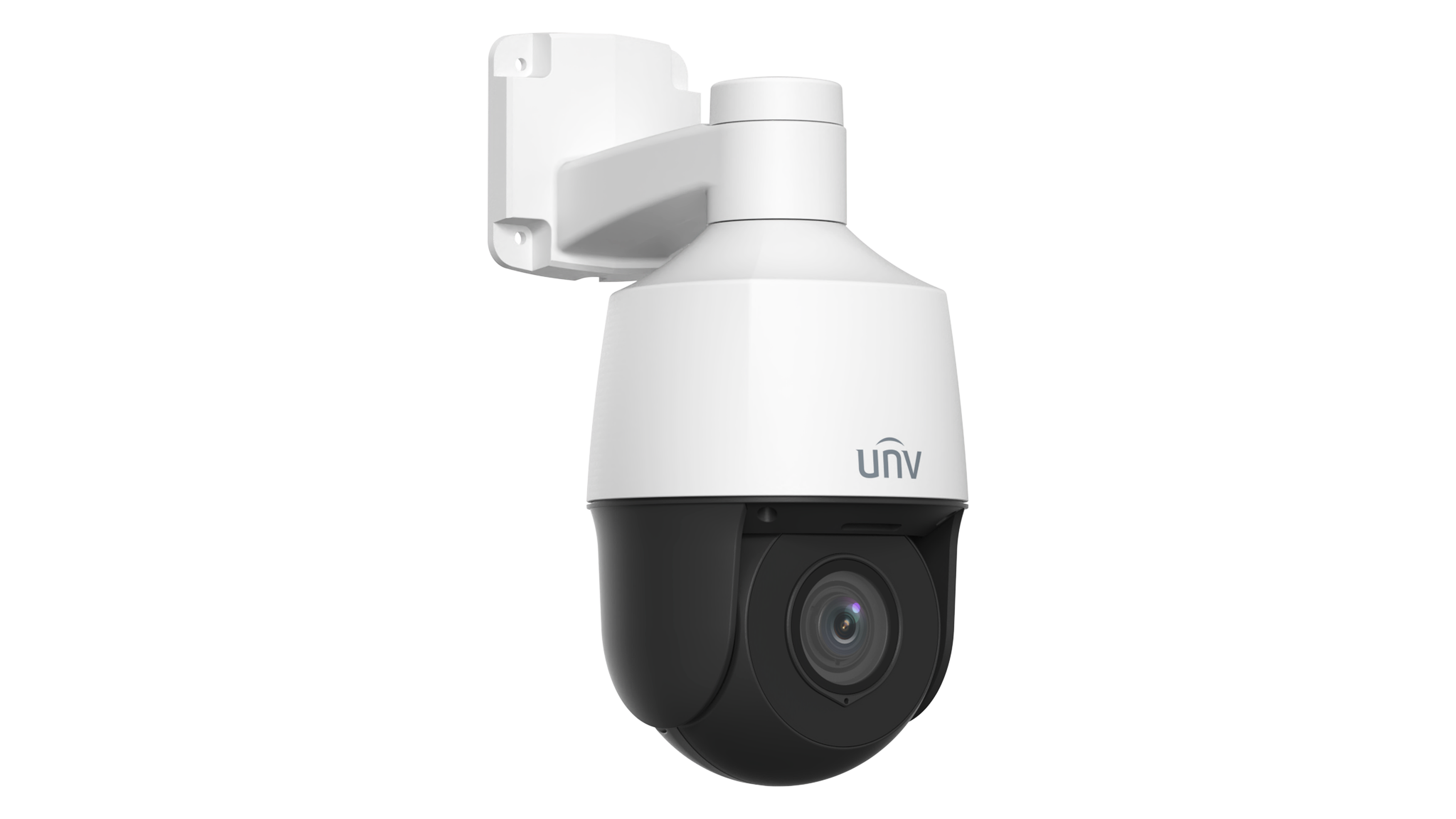

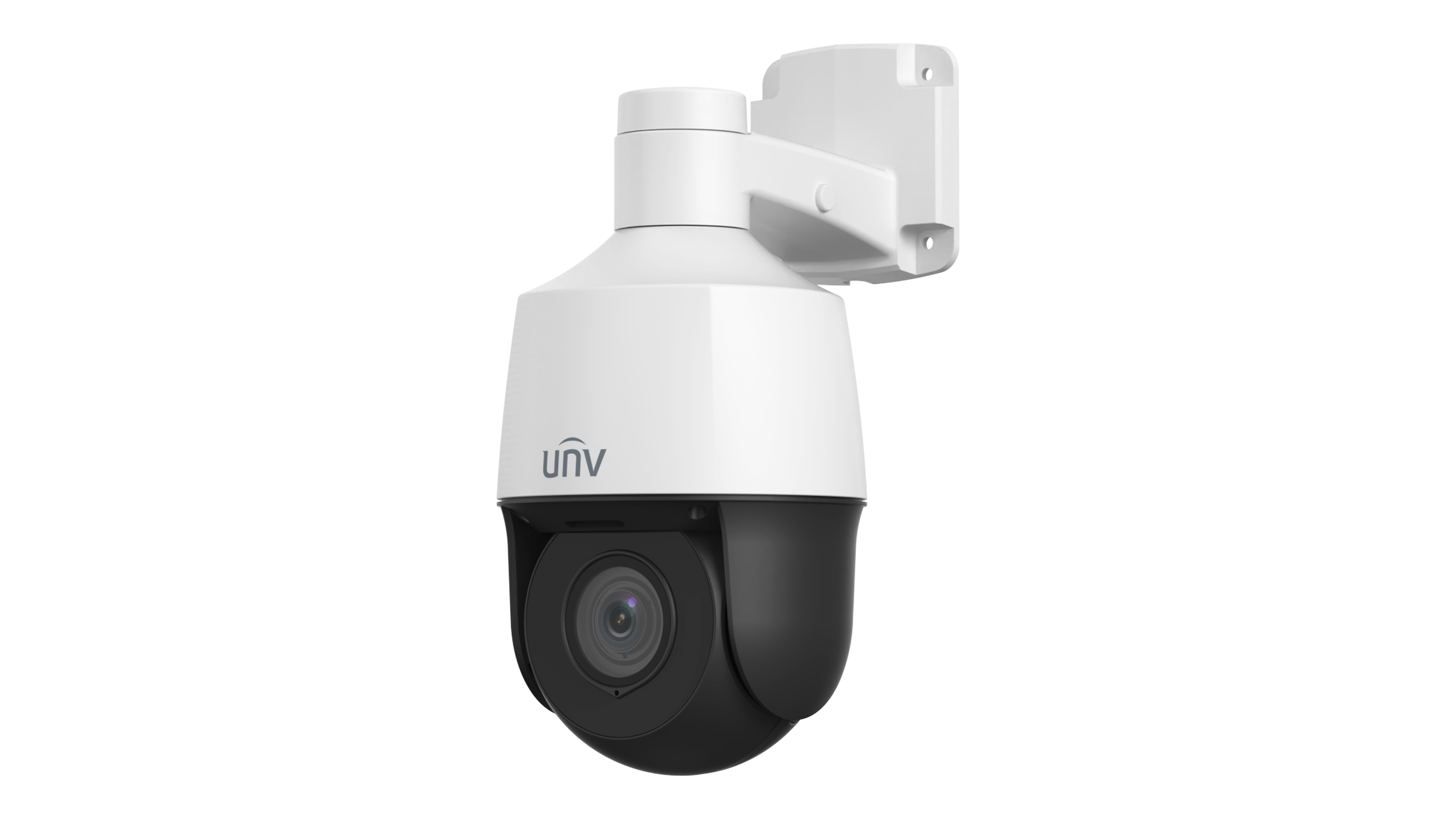

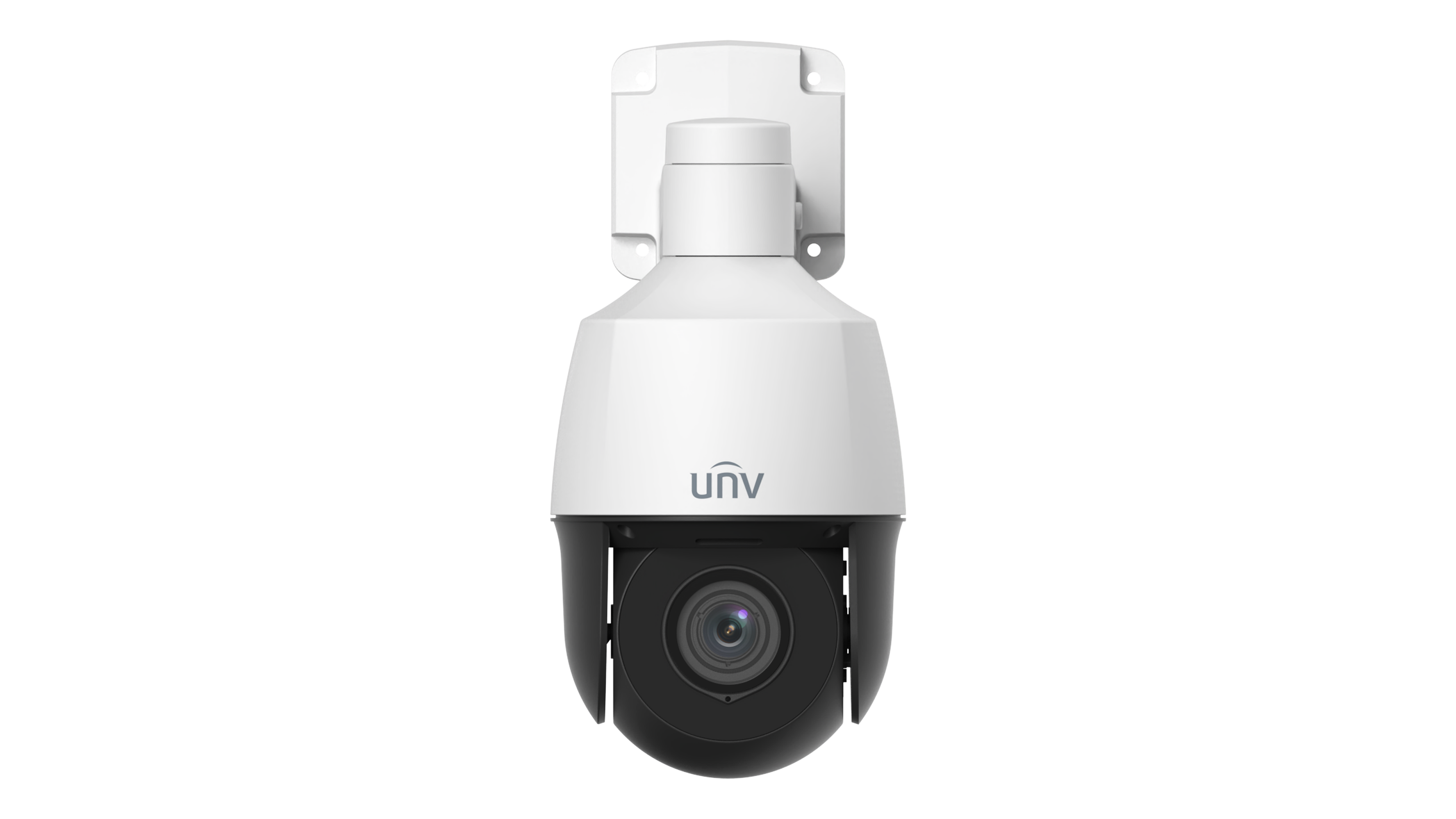

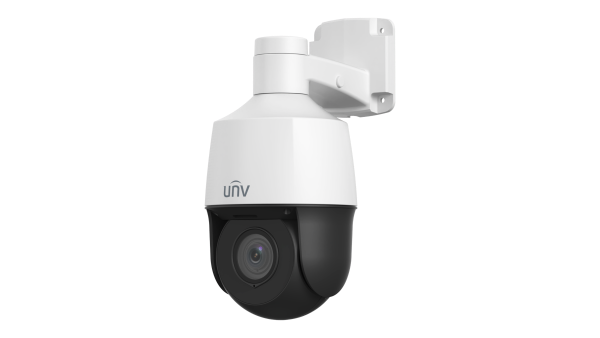

IPC6312LR-AX4-VG | ||||||||
Camera | ||||||||
Sensor | 1/2.7" CMOS | |||||||
Min. Illumination | Colour: 0.002Lux (F1.6, AGC ON) 0Lux with IR on | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
WDR | 120 dB | |||||||
S/N | >52 dB | |||||||
Lens | ||||||||
Focal Length | 2.8 to 12 mm | |||||||
Optical Zoom | 4X | |||||||
Iris | F1.6 | |||||||
Field of View (H) | 105.2° ~ 29.32° | |||||||
Field of View (V) | 52.6° ~ 16.38° | |||||||
Field of View (D) | 108.7° ~ 33.3° | |||||||
DORI | ||||||||
DORI Distance (Lens) | 2.8~12(mm) | |||||||
DORI Distance (Detect) | 43.4m~186.2m(142.4ft~610.9ft) | |||||||
DORI Distance (Observe) | 17.4m~74.5m(57.1ft~244.4ft) | |||||||
DORI Distance (Recognize) | 8.7m~37.2m(28.5ft~122.1ft) | |||||||
DORI Distance (Identify) | 4.3m~18.6m(14.1ft~61.0ft) | |||||||
Illuminator | ||||||||
Illumination Distance (IR) | 50 m (164.0 ft) | |||||||
IR On/Off Control | Auto/Manual | |||||||
Wavelength | 850 nm | |||||||
Video | ||||||||
Privacy Mask | Up to 4 areas | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps Sub Stream: 720P (1280*720), Max 30fps Third Stream: D1 (720*576), Max 30fps | |||||||
Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
ROI | Support | |||||||
Video Stream | Triple Streams | |||||||
OSD | Up to 8 OSDs | |||||||
PTZ | ||||||||
Pan Range | 0° ~ 345° | |||||||
Pan Speed | 0.1°/s ~ 50°/s | |||||||
Tilt Range | -10° ~ 110° | |||||||
Tilt Speed | 0.1°/s ~ 40°/s | |||||||
Number of Presets | 256 | |||||||
Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
Patrol Stay Time | 120 s to 1800 s | |||||||
Home Position | Support | |||||||
Intelligent | ||||||||
Exception Detection | Object Removed, Object Left Behind, Scene Change, Defocus Detection | |||||||
Auto Tracking | Support, target filtering: human only | |||||||
People Counting | Support People Flow Counting and Crowd Density Monitoring | |||||||
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
Image | ||||||||
Defog | Digital Defog | |||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180° | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Heatwave Reduction | N/A | |||||||
Events | ||||||||
Basic Detection | Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind, Scene Change, Defocus Detection | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 16KHZ | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |||||||
Interface | ||||||||
Built-in Mic | Support | |||||||
Built-in Speaker | Support | |||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Certification | ||||||||
EMC | CE-EMC (EN55032:2015, EN55024:2010+A1:2015, EN55035:2017, EN61000-3-2:2014, EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||||||
Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
General | ||||||||
Power | DC12V(±25%), PoE (IEEE 802.3af) | |||||||
Power Consumption | MAX 15W | |||||||
Power Interface | Ø5.5 mm coaxial power plug | |||||||
Dimensions | 133 x 185 x 276 mm (5.2" x 7.3" x 10.9" ) (L x W x H) | |||||||
Weight | 0.84 kg (1.85lb) | |||||||
Working Environment | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Surge Protection | 2 KV | |||||||
Reset Button | Support | |||||||
Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
