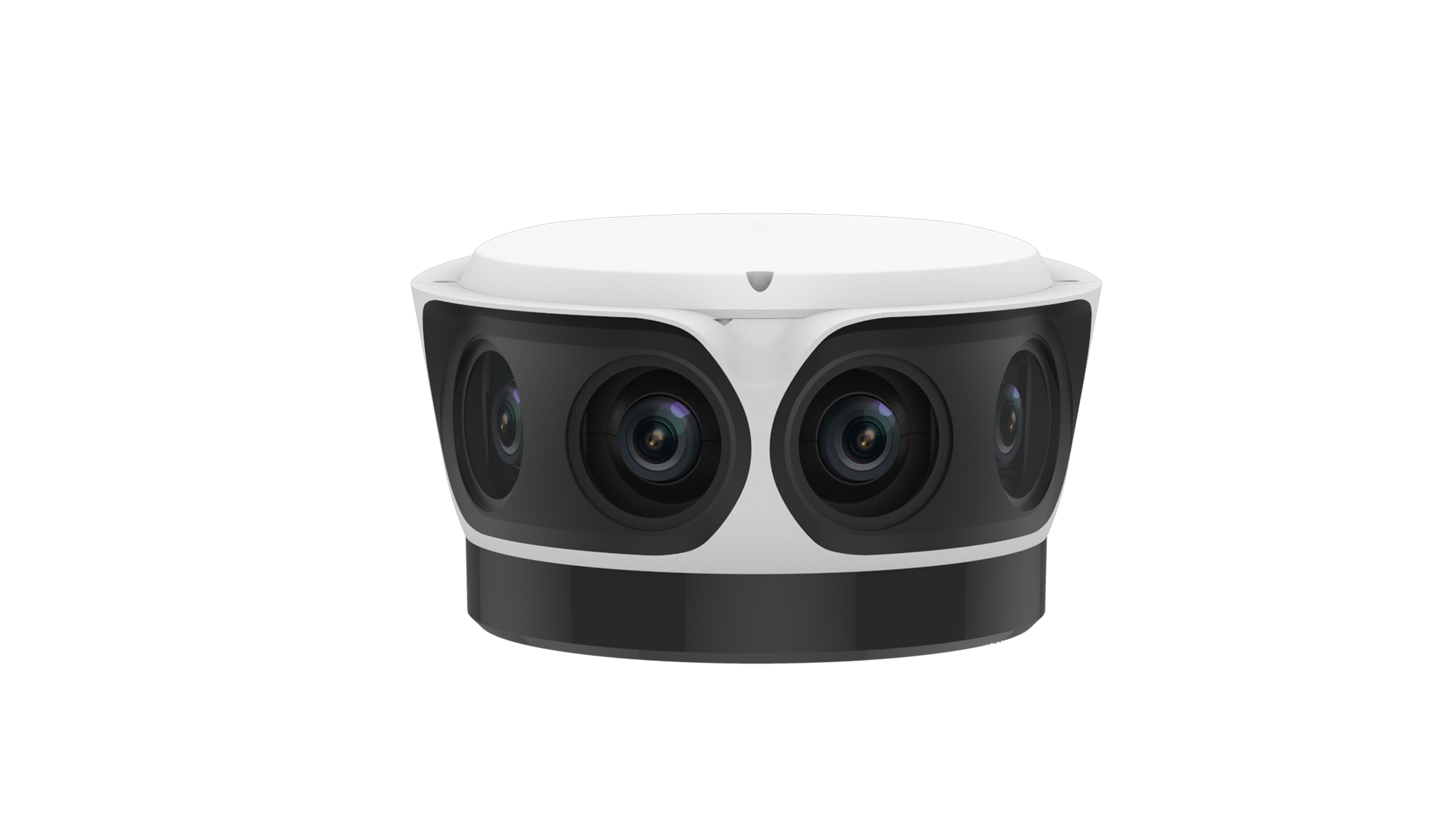

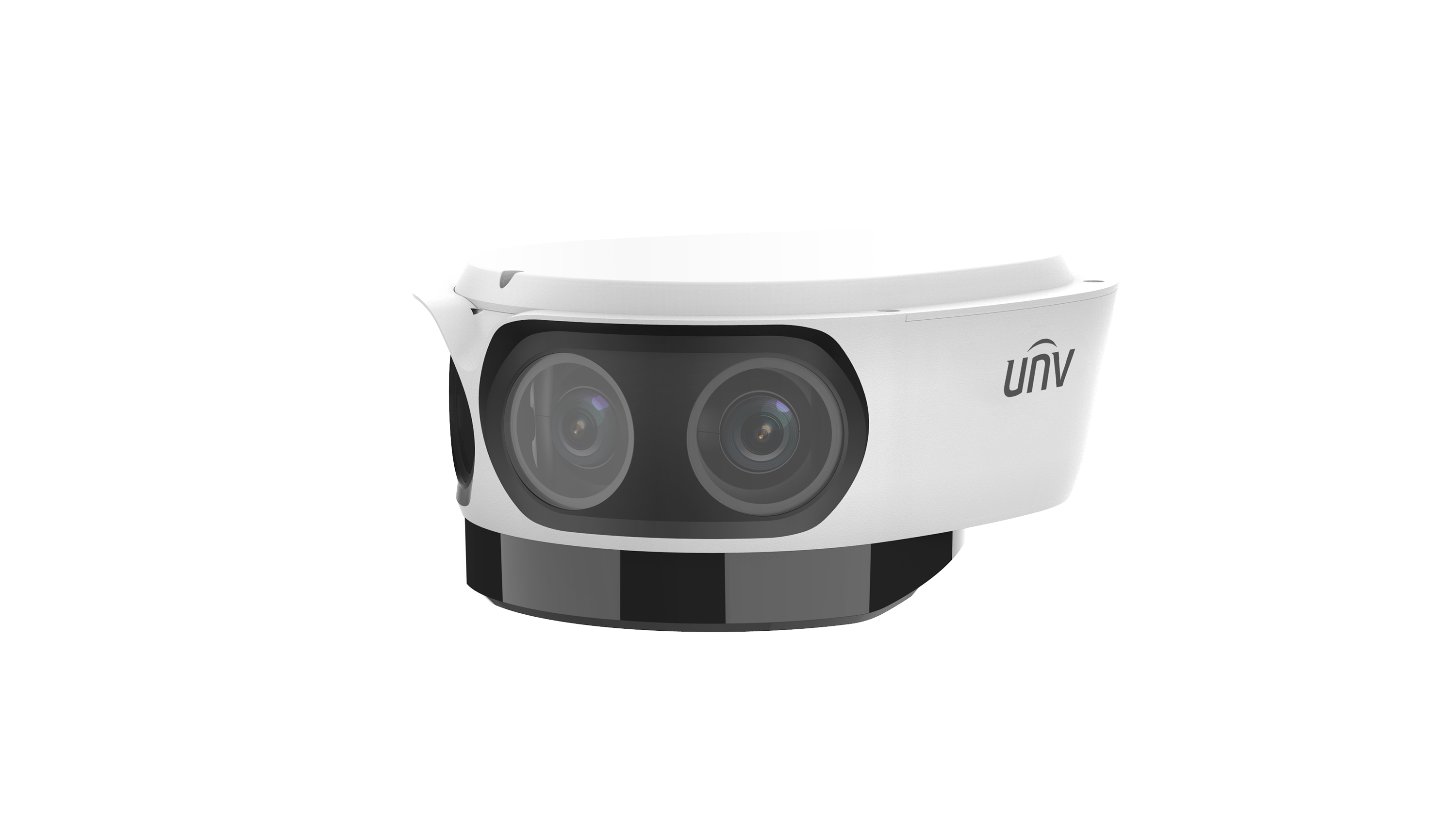

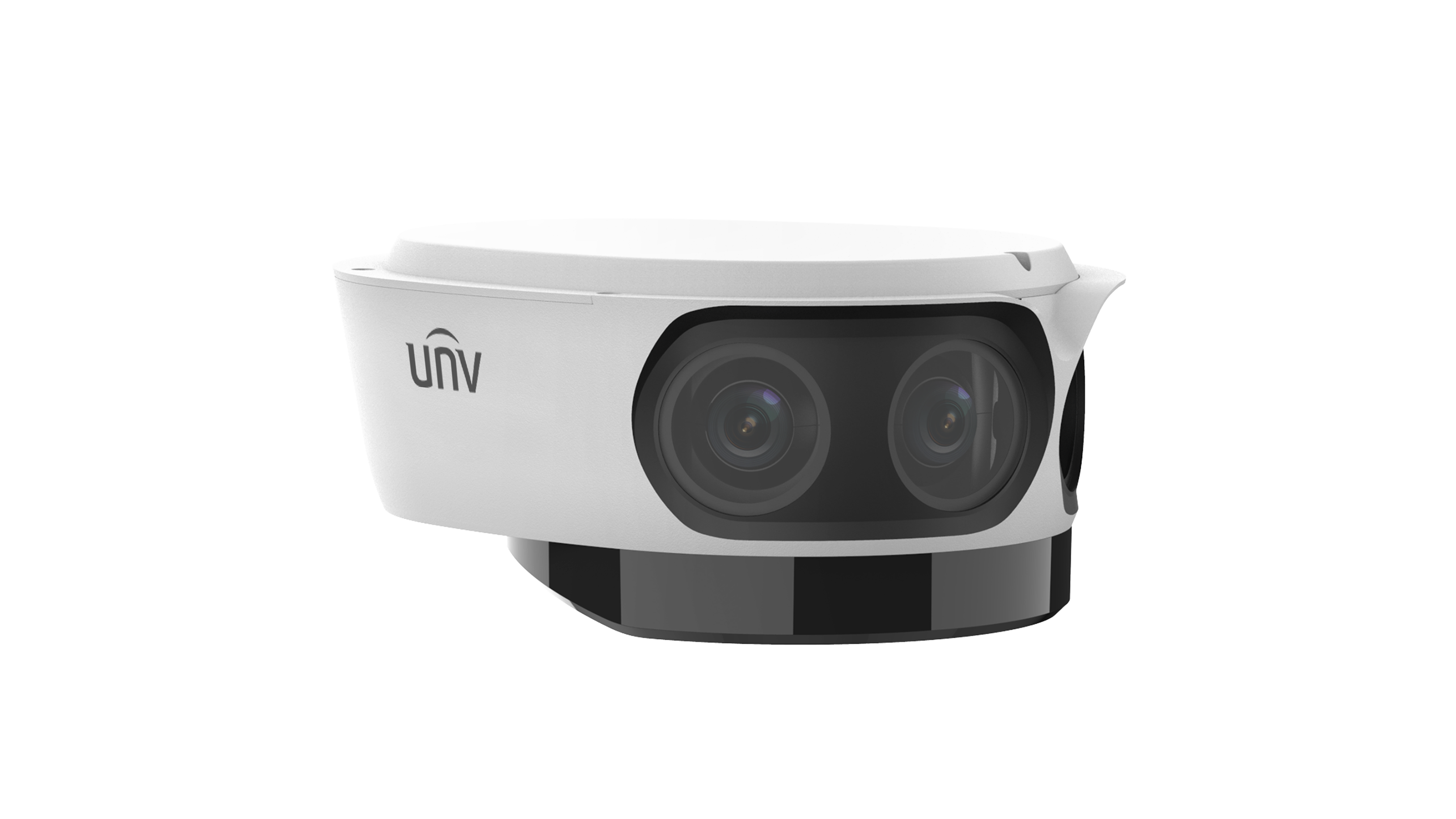

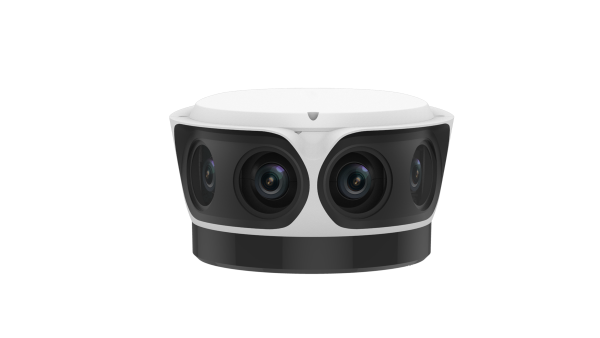

IPC8544EA-KM-I1 | ||||||||
Camera | ||||||||
Sensor | 1/1.8" CMOS | |||||||
Min. Illumination | Colour: 0.001lux (F1.6, AGC ON) 0lux with IR | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
WDR | DWDR | |||||||
S/N | >56 dB | |||||||
Lens | ||||||||
Focal Length | 2.8 mm | |||||||
Iris | F1.6 | |||||||
Field of View (H) | 180° | |||||||
Field of View (V) | 90° | |||||||
Field of View (D) | 221.4° | |||||||
Iris Type | Fixed | |||||||
DORI | ||||||||
DORI Distance (Lens) | 2.8mm | |||||||
DORI Distance (Detect) | 63.0m(206.7ft) | |||||||
DORI Distance (Observe) | 25.2m(82.7ft) | |||||||
DORI Distance (Recognize) | 12.6m(41.3ft) | |||||||
DORI Distance (Identify) | 6.3m(20.7ft) | |||||||
Illuminator | ||||||||
Illumination Distance (IR) | 50 m (164.0 ft) | |||||||
Wavelength | 850 nm | |||||||
IR On/Off Control | Auto/Manual | |||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180° | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Defog | Digital Defog | |||||||
Heatwave Reduction | N/A | |||||||
Events | ||||||||
Basic Detection | Motion Detection, Tampering Alarm, Audio Detection | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | |||||||
Network | ||||||||
Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
Frame Rate-Main Stream | 4800×2688, Max. 30 fps | |||||||
Frame Rate-Sub Stream | 2688×1520, Max. 30 fps | |||||||
Frame Rate-Third Stream | 1280×720, Max. 30 fps | |||||||
Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
U-code | Support | |||||||
ROI | Support | |||||||
Video Stream | Triple Streams | |||||||
OSD | Up to 10 OSDs | |||||||
Privacy Mask | Up to 8 areas (8 blacks/ 8 mosaics) | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 128 Kbps | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 16KHZ | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | |||||||
Alarm I/O | 2/1 | |||||||
Serial Port | 1 channel RS485 interface | |||||||
Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
General | ||||||||
Power | AC24V±25%/DC24V±25%, PoE(IEEE 802.3at) | |||||||
Power Consumption | Max 23W | |||||||
Power Interface | Wires with cold-pressed terminal | |||||||
Dimensions | 259 x 211 x 115 mm (10.2" x 8.3" x 4.5") (L x W x H) | |||||||
Weight | 2.271kg(5.01lb) | |||||||
Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Surge Protection | 6 KV | |||||||
Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
Reset Button | Support |
