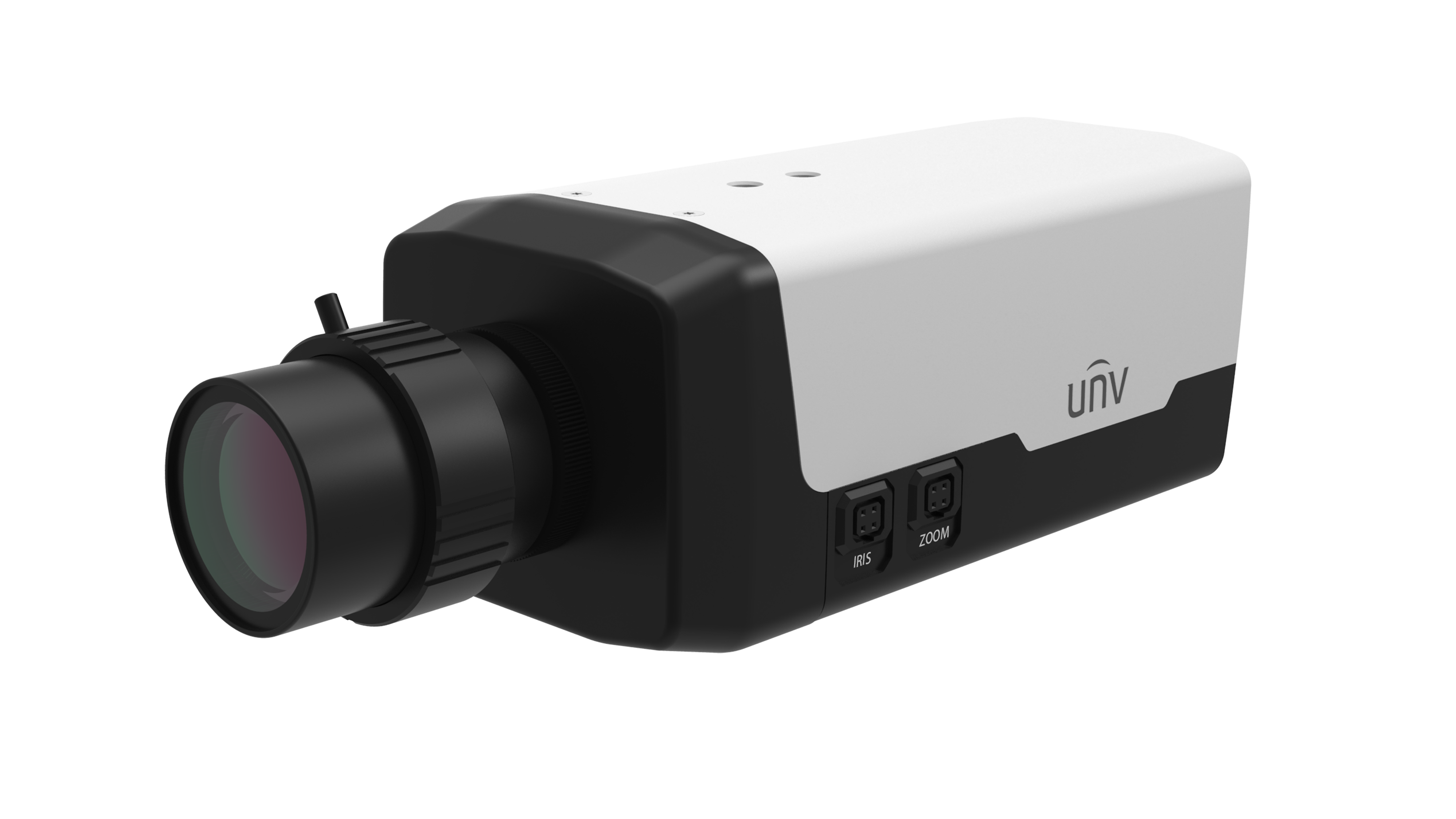

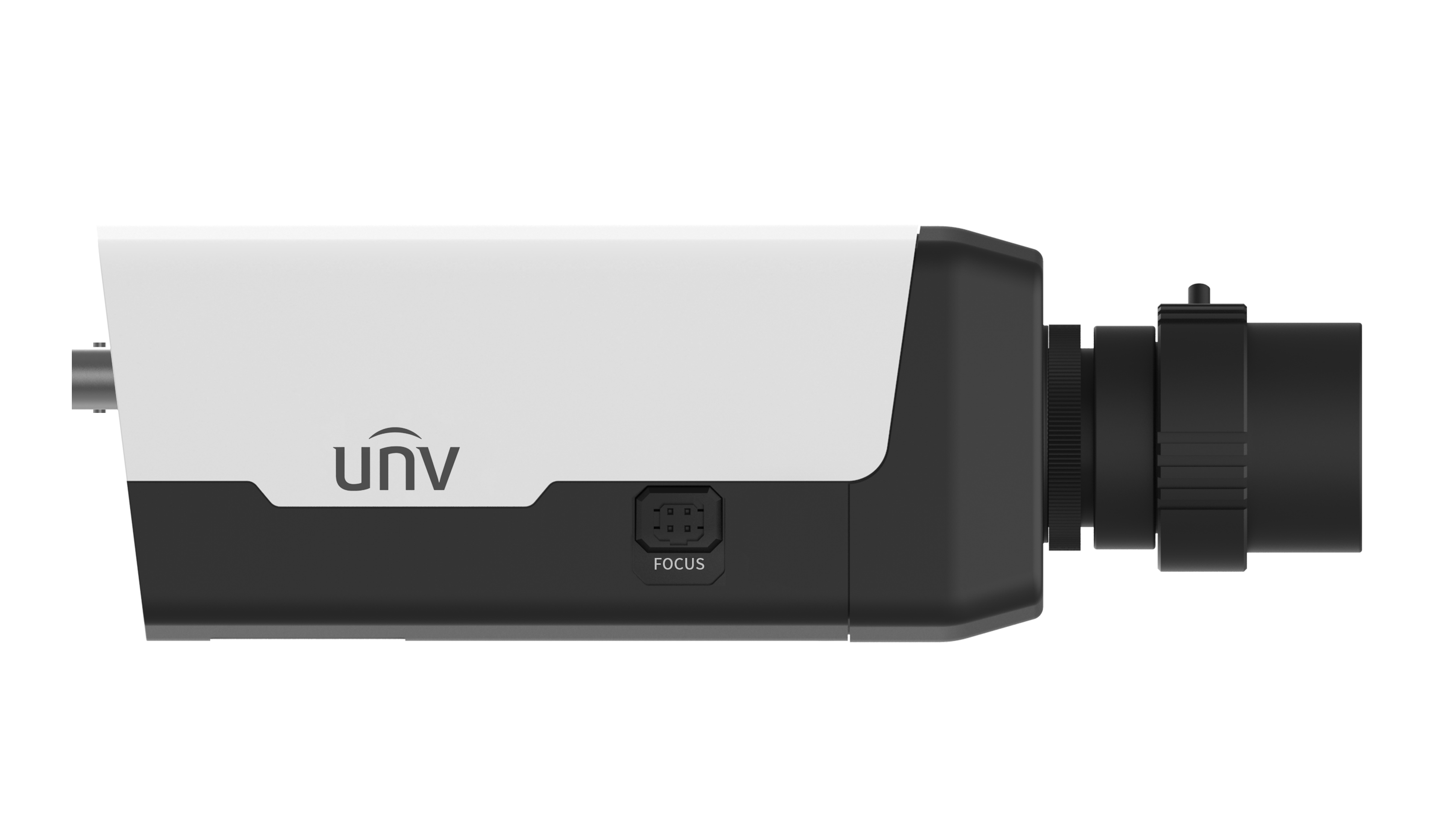

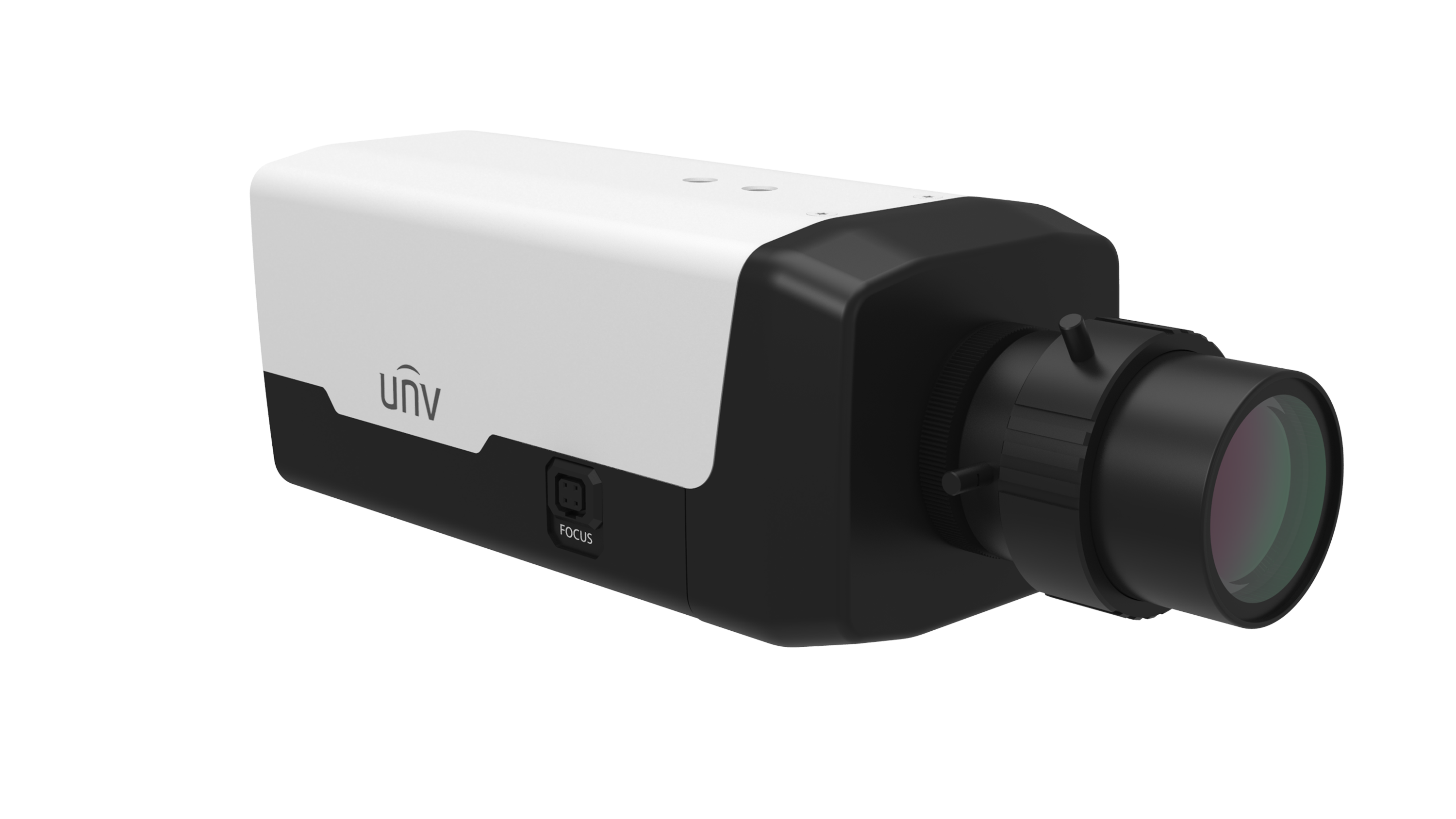

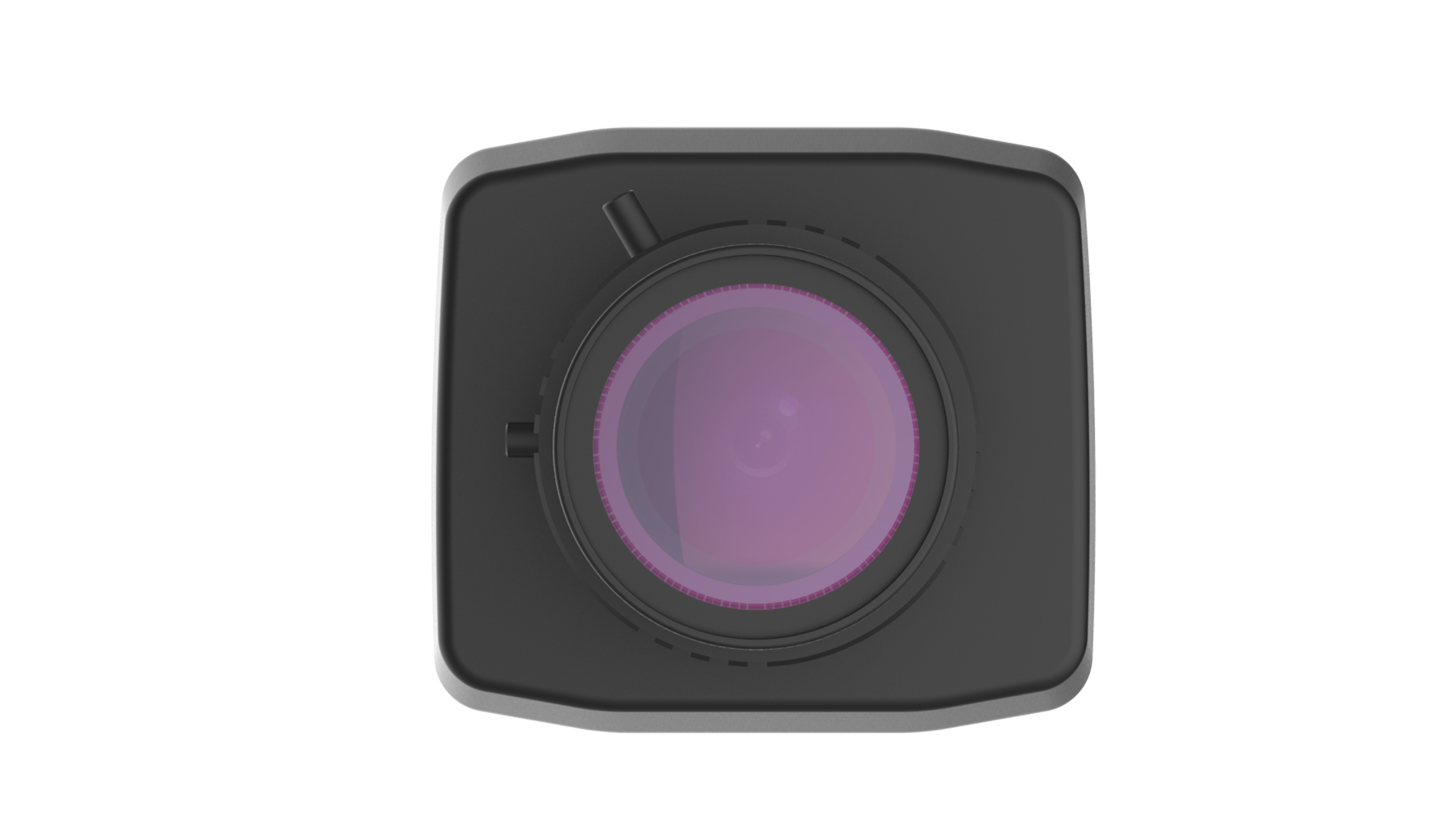

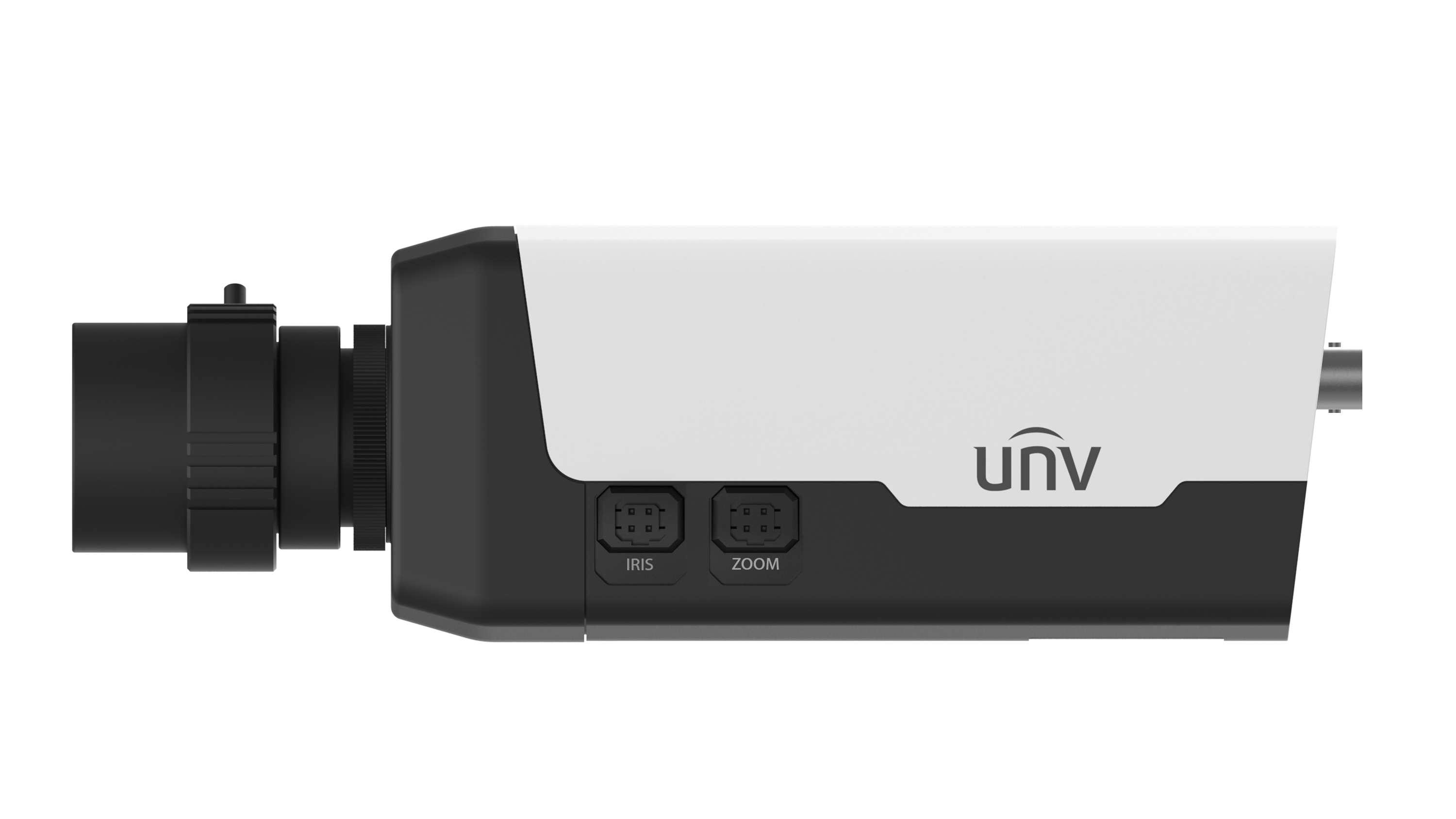

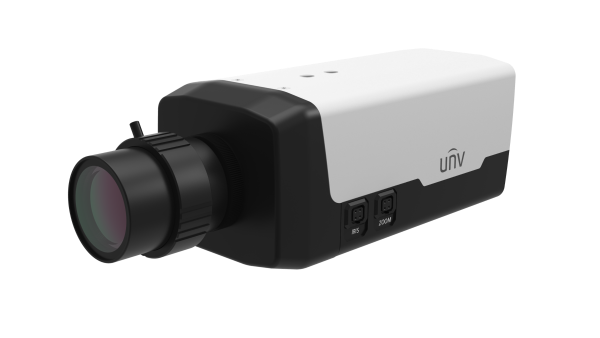

| IPC568EB-DGK-I0 |
Camera |
Sensor | 1/1.8" CMOS |
Min. Illumination | Colour:0.002lux (F1.2, AGC ON) B/W: 0.0002Lux(F1.2, AGC ON) |
Day/Night | IR-cut filter with auto switch (ICR) |
Shutter | Auto/Manual, 1 ~ 1/100000s |
WDR | 120dB |
S/N | >56dB |
Lens |
ABF | Support |
Lens Mount | C/CS |
Iris Type | DC-iris/P-iris |
Video |
Frame Rate-Main Stream | 8MP (3840*2160), Max 30fps |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
Frame Rate-Sub Stream | 720P (1280*720), Max 30fps |
Video Bit Rate | 128 Kbps ~ 16 Mbps |
U-code | Support |
ROI | Support |
Video Stream | Triple Streams |
OSD | Up to 10 OSDs |
Privacy Mask | Up to 4 areas |
Frame Rate-Third Stream | D1 (720*576), Max 30fps |
Image |
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
Digital Noise Reduction | 2D/3D DNR |
Flip | Normal, Flip Vertical, Flip Horizontal, 180° |
HLC | Support |
BLC | Support |
Defog | Digital Defog, Optical Defog |
Heatwave Reduction | N/A |
Intelligent |
Smart Intrusion Prevention | Cross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
People Counting | Support People Flow Counting and Crowd Density Monitoring |
Exception Detection | Object Removed, Object Left Behind, Scene Change |
Events |
Basic Detection | Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind, Scene Change |
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output |
Audio |
Audio Compression | G.711U, G.711A |
Audio Bitrate | 128 Kbps |
Two-way Audio | Support |
Suppression | Support |
Sampling Rate | 16KHZ |
Storage |
Edge Storage | Micro SD, up to 512 GB |
Network Storage | ANR, NAS (NFS) |
Network |
Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
Security | TLS1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
Client | EZStation, UNV-Link, UNV-Link Pro |
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
Interface |
Audio I/O | 1 Input: impedance 1kΩ; amplitude 2.5V [p-p], 1 Output: impedance 600Ω; amplitude 2.5V [p-p] |
Alarm I/O | 2/1 |
Serial Port | 1 channel RS485 interface |
Network | 1 x RJ45 10M/100M/1000M Base-TX Ethernet + 1 x 100M/1000M SFP |
Video Output | 1 BNC (For debugging) |
Certification |
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
General |
Power | DC12V(±25%), AC24V(±25%), PoE(IEEE 802.3af) |
Power Consumption | Max 8W |
Power Interface | Two-core terminal block |
Dimensions | 152 x 71 x 65 mm (6.0" x 2.8" x 2.6") (L x W x H) (excluding the lens) |
Weight | 0.40kg (0.88lb) |
Storage Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) |
Working Environment | -20 °C ~ 60 °C (-4 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
Surge Protection | 6KV |
Reset Button | Support |
Web Client Language | 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
