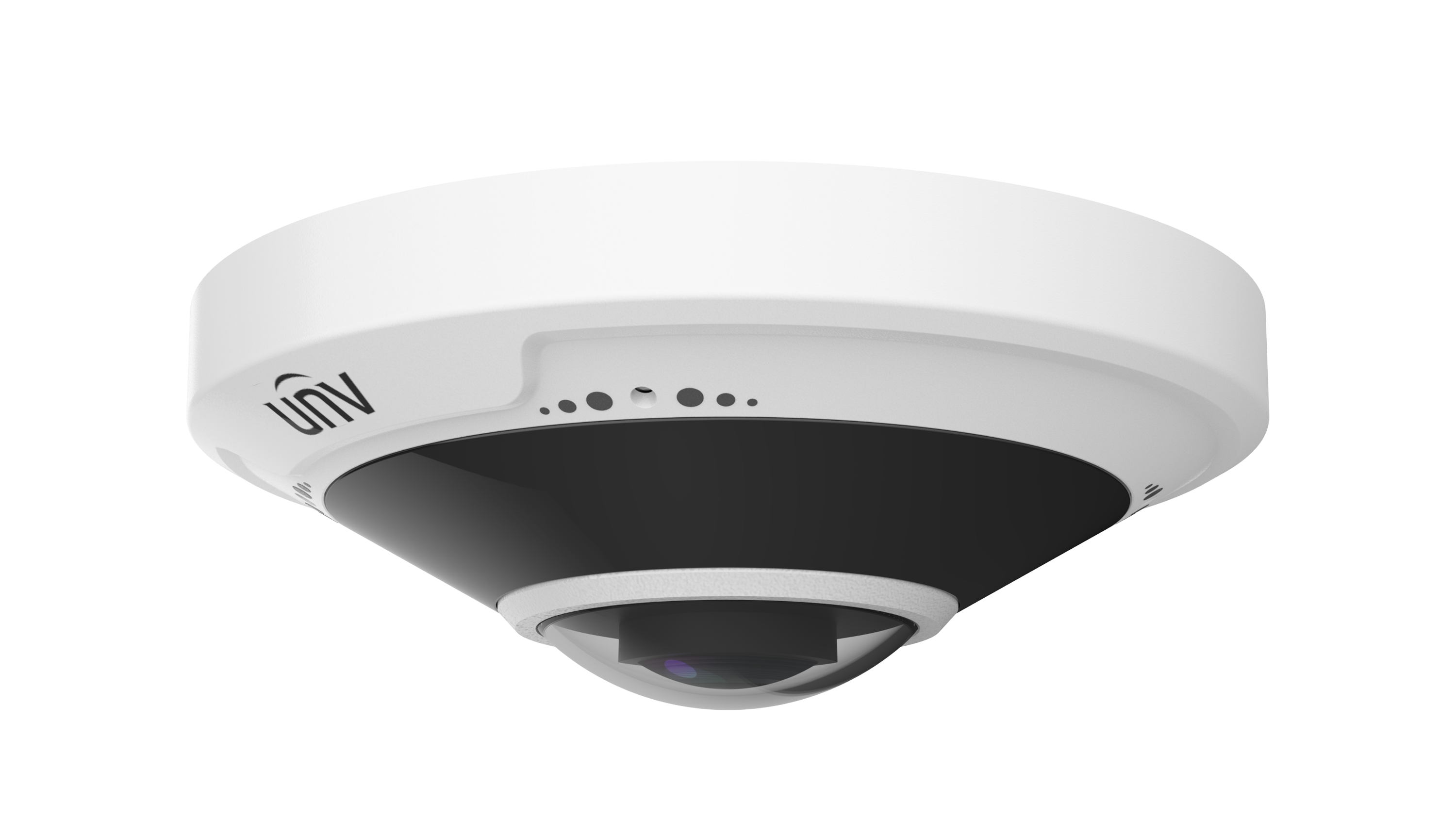

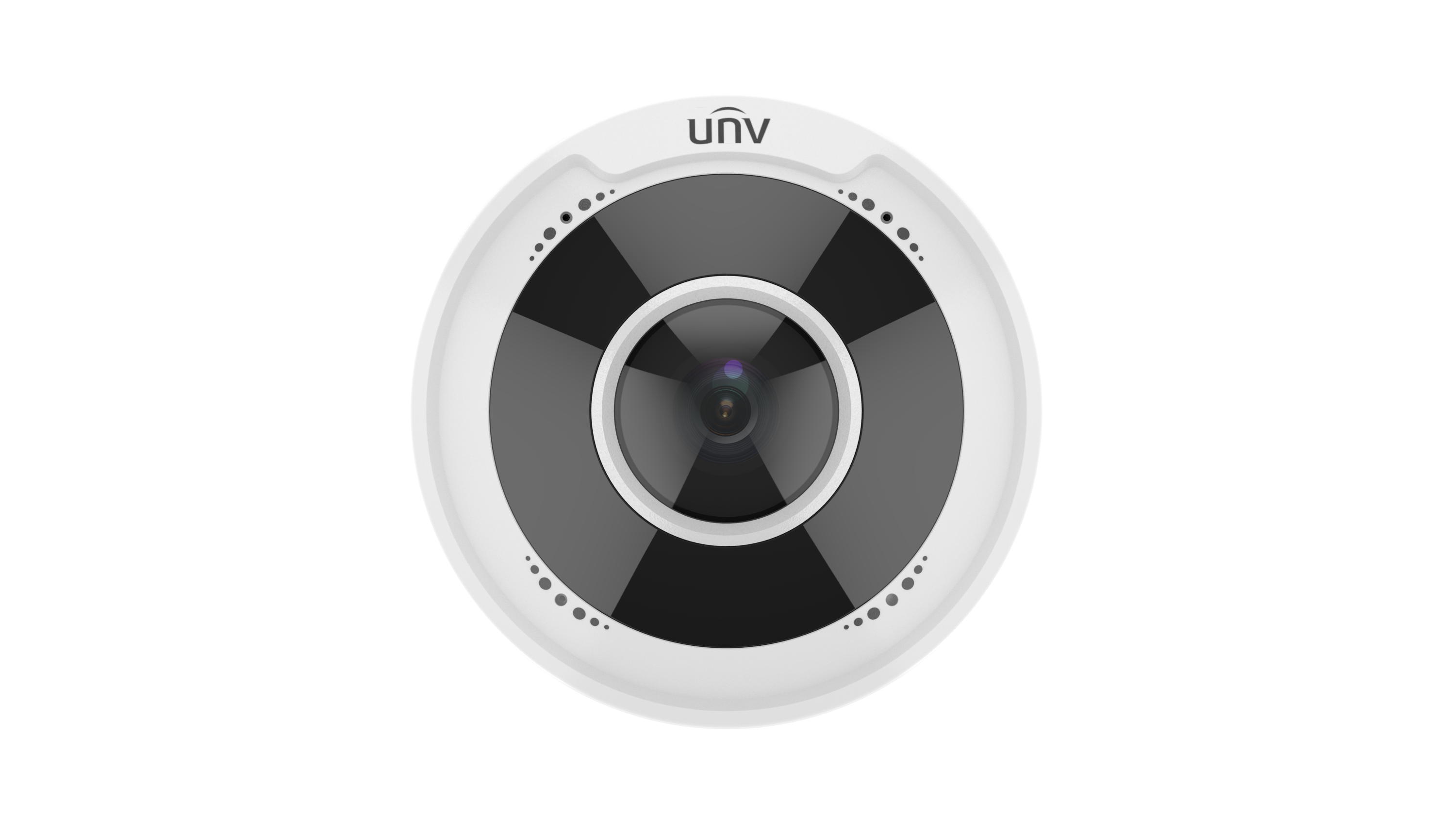

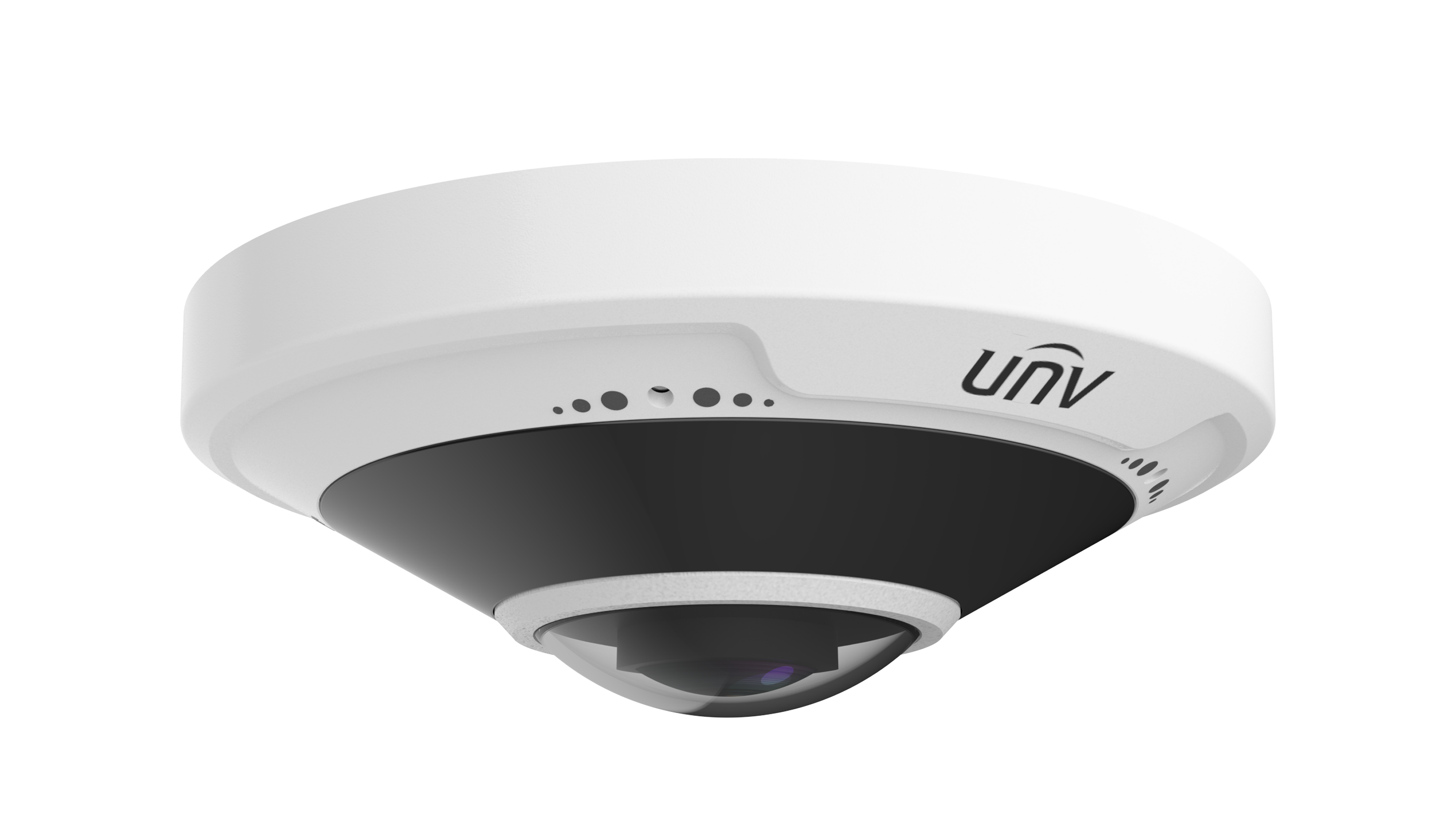

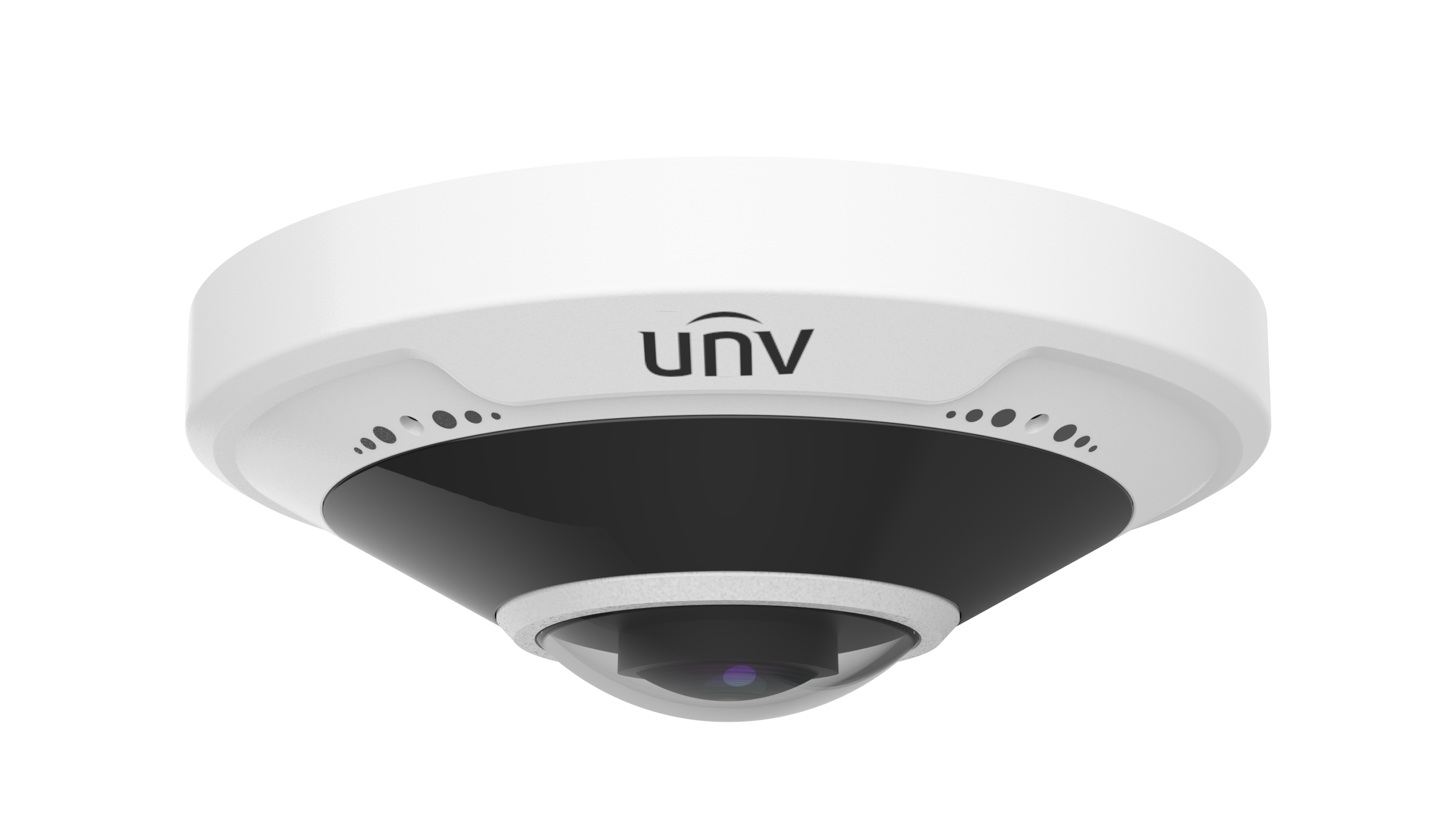

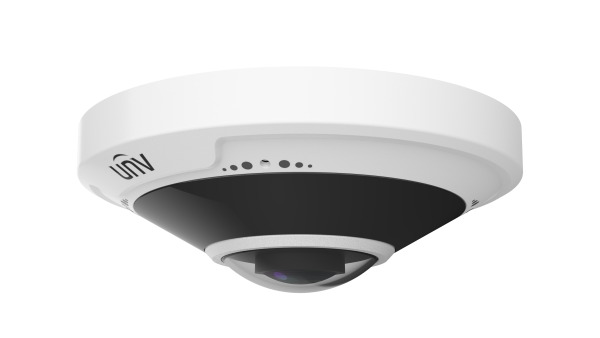

IPC815SB-ADF14K-I0 | ||||||||
Camera | ||||||||
Max Resolution | 5 MP | |||||||
Sensor | 1/2.8" CMOS | |||||||
Min. Illumination | Colour: 0.01 Lux (F2.0, AGC ON) 0 Lux with IR | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
S/N | >52 dB | |||||||
WDR | 120 dB | |||||||
Lens | ||||||||
Focal Length | 1.4 mm | |||||||
Field of View | 360° | |||||||
Iris Type | Fixed | |||||||
Iris | F2.0 | |||||||
Lens Type | Fixed | |||||||
DORI | ||||||||
DORI Distance (Lens) | 1.4mm | |||||||
DORI Distance (Detect) | 31.5(103.4ft) | |||||||
DORI Distance (Observe) | 12.6(41.3ft) | |||||||
DORI Distance (Recognize) | 6.3(20.7ft) | |||||||
DORI Distance (Identify) | 3.2(10.5ft) | |||||||
Video | ||||||||
Main Stream | 5MP (2592*1944): Max.30fps | |||||||
Sub Stream | Fisheye View:1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps | |||||||
Third Stream | Fisheye View:D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
U-code | Support | |||||||
OSD | Up to 8 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Support | |||||||
Video Stream | Triple Streams | |||||||
Illuminator | ||||||||
Supplemental Light | IR | |||||||
Illumination Distance (IR) | 10 m (32.8 ft) | |||||||
IR On/Off Control | Auto/Manual | |||||||
Wavelength | 850 nm | |||||||
Live View Display | ||||||||
Hardware Decoding | N/A | |||||||
Software Decoding | Ceiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ Wall mount: fisheye view, 180° panorama view, 180° panorama view+3PTZ, 180° panorama view+4PTZ, 180° panorama view+8PTZ | |||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
Smart IR | Support | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180° | |||||||
Dewarping | N/A | |||||||
HLC | N/A | |||||||
BLC | Support | |||||||
Defog | Digital Defog | |||||||
Image Stabilization | N/A | |||||||
Intelligent | ||||||||
Statistical Analysis | Heat map (Working with management platform) | |||||||
Events | ||||||||
Basic Detection | Motion Detection, Tampering Alarm, Audio Detection | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 64 Kbps | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 8 kHz | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
Protocols | IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | EZView, EZLive, EZStation | |||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | |||||||
Alarm I/O | 1/1 | |||||||
Serial Port | 1 channel RS485 interface | |||||||
Built-in Mic | Built-in two mics | |||||||
Built-in Speaker | N/A | |||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Video Output | 1 BNC, impedance 75 Ω, amplitude 1 V [p-p] | |||||||
Certification | ||||||||
EMC | FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 | |||||||
Safety | IEC 62368-1 EN 62368-1 UL 62368-1 | |||||||
Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) | |||||||
Protection | IP66 (IEC 60529-2013) IK10 (IEC 62262:2002) | |||||||
General | ||||||||
Power | DC12V±25%, PoE (IEEE 802.3af) | |||||||
Power Consumption | Max. 8.5W | |||||||
Power Interface | Ø5.5 mm coaxial power plug | |||||||
Dimensions | Ø125 × 43.7 mm (Ø4.9" × 1.7") (Ø x H) | |||||||
Weight | 0.36kg (0.79lb) | |||||||
Material | Metal + Plastic | |||||||
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Surge Protection | 4 KV | |||||||
Reset Button | Support | |||||||
Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
