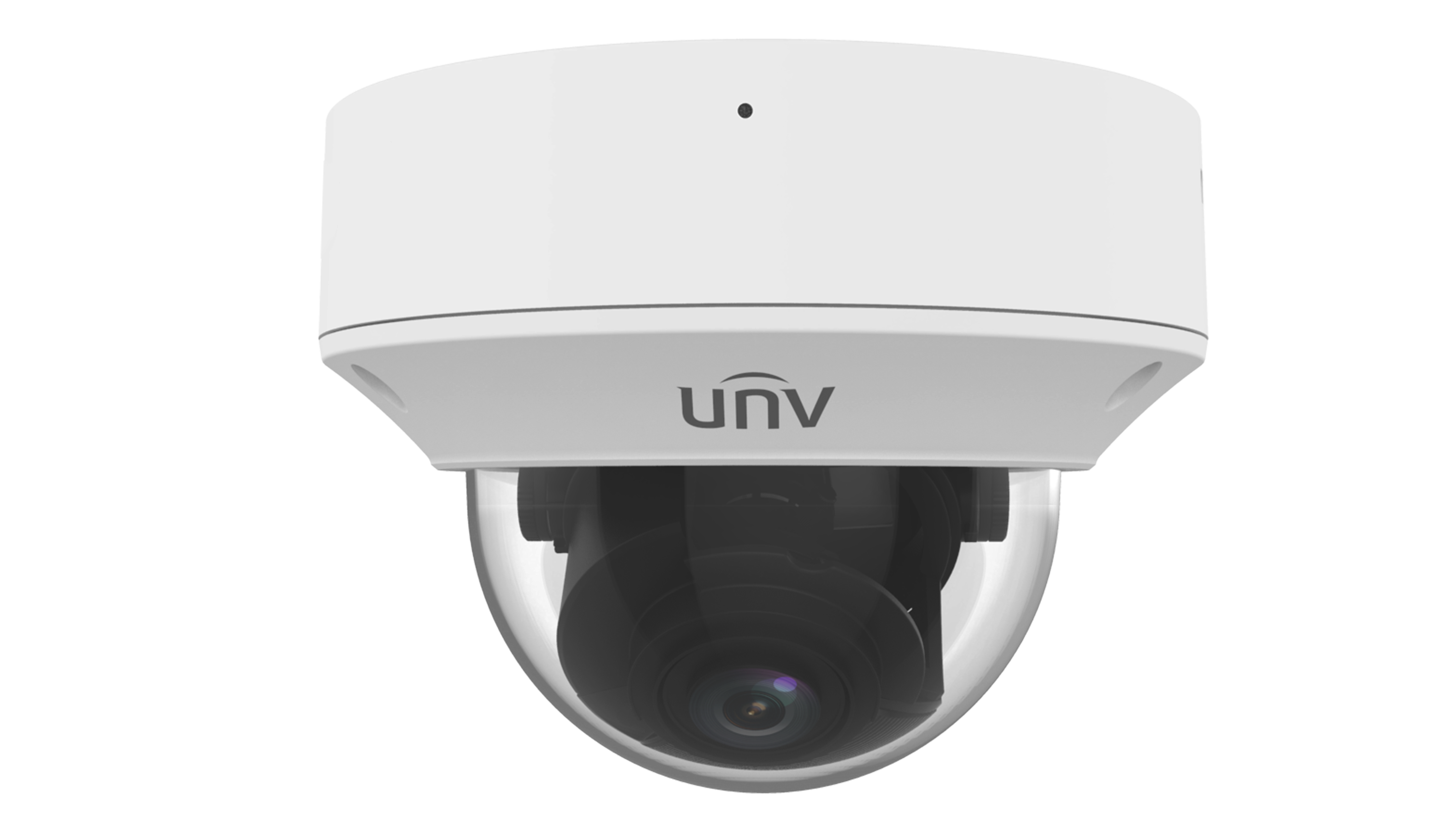

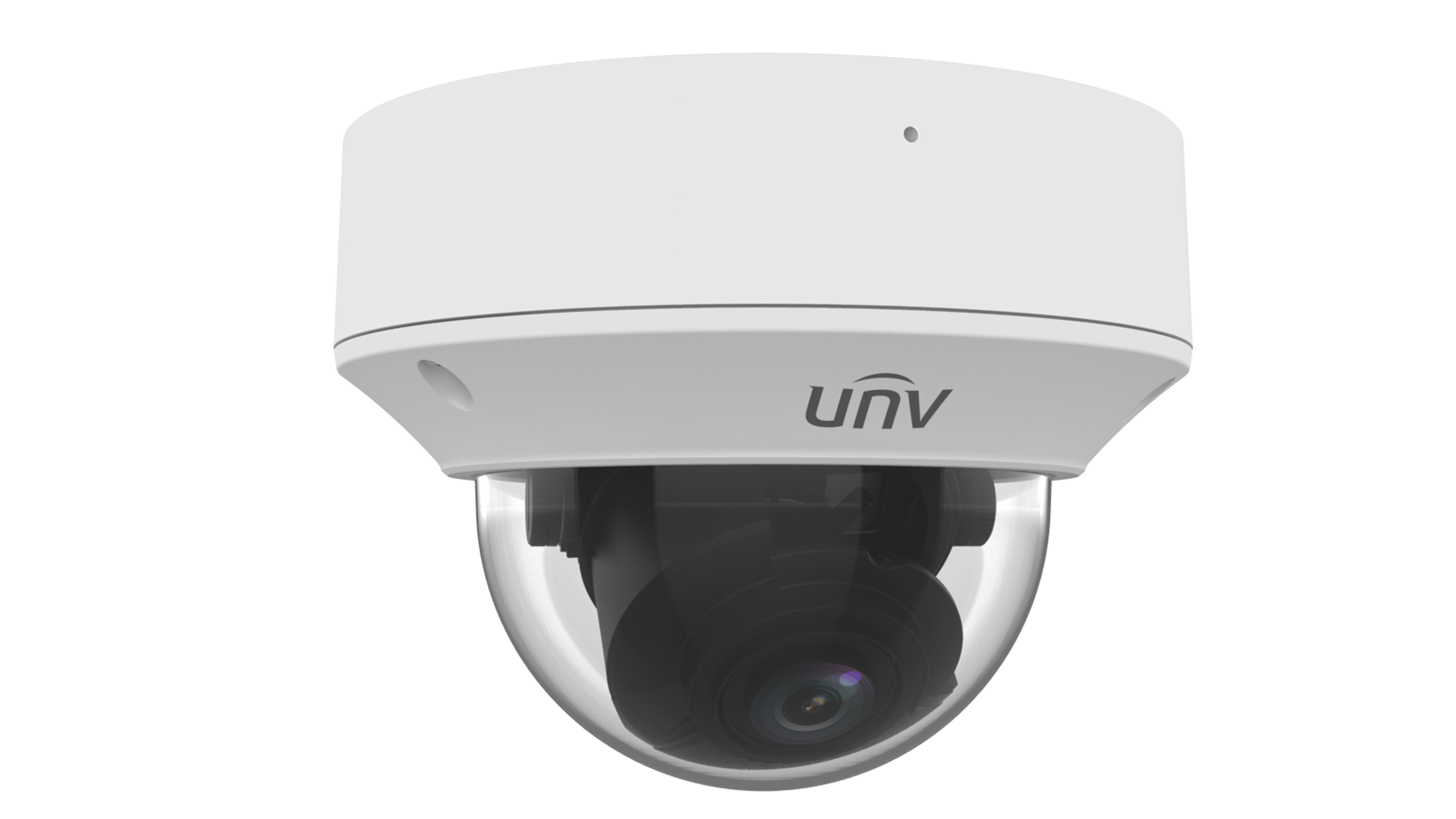

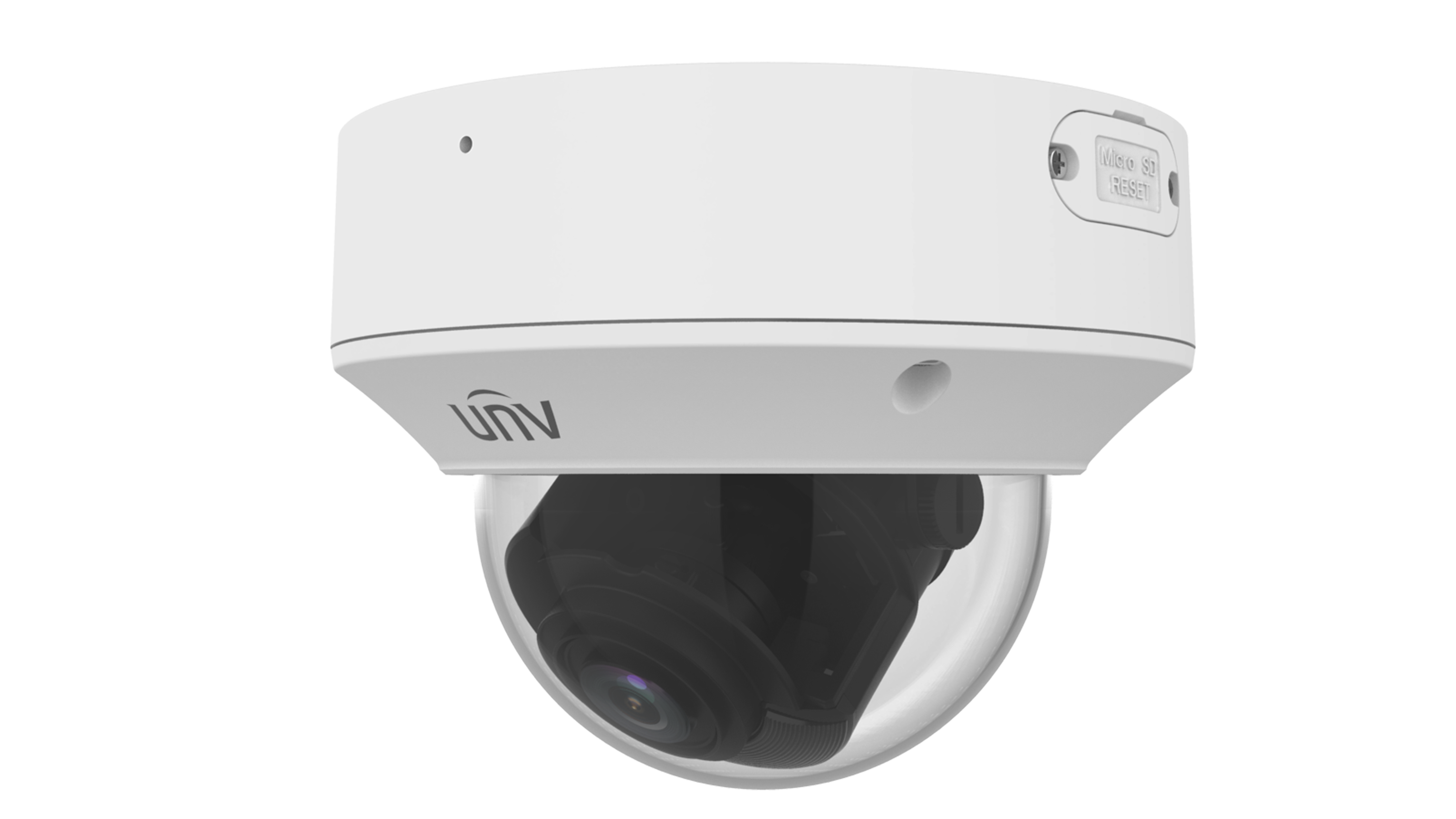

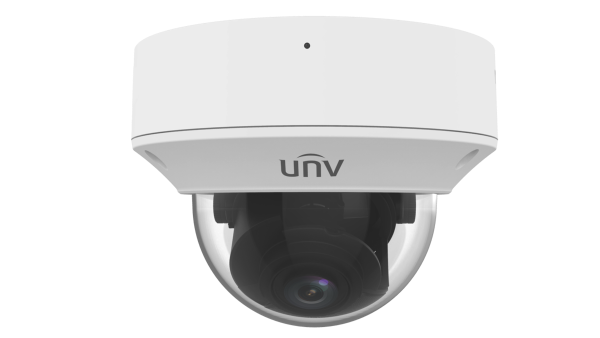

| IPC3232SB-AHDZK-PI-I0 |
Camera |
Sensor | 1/2.8" CMOS |
Min. Illumination | Color: 0.001 Lux (F1.4, AGC ON), 0 Lux with IR |
Day/Night | IR-cut filter with auto switch (ICR) |
Shutter | Auto/Manual, 1 to 1/100000 s |
WDR | 120 dB |
Adjustment Angle | Pan: 0° to 355°, Tilt: 0° to 70°, Rotate: 0° to 355° |
S/N | >52 dB |
Lens |
Digital Zoom | 16X |
Focal Length | 2.8 to 12 mm |
Optical Zoom | 4X |
Iris | F1.4 |
Field of View (H) | 96.6° to 32.4° |
Field of View (V) | 53.1° to 18.6° |
Field of View (D) | 112.8° to 37.2° |
Iris Type | P-iris |
DORI |
DORI Distance (Lens) | 2.8 to 12 mm |
DORI Distance (Detect) | 43.4 m to 186.2 m (142.4 ft. to 610.9 ft) |
DORI Distance (Observe) | 17.4 m to 74.5 m (57.1 ft. to 244.4 ft) |
DORI Distance (Recognize) | 8.7 m to 37.2 m (28.5 ft. to 122.1 ft) |
DORI Distance (Identify) | 4.3 m to 18.6 m (14.1 ft. to 61.0 ft) |
Illuminator |
Illumination Distance (IR) | 40 m (131.2 ft) |
Wavelength | 850 nm |
IR On/Off Control | Auto/Manual |
Video |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
Video Bit Rate | 128 Kbps to 16 Mbps |
U-code | Support |
ROI | Support |
Video Stream | Triple streams |
OSD | Up to 10 OSDs |
Privacy Mask | Up to 4 areas |
Frame Rate-Main Stream | 1080P (1920 × 1080), max. 60 fps |
Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 60 fps |
Frame Rate-Third Stream | D1 (720 × 576), max. 60 fps |
Image |
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
Digital Noise Reduction | 2D/3D DNR |
Smart IR | Support |
Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
HLC | Support |
BLC | Support |
Defog | Digital defog |
Heatwave Reduction | N/A |
Intelligent |
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
People Counting | Support people flow counting and crowd density monitoring |
Exception Detection | Object removed, Object Left Behind, Scene change |
Events |
Basic Detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change |
General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
Audio |
Audio Compression | G.711U, G.711A |
Audio Bitrate | 128 Kbps |
Two-way Audio | Support |
Suppression | Support |
Sampling Rate | 16KHZ |
Storage |
Edge Storage | MicroSD, up to 512 GB |
Network Storage | ANR, NAS (NFS) |
Network |
Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
Client | EZStation, UNV-Link, UNV-Link Pro |
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
Interface |
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
Alarm I/O | 2/1 |
Serial Port | 1 × RS485 |
Built-in Mic | Support |
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
Video Output | 1 BNC (for debugging) |
Certification |
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
General |
Power | DC 12 V (±25%), PoE (IEEE 802.3af) |
Power Consumption | Max. 8 W |
Power Interface | Ø5.5 mm coaxial power plug |
Dimensions | Ø148 mm × 111.4 mm (Ø5.8" × 4.4") (Ø × H) |
Weight | 0.93 kg (2.16 lb) |
Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
Surge Protection | 6 KV |
Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
