IPC3232SB-AHDZK-I0

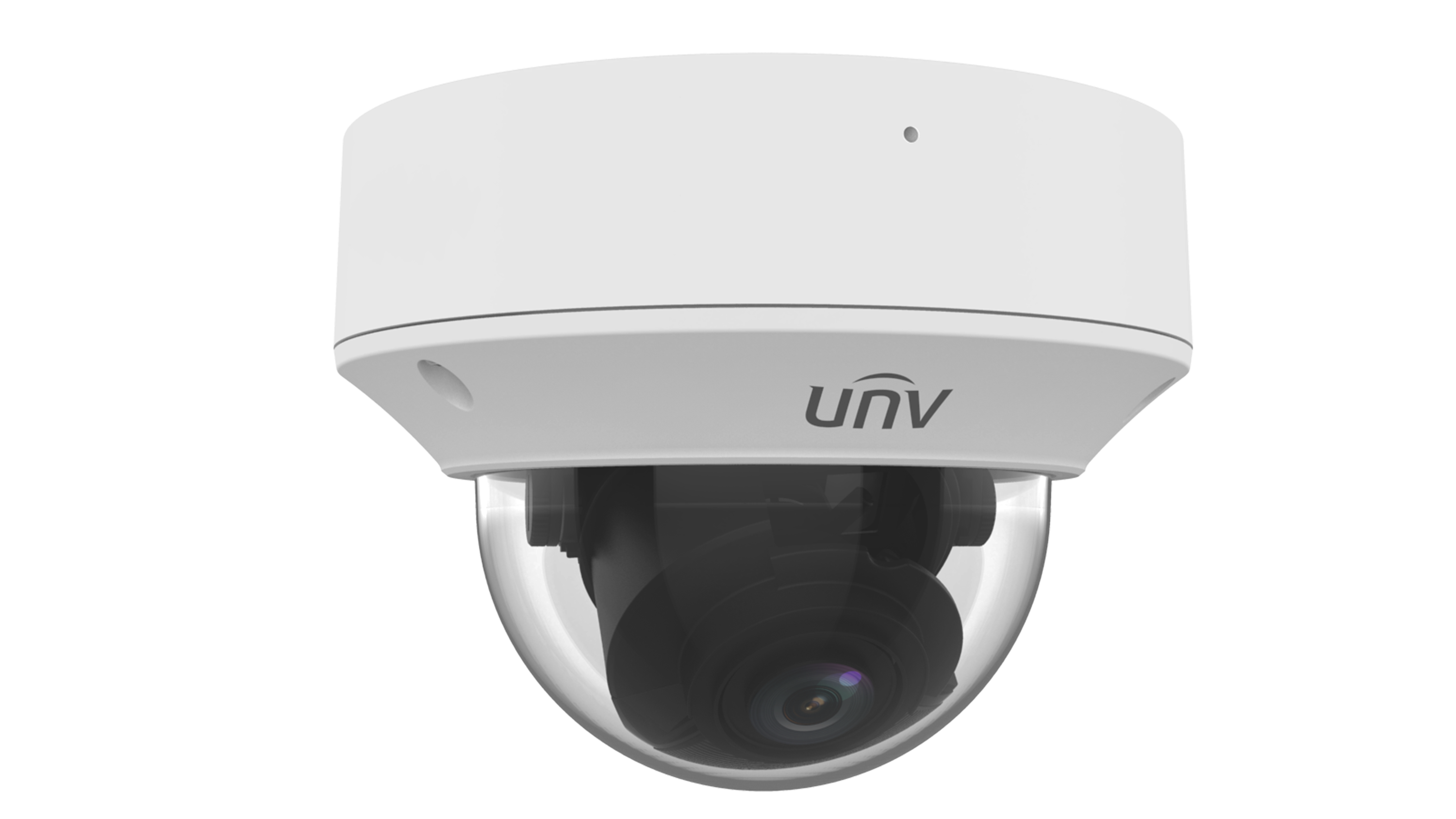

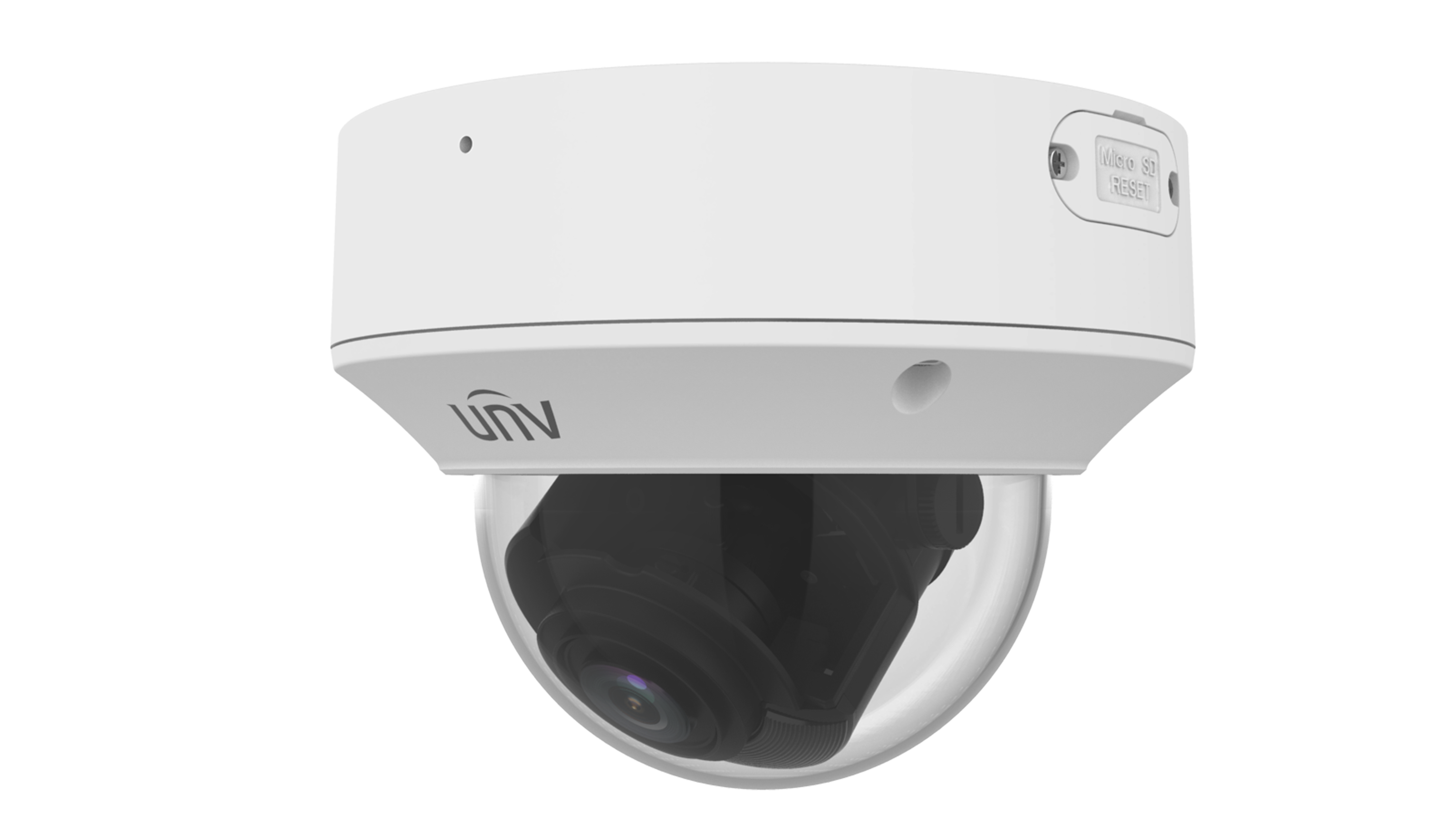

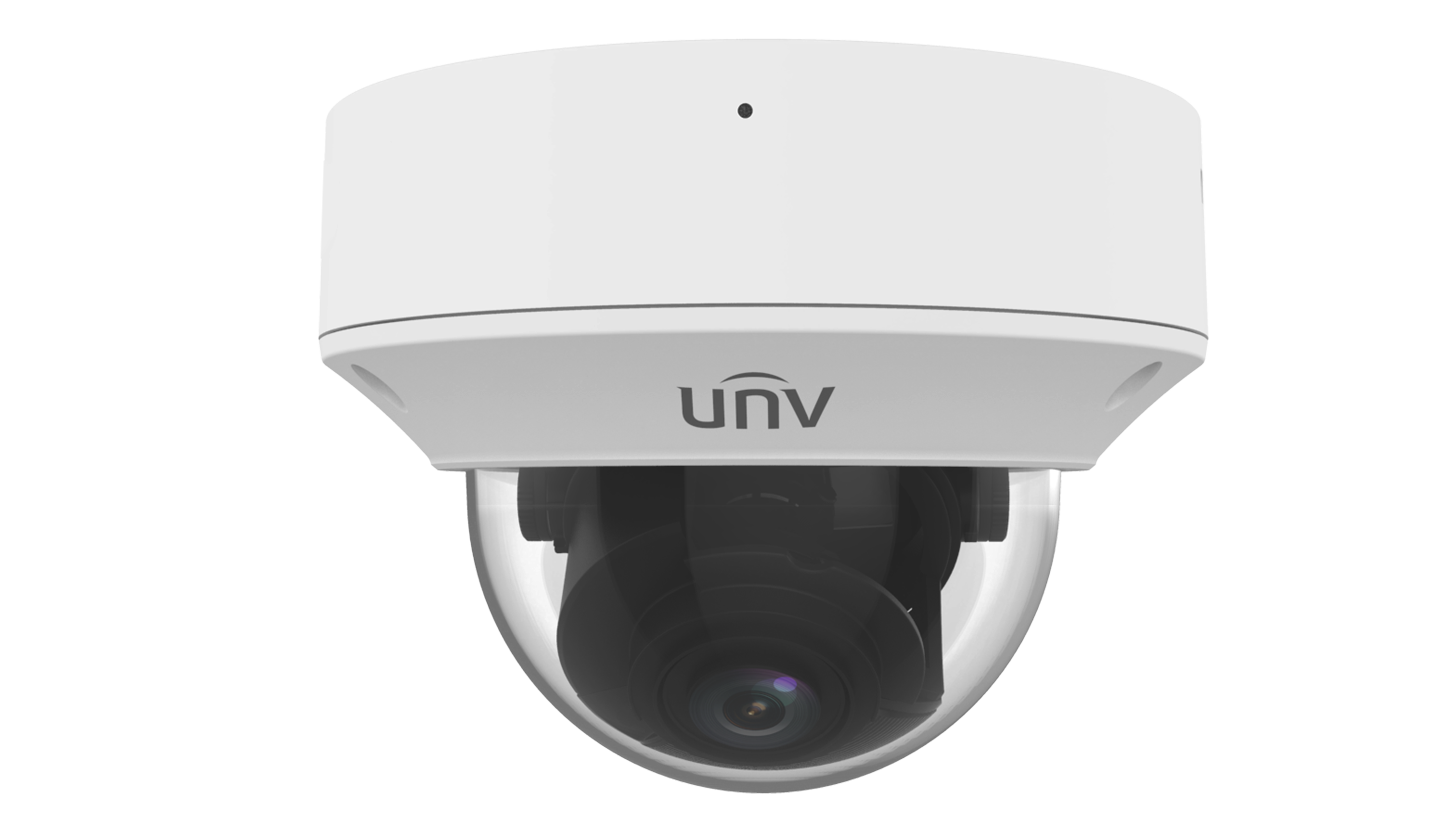

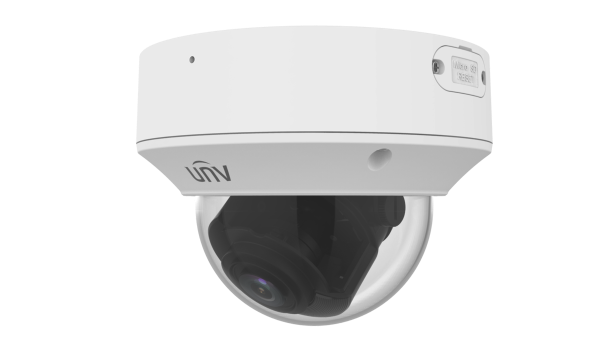

2MP LightHunter VF IR Dome Network Camera
• High quality image with 2MP,1/2.8’’ CMOS sensor
• 1920*1080@60fps in the main stream, deliver detailed live while 60fps keeping it smooth and closer to the real image
• Ultra 265, H.265, H.264, MJPEG
• 5X optical zoom allows for closer viewing of subjects
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Lighthunter product technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• DC12V or PoE (IEEE 802.3af) power supply
• Wide voltage range of ±25% in DC
• Audio 1 in and 1 out, Alarm 2 in and 1 out
Specification

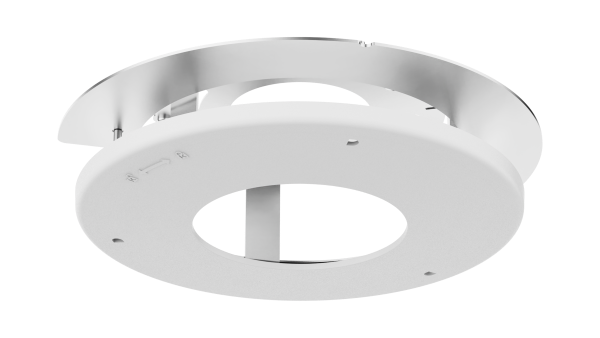

Accessories
Download
How to buy
 IPC3232SB-AHDZK-I0
Camera
Sensor1/2.8" CMOS
Min. IlluminationColour:0.001 lux (F1.2, AGC ON)
0 lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 to 1/100000 s
WDR120 dB
Adjustment AnglePan: 0° to 355°
tilt: 0° to 70°
rotate: 0° to 355°
S/N>52 dB
Lens
Digital Zoom16X
Focal Length2.7 to 13.5 mm
Optical Zoom5X
IrisF1.2
Field of View (H)98.2°~30.6°
Field of View (V)53.3°~17.3°
Field of View (D)127.7°~37.6°
Iris TypeFixed
DORI
DORI Distance (Lens)2.7~13.5(mm)
DORI Distance (Detect)70.9m(232.5ft)~247.5m(812.0ft)
DORI Distance (Observe)28.4m(93.0ft)~99.0m(324.8ft)
DORI Distance (Recognize)14.2m(46.5ft)~49.5m(162.4ft)
DORI Distance (Identify)7.1m(23.3ft)~24.8m(81.2ft)
Illuminator
Illumination Distance (IR)40 m (131.2 ft)
Wavelength850 nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Video Bit Rate128 Kbps to 16 Mbps
U-codeSupport
ROISupport
Video StreamTriple Streams
OSDUp to 10 OSDs
Privacy MaskUp to 4 areas
Frame Rate-Main Stream1080P (1920*1080), Max 60fps
Frame Rate-Sub Stream1080P (1920*1080), Max 60fps
Frame Rate-Third StreamD1 (720*576), Max 60fps
White BalanceAuto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
HLCSupport
BLCSupport
DefogDigital Defog
Heatwave ReductionN/A
Intelligent
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People CountingSupport People Flow Counting and Crowd Density Monitoring
Exception DetectionObject Removed, Object Left Behind, Scene Change
Events
Basic DetectionMotion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind, Scene Change
General FunctionWatermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate128 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate16KHZ
Storage
Edge StorageMicro SD, up to 512 GB
Network StorageANR, NAS (NFS)
Network
ProtocolsSSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityTLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientEZStation, UNV-Link, UNV-Link Pro
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O2/1
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output1 BNC (For debugging)
Certification
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General
PowerDC12V(±25%), PoE(IEEE 802.3af)
Power ConsumptionMax 8W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ 148 x 111.4 mm (Ø 5.8” x 4.4”) (Ø x H)
Weight0.93kg(2.16lb)
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection6 KV
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
