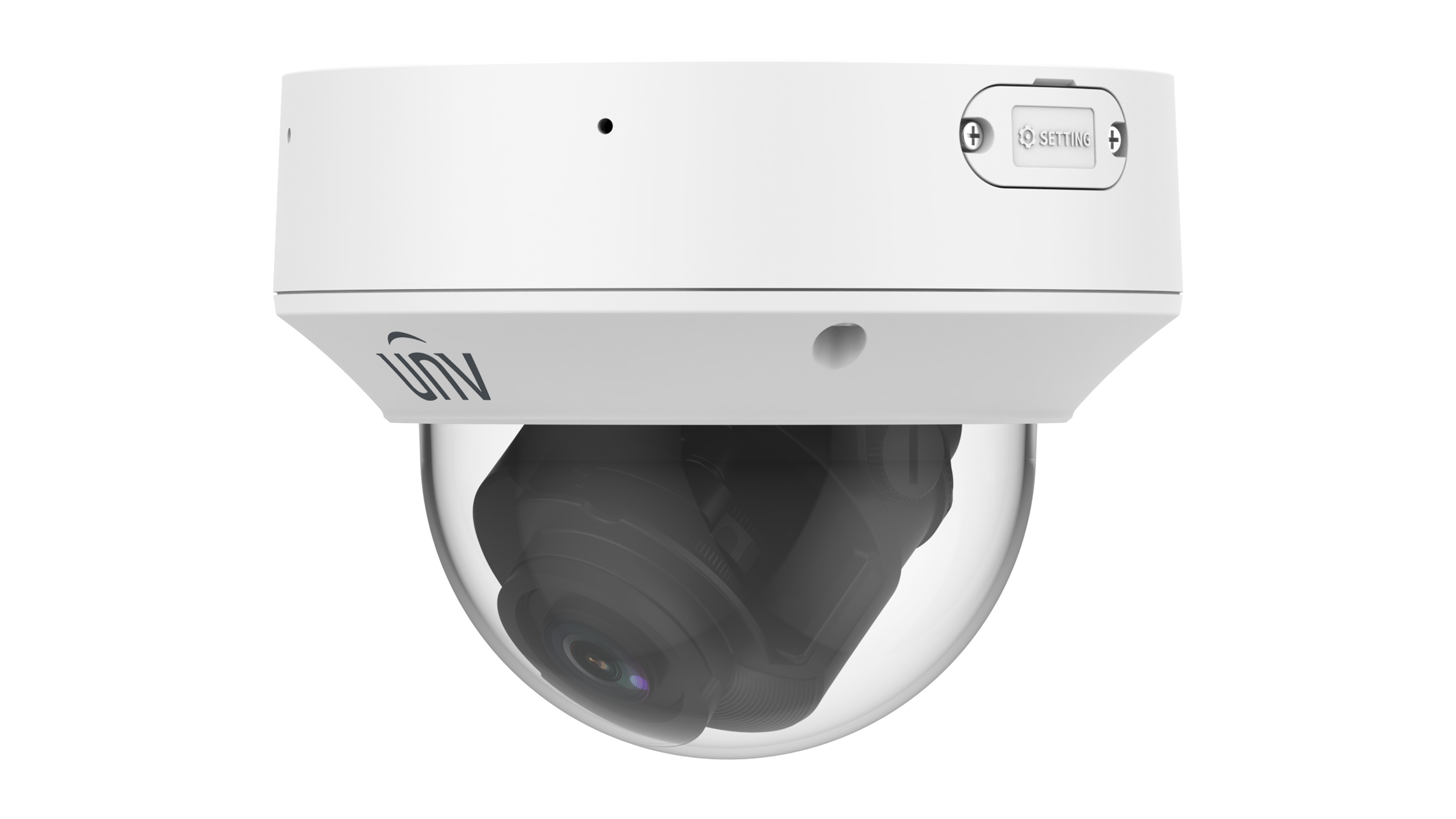

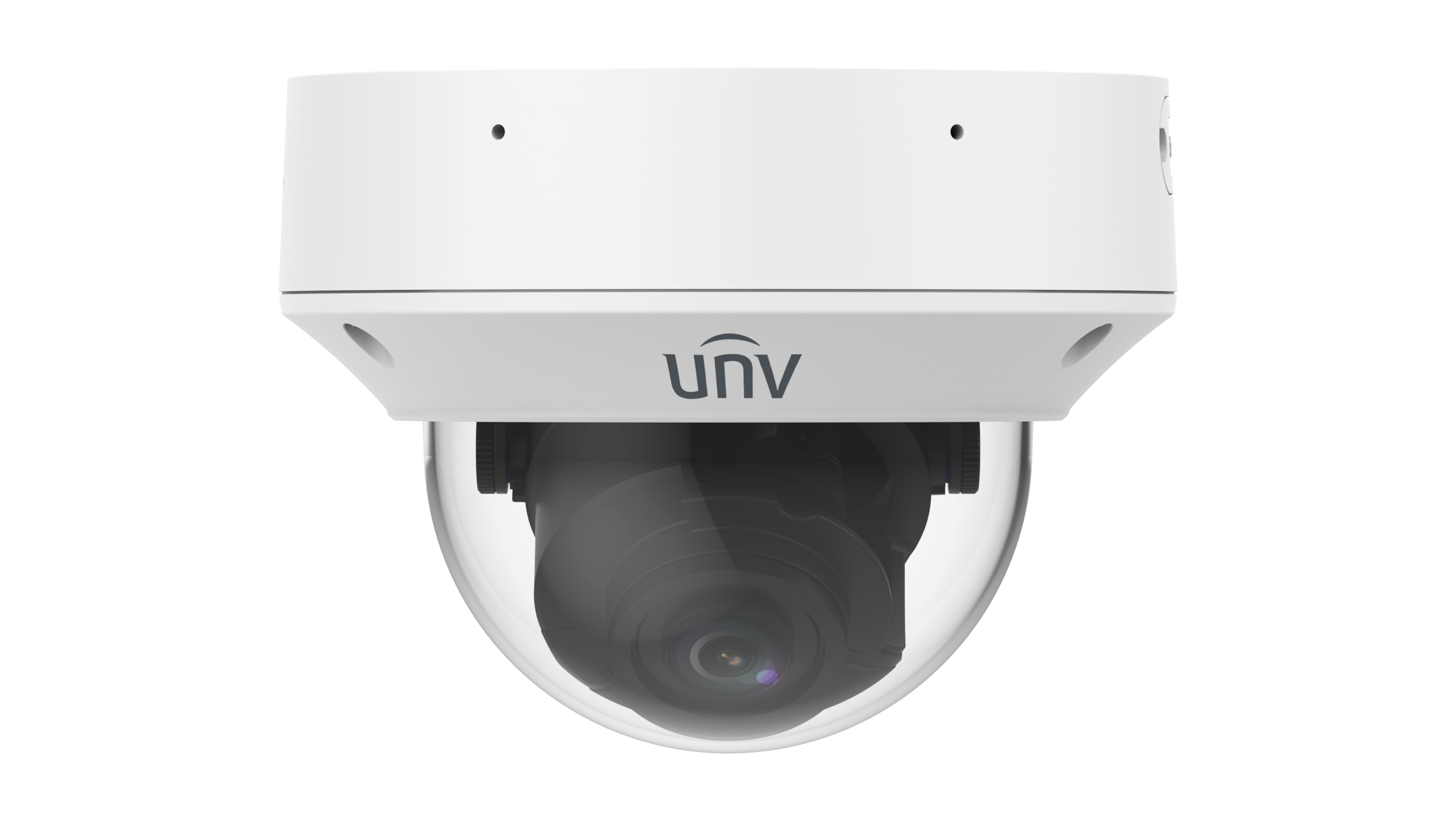

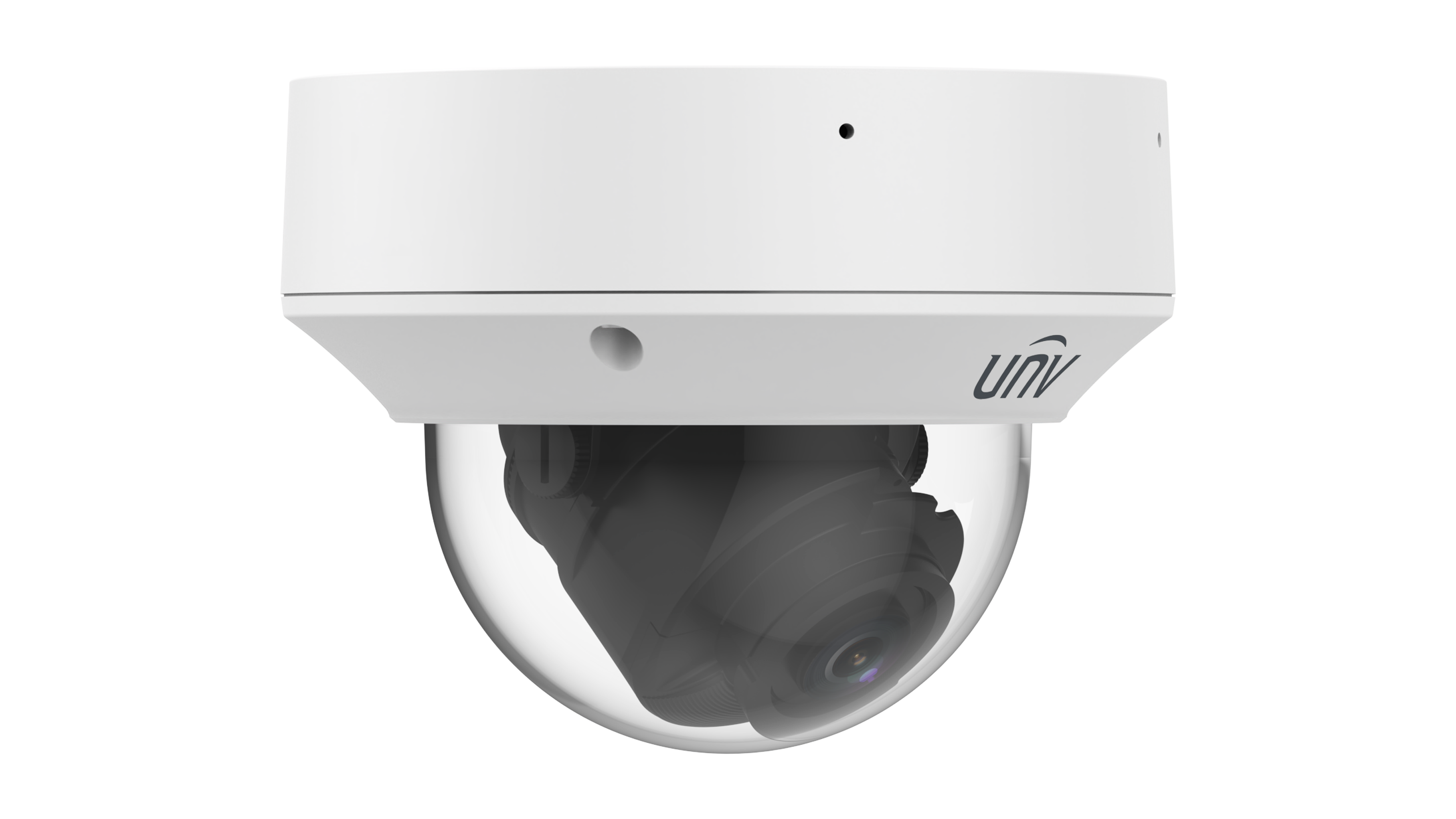

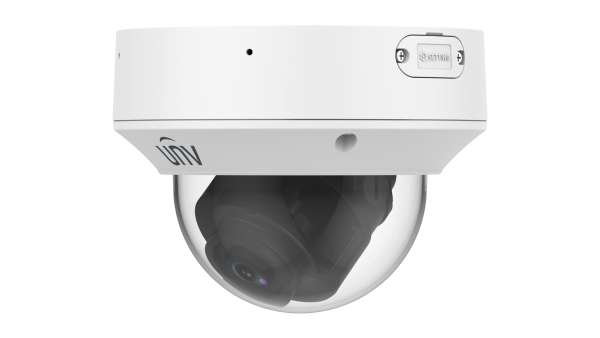

IPC3238SA-ADZK-PI-I2A | ||||||||
Camera | ||||||||
Max Resolution | 8 MP | |||||||
Sensor | 1/1.8" CMOS | |||||||
Min. Illumination | Color: 0.001 Lux (F1.2, AGC ON), 0 Lux with IR | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
WDR | 130 dB | |||||||
Adjustment Angle | Pan: 0° to 355°, Tilt: 0° to 70°, Rotate: 0° to 355° | |||||||
S/N | > 56 dB | |||||||
Lens | ||||||||
Focal Length | 2.7 to 13.5 mm | |||||||
Optical Zoom | 5X | |||||||
Iris | F1.2 | |||||||
Field of View (H) | 107.4° to 49.1° | |||||||
Field of View (V) | 56.4° to 27.9° | |||||||
Field of View (D) | 128.8° to 60.4° | |||||||
Iris Type | P-iris | |||||||
DORI | ||||||||
DORI Distance (Lens) | 2.7 to 13.5 mm | |||||||
DORI Distance (Detect) | 98.6 m to 209.9 m (323.3 ft. to 688.7 ft) | |||||||
DORI Distance (Observe) | 39.4 m to 84.0 m (129.3 ft. to 275.5 ft) | |||||||
DORI Distance (Recognize) | 19.7 m to 42.0 m (64.7 ft. to 137.7 ft) | |||||||
DORI Distance (Identify) | 9.9 m to 21.0 m (32.3 ft. to 68.9 ft) | |||||||
Illuminator | ||||||||
Illumination Distance (IR) | 40 m (131.2 ft) | |||||||
Wavelength | 850 nm | |||||||
IR On/Off Control | Auto/Manual | |||||||
Video | ||||||||
Frame Rate-Main Stream | 8 MP (3840 × 2160), max. 30 fps | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 30 fps | |||||||
Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
U-code | Support | |||||||
Privacy Mask | Up to 8 areas (8 blacks/ 8 mosaics) | |||||||
ROI | Up to 8 areas | |||||||
Video Stream | Five streams | |||||||
OSD | Up to 8 OSDs | |||||||
Frame Rate-Third Stream | D1 (720 × 576), max. 30 fps | |||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
EIS | Support | |||||||
Defog | Digital defog | |||||||
Intelligent | ||||||||
People Counting | Support people flow counting and crowd density monitoring | |||||||
Exception Detection | Object removed, Object Left Behind, Scene change, Defocus detection | |||||||
Traffic Monitoring | Support capturing car license picture and collect other car information when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode avaliable: High/Low pole | |||||||
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
Events | ||||||||
Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection | |||||||
General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output | |||||||
UMD (Ultra Motion Detection) | Support | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 128 Kbps | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 8 kHz, 16 kHz | |||||||
Storage | ||||||||
Edge Storage | MicroSD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
Protocols | IGMP, SMTP, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, IPv4, RTP, RTCP, RTMP | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | UNV-Link, UNV-Link Pro, EZStation | |||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
Alarm I/O | 1/1 | |||||||
Serial Port | 1 × RS485 | |||||||
Built-in Mic | Built-in dual-mic | |||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC-SDoC (47 CFR Part15, Subpart B) | |||||||
Safety | CE-LVD (EN IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863) WEEE (2012/19/EU) | |||||||
Protection | IP67 (IEC 60529) IK10 (IEC 62262) | |||||||
General | ||||||||
Power | DC 12 V (±25%), PoE (IEEE 802.3af) | |||||||
Power Consumption | Max. 12 W | |||||||
Power Interface | Ø5.5 mm coaxial power plug | |||||||
Dimensions | Ø148 mm × 111.4 mm (Ø5.8" × 4.4") (Ø × H) | |||||||
Weight | 0.95 kg (2.09 lb) | |||||||
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Surge Protection | 6 KV |
