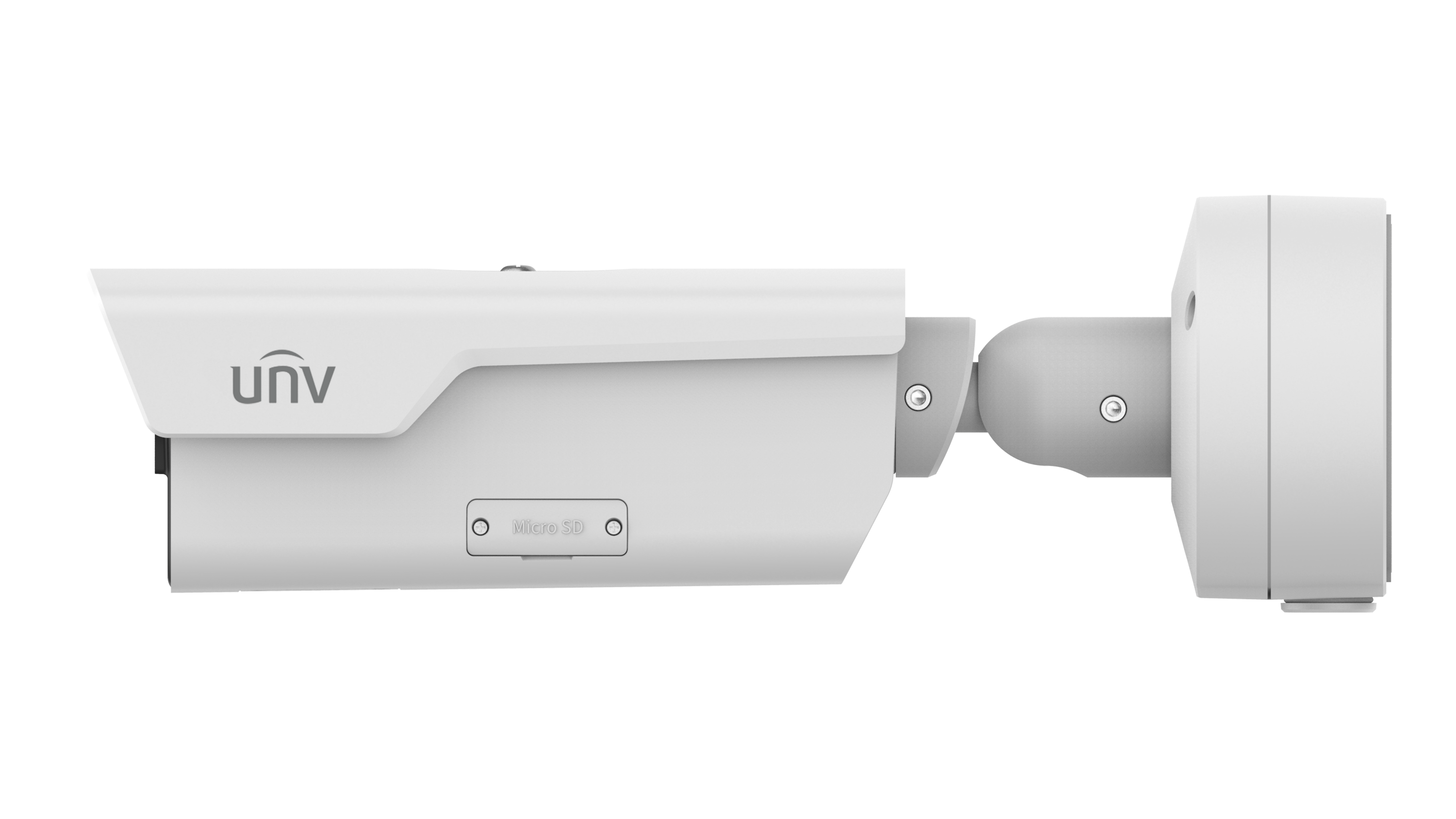

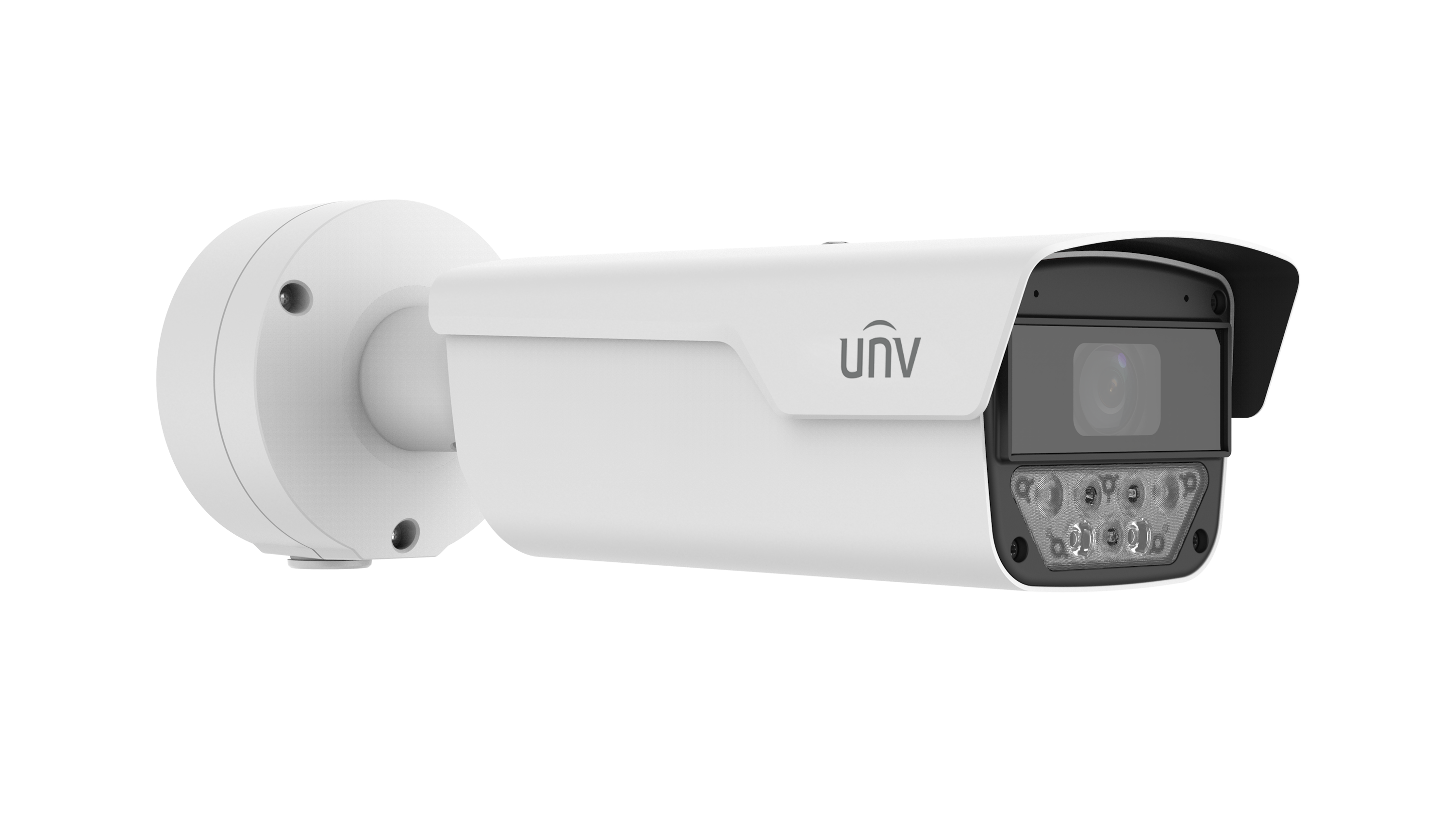

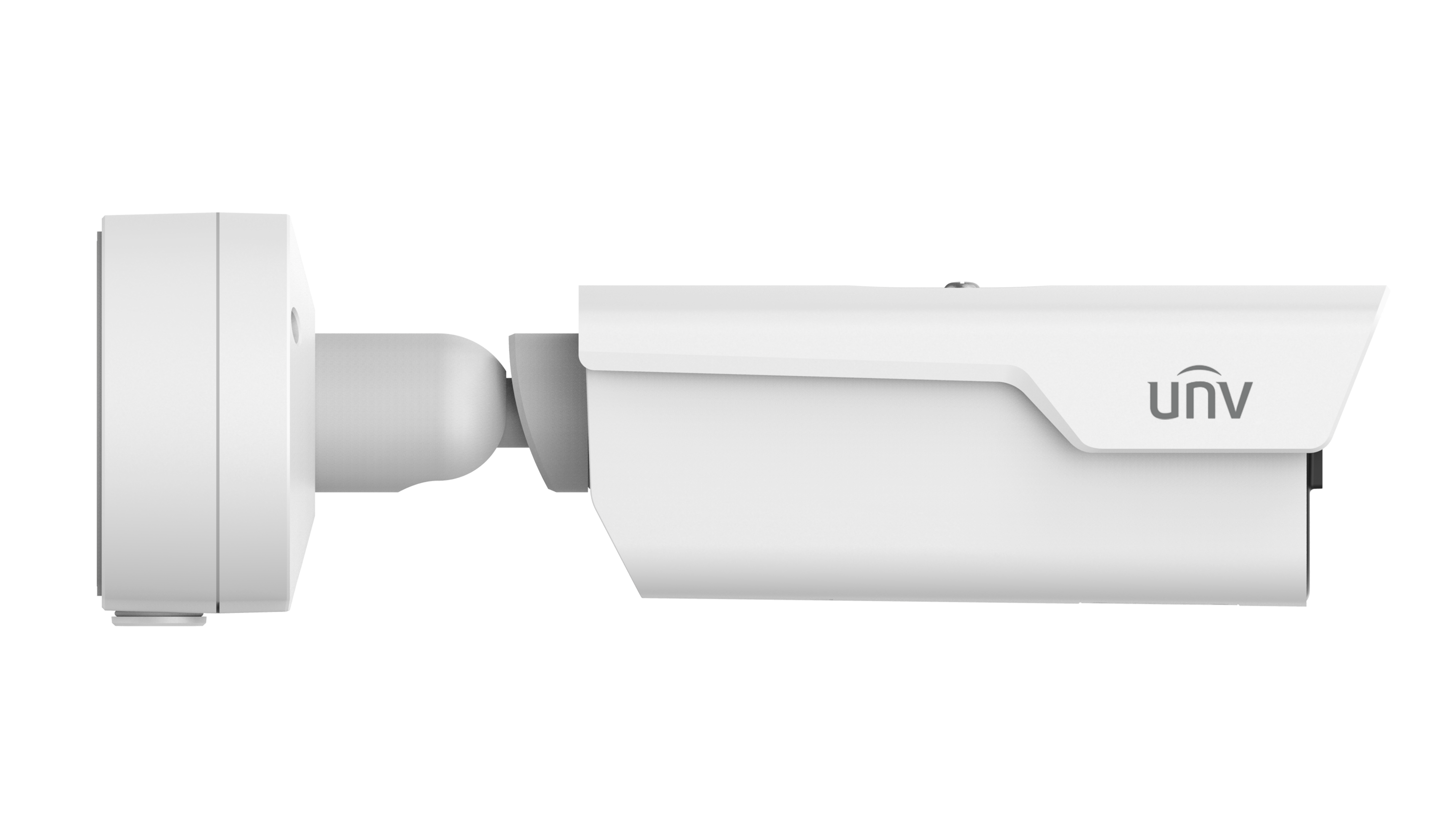

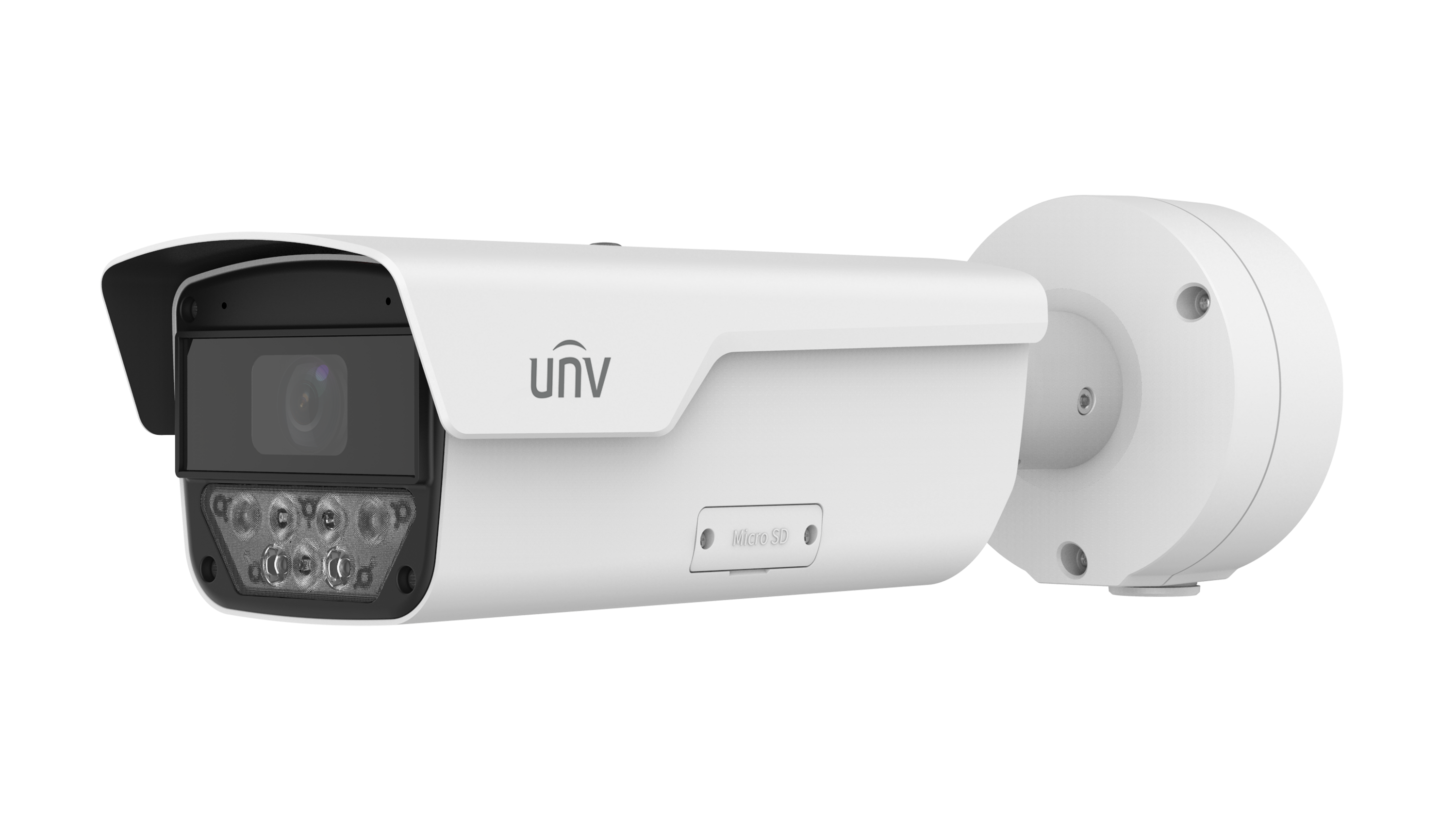

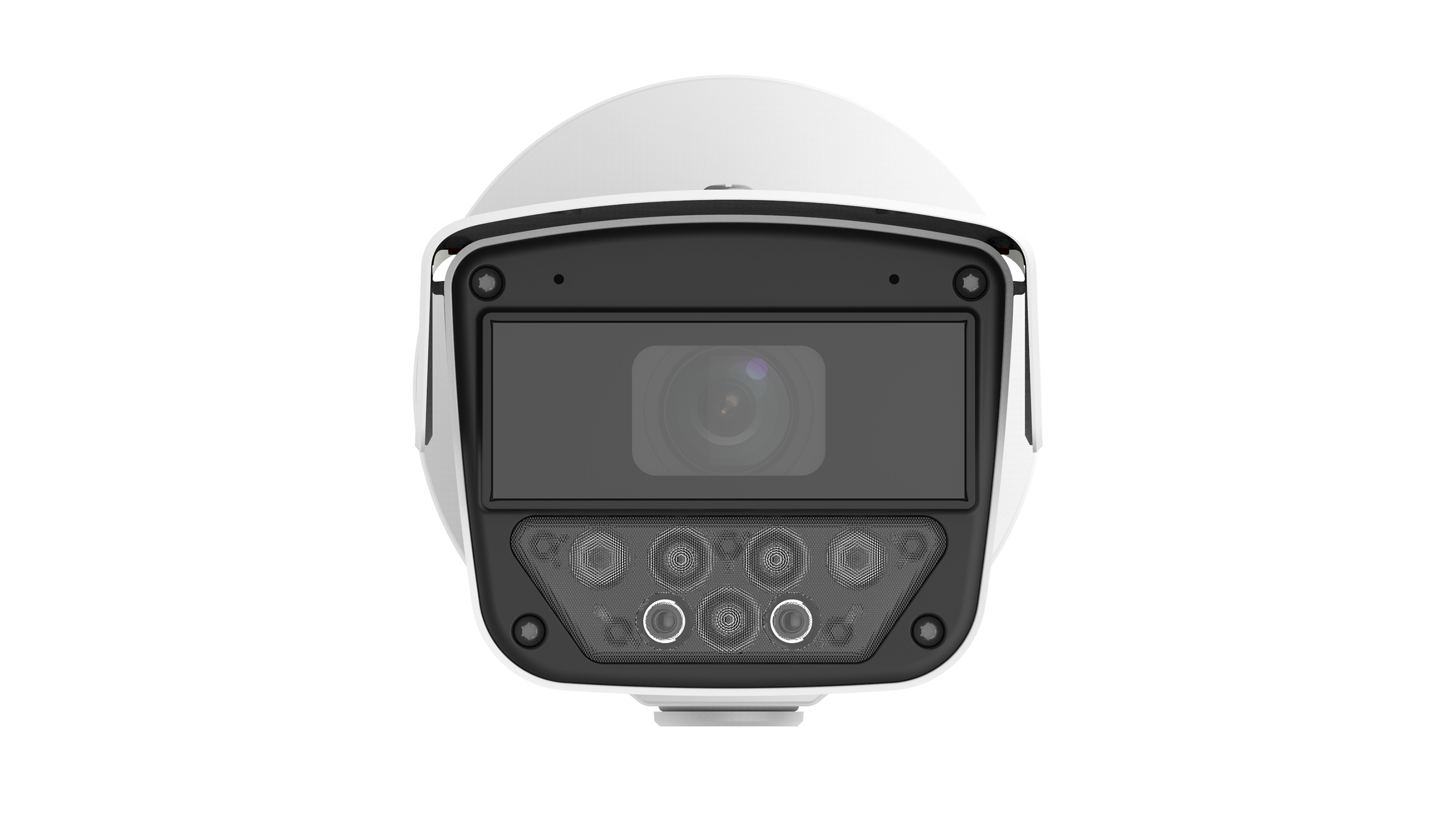

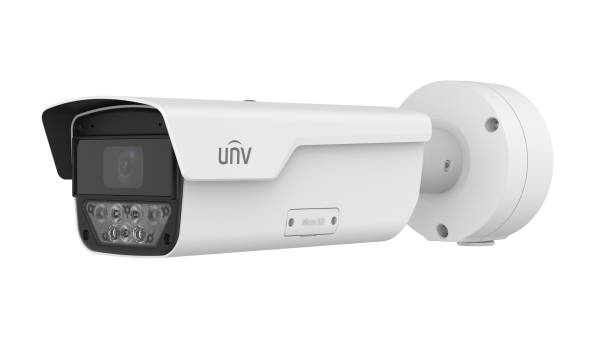

IPC264SA-AHDX4K-I1 | ||||||||
Camera | ||||||||
Sensor | 1/1.8" CMOS | |||||||
Min. Illumination | Colour:0.001lux (F1.6, AGC ON) 0 lux with Light | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
WDR | 130dB | |||||||
S/N | >56dB | |||||||
Lens | ||||||||
Focal Length | 8 ~ 32 mm | |||||||
Iris | F1.6 | |||||||
Field of View (H) | 42.6°~15.2° | |||||||
Field of View (V) | 23.5°~8.9° | |||||||
Field of View (D) | 52.4°~17.9° | |||||||
Iris Type | P-iris | |||||||
DORI | ||||||||
DORI Distance (Lens) | 8~32(mm) | |||||||
DORI Distance (Detect) | 165.7m(543.7ft)~444.4m(1458.1ft) | |||||||
DORI Distance (Observe) | 66.3m(217.5ft)~177.8m(583.2ft) | |||||||
DORI Distance (Recognize) | 33.1m(108.7ft)~88.9m(291.6ft) | |||||||
DORI Distance (Identify) | 16.6m(54.4ft)~44.4m(145.8ft) | |||||||
Illuminator | ||||||||
Illumination Distance (Warm Light) | 30 m (98.4 ft) | |||||||
Illumination Distance (IR) | 120 m (393.7 ft) | |||||||
IR On/Off Control | Auto/Manual | |||||||
Wavelength | 750 nm | |||||||
Video | ||||||||
Frame Rate-Main Stream | 4MP(2688*1520), Max 60fps | |||||||
Frame Rate-Sub Stream | 2MP(1920*1080), Max 60fps | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) | |||||||
Video Bit Rate | 128 Kbps ~ 16 Mbps | |||||||
Frame Rate-Third Stream | D1 (720*576), Max 60fps | |||||||
ROI | Support | |||||||
Video Stream | Triple Streams | |||||||
OSD | Up to 10 OSDs | |||||||
Intelligent | ||||||||
Traffic Monitoring | Support capturing car license picture and collect other car information when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode avaliable: High/Low pole | |||||||
People Counting | Support People Flow Counting and Crowd Density Monitoring | |||||||
Smart Intrusion Prevention | Cross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Flip Vertical, Flip Horizontal, Normal, 180°, 90°Clockwise, 90°Anti-clockwise | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Defog | Digital Defog | |||||||
Heatwave Reduction | N/A | |||||||
Events | ||||||||
Basic Detection | Motion Detection, Tampering Alarm, Audio Detection | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 128 Kbps | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 16KHZ | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
Security | TLS1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
PTZ | ||||||||
Home Position | Support | |||||||
Interface | ||||||||
Audio I/O | 2 Input: impedance 1kΩ; amplitude 2.5V [p-p], 1 Output: impedance 600Ω; amplitude 2.5V [p-p] | |||||||
Alarm I/O | 3/2 | |||||||
Serial Port | 1 channel RS485 interface | |||||||
Built-in Mic | Built-in two mics | |||||||
Built-in Speaker | Support | |||||||
Network | 1 x RJ45 10M/100M Base-TX Ethernet | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | |||||||
General | ||||||||
Power | DC12V(±25%) , PoE+ (IEEE 802.3at) | |||||||
Power Consumption | Max 23W | |||||||
Heater | Support | |||||||
Power Interface | Ø 5.5 mm coaxial power plug | |||||||
Dimensions | 406 x 126 x 130 mm (16.0” x 5.0” x 5.1”) (L x W x H) | |||||||
Weight | 2.14kg(4.72lb) | |||||||
Working Environment | -40 ℃ ~ 60 ℃ (-40 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||
Storage Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) | |||||||
Surge Protection | 6KV | |||||||
Reset Button | Support | |||||||
Web Client Language | 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
