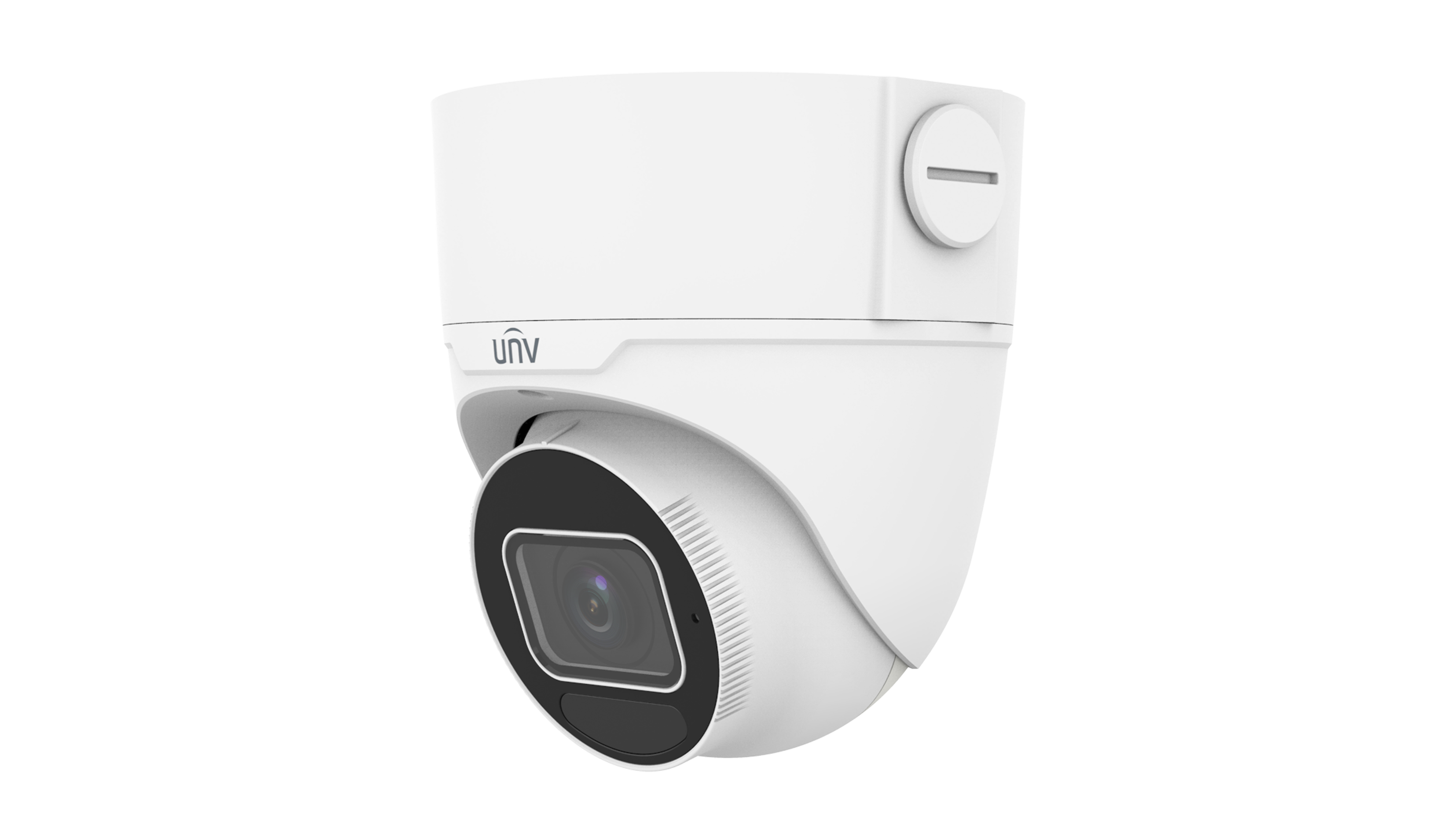

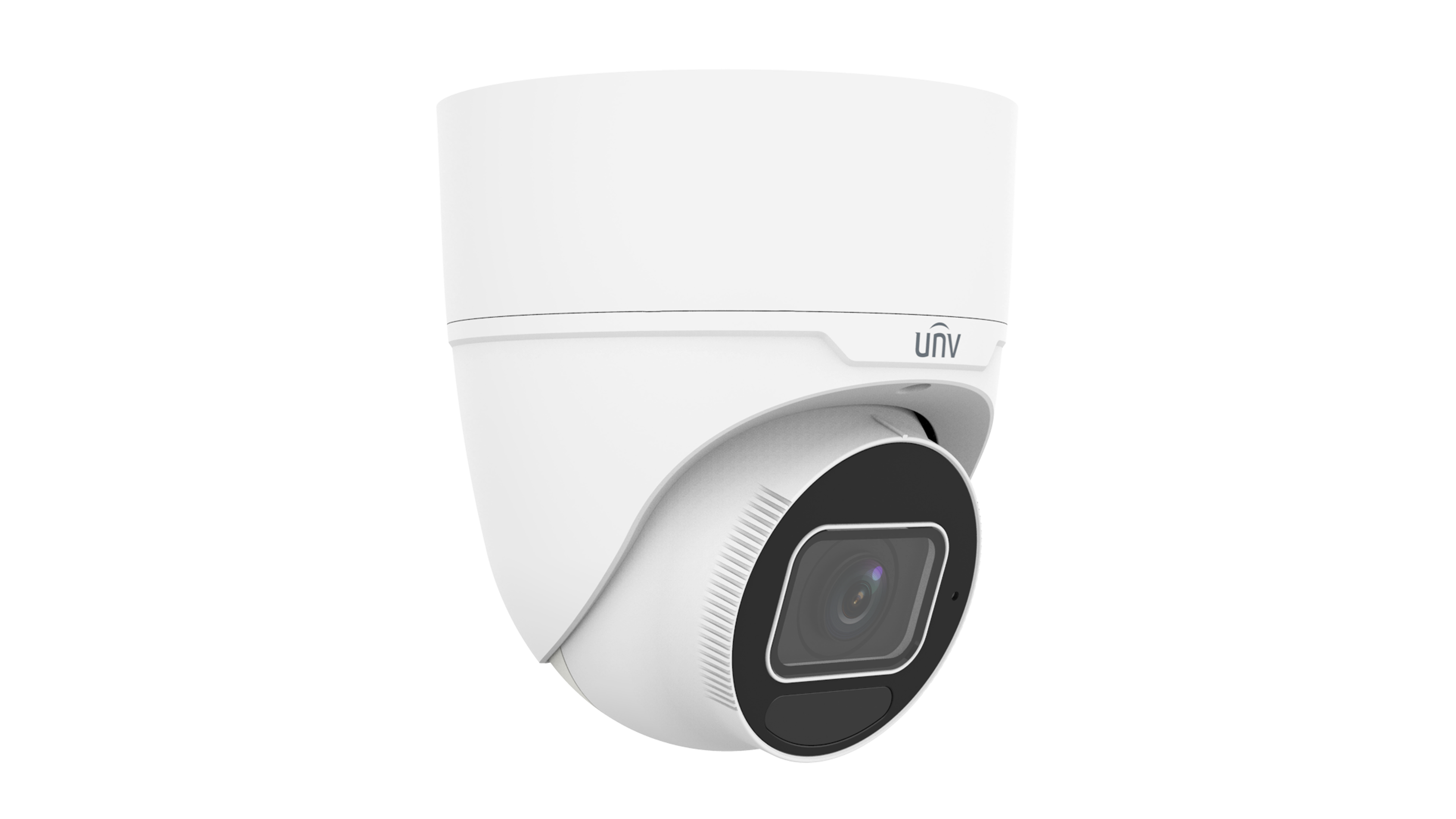

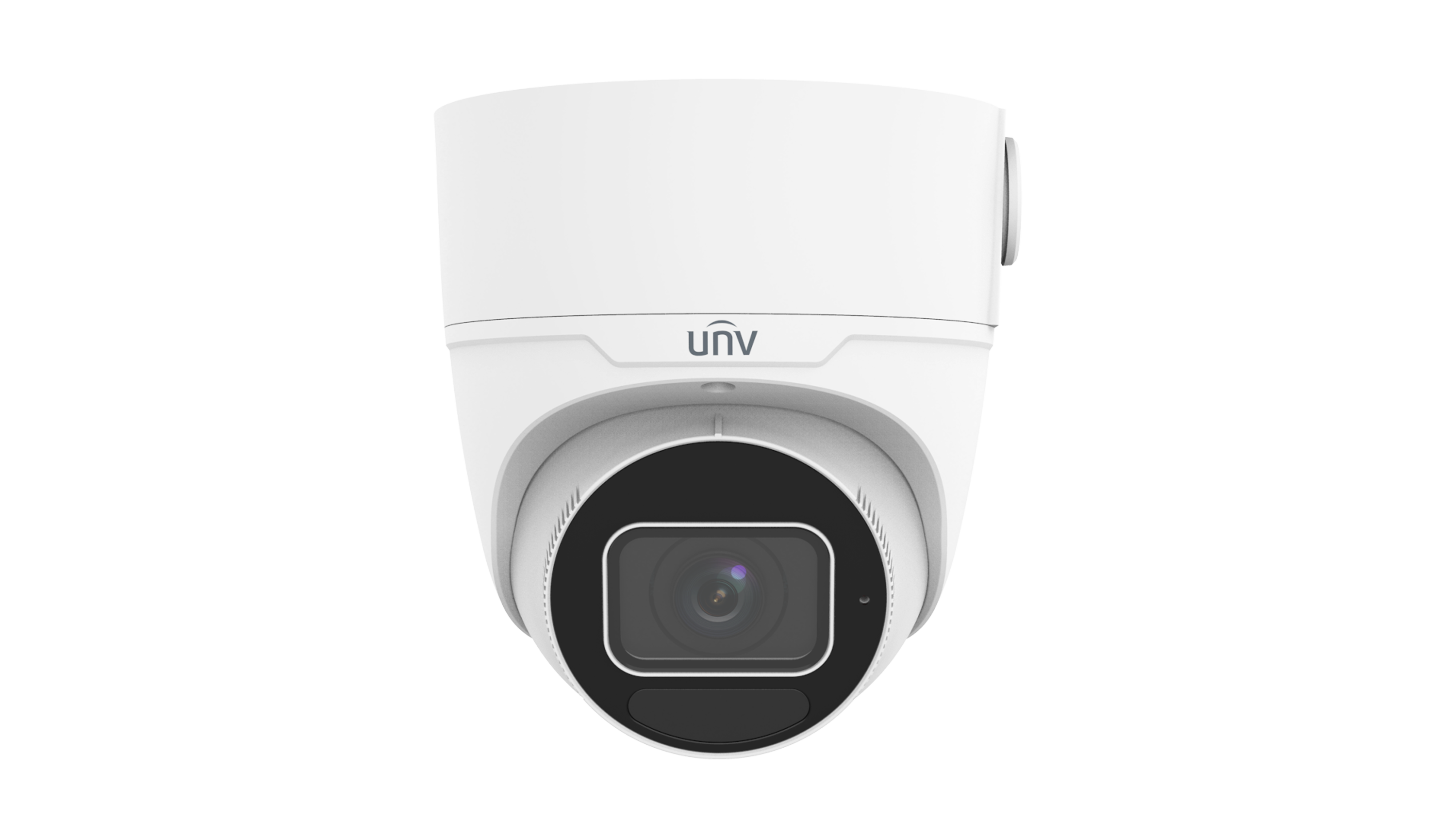

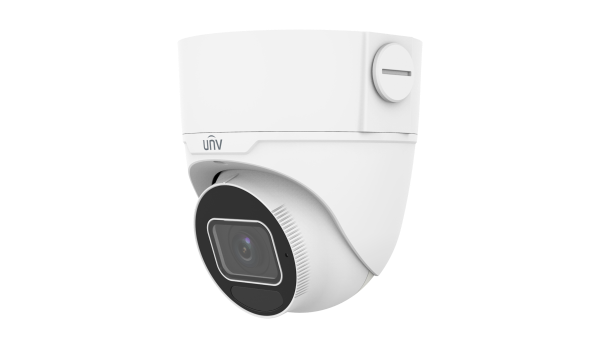

IPC3634SS-ADZK-I1 | ||||||||
Camera | ||||||||
Max Resolution | 4MP | |||||||
Sensor | 1/3''CMOS | |||||||
Min. Illumination | Colour: 0.002 lux (F1.2, AGC ON) 0 lux with IR on | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° | |||||||
S/N | >56dB | |||||||
WDR | 130dB | |||||||
Lens | ||||||||
Focal Length | 2.7 ~ 13.5 mm | |||||||
Iris Type | Fixed | |||||||
Iris | F1.2 | |||||||
Field of View (H) | 103.8°~ 29.7° | |||||||
Field of View (V) | 56.7°~ 16.7° | |||||||
Field of View (D) | 108.3°~ 33.7° | |||||||
Lens Type | Motorized | |||||||
DORI | ||||||||
DORI Distance (Lens) | 2.7mm, 13.5mm | |||||||
DORI Distance (Detect) | 60.8m(199ft), 303.8m(996.7ft) | |||||||
DORI Distance (Observe) | 24.3m(79.7ft), 121.5m(398.6ft) | |||||||
DORI Distance (Recognize) | 12.2m(40ft), 60.8m(199.5ft) | |||||||
DORI Distance (Identify) | 6.1m(20ft), 30.4m(99.7ft) | |||||||
Illuminator | ||||||||
Supplemental Light | IR | |||||||
Illumination Distance (IR) | 40 m (131.2 ft) | |||||||
IR On/Off Control | Auto/Manual | |||||||
Wavelength | 850 nm | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps | |||||||
Video Bit Rate | 128 Kbps ~ 16 Mbps | |||||||
U-code | Support | |||||||
OSD | Up to 8 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Support | |||||||
Video Stream | Triple Streams | |||||||
Image | ||||||||
Auto Scene Match (ASM) | Support (Only WDR) | |||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise | |||||||
Dewarping | N/A | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Defog | Digital Defog | |||||||
Intelligent | ||||||||
Smart Intrusion Prevention | Cross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
Statistical Analysis | N/A | |||||||
People Counting | Support People Flow Counting and Crowd Density Monitoring | |||||||
Attribute Collection | SIP with color retrieval | |||||||
Events | ||||||||
Basic Detection | Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 64 Kbps | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 8 KHz | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | UNV-Link, UNV-Link Pro, EZStation | |||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p], 1 Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
Alarm I/O | 1/1 | |||||||
Serial Port | N/A | |||||||
Built-in Mic | Support | |||||||
Built-in Speaker | N/A | |||||||
WIFI | N/A | |||||||
Network | 1 x RJ45 10M/100M Base-TX Ethernet | |||||||
Video Output | N/A | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) | |||||||
Safety | CE-LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
Protection | IP67 (IEC 60529) IK10 (IEC 62262) | |||||||
General | ||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
Power Consumption | Max 7.5W | |||||||
Power Interface | Ø 5.5 mm coaxial power plug | |||||||
Dimensions | Ø132 x 147mm (Ø5.2” x 5.8”) (Ø x H) | |||||||
Weight | 0.99kg (2.18lb) | |||||||
Material | Metal | |||||||
Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||
Storage Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||
Surge Protection | 6KV | |||||||
Reset Button | Support | |||||||
Web Client Language | 20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
