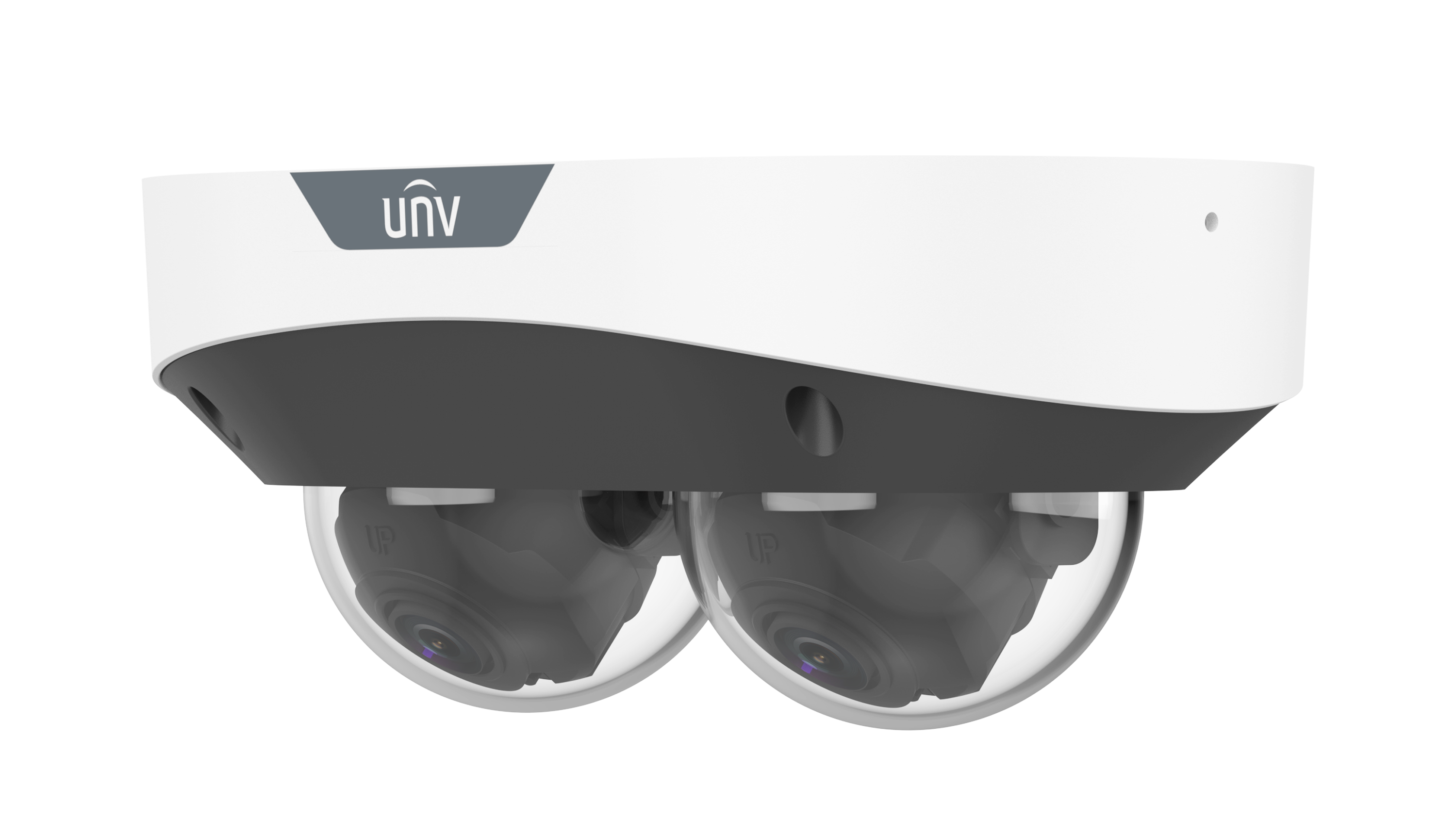

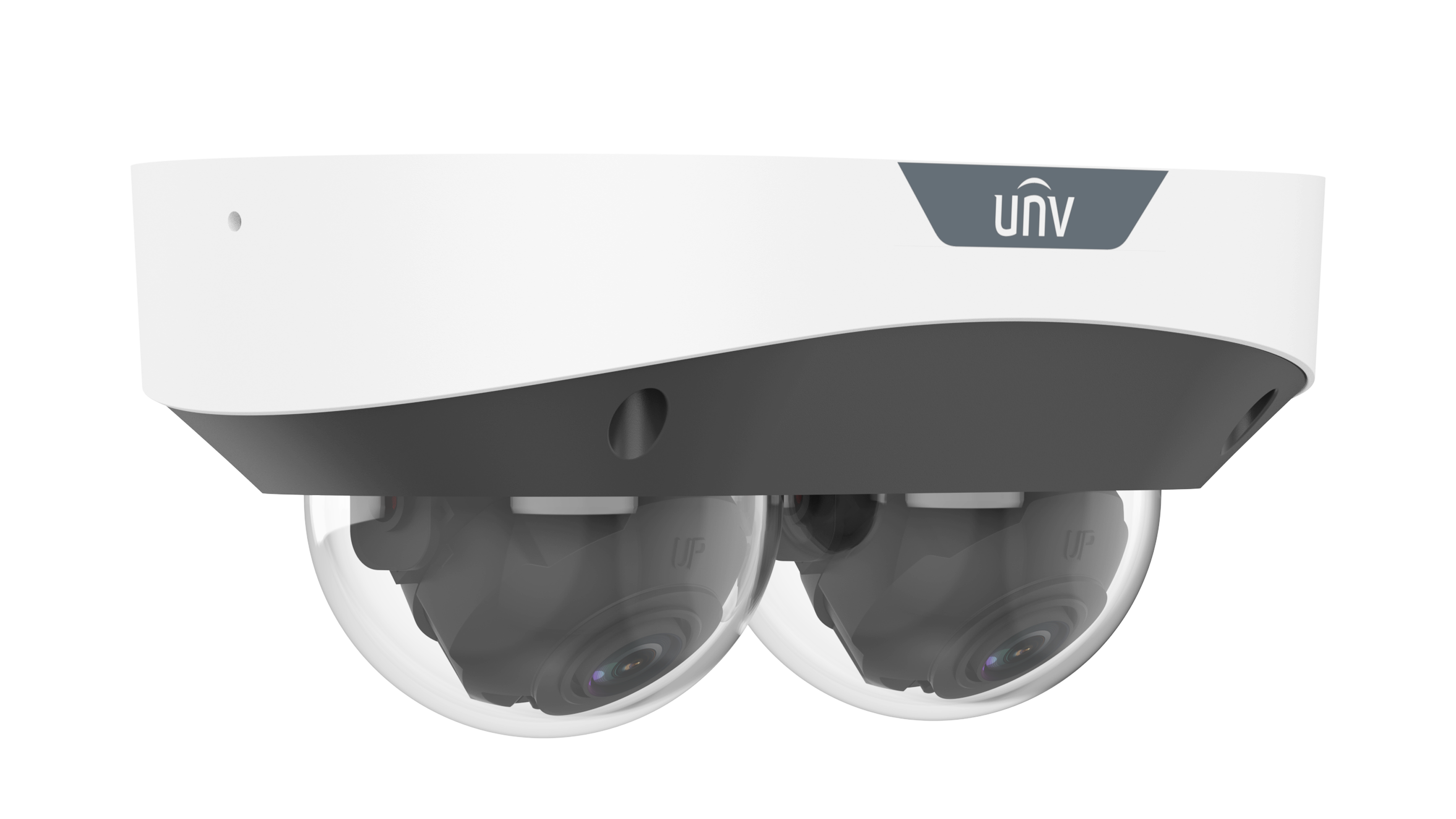

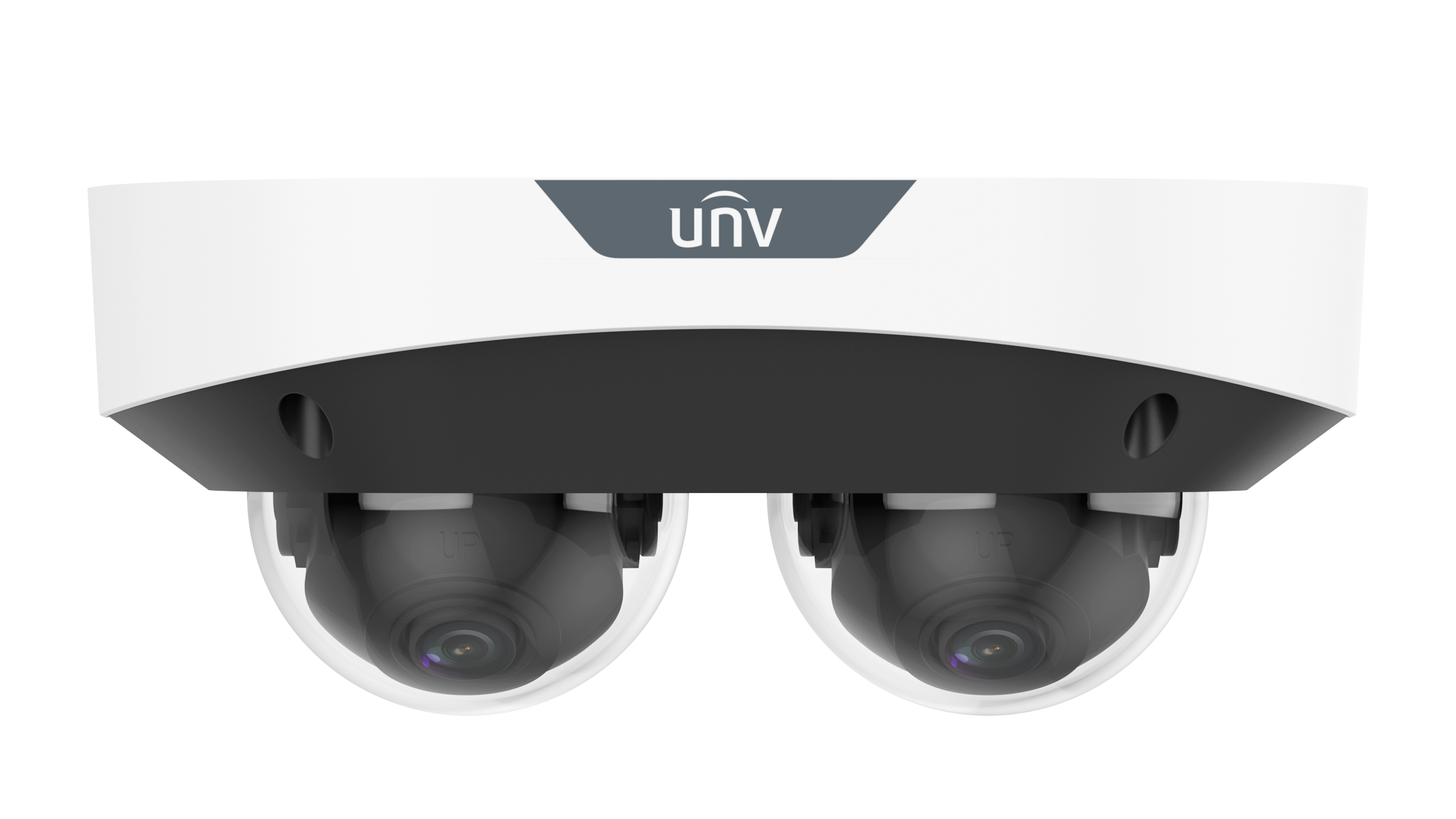

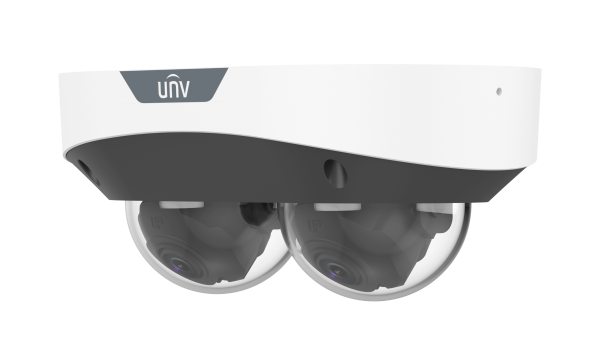

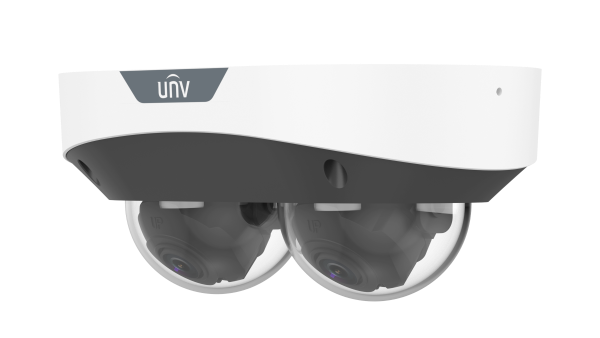

IPC3224SS-ADF40K-I1 | ||
Channel | Channel 1 | Channel 2 |
Camera | ||
Max Resolution | 4 MP | |
Sensor | 1/3.0" CMOS | |
Min. Illumination | Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR on | |
Day/Night | IR-cut filter with auto switch (ICR) | |
Shutter | Auto/Manual, 1 ~ 1/100000s | |
Adjustment Angle | Pan: 0° to 180°, Tilt: 0° to 66°, Rotate: 0° to 346° | |
S/N | >52 dB | |
WDR | 130 dB | |
Lens | ||
Focal Length | 4.0 mm | |
Iris Type | Fixed | |
Iris | F1.6 | |
Field of View (H) | 81.39° | |
Field of View (V) | 43.36° | |
Field of View (D) | 86.91° | |
Lens Type | Fixed | |
DORI | ||
DORI Distance (Lens) | 4 mm | |
DORI Distance (Detect) | 90.0 m (295.3 ft.) | |
DORI Distance (Observe) | 36.0 m (118.1 ft.) | |
DORI Distance (Recognize) | 18.0 m (59.1 ft.) | |
DORI Distance (Identify) | 9.0 m (29.5 ft.) | |
Illuminator | ||
Supplemental Light | IR | |
Illumination Distance (IR) | 30 m (98.4 ft.) | |
IR On/Off Control | Auto/Manual | |
Wavelength | 850 nm | |
Video | ||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |
H.264 Code Profile | Baseline profile, Main profile, High profile | |
Frame Rate | Main Stream: 4 MP (2688 × 1520) , max. 25 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720) max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; | |
Video Bit Rate | 128 Kbps to 16 Mbps | |
U-code | Support | |
OSD | Up to 8 OSDs | |
Privacy Mask | Up to 4 areas | |
ROI | Support | |
Video Stream | Triple streams | |
Image | ||
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |
Digital Noise Reduction | 2D/3D DNR | |
Smart IR | Support | |
Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |
Dewarping | N/A | |
HLC | Support | |
BLC | Support | |
Defog | Digital defog | |
Image Stabilization | N/A | |
Intelligent | ||
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |
Statistical Analysis | N/A | |
Events | ||
Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection | |
General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output | |
Audio | ||
Audio Compression | G.711U, G.711A | |
Audio Bitrate | 64 Kbps | |
Two-way Audio | Support | |
Suppression | Support | |
Sampling Rate | 8 kHz | |
Storage | ||
Edge Storage | MicroSD, up to 512 GB | |
Network Storage | ANR, NAS (NFS) | |
Network | ||
Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH | |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |
Client | UNV-Link, UNV-Link Pro, EZStation | |
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |
Interface | ||
Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | |
Alarm I/O | 1/1 | |
Serial Port | N/A | |
Built-in Mic | Built-in dual-mic | |
Built-in Speaker | N/A | |
WIFI | N/A | |
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |
Video Output | N/A | |
Certification | ||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) | |
Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |
Protection | IP67 (IEC 60529) IK10 (IEC 62262) | |
General | ||
Power | DC 12 V±25%, PoE (IEEE 802.3af) | |
Power Consumption | Max. 9.1 W | |
Power Interface | Ø5.5 mm coaxial power plug | |
Dimensions | 176 mm × 104 mm × 72 mm (6.9" × 4.1" × 2.8") (L × W × H) | |
Weight | 0.62 kg (1.37 lb.) | |
Material | Metal | |
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |
Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |
Surge Protection | 4 KV | |
Reset Button | Support | |
Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
