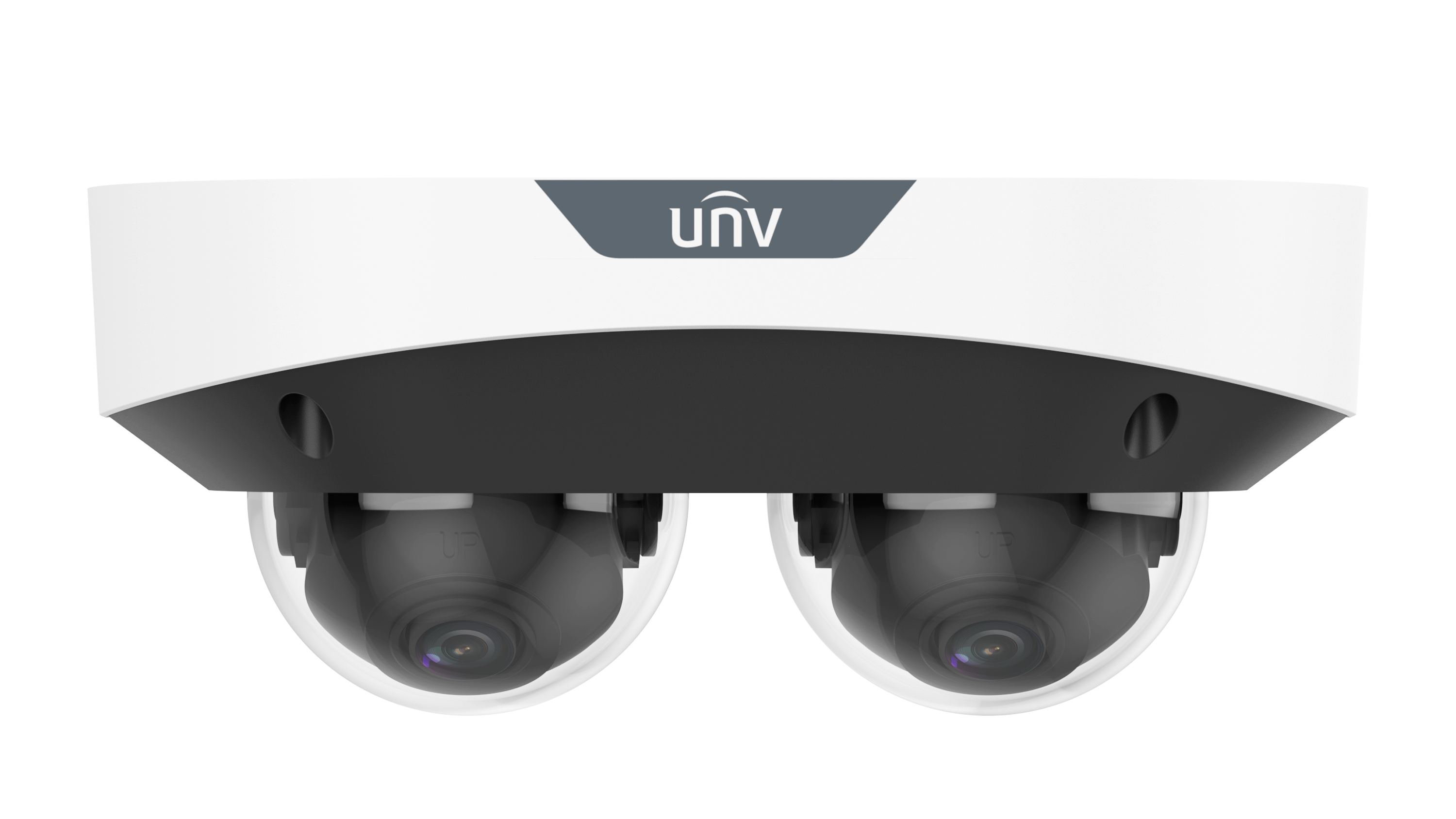

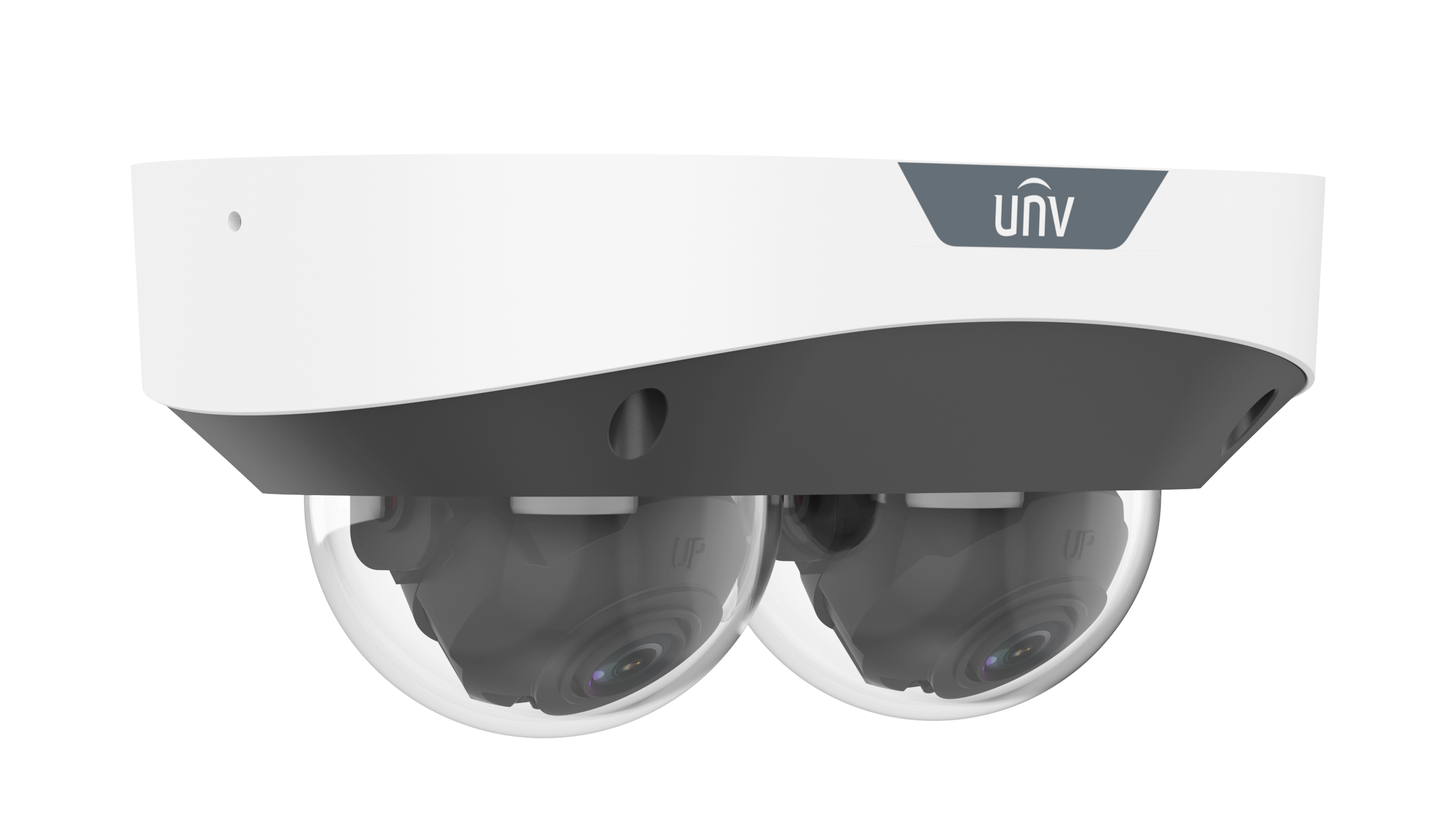

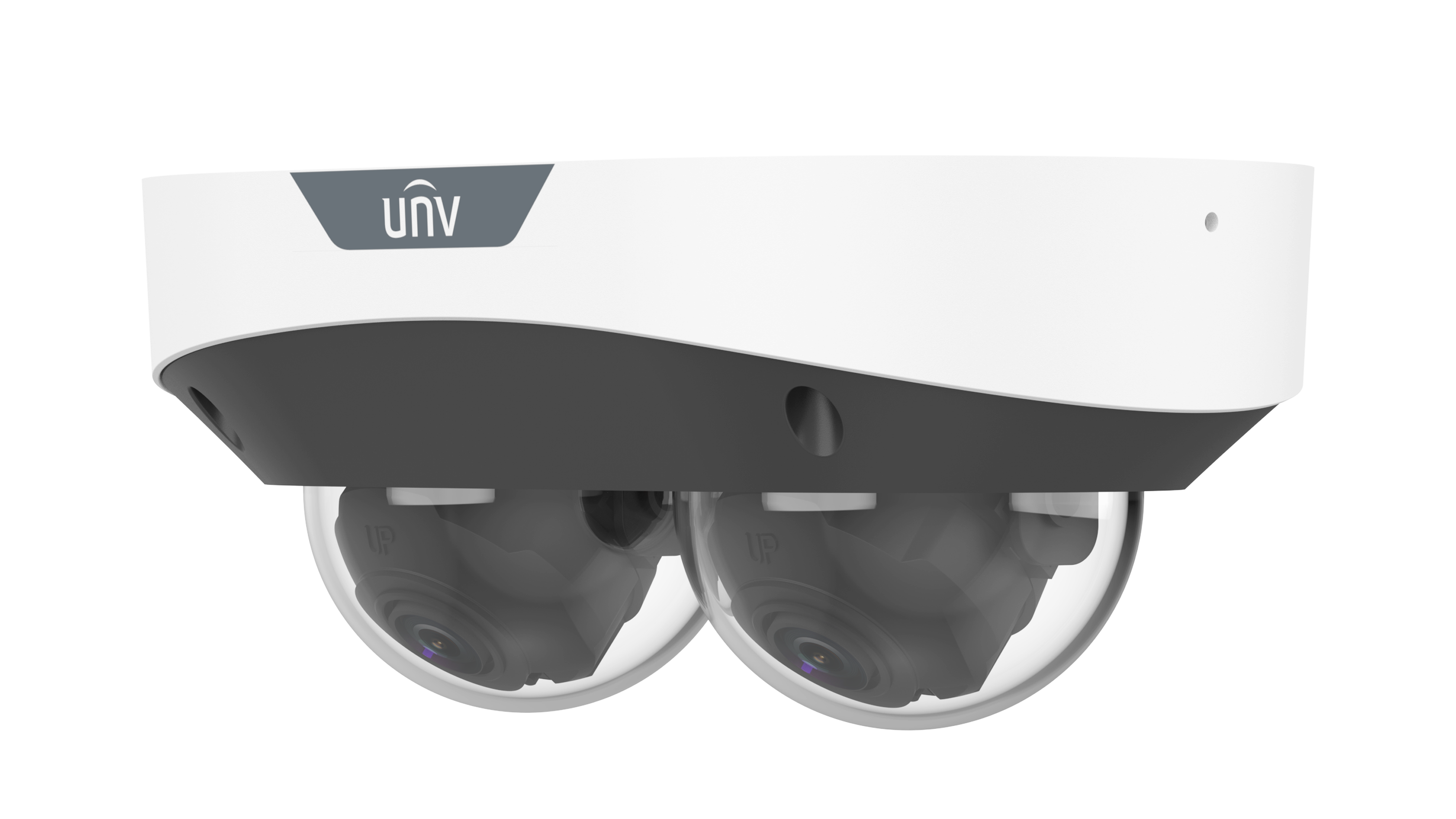

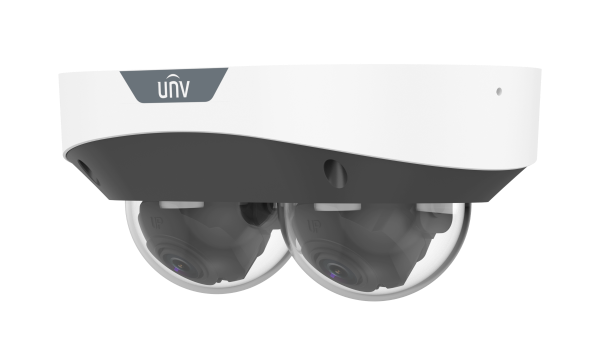

IPC3224SS-ADF28K-I1 | ||||||||
Channel | Channel 1 | Channel 2 | ||||||
Camera | ||||||||
Max Resolution | 4MP | 4MP | ||||||
Sensor | 1/3.0" CMOS | 1/3.0" CMOS | ||||||
Min. Illumination | Colour: 0.002 lux (F1.6, AGC ON) 0 lux with IR on |
Colour: 0.002 lux (F1.6, AGC ON) 0 lux with IR on |
||||||
Day/Night | IR-cut filter with auto switch (ICR) | IR-cut filter with auto switch (ICR) | ||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | Auto/Manual, 1 ~ 1/100000s | ||||||
Adjustment Angle | Pan: 0° ~ 180°, Tilt: 0° ~ 66°, Rotate: 0° ~ 346° | Pan: 0° ~ 180°, Tilt: 0° ~ 66°, Rotate: 0° ~ 346° | ||||||
S/N | >52dB | >52dB | ||||||
WDR | 130dB | 130dB | ||||||
Lens | ||||||||
Focal Length | 2.8 mm | 2.8 mm | ||||||
Iris Type | Fixed | Fixed | ||||||
Iris | F1.6 | F1.6 | ||||||
Field of View (H) | 97.68° | 97.68° | ||||||
Field of View (V) | 52.67° | 52.67° | ||||||
Field of View (D) | 102.52° | 102.52° | ||||||
Lens Type | Fixed | Fixed | ||||||
DORI | ||||||||
DORI Distance (Lens) | 2.8mm | 2.8mm | ||||||
DORI Distance (Detect) | 63.0m(206.7ft) | 63.0m(206.7ft) | ||||||
DORI Distance (Observe) | 25.2m(82.7ft) | 25.2m(82.7ft) | ||||||
DORI Distance (Recognize) | 12.6m(41.3ft) | 12.6m(41.3ft) | ||||||
DORI Distance (Identify) | 6.3m(20.7ft) | 6.3m(20.7ft) | ||||||
Illuminator | ||||||||
Supplemental Light | IR | IR | ||||||
Illumination Distance (IR) | 30 m (98.4 ft) | 30 m (98.4 ft) | ||||||
IR On/Off Control | Auto/Manual | Auto/Manual | ||||||
Wavelength | 850 nm | 850 nm | ||||||
Video | ||||||||
Video Compression | Ultra 265|H.265|H.264|MJPEG | Ultra 265|H.265|H.264|MJPEG | ||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | Baseline profile, Main profile, High profile | ||||||
Frame Rate | Main Stream:4MP(2688*1520) ,Max 25fps; 4MP(2560*1440), Max 25fps; 3MP(2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720) Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
Main Stream:4MP(2688*1520) ,Max 25fps; 4MP(2560*1440), Max 25fps; 3MP(2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720) Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||
Video Bit Rate | 128 Kbps ~ 16 Mbps | 128 Kbps ~ 16 Mbps | ||||||
U-code | Support | Support | ||||||
OSD | Up to 8 OSDs | Up to 8 OSDs | ||||||
Privacy Mask | Up to 4 areas | Up to 4 areas | ||||||
ROI | Support | Support | ||||||
Video Stream | Triple Streams | Triple Streams | ||||||
Image | ||||||||
White Balance | Auto|Outdoor|Fine Tune|Sodium Lamp|Locked|Auto2 | Auto|Outdoor|Fine Tune|Sodium Lamp|Locked|Auto2 | ||||||
Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR | ||||||
Smart IR | Support | Support | ||||||
Flip | Normal|Flip Vertical|Flip Horizontal|180°|90°Clockwise|90°Anti-clockwise | Normal|Flip Vertical|Flip Horizontal|180°|90°Clockwise|90°Anti-clockwise | ||||||
Dewarping | N/A | N/A | ||||||
HLC | Support | Support | ||||||
BLC | Support | Support | ||||||
Defog | Digital Defog | Digital Defog | ||||||
Image Stabilization | N/A | N/A | ||||||
Intelligent | ||||||||
Smart Intrusion Prevention | Cross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | Cross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | ||||||
Statistical Analysis | N/A | N/A | ||||||
Events | ||||||||
Basic Detection | Motion Detection|Ultra Motion Detection|Tampering Alarm|Audio Detection | Motion Detection|Ultra Motion Detection|Tampering Alarm|Audio Detection | ||||||
General Function | Watermark|IP Address Filtering|Access Policy|ARP Protection|RTSP Authentication|User Authentication|HTTP Authentication|Alarm Input|Alarm Output | Watermark|IP Address Filtering|Access Policy|ARP Protection|RTSP Authentication|User Authentication|HTTP Authentication|Alarm Input|Alarm Output | ||||||
Audio | ||||||||
Audio Compression | G.711U|G.711A | G.711U|G.711A | ||||||
Audio Bitrate | 64 Kbps | 64 Kbps | ||||||
Two-way Audio | Support | Support | ||||||
Suppression | Support | Support | ||||||
Sampling Rate | 8 KHz | 8 KHz | ||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | Micro SD, up to 512 GB | ||||||
Network Storage | ANR|NAS (NFS) | ANR|NAS (NFS) | ||||||
Network | ||||||||
Protocols | IPv4|IPv6|IGMP|ICMP|ARP|TCP|UDP|DHCP|PPPoE|RTP|RTSP|RTCP|RTMP|DNS|DDNS|NTP|FTP|UPnP|HTTP|HTTPS|SMTP|802.1x|SNMP|QoS|SSL/TLS|SSH | IPv4|IPv6|IGMP|ICMP|ARP|TCP|UDP|DHCP|PPPoE|RTP|RTSP|RTCP|RTMP|DNS|DDNS|NTP|FTP|UPnP|HTTP|HTTPS|SMTP|802.1x|SNMP|QoS|SSL/TLS|SSH | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T)| API|SDK |
ONVIF (Profile S, Profile G, Profile T)| API|SDK |
||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | Up to 32 users. 3 user levels: administrator, common user and operator | ||||||
Security | Password Protection|Strong Password|HTTPS Encryption|Export Operation Logs|Basic and Digest Authentication for RTSP|Digest Authentication for HTTP|TLS 1.2|WSSE and Digest Authentication for ONVIF | Password Protection|Strong Password|HTTPS Encryption|Export Operation Logs|Basic and Digest Authentication for RTSP|Digest Authentication for HTTP|TLS 1.2|WSSE and Digest Authentication for ONVIF | ||||||
Client | UNV-Link| UNV-Link Pro|EZStation | UNV-Link| UNV-Link Pro|EZStation | ||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above|Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above|Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p]|1 Output: impedance 600Ω; amplitude 2V [p-p] | 1 Input: impedance 35kΩ; amplitude 2V [p-p]|1 Output: impedance 600Ω; amplitude 2V [p-p] | ||||||
Alarm I/O | 1/1 | 1/1 | ||||||
Serial Port | N/A | N/A | ||||||
Built-in Mic | Built-in two mics | Built-in two mics | ||||||
Built-in Speaker | N/A | N/A | ||||||
WIFI | N/A | N/A | ||||||
Network | 1 x RJ45 10M/100M Base-TX Ethernet | 1 x RJ45 10M/100M Base-TX Ethernet | ||||||
Video Output | N/A | N/A | ||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
||||||
Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||||||
Protection | IP67 (IEC 60529) IK10 (IEC 62262) |
IP67 (IEC 60529) IK10 (IEC 62262) |
||||||
General | ||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
Power Consumption | Max 9.1W | Max 9.1W | ||||||
Power Interface | Ø 5.5 mm coaxial power plug | Ø 5.5 mm coaxial power plug | ||||||
Dimensions | 176×104×72mm (6.9” × 4.1’’ ×2.8”) (L x W x H) | 176×104×72mm (6.9” × 4.1’’ ×2.8”) (L x W x H) | ||||||
Weight | 0.62kg(1.37lb) | 0.62kg(1.37lb) | ||||||
Material | Metal | Metal | ||||||
Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | ||||||
Storage Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | ||||||
Surge Protection | 4KV | 4KV | ||||||
Reset Button | Support | Support | ||||||
Web Client Language | 20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
