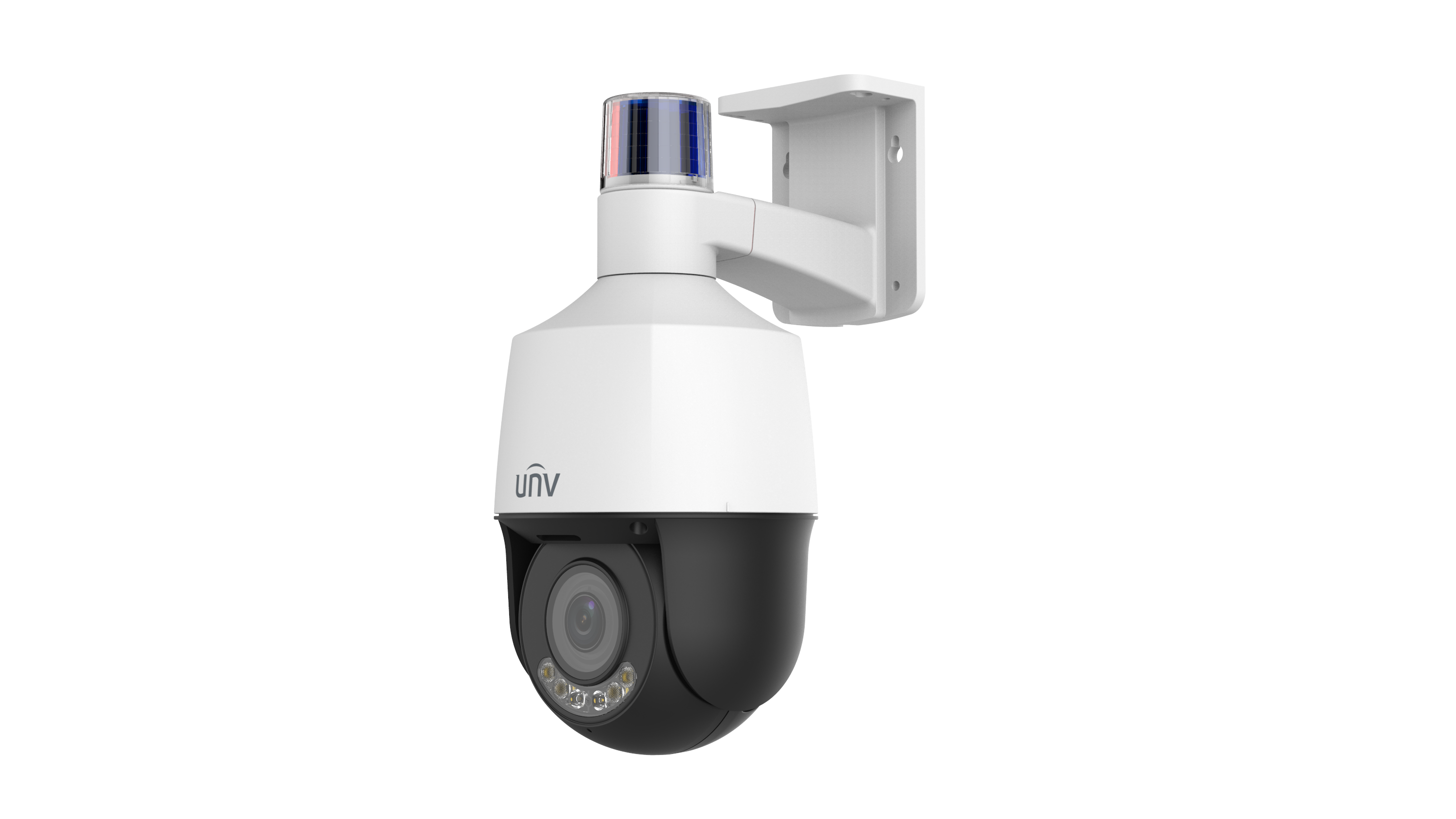

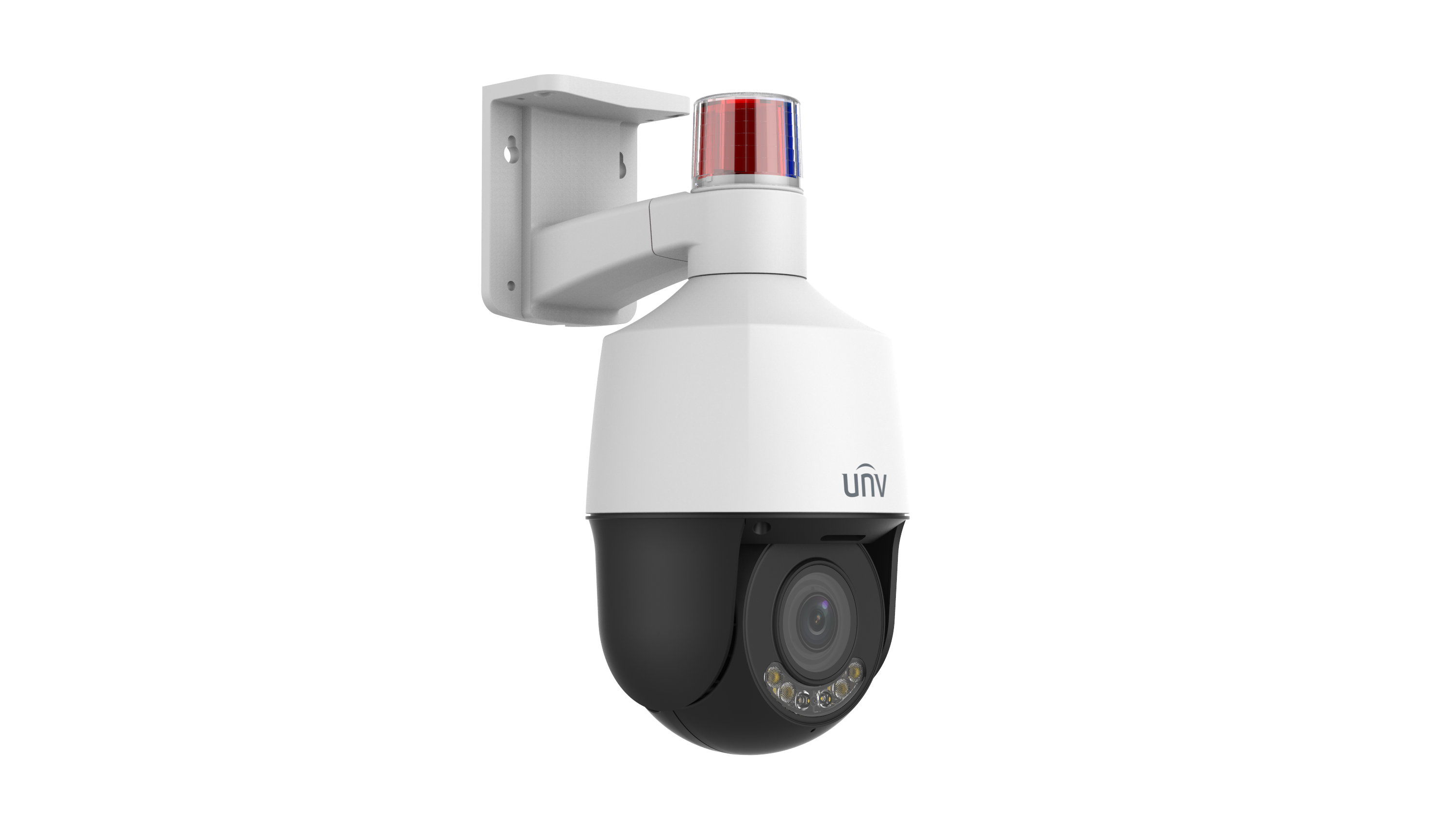

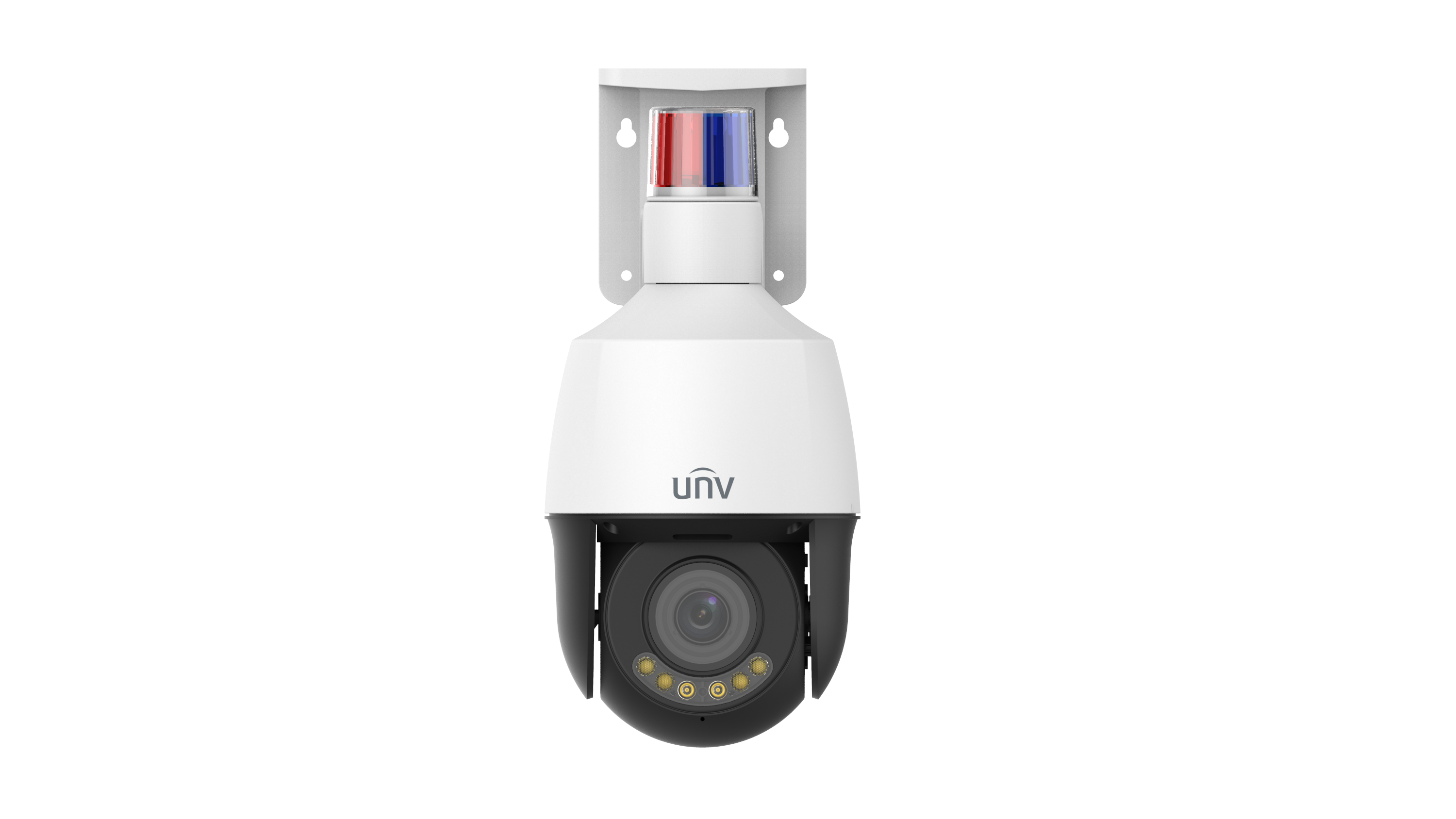

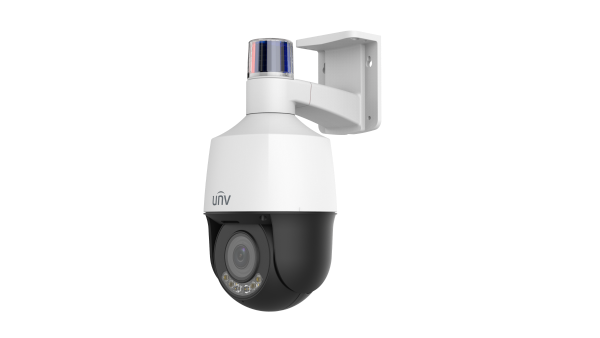

IPC6314LWH-AX5C-VG2 | ||||||||
Camera | ||||||||
Sensor | 1/1.8" CMOS | |||||||
Min. Illumination | Colour: 0.0005 Lux (F1.2, AGC ON) | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
WDR | 120 dB | |||||||
S/N | >56 dB | |||||||
Lens | ||||||||
Focal Length | 2.7 to 13.5 mm | |||||||
Optical Zoom | 5X | |||||||
Field of View (H) | 113.69° to 50.29° | |||||||
Field of View (V) | 59.46° to 28.45° | |||||||
Field of View (D) | 156.23° to 59.34° | |||||||
DORI | ||||||||
DORI Distance (Lens) | 2.7 to 13.5 mm | |||||||
DORI Distance (Detect) | 98.6 to 209.9 m (323.3 to 688.7 ft) | |||||||
DORI Distance (Observe) | 39.4 to 84.0 m (129.3 to 275.5 ft) | |||||||
DORI Distance (Recognize) | 19.7 to 137.7 m (64.7 to 137.7 ft) | |||||||
DORI Distance (Identify) | 9.9 to 21 m (32.3 to 68.9 ft) | |||||||
Illuminator | ||||||||
Illumination Distance (Warm Light) | 40 m | |||||||
Light On/Off Control | Auto/Manual | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
Video Bit Rate | 128 Kbps to 6144 Kbps | |||||||
U-code | Support | |||||||
ROI | Support | |||||||
Video Stream | Triple Streams | |||||||
Privacy Mask | Up to 4 areas | |||||||
OSD | Up to 8 OSDs | |||||||
Frame Rate-Main Stream | 4MP (2560 x 1440)@25fps (Default) 4MP (2688 x 1520), Max 30fps; 4MP (2560 x 1440), Max 30fps | |||||||
Events | ||||||||
Basic Detection | Motion Detection, Audio Detection, Tampering Alarm | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||||
Motion Detection | Support | |||||||
Tampering Detection | Support | |||||||
Audio Detection | Support | |||||||
UMD (Ultra Motion Detection) | Support | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 128 Kbps | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 8 kHz, 16 kHz | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Intelligent | ||||||||
Auto Tracking | Support, target filtering: human only | |||||||
Smart Intrusion Prevention | Support False Alarm Filtering: Cross Line Detection, Intrusion Detection (based on Human Body and Vehicle Detection) | |||||||
Network | ||||||||
Protocols | TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
Compatible Integration | ONVIF (Profile S,Profile G,Profile T), API | |||||||
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||||
Client | EZStation, EZLive, EZView | |||||||
Web Browser | Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above | |||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180° | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Defog | Digital Defog | |||||||
PTZ | ||||||||
Number of Presets | 1024 | |||||||
Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
Patrol Stay Time | 120 s to 1800 s | |||||||
Home Position | Support | |||||||
Number of Presets (IPC) | 1024 | |||||||
Pan Range | 0° to 345° | |||||||
Pan Speed | 1°/s to 50°/s | |||||||
Tilt Range | -10° to 100° | |||||||
Tilt Speed | 1°/s to 40°/s | |||||||
Number of Patrol | 16 | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
Alarm I/O | 1/1 | |||||||
Built-in Mic | Support | |||||||
Built-in Speaker | Support | |||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130) FCC SDoC (47 CFR Part 15; Subpart B) | |||||||
Safety | UL (UL 62368-1) CUL (CAN/CSA C22.2 No. 62368-1) CE-LVD (EN IEC 62368-1) | |||||||
Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||||||
Protection | IP66 (IEC 60529) | |||||||
General | ||||||||
Power | DC 12 V±25%, PoE (IEEE 802.3at) | |||||||
Power Consumption | ≤ 25.4W | |||||||
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Surge Protection | 2 KV | |||||||
Reset Button | Support | |||||||
Material | Plastic | |||||||
Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
Heater | Support | |||||||
Live View | ||||||||
Maximum Bitstream | 35 | |||||||
OSD Color | Support | |||||||
OSD Character Number | 40 |
