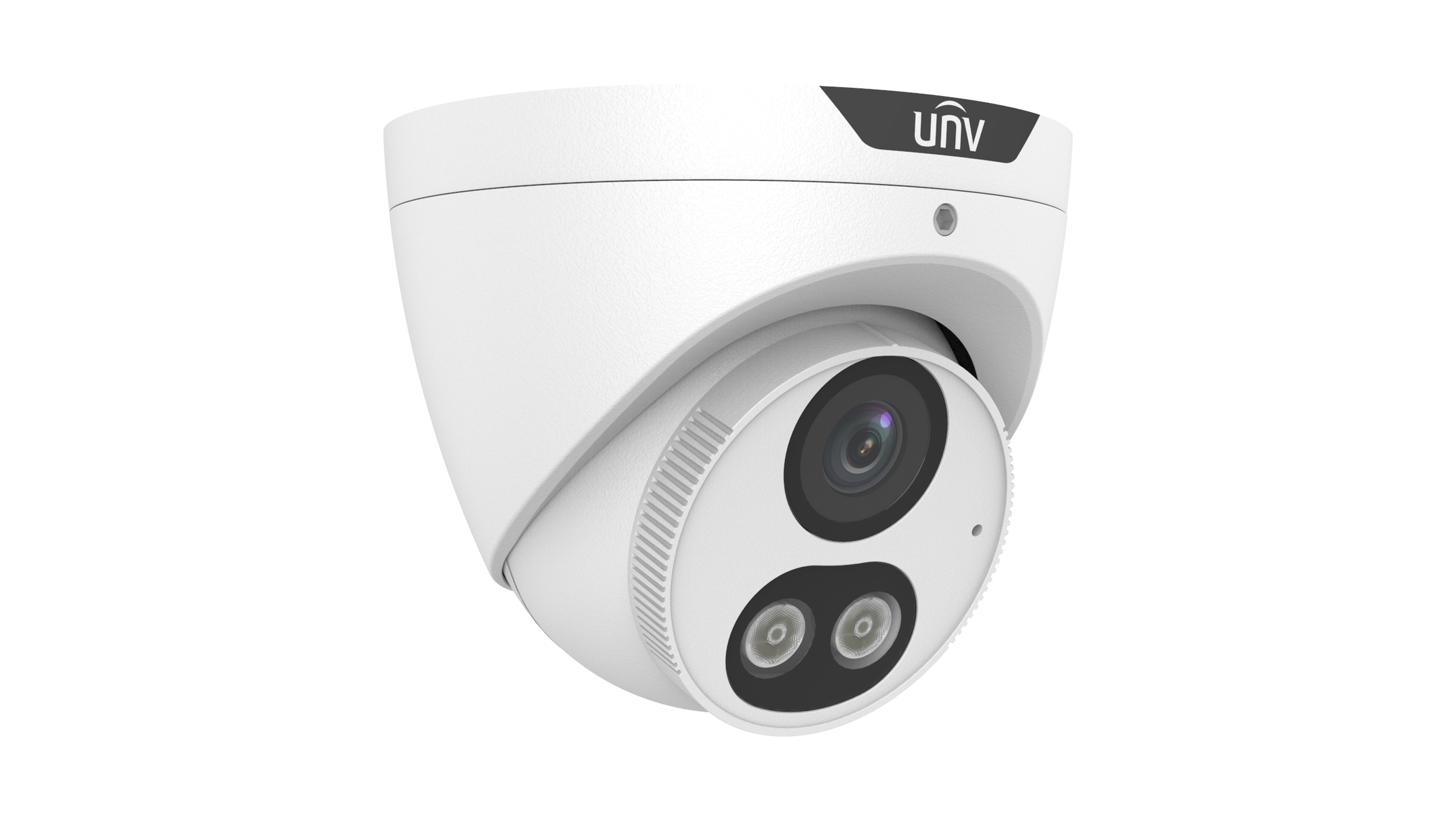

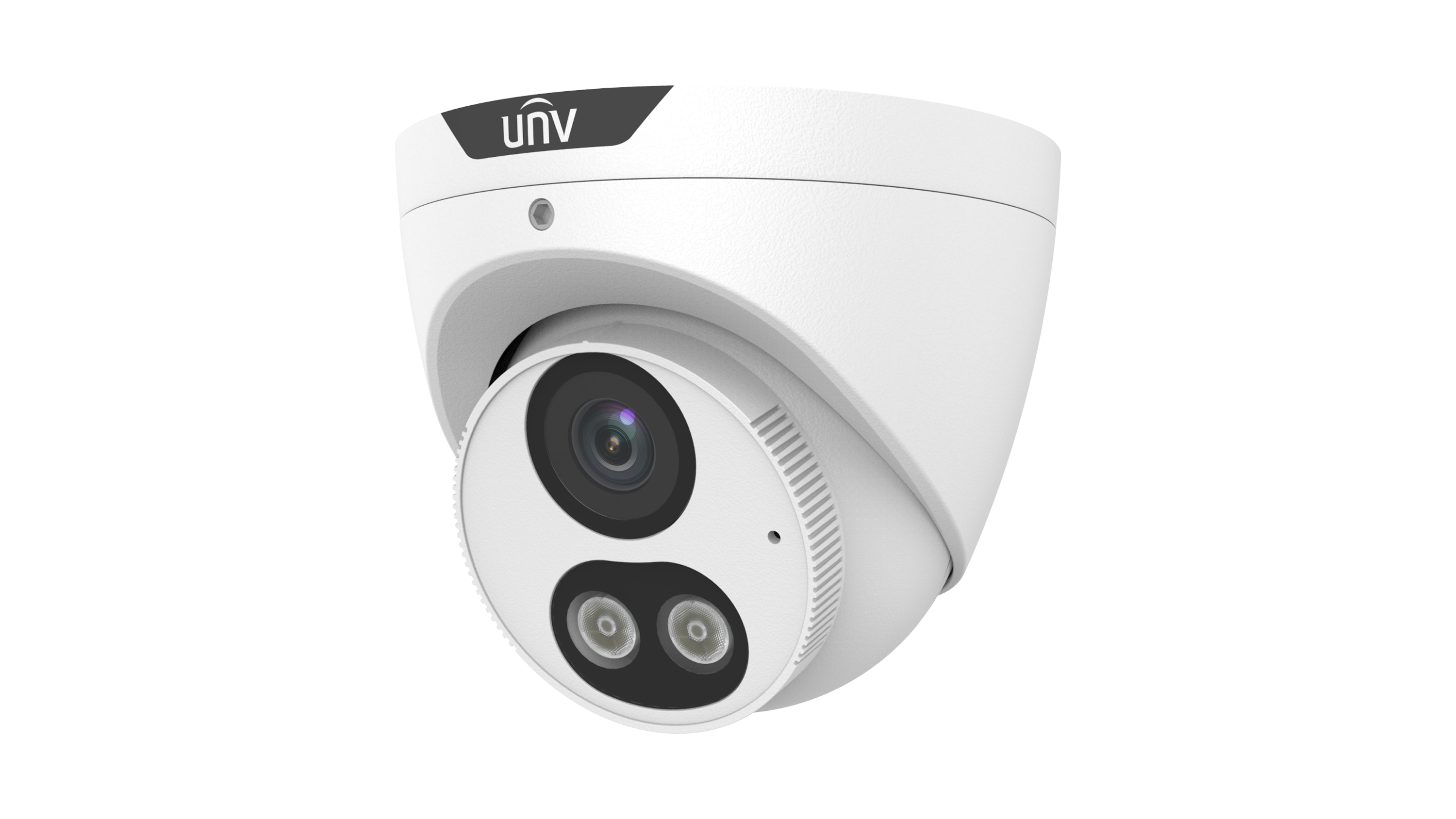

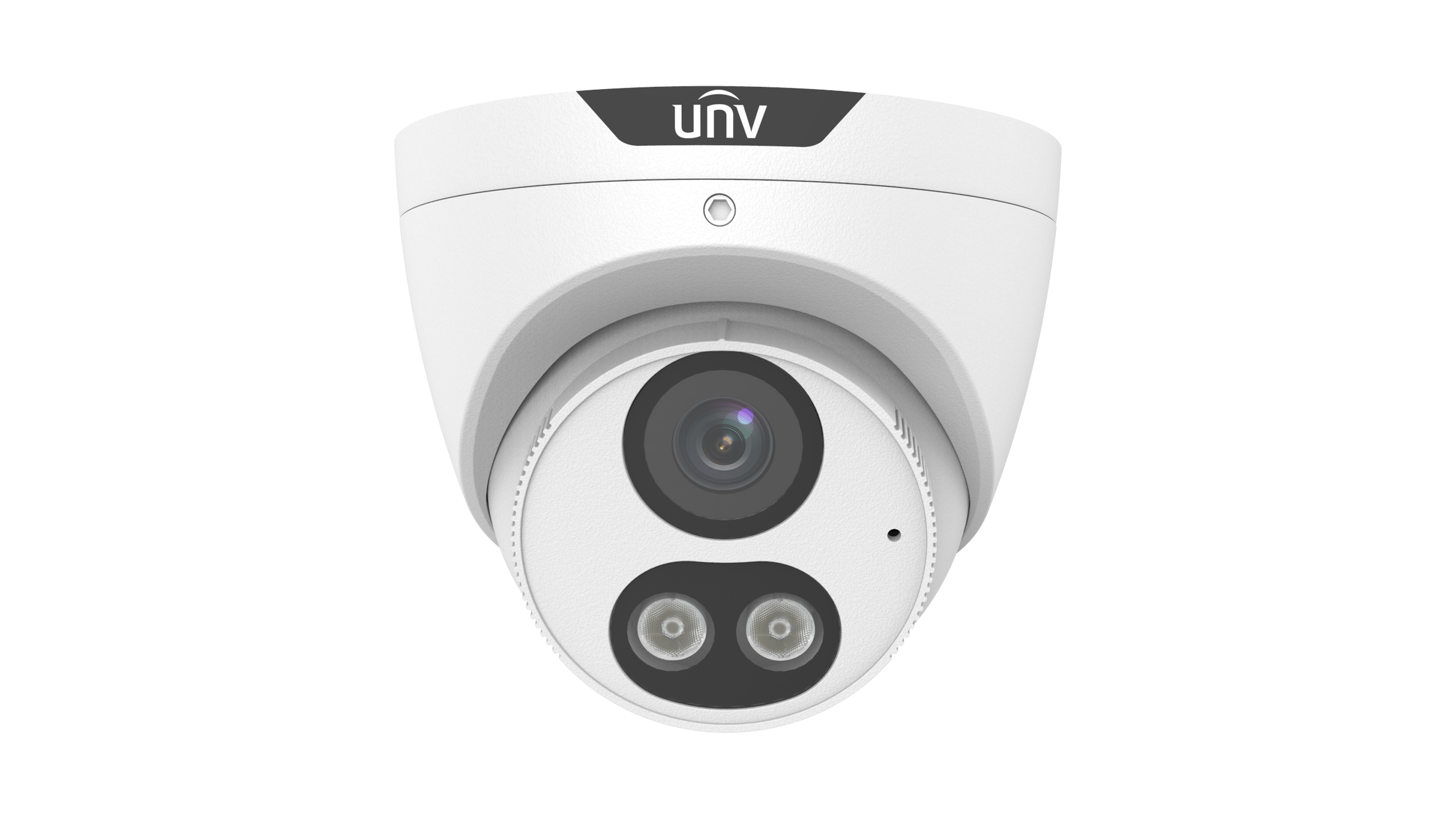

IPC3616LE-ADF28KM-DL | ||||||||
Camera | ||||||||
Max Resolution | 6 MP | |||||||
Sensor | 1/2.4" CMOS | |||||||
Min. Illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light | |||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° | |||||||
S/N | >52 dB | |||||||
WDR | 120 dB | |||||||
Lens | ||||||||
Focal Length | 2.8 mm | |||||||
Iris Type | Fixed | |||||||
Iris | F1.6 | |||||||
Field of View (H) | 102.73° | |||||||
Field of View (V) | 53.95° | |||||||
Field of View (D) | 106.97° | |||||||
Lens Type | Fixed | |||||||
DORI | ||||||||
DORI Distance (Lens) | 2.8 mm | |||||||
DORI Distance (Detect) | 63.1 m (207.0 ft) | |||||||
DORI Distance (Observe) | 25.2 m (82.7 ft) | |||||||
DORI Distance (Recognize) | 12.6 m (41.3 ft) | |||||||
DORI Distance (Identify) | 6.3 m (20.7 ft) | |||||||
Illuminator | ||||||||
Supplemental Light | Dual light | |||||||
Illumination Distance (Warm Light) | 30 m (98.4 ft) | |||||||
Illumination Distance (IR) | 30 m (98.4 ft) | |||||||
Wavelength | 850 nm | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
Frame Rate | Main Stream: 6 MP (3200 × 1800), max. 25 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps | |||||||
Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
U-code | Support | |||||||
OSD | Up to 4 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Support | |||||||
Video Stream | Dual streams | |||||||
Image | ||||||||
Smart Illumination | Support | |||||||
Smart IR | Support | |||||||
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
Dewarping | N/A | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Defog | Digital defog | |||||||
Image Stabilization | N/A | |||||||
Events | ||||||||
Basic Detection | Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection | |||||||
General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 64 Kbps | |||||||
Two-way Audio | N/A | |||||||
Suppression | Support | |||||||
Sampling Rate | 8 kHz | |||||||
Storage | ||||||||
Edge Storage | MicroSD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | UNV-Link, UNV-Link Pro, EZStation | |||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
Interface | ||||||||
Audio I/O | N/A | |||||||
Alarm I/O | N/A | |||||||
Serial Port | N/A | |||||||
Built-in Mic | Support | |||||||
Built-in Speaker | N/A | |||||||
WIFI | N/A | |||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Video Output | N/A | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) | |||||||
Safety | CE-LVD (EN 62368-1) | |||||||
Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) | |||||||
Protection | IP67 (IEC 60529) | |||||||
General | ||||||||
Power | DC 12 V±25%, PoE (IEEE 802.3af) | |||||||
Power Consumption | Max. 5.1 W | |||||||
Power Interface | Ø5.5 mm coaxial power plug | |||||||
Dimensions | Ø110.5 mm × 98.0 mm (Ø4.4" × 3.9") (Ø × H) | |||||||
Weight | 0.46 kg (1.01 lb) | |||||||
Material | Metal + Plastic | |||||||
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Surge Protection | 4 KV | |||||||
Reset Button | Support | |||||||
Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
