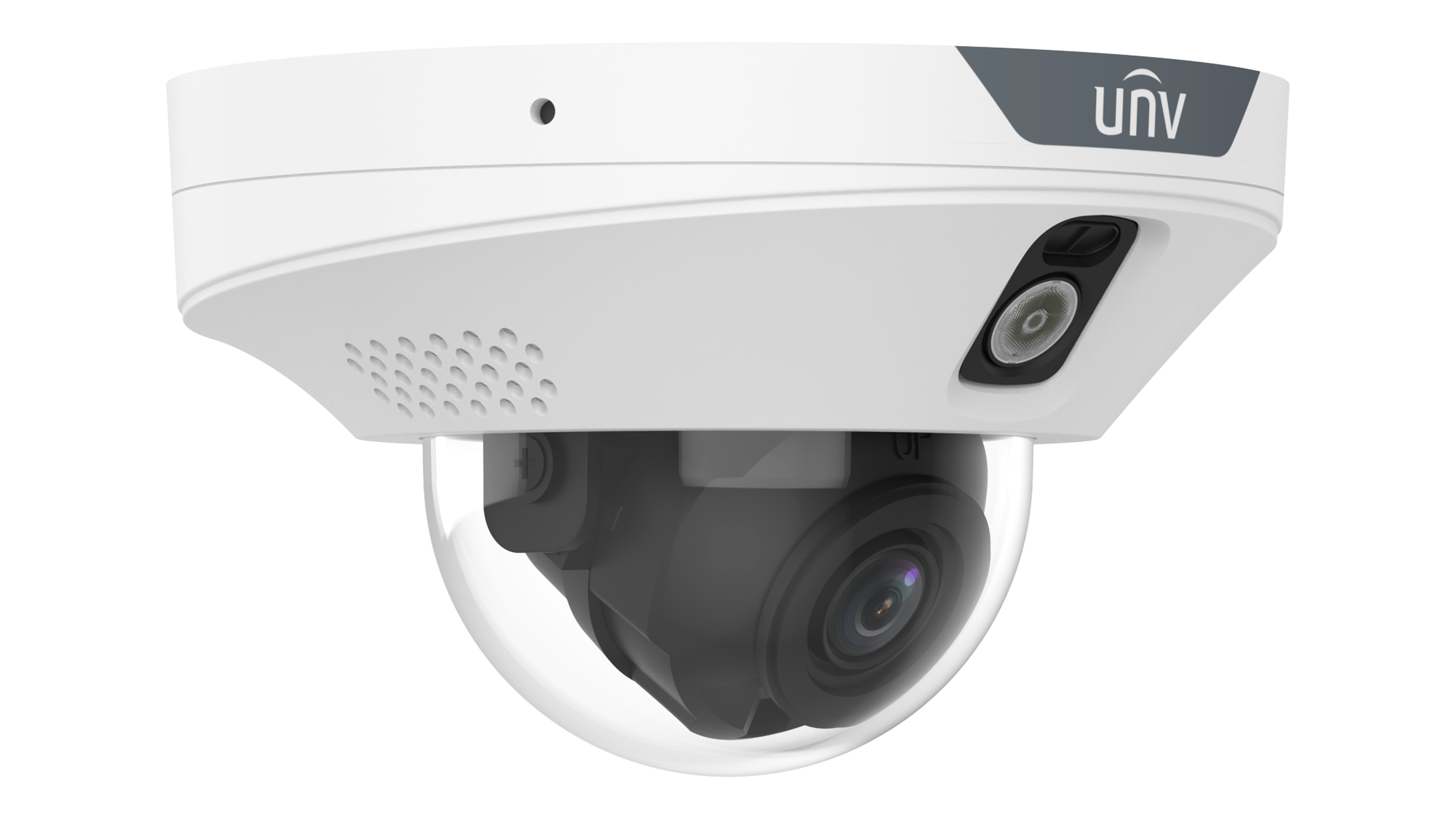

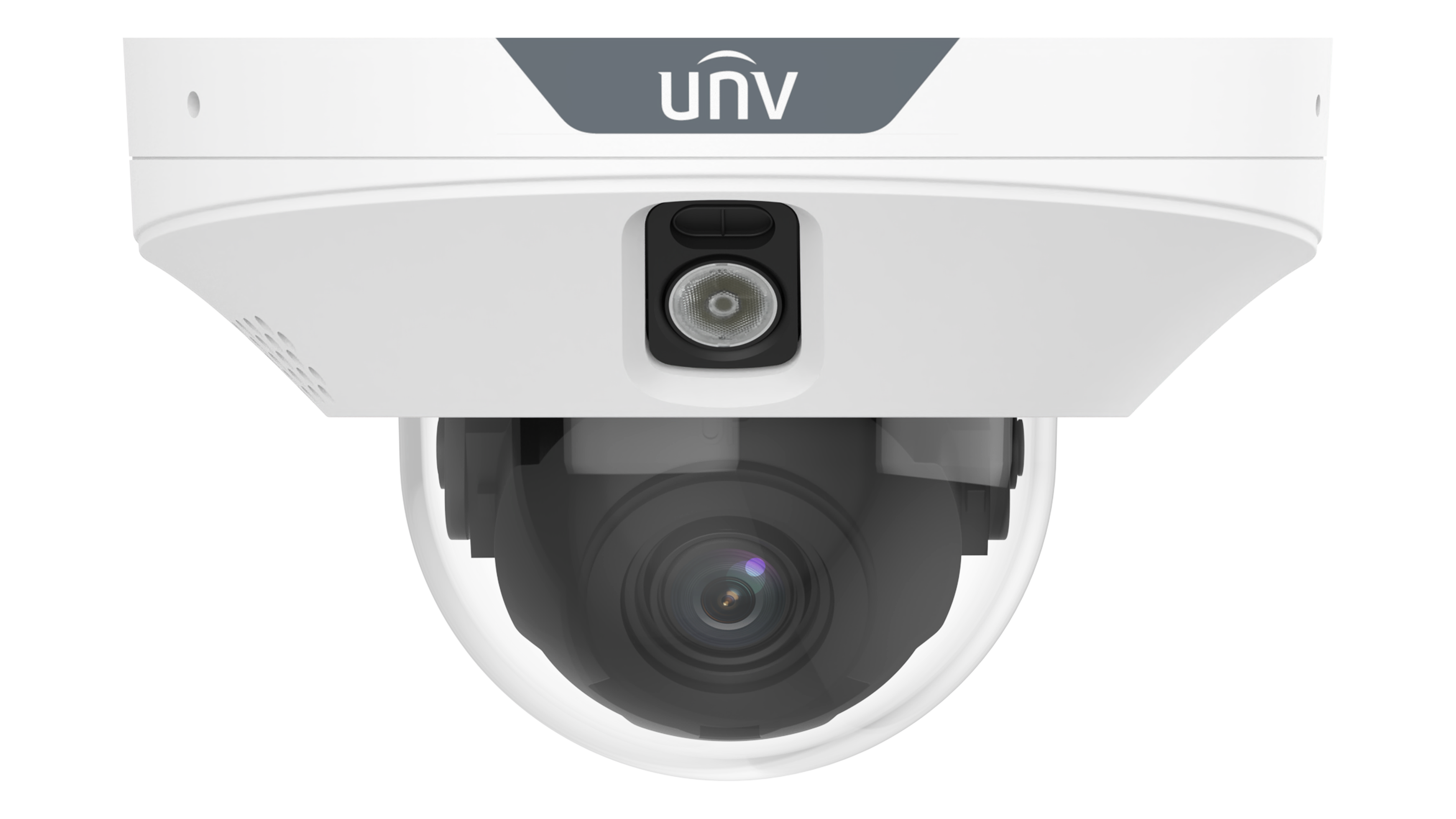

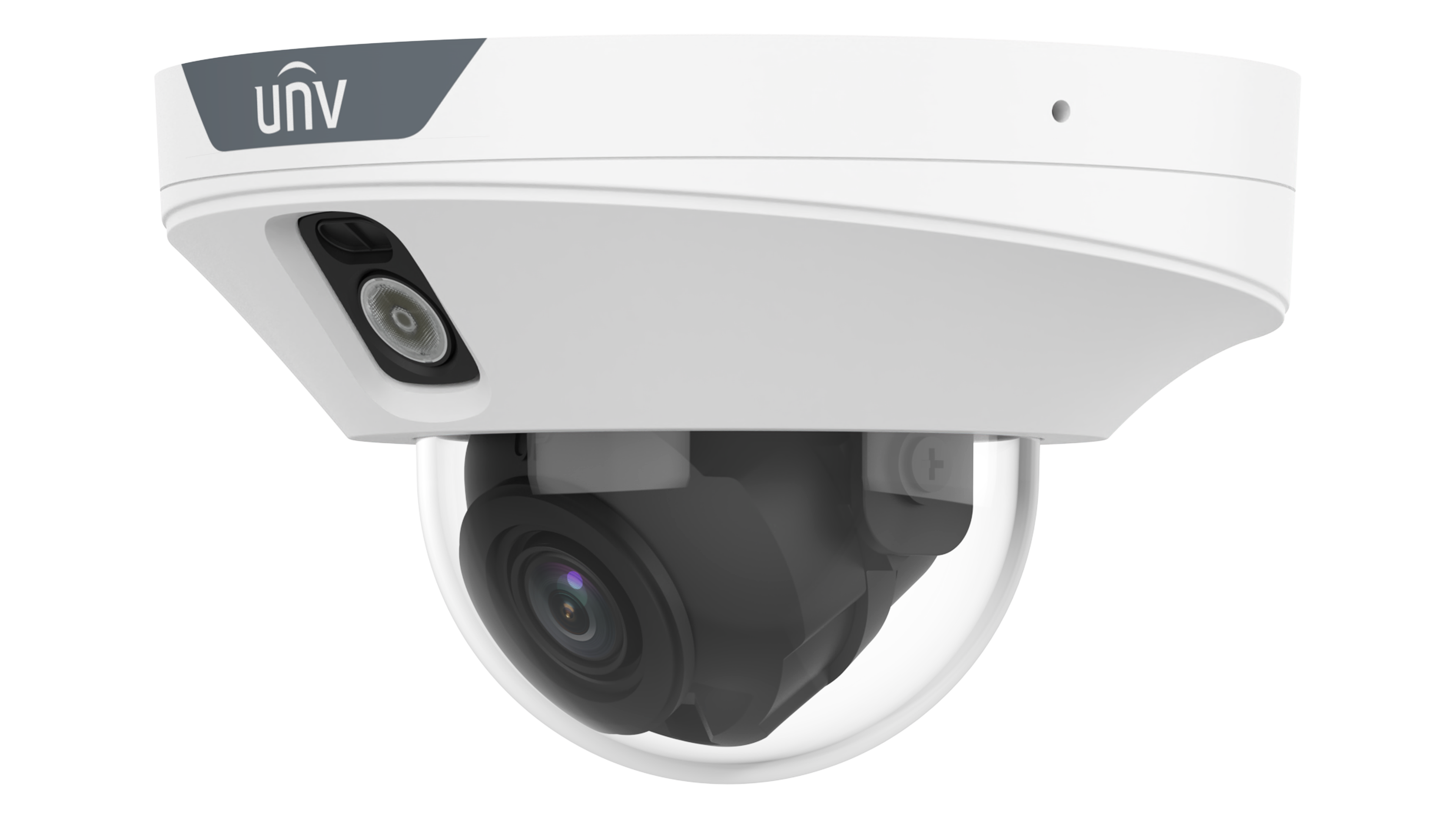

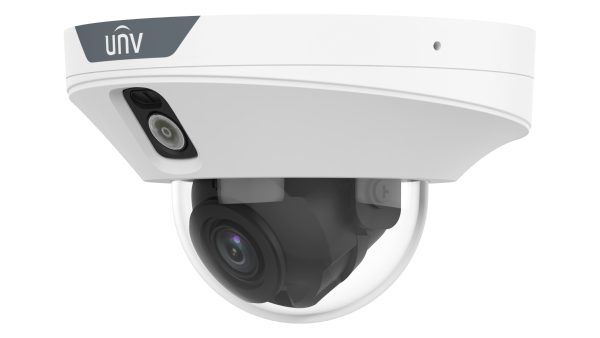

IPC312LP-ADF20KC-DL | ||||||||
Camera | ||||||||
Max Resolution | 2 MP | |||||||
Sensor | 1/2.8" CMOS | |||||||
Min. Illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Adjustment Angle | Tilt: 0° to 68°, Rotate: 3° to 360° | |||||||
S/N | >52 dB | |||||||
WDR | 120 dB | |||||||
Lens | ||||||||
Focal Length | 2.0 mm | |||||||
Iris Type | Fixed | |||||||
Iris | F1.6 | |||||||
Field of View (H) | 126° | |||||||
Field of View (V) | 71.0° | |||||||
Field of View (D) | 144.6° | |||||||
Lens Type | Fixed | |||||||
DORI | ||||||||
DORI Distance (Lens) | 2 mm | |||||||
DORI Distance (Detect) | 31.0 m (101.8 ft) | |||||||
DORI Distance (Observe) | 12.4 m (40.7 ft) | |||||||
DORI Distance (Recognize) | 6.2 m (20.4 ft) | |||||||
DORI Distance (Identify) | 3.1 m (10.2 ft) | |||||||
Illuminator | ||||||||
Supplemental Light | IR | |||||||
Illumination Distance (IR) | 10 m (32.8 ft) | |||||||
Wavelength | 850 nm | |||||||
IR On/Off Control | Auto/Manual | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
Frame Rate | Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps | |||||||
Video Bit Rate | 128 Kbps to 6144 Kbps | |||||||
U-code | Support | |||||||
OSD | Up to 6 OSDs (include two extra OSDs that only be used for elevator status display) | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Support | |||||||
Video Stream | Dual streams | |||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
Dewarping | N/A | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Defog | Digital defog | |||||||
Image Stabilization | N/A | |||||||
Intelligent | ||||||||
Smart Intrusion Prevention | N/A | |||||||
People Counting | N/A | |||||||
Statistical Analysis | N/A | |||||||
Elevator Entrance Detection | Support (based on target classification: motorcycle and bicycle) | |||||||
Events | ||||||||
Basic Detection | Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection, Audio detection | |||||||
Event for Elevator | TOF tampering detection, Elevator status display: current floor, status: stop/down/up/speed, Temperature and humidity detection | |||||||
General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 64 Kbps | |||||||
Two-way Audio | N/A | |||||||
Suppression | Support | |||||||
Sampling Rate | 8 kHz | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH | |||||||
Compatible Integration | API, SDK, ONVIF (Profile S, Profile G, Profile T) | |||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | UNV-Link, UNV-Link Pro, EZStation | |||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | |||||||
Alarm I/O | 1/1 | |||||||
Serial Port | N/A | |||||||
Built-in Mic | Support | |||||||
Built-in Speaker | Support | |||||||
WIFI | N/A | |||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Video Output | N/A | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) | |||||||
Safety | CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
General | ||||||||
Power | DC 12 V±25%, PoE (IEEE 802.3af) | |||||||
Power Consumption | Max. 5.5 W | |||||||
Power Interface | Ø5.5 mm coaxial power plug | |||||||
Dimensions | Ø100.0 mm × 68.7 mm (Ø3.9" × 2.7") (Ø × H) | |||||||
Weight | 0.25 kg (0.55 lb) | |||||||
Material | Plastic | |||||||
Working Environment | -10 ℃ to 40 ℃ (14 ℉ to 104 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Storage Environment | -10 ℃ to 40 ℃ (14 ℉ to 104 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Surge Protection | 4 KV | |||||||
Reset Button | Support | |||||||
Web Client Language | 4 Languages: English, Russian, Spanish, Vietnamese |
