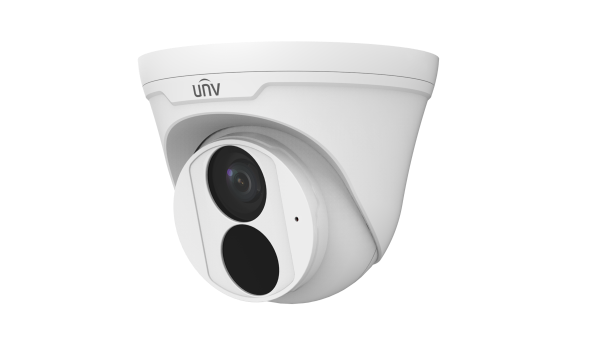

IPC3618LB-ADF28K-G | ||||||||
Camera | ||||||||
Max Resolution | 8MP | |||||||
Sensor | 1/2.7" CMOS | |||||||
Min. Illumination | Colour: 0.01 lux (F1.6, AGC ON) 0 lux with IR on | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° | |||||||
S/N | >52dB | |||||||
WDR | 120dB | |||||||
Lens | ||||||||
Focal Length | 2.8 mm | |||||||
Iris Type | Fixed | |||||||
Iris | F1.6 | |||||||
Field of View (H) | 107.0° | |||||||
Field of View (V) | 59.7° | |||||||
Field of View (D) | 111.5° | |||||||
DORI | ||||||||
DORI Distance (Lens) | 2.8mm | |||||||
DORI Distance (Detect) | 63.0m(206.7ft) | |||||||
DORI Distance (Observe) | 25.2m(82.7ft) | |||||||
DORI Distance (Recognize) | 12.6m(41.3ft) | |||||||
DORI Distance (Identify) | 6.3m(20.7ft) | |||||||
Illuminator | ||||||||
Supplemental Light | IR | |||||||
Illumination Distance (IR) | 30 m (98.4 ft) | |||||||
Wavelength | 850 nm | |||||||
IR On/Off Control | Auto/Manual | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
Frame Rate | Main Stream: 8MP (3840*2160)@15fps ; 5MP (2880*1620)@25/20fps ;4MP (2560*1440)@25/20fps; 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps Sub Stream: 720P (1280*720)@30/25fps; D1 (720*576), Max 30fps; 640*360,Max 30fps | |||||||
Video Bit Rate | 128 Kbps ~ 16 Mbps | |||||||
U-code | Support | |||||||
OSD | Up to 4 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Support | |||||||
Video Stream | Dual Streams | |||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise | |||||||
Dewarping | N/A | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Defog | Digital Defog | |||||||
Events | ||||||||
Basic Detection | Motion Detection, Tampering Alarm, Audio Detection, Cross Line (based on Human Body Detection), Intrusion (based on Human Body Detection) | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 64 Kbps | |||||||
Two-way Audio | N/A | |||||||
Suppression | Support | |||||||
Sampling Rate | 8 KHz | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | UNV-Link, UNV-Link Pro, EZStation | |||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
Interface | ||||||||
Audio I/O | N/A | |||||||
Alarm I/O | N/A | |||||||
Serial Port | N/A | |||||||
Built-in Mic | Support | |||||||
Built-in Speaker | N/A | |||||||
WIFI | N/A | |||||||
Network | 1 x RJ45 10M/100M Base-TX Ethernet | |||||||
Video Output | N/A | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) | |||||||
Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
Protection | IP67 (IEC 60529) | |||||||
General | ||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
Power Consumption | Max 4.0W | |||||||
Power Interface | Ø 5.5 mm coaxial power plug | |||||||
Dimensions | Ø118 x 95mm (Ø4.6” x 3.8”) (Ø x H) | |||||||
Weight | 0.29kg (0.63lb) | |||||||
Material | Metal + Plastic | |||||||
Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||
Storage Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||
Surge Protection | 4KV | |||||||
Reset Button | N/A | |||||||
Web Client Language | 13 Languages English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
Class | Date | Title | Language | Type | Download |
Datasheet | 2024/11/18 16:14:44 | UNV IPC3618LB-ADF28K-G 8MP HD Fixed Eyeball Network Camera.pdf | English | Download |
Class | Date | Title | Type | Download |

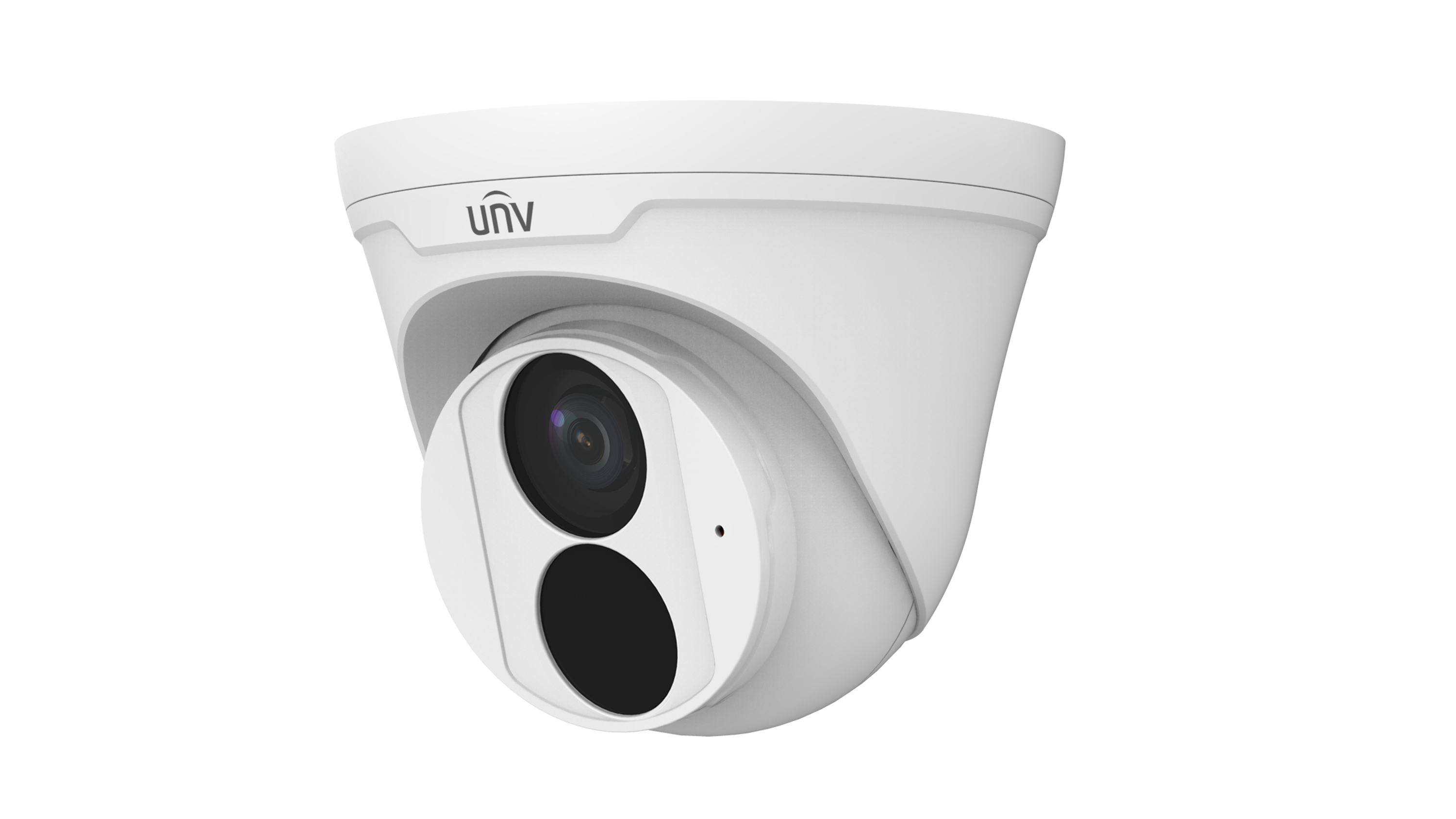

HD Image | 2024/10/22 9:34:38 | IPC3618LB-ADF28K-G_HD_Image_1.png | png | Download |

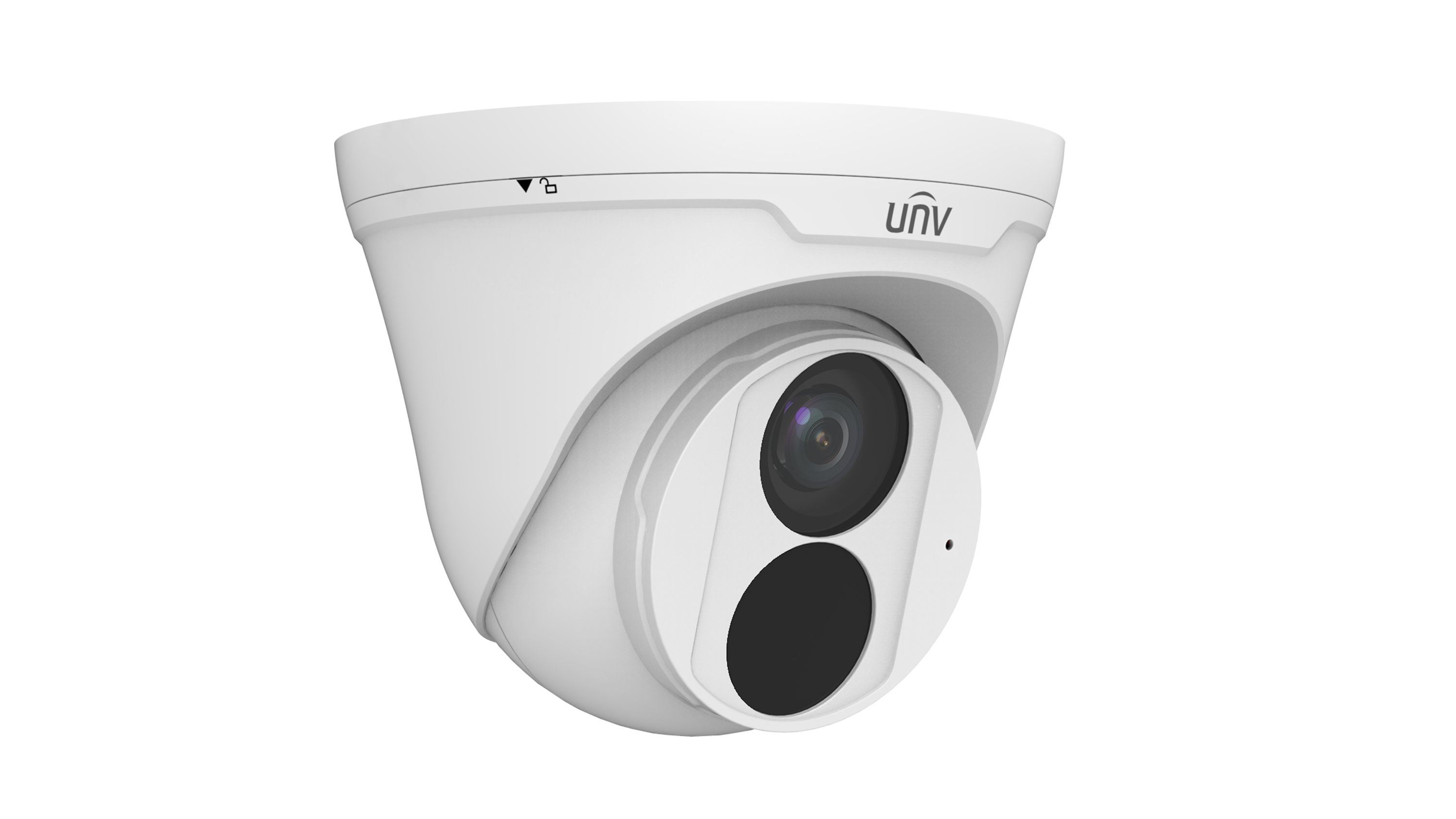

HD Image | 2024/10/22 9:34:38 | IPC3618LB-ADF28K-G_HD_Image_2.png | png | Download |

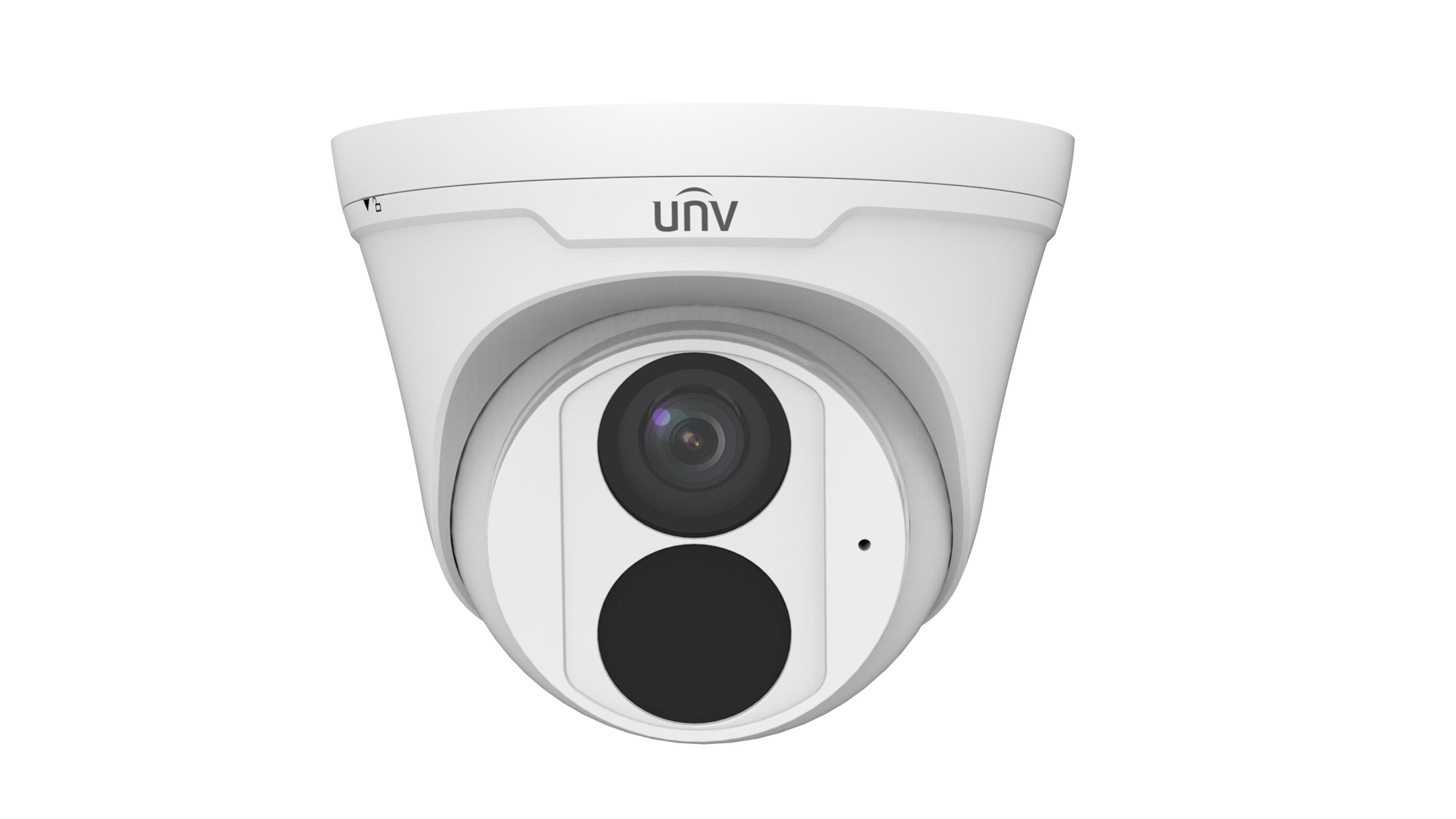

HD Image | 2024/10/22 9:34:38 | IPC3618LB-ADF28K-G_HD_Image_3.png | png | Download |
Class | Date | Title | Language | Type | Download |
User Manual | 2024/11/19 11:28:45 | uniarch-Network Camera User Manual.pdf | English | Download |
Class | Date | Title | Language | Type | Download |
Quick Guide | 2024/8/30 5:24:55 | 3101C1BX.pdf | English | Download |
Class | Date | Title | Download |
Dimensions | 2024/10/22 9:34:38 | IPC3618LB-ADF28K-G_Dimensions_1.png | Download |
