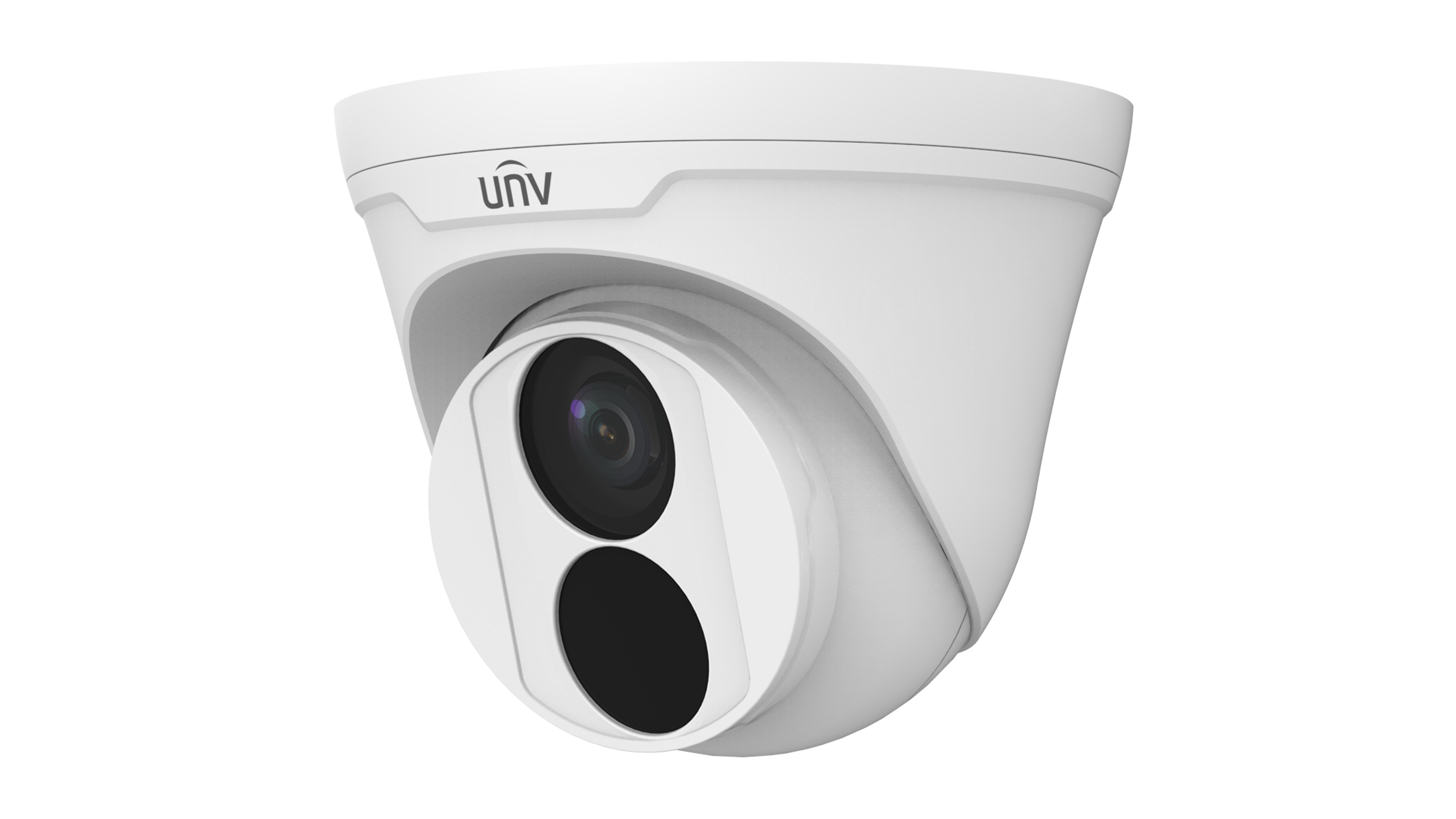

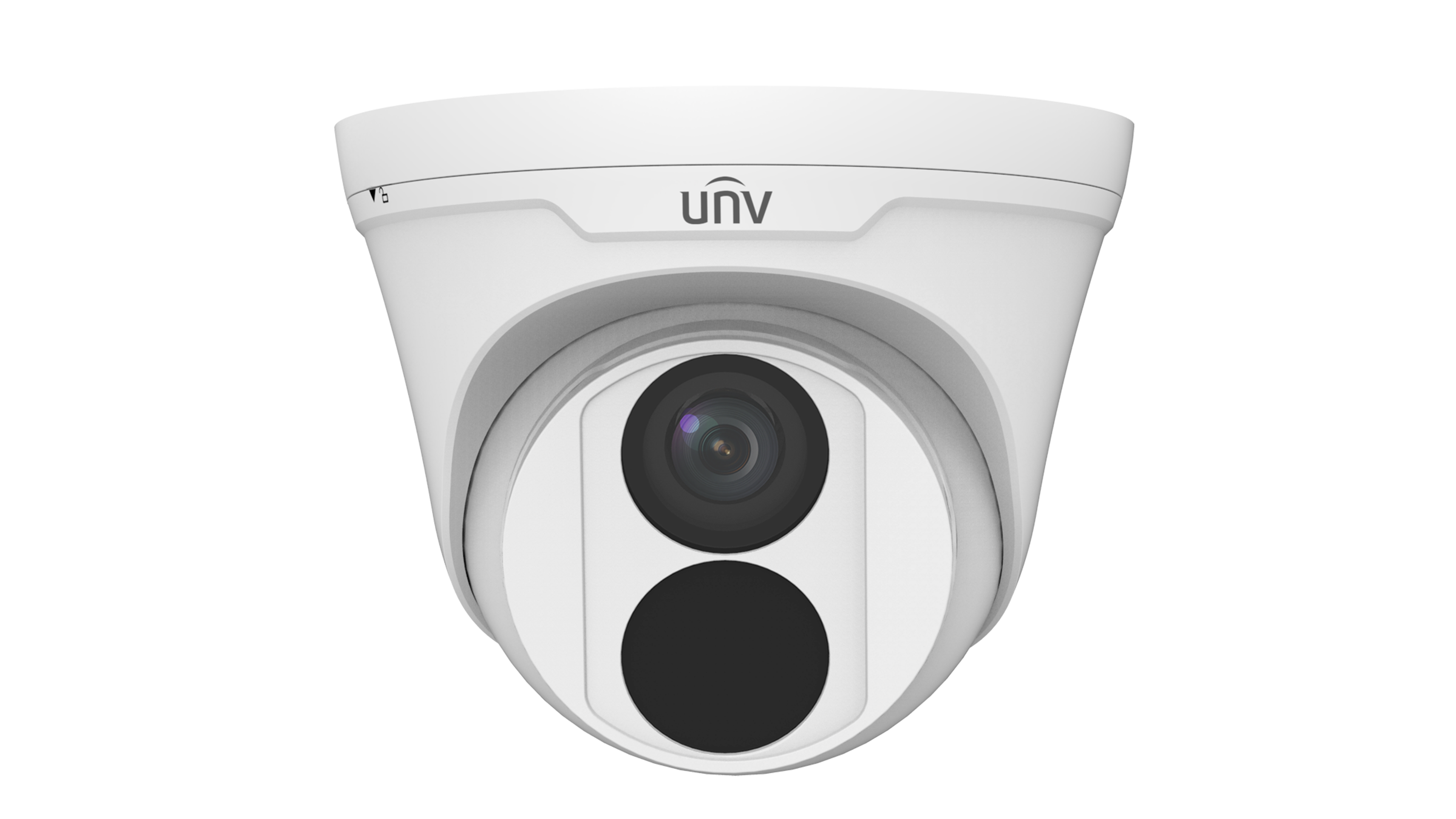

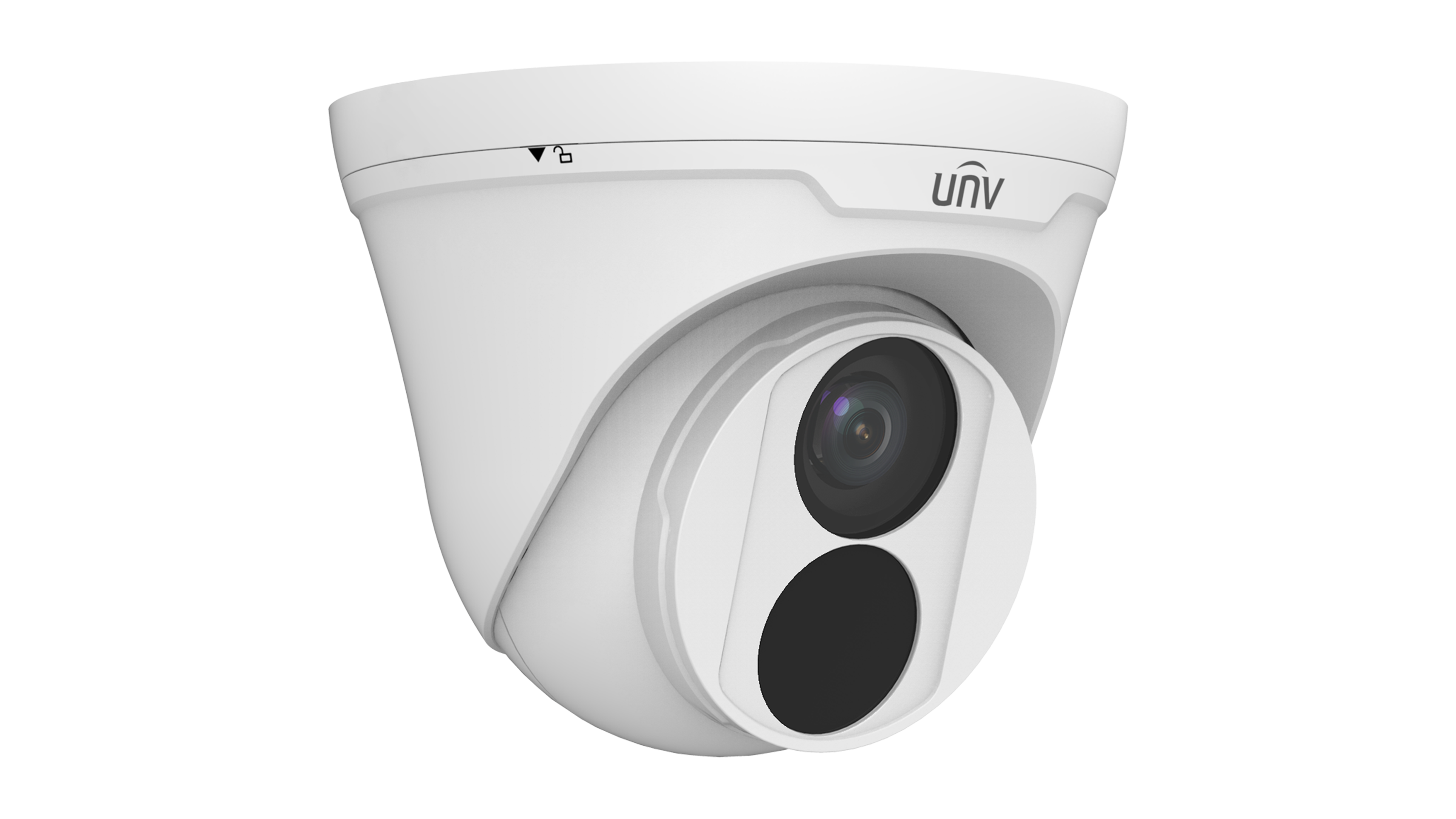

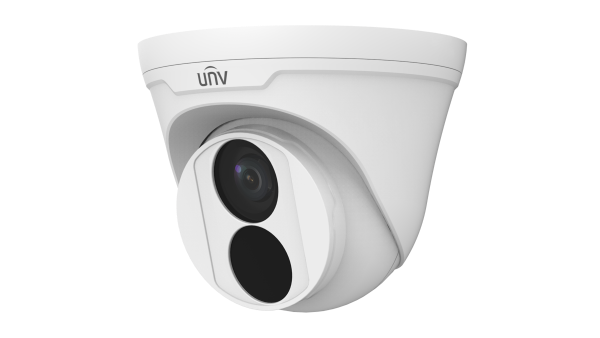

IPC3615LB-SF28-A | IPC3615LB-SF40-A | |||||||
Camera | ||||||||
Max Resolution | 5MP | |||||||
Sensor | 1/3.0" CMOS | |||||||
Min. Illumination | Colour: 0.01 lux (F2.1, AGC ON) 0 lux with IR on | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° | |||||||
S/N | >52dB | |||||||
WDR | DWDR | |||||||
Lens | ||||||||
Focal Length | 2.8 mm | 4.0 mm | ||||||
Iris Type | Fixed | |||||||
Iris | F2.1 | |||||||
Field of View (H) | 97.0° | 79.0° | ||||||
Field of View (V) | 52.2° | 42.3° | ||||||
Field of View (D) | 107.5° | 85.1° | ||||||
DORI | ||||||||
DORI Distance (Lens) | 2.8mm | 4.0mm | ||||||
DORI Distance (Detect) | 63.0m(206.7ft) | 90.0m(295.3ft) | ||||||
DORI Distance (Observe) | 25.2m(82.7ft) | 36.0m(118.1ft) | ||||||
DORI Distance (Recognize) | 12.6m(41.3ft) | 18.0m(59.1ft) | ||||||
DORI Distance (Identify) | 6.3m(20.7ft) | 9.0m(29.5ft) | ||||||
Illuminator | ||||||||
Supplemental Light | IR | |||||||
Illumination Distance (IR) | 30 m (98.4 ft) | |||||||
Wavelength | 850 nm | |||||||
IR On/Off Control | Auto/Manual | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
Frame Rate | Main Stream: 5MP (2592*1944) , Max 20fps; 4MP (2560*1440), Max 20fps; 3MP(2304*1296), Max 20fps;2MP(1920*1080),Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps | |||||||
Video Bit Rate | 128 Kbps ~ 6144 Kbps | |||||||
U-code | Support | |||||||
OSD | Up to 4 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Support | |||||||
Video Stream | Dual Streams | |||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180° | |||||||
Dewarping | N/A | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Defog | Digital Defog | |||||||
Events | ||||||||
Basic Detection | Motion Detection, Tampering Alarm | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication | |||||||
Network | ||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP | |||||||
Compatible Integration | ONVIF (Profile S, Profile T) , API, SDK | |||||||
User/Host | Up to 32 users, 2 user levels: administrator and common user | |||||||
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF | |||||||
Client | UNV-Link, UNV-Link Pro, EZStation | |||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
Interface | ||||||||
Audio I/O | N/A | |||||||
Alarm I/O | N/A | |||||||
Serial Port | N/A | |||||||
Built-in Mic | N/A | |||||||
Built-in Speaker | N/A | |||||||
WIFI | N/A | |||||||
Network | 1 x RJ45 10M/100M Base-TX Ethernet | |||||||
Video Output | N/A | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) | |||||||
Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
Protection | IP67 (IEC 60529) | |||||||
General | ||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
Power Consumption | Max 5.0W | |||||||
Power Interface | Ø 5.5 mm coaxial power plug | |||||||
Dimensions | Ø118 x 95mm (Ø4.6” x 3.8”) (Ø x H) | |||||||
Weight | 0.28kg(0.62lb) | |||||||
Material | Metal + Plastic | |||||||
Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||
Storage Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||
Surge Protection | 4KV | |||||||
Reset Button | N/A | |||||||
Web Client Language | 1 Language English |
