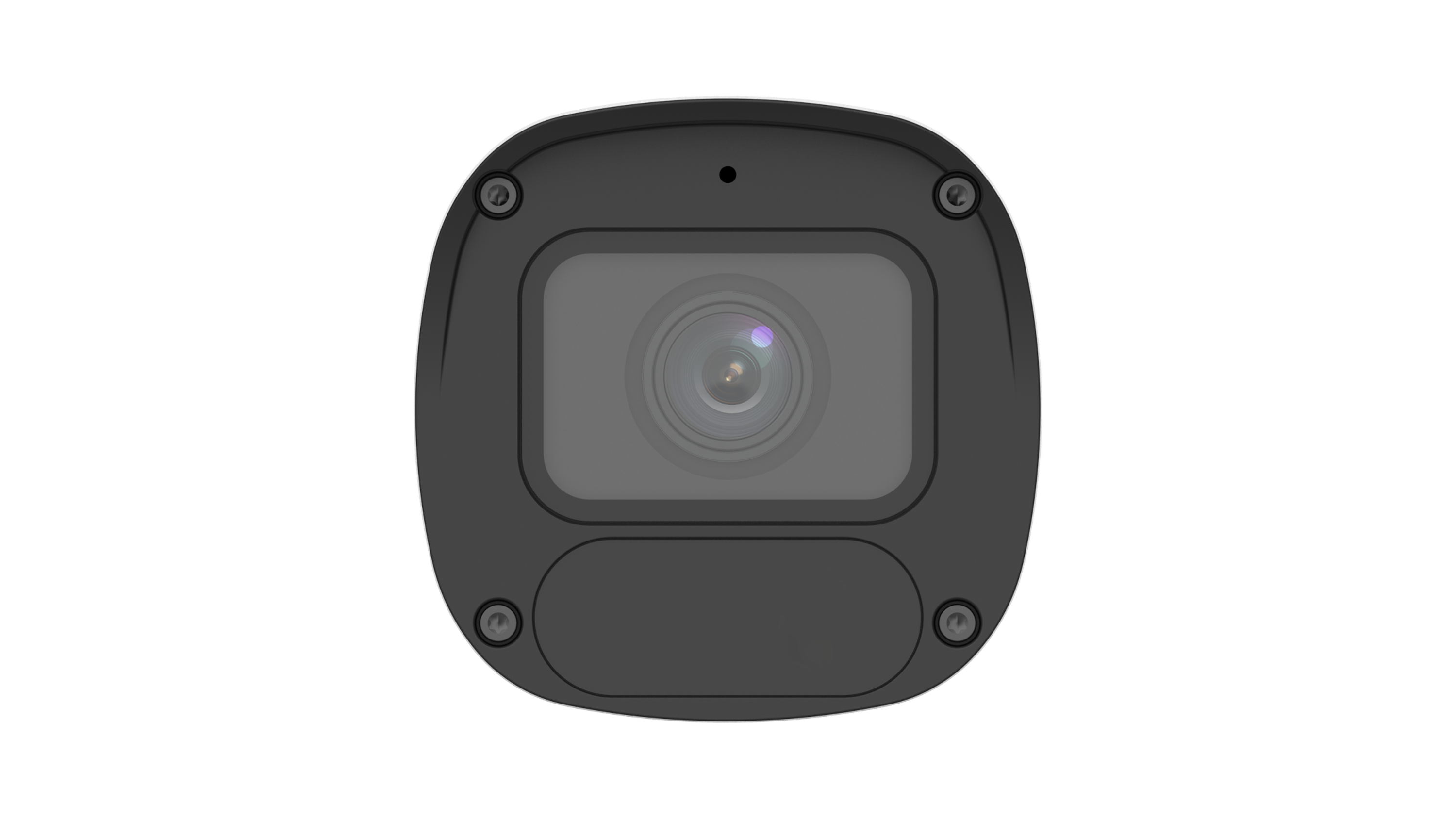

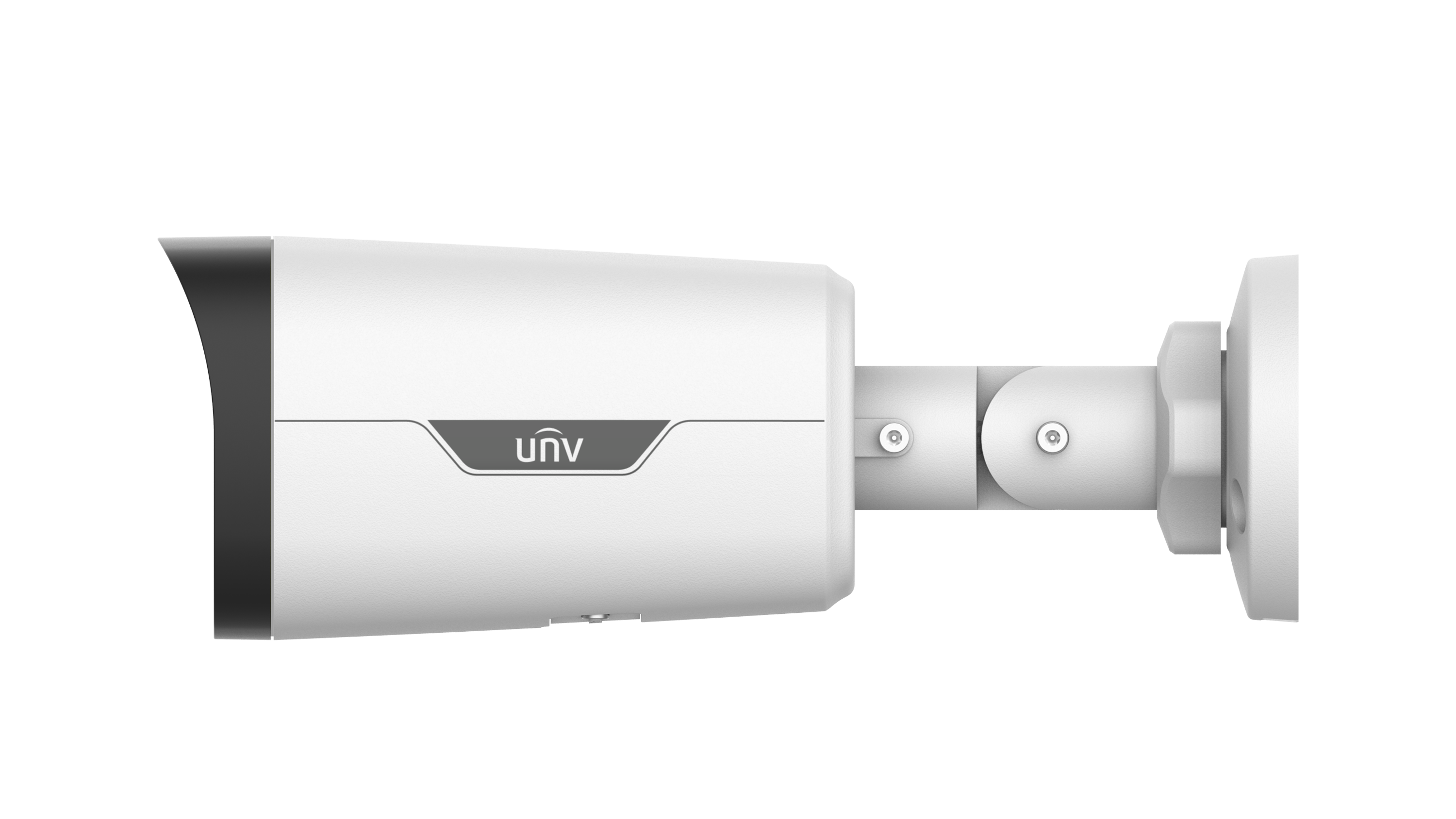

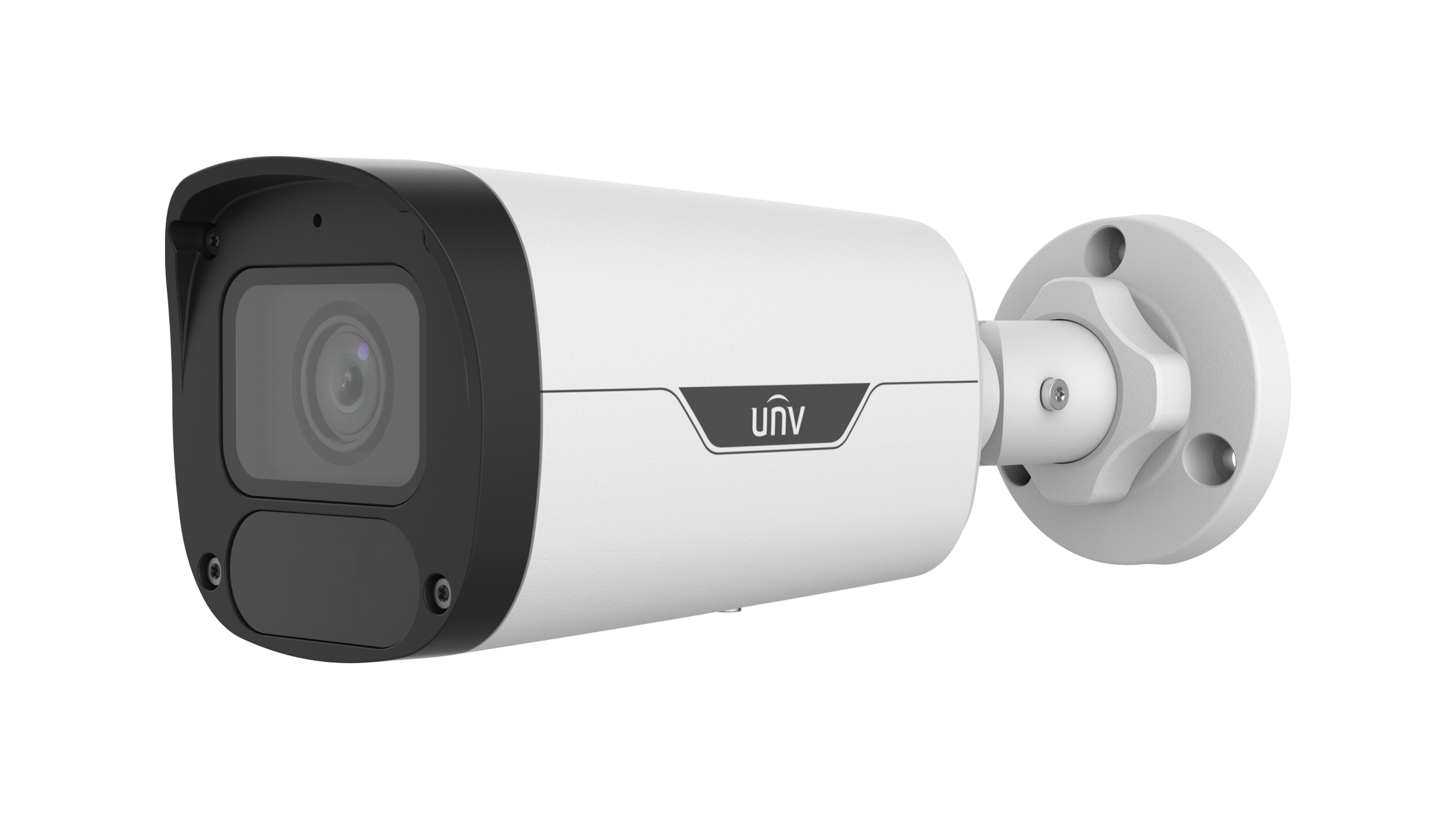

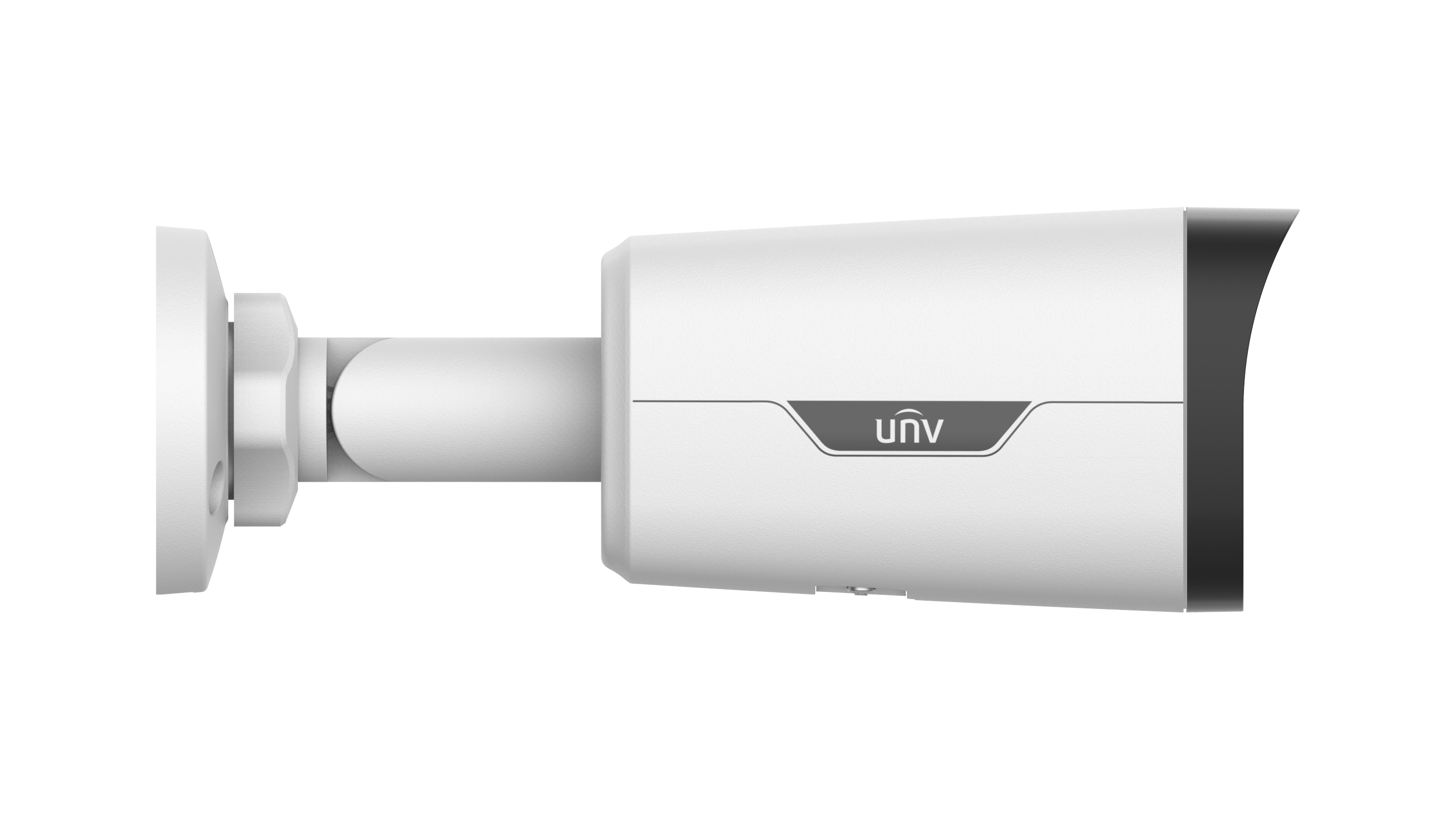

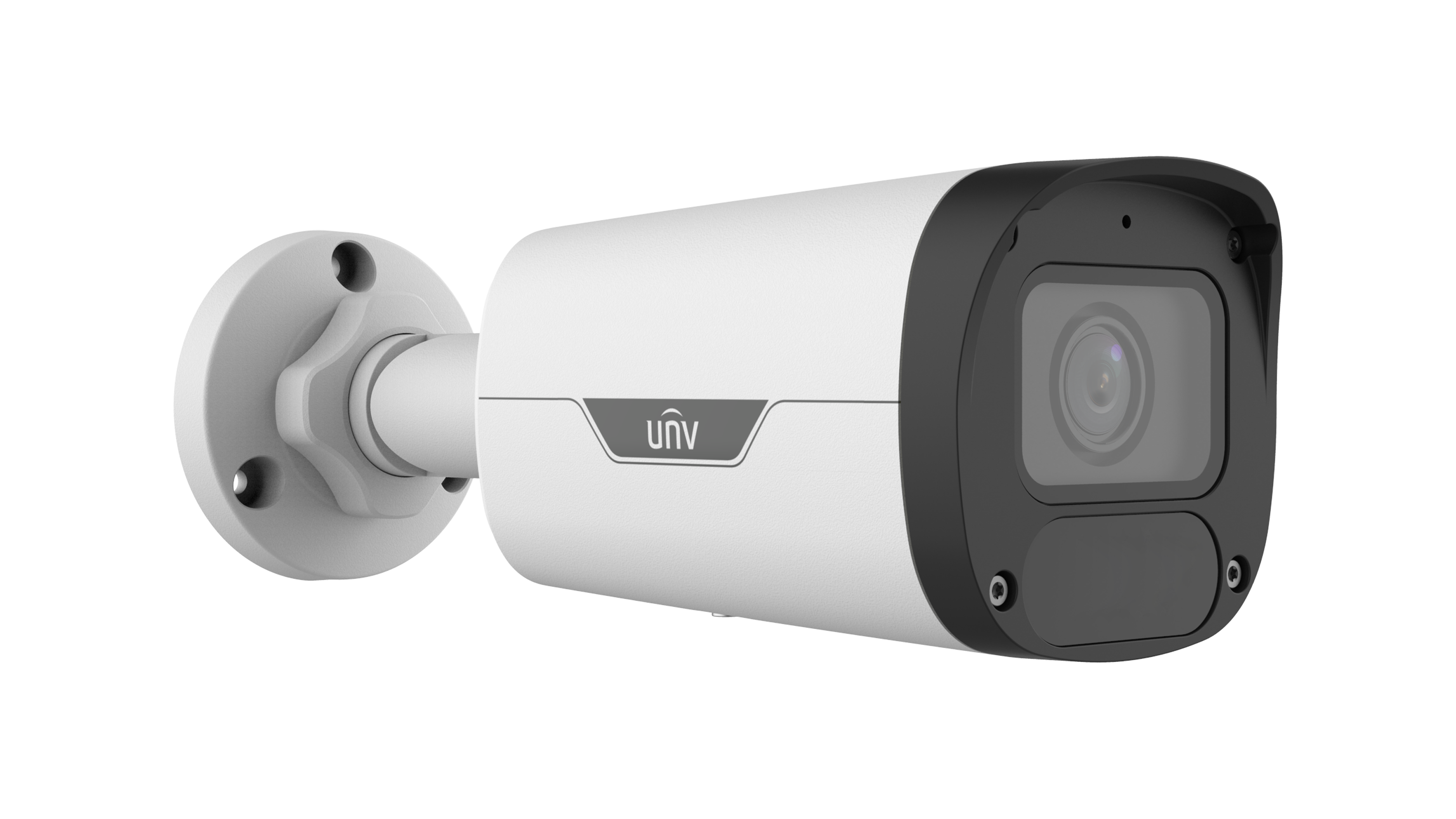

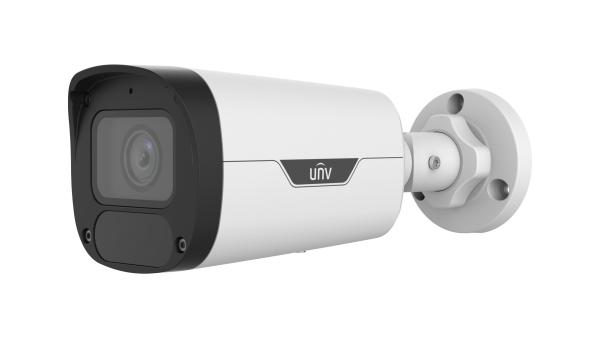

IPC2322LB-ADZK-H | ||||||||
Camera | ||||||||
Max Resolution | 2 MP | |||||||
Sensor | 1/2.7" CMOS | |||||||
Min. Illumination | Colour: 0.003 lux (F1.6, AGC ON) 0 lux with IR on | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | |||||||
S/N | >52 dB | |||||||
WDR | 120 dB | |||||||
Lens | ||||||||
Focal Length | 2.8 to 12 mm | |||||||
Iris Type | Fixed | |||||||
Iris | F1.6 | |||||||
Field of View (H) | 103.6°~33.4° | |||||||
Field of View (V) | 54.8°~18.7° | |||||||
Field of View (D) | 107.9°~37.8° | |||||||
DORI | ||||||||
DORI Distance (Lens) | 2.8mm, 12mm | |||||||
DORI Distance (Detect) | 43.4m(142.5ft), 186.2m(610.9ft) | |||||||
DORI Distance (Observe) | 17.4m(57.0ft), 74.5m(244.4ft) | |||||||
DORI Distance (Recognize) | 8.7m(27.5ft), 37.2m(122.2ft) | |||||||
DORI Distance (Identify) | 4.3m(14.3ft), 18.6m(61.1ft) | |||||||
Illuminator | ||||||||
Supplemental Light | IR | |||||||
Illumination Distance (IR) | 50 m (164.0 ft) | |||||||
Wavelength | 850 nm | |||||||
IR On/Off Control | Auto/Manual | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps | |||||||
Video Bit Rate | 128 Kbps to 6144 Kbps | |||||||
U-code | Support | |||||||
OSD | Up to 4 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Support | |||||||
Video Stream | Dual Streams | |||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
Dewarping | N/A | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Defog | Digital Defog | |||||||
Events | ||||||||
Basic Detection | Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Cross line (based on human body detection), Intrusion (based on human body detection) | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 64 Kbps | |||||||
Two-way Audio | N/A | |||||||
Suppression | Support | |||||||
Sampling Rate | 8 kHz | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
User/Host | Up to 32 users, 2 user levels: administrator and common user | |||||||
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | UNV-Link, UNV-Link Pro, EZStation | |||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
Interface | ||||||||
Audio I/O | N/A | |||||||
Alarm I/O | N/A | |||||||
Serial Port | N/A | |||||||
Built-in Mic | Support | |||||||
Built-in Speaker | N/A | |||||||
WIFI | N/A | |||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Video Output | N/A | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) | |||||||
Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
Protection | IP67 (IEC 60529) | |||||||
General | ||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
Power Consumption | Max 9.6W | |||||||
Power Interface | Ø5.5 mm coaxial power plug | |||||||
Dimensions | 206 × 73 × 73mm (8.1” × 2.9” × 2.9”) (L x W x H) | |||||||
Weight | 0.51kg(1.12lb) | |||||||
Material | Graphene + Metal | |||||||
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Surge Protection | 6 KV | |||||||
Reset Button | Support | |||||||
Web Client Language | 4 Languages English, Russian, Spanish, Vietnamese |
