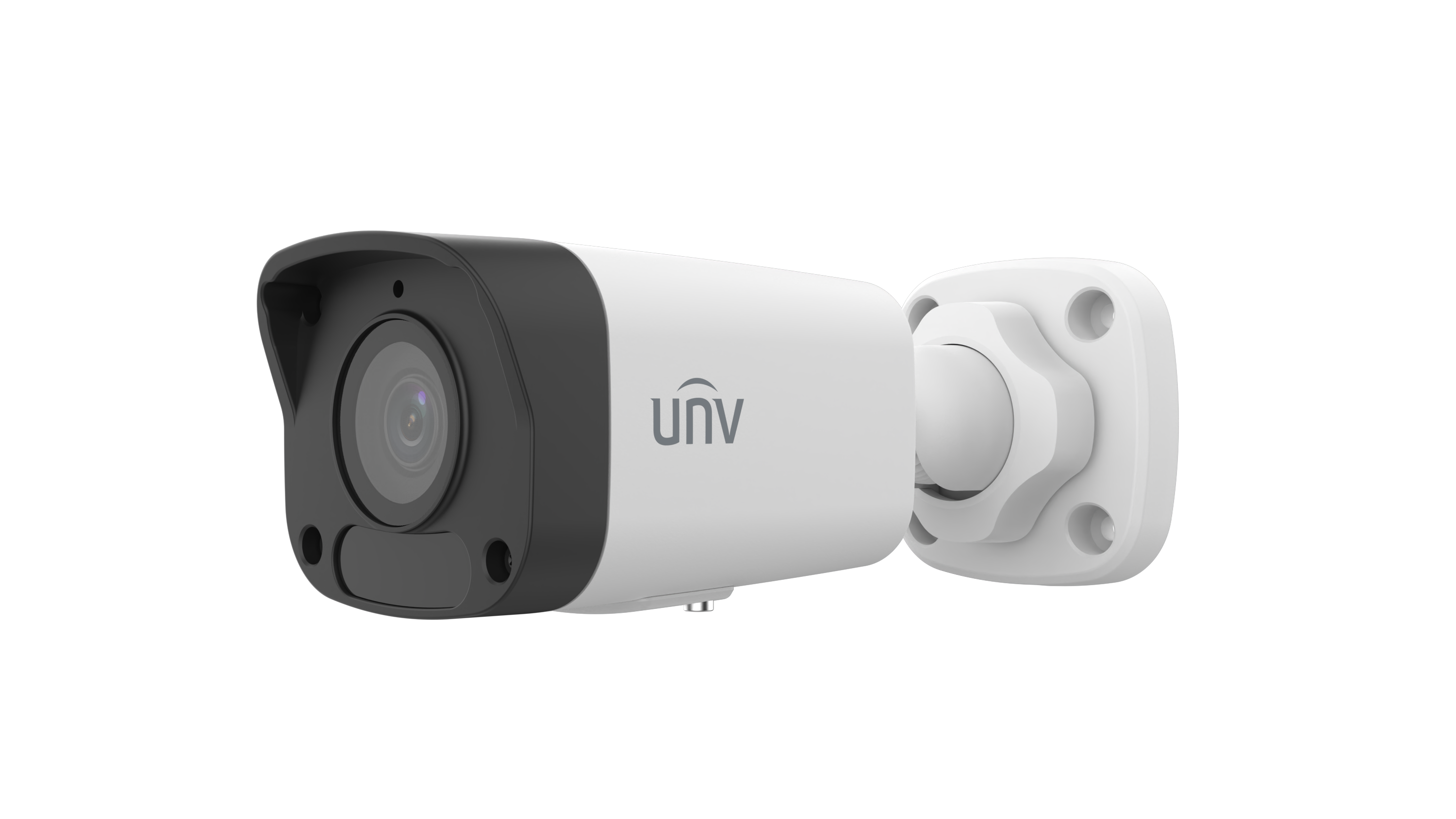

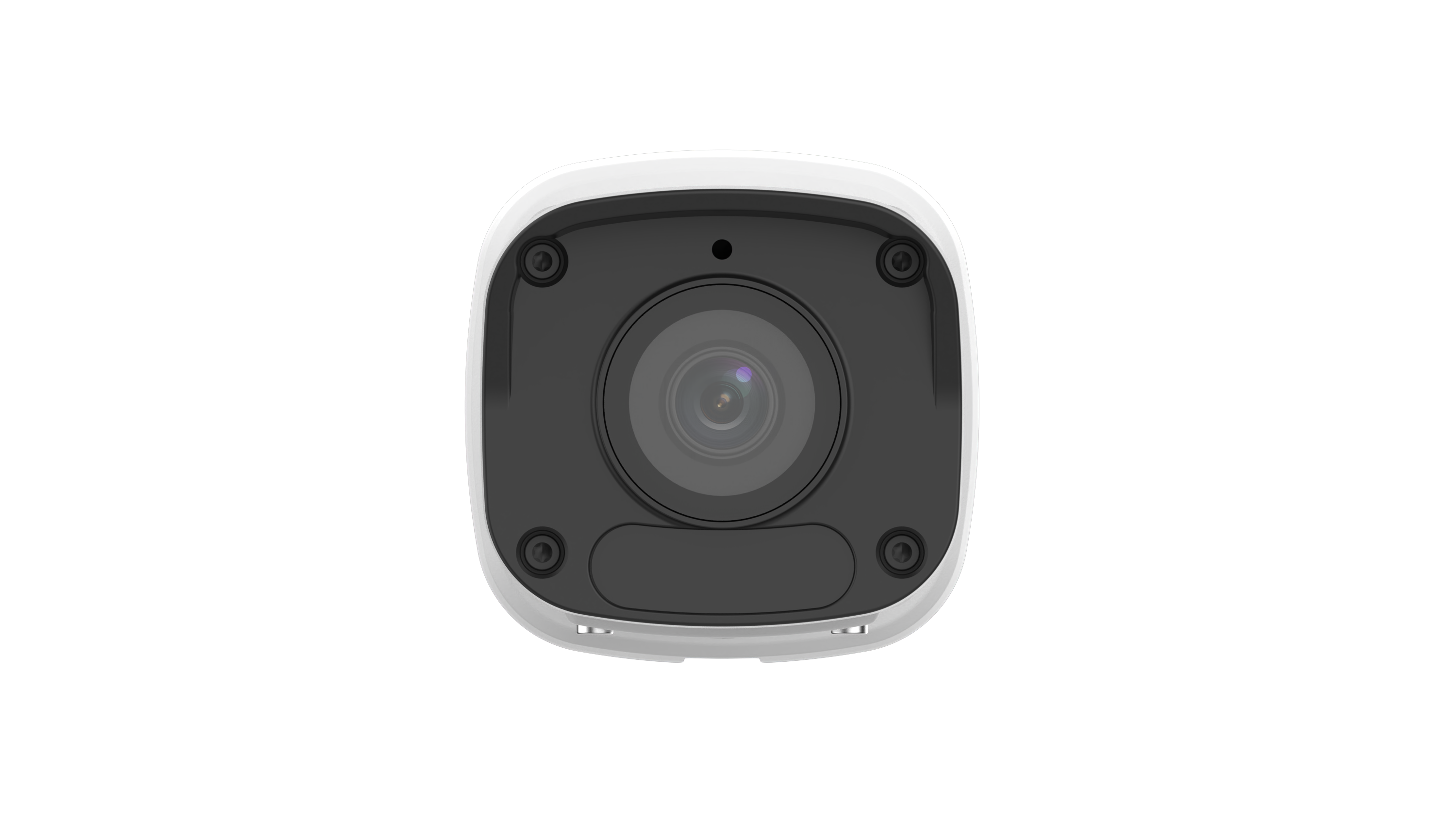

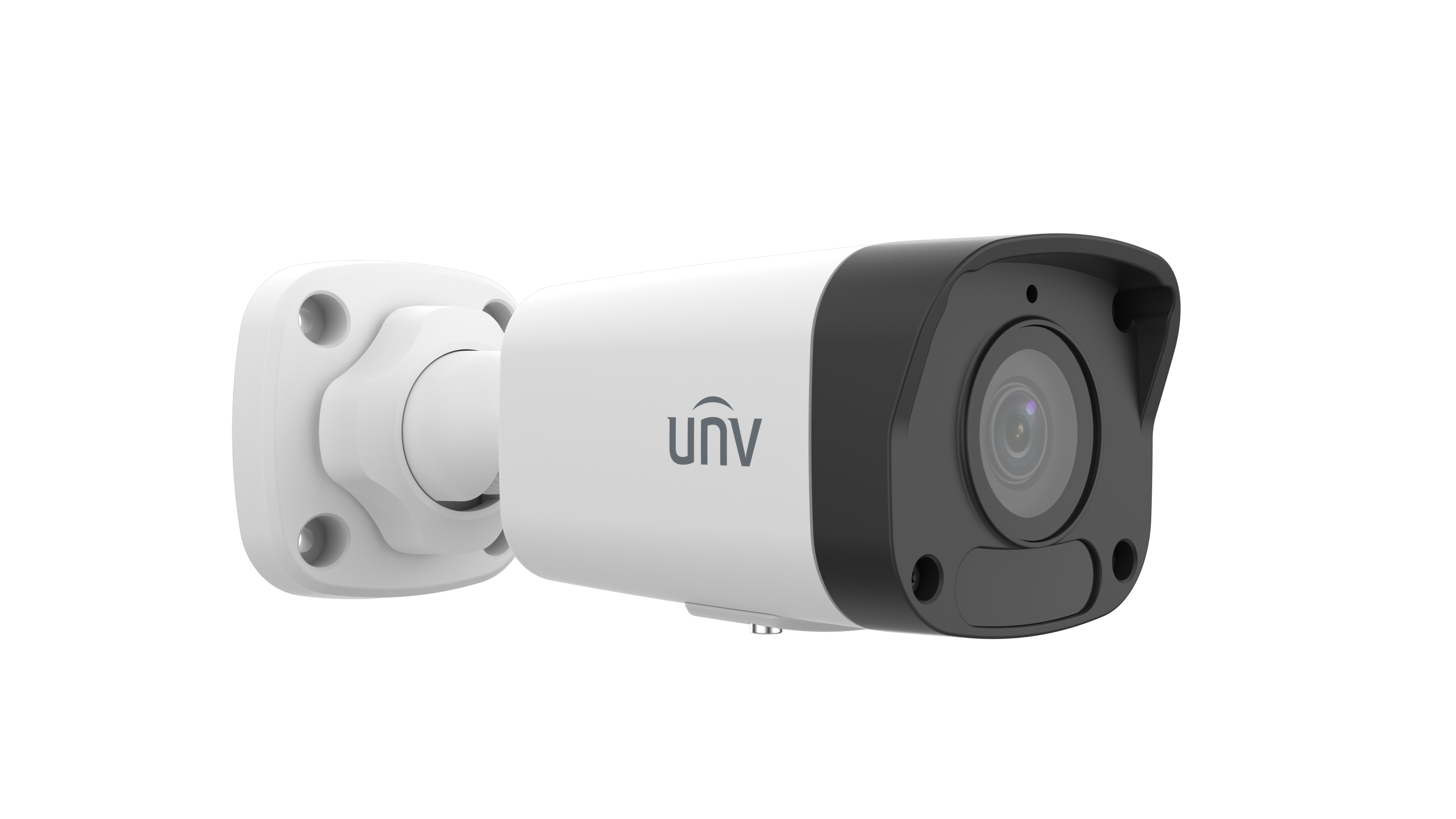

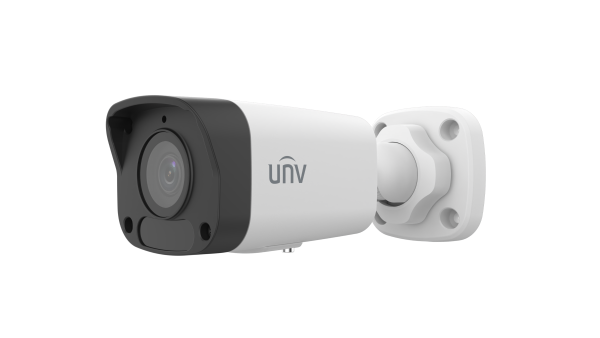

IPC2122LB-AF28K-A2 | IPC2122LB-AF40K-A2 | |||||||
Camera | ||||||||
Max Resolution | 2 MP | |||||||
Sensor | 1/3.0" CMOS | |||||||
Min. Illumination | Colour:0.01 lux (F2.0, AGC ON) 0 lux with IR on | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | |||||||
S/N | >52 dB | |||||||
WDR | DWDR | |||||||
Lens | ||||||||
Focal Length | 2.8 mm | 4.0 mm | ||||||
Iris Type | Fixed | |||||||
Iris | F2.0 | |||||||
Field of View (H) | 99.5° | 77.1° | ||||||
Field of View (V) | 56.5° | 42.8° | ||||||
Field of View (D) | 114.4° | 88.2° | ||||||
Lens Type | Fixed | |||||||
DORI | ||||||||
DORI Distance (Lens) | 2.8 mm | 4.0 mm | ||||||
DORI Distance (Detect) | 46.7m (153.1ft) | 66.7m (218.7ft) | ||||||
DORI Distance (Observe) | 18.7m (61.2ft) | 26.7m (87.5ft) | ||||||
DORI Distance (Recognize) | 9.3m (30.6ft) | 13.3m (43.7ft) | ||||||
DORI Distance (Identify) | 4.7m (15.3ft) | 6.7m (21.9ft) | ||||||
Illuminator | ||||||||
Supplemental Light | IR | |||||||
Illumination Distance (IR) | 30 m (98.4 ft) | |||||||
Wavelength | 850 nm | |||||||
IR On/Off Control | Auto/Manual | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264 | |||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps | |||||||
Video Bit Rate | 128 Kbps to 6144 Kbps | |||||||
U-code | Support | |||||||
OSD | Up to 4 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Support | |||||||
Video Stream | Dual streams | |||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
Dewarping | N/A | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Defog | Digital defog | |||||||
Image Stabilization | N/A | |||||||
Events | ||||||||
Basic Detection | Human body detection 2.0, Motion detection, Audio detection | |||||||
General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | |||||||
Audio | ||||||||
Audio Compression | G.711U,G.711A | |||||||
Audio Bitrate | 64 Kbps | |||||||
Two-way Audio | N/A | |||||||
Suppression | Support | |||||||
Sampling Rate | 8 kHz | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network | ||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS | |||||||
Compatible Integration | ONVIF (Profile S, Profile T) , API, SDK | |||||||
User/Host | Up to 32 users, 2 user levels: administrator and common user | |||||||
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | UNV-Link, UNV-Link Pro, EZStation | |||||||
Web Browser | Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+, Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |||||||
Interface | ||||||||
Audio I/O | N/A | |||||||
Alarm I/O | N/A | |||||||
Serial Port | N/A | |||||||
Built-in Mic | Support | |||||||
Built-in Speaker | N/A | |||||||
WIFI | N/A | |||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Video Output | N/A | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) | |||||||
Safety | CE LVD (EN 62368-1) | |||||||
Environment | CE-RoHS (2011/65/EU; (EU) 2015/863) ; WEEE (2012/19/EU) | |||||||
Protection | IP67 (IEC 60529) | |||||||
General | ||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
Power Consumption | Max 3.9 W | |||||||
Power Interface | Ø5.5 mm coaxial power plug | |||||||
Dimensions | 157.5 × 62.5 × 62.7 mm (6.2” × 2.5” × 2.5”) (L x W x H) | |||||||
Weight | 0.19 kg (0.42 lb) | |||||||
Material | Graphene + Plastic | |||||||
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Surge Protection | 4 KV | |||||||
Reset Button | N/A | |||||||
Web Client Language | 4 Languages: English, Russian, Spanish, Vietnamese |
