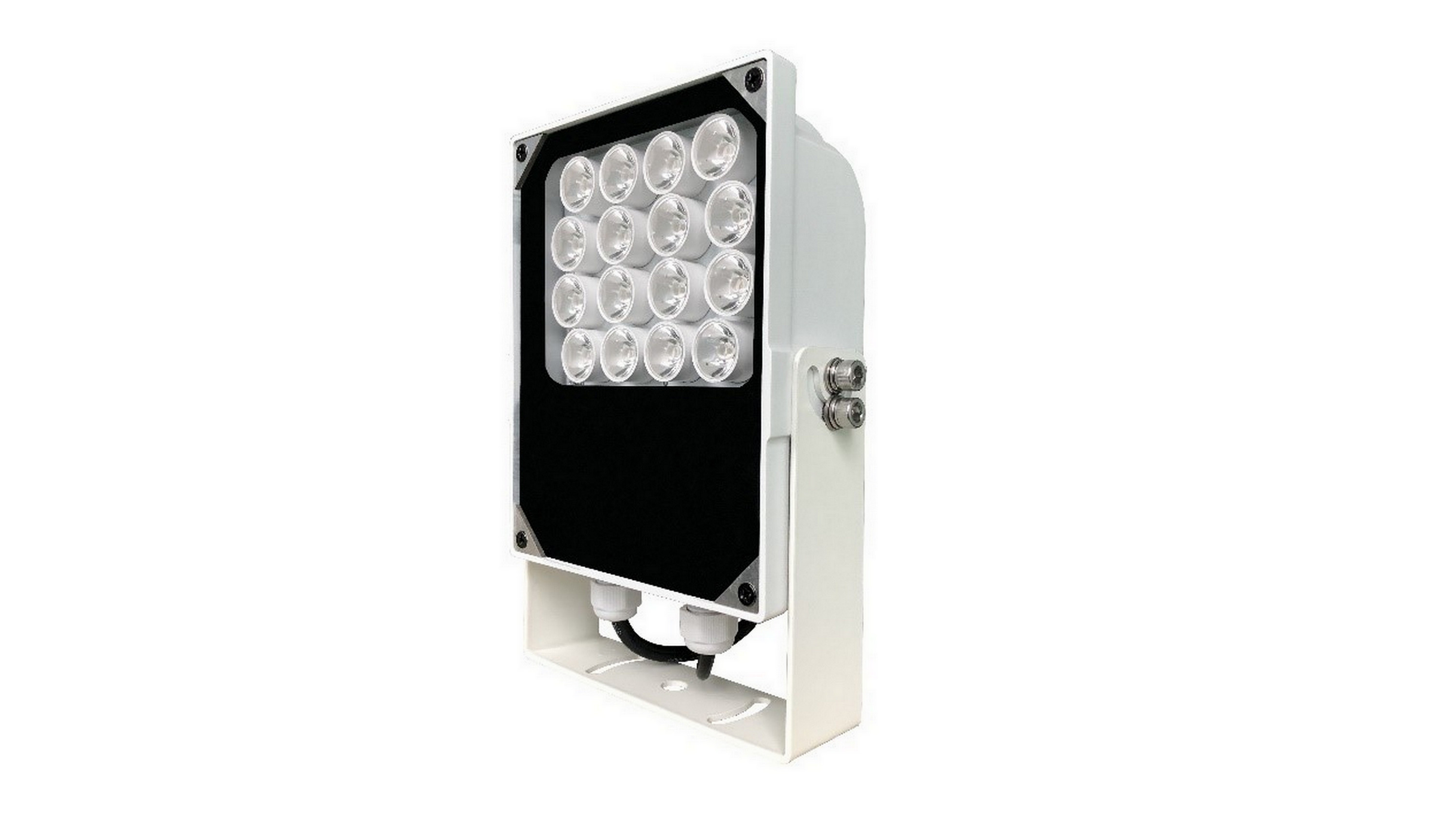

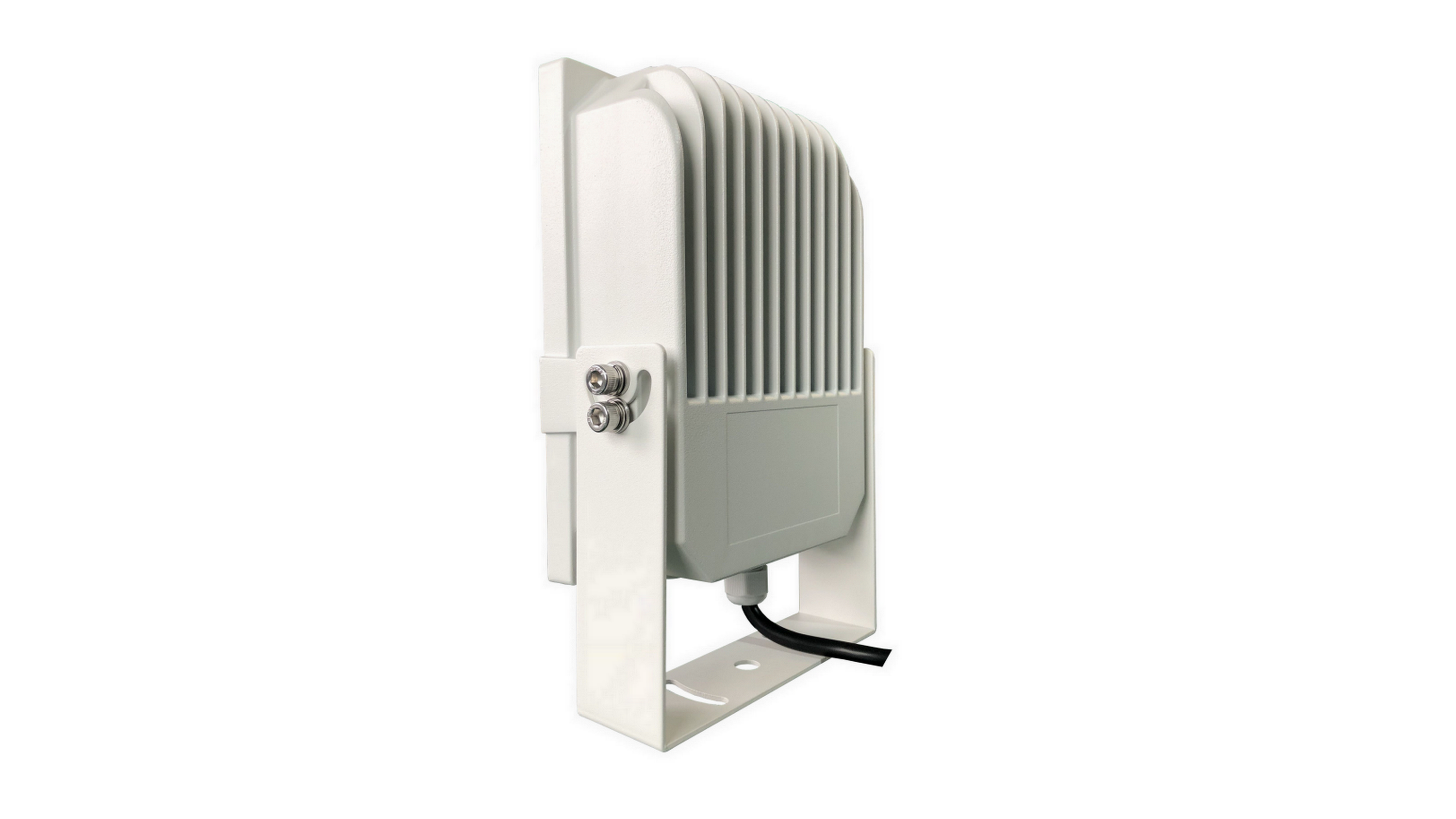

LAMP-IS16@A-F-OS | ||||||||
Structure | ||||||||
Tail cable | 1 x power input, 1 x strobe trigger input | |||||||
Power | 30W | |||||||
Be in common use | ||||||||
Weight | 1.5 kg | |||||||
Ingress protection | IP66 | |||||||
Bracket rotation angle | -90° to 90° | |||||||
Dimensions (L×W×H) | 1159×230×61mm | |||||||
Power supply | 176 to 264V, 50HZ±2 | |||||||
LED strobe | ||||||||
Trigger mode | Level trigger, switch trigger | |||||||
Trigger frequency | 100Hz | |||||||
Beam angle | 0-40% | |||||||
White light flash | ||||||||
White light flash lifetime | 27000h@40℃ |
Class | Date | Title | Language | Type | Download |
Datasheet | 5/20/2024 16:12:40 | UNV LAPM-IS16@A-F-OS UNV LAMP-IS16@A-F-OS Infrared Strobe Light (Overseas) 20240424.pdf | English | Download |
Class | Date | Title | Type | Download |
HD Image | 10/22/2024 09:35:30 | LAMP-IS16@A-F-OS_HD_Image_1.jpg | jpg | Download |
HD Image | 10/22/2024 09:35:30 | LAMP-IS16@A-F-OS_HD_Image_2.png | png | Download |
Class | Date | Title | Language | Type | Download |
Quick Guide | 6/27/2024 13:35:56 | UNV-LAMP-IS16@A-F-OS-LED Fill Light Quick Guide-V1.pdf | English | Download |
Class | Date | Title | Download |
Dimensions | 10/22/2024 09:35:30 | LAMP-IS16@A-F-OS_Dimensions_1.png | Download |
