LAMP-IH25@M3-F-OS

LED Infrared Strobe Flash Infrared White Light Explosion Flash Integrated Lamp

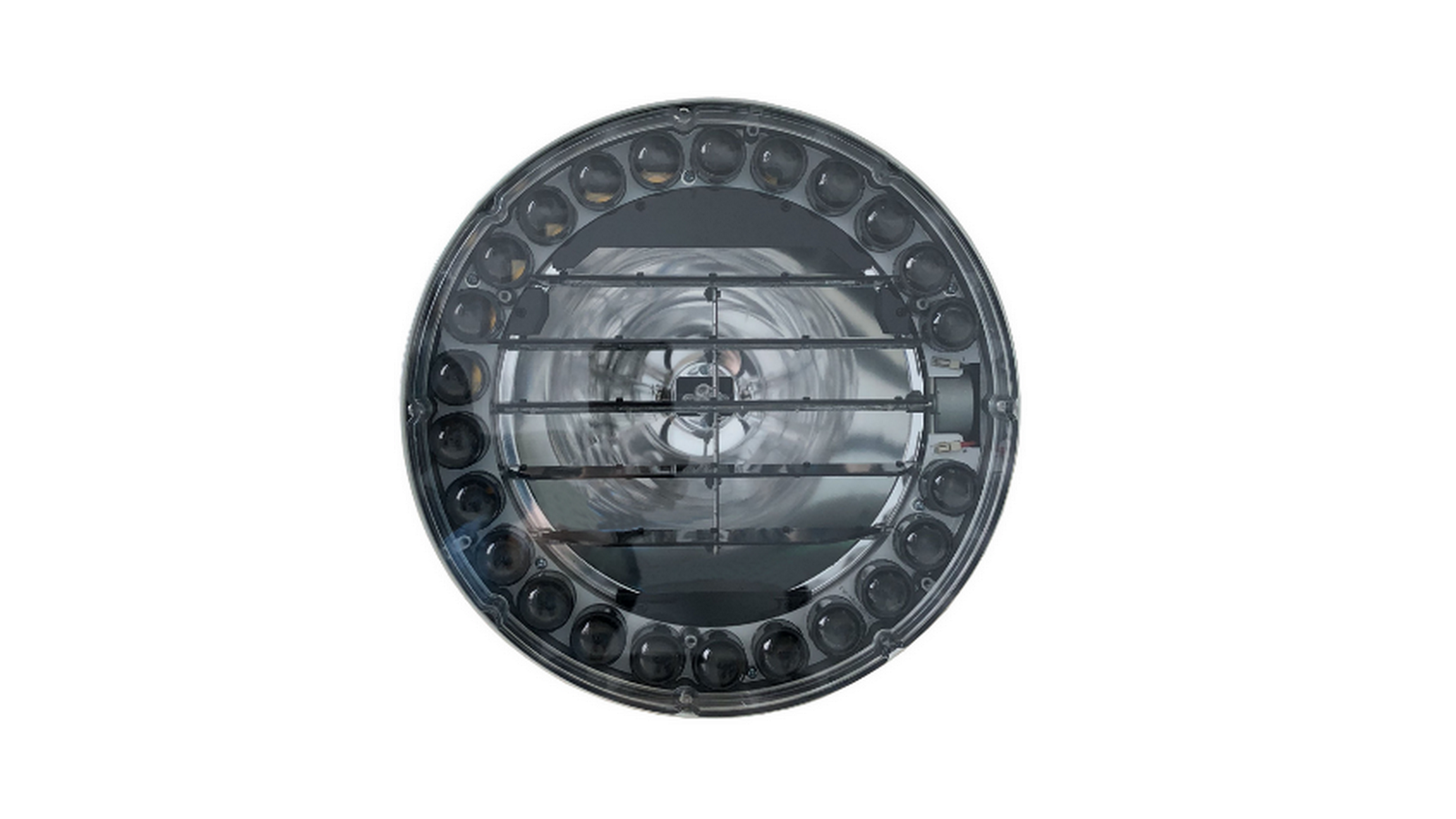

• 24 high power warm light LED.
• Flash brightness 8 level adjustable.
• Support infrared White explosion switch.
• Life up to more than 10 million times.
• Brightness does not vary with supply voltage fluctuations.
• IP65 protection level, waterproof and dustproof.

Datasheet
HD Image
Quick Guide
Dimensions

Class	Date	Title	Language	Type	Download
Datasheet	12/19/2024 11:16:53 PM	UNV LAMP-IH25@M3-F-OS UNV LAMP-IH25@M3-F-OS Infrared Strobe Light Infrared flash Light(Overseas).pdf	English	pdf	Download

Class	Date	Title	Type	Download
HD Image	10/22/2024 9:35:31 AM	LAMP-IH25@M3-F-OS_HD_Image_1.png	png	Download
HD Image	10/22/2024 9:35:31 AM	LAMP-IH25@M3-F-OS_HD_Image_2.png	png	Download

Class	Date	Title	Language	Type	Download
Quick Guide	6/27/2024 13:36:01	UNV-LAMP-IH25@M3-F-OS-All-in-one Intelligent Illuminator Quick Guide-V1.pdf	English	pdf	Download

Class	Date	Title	Download
Dimensions	10/22/2024 9:35:31 AM	LAMP-IH25@M3-F-OS_Dimensions_1.png	Download

	LAMP-IH25@M3-F-OS
LED strobe
Power consumption	Default power is 4.4W(≤ 40W)
Light type	High-power infrared LED
Luminous angle	10°
Trigger frequency	100Hz
Optimal fill light distance	15～30m
Trigger mode	Level trigger, switch trigger
Beam angle	0-40%
LED lamp bead wavelength	850nm
White light flash
White light flash lifetime	More than 10 million times
Output energy	≤100J
Flash brightness	8-level adjustable
Color temperature	≤7000K
Return time	≤50ms
Duration of flash	1/10000s~1/1000s
White light flash trigger mode	Level trigger
Gas explosion level	1~8 level adjustable
Fill light distance	15~30 m
Red and White Switch	Switch by frequency
Filter form	Window shades
Be in common use
Dimensions (L×W×H)	452279279mm
Weight	6.8kg
Ingress protection	IP65
Bracket rotation angle	-45° to 45°
Power supply	AC176V-AC264V、50HZ

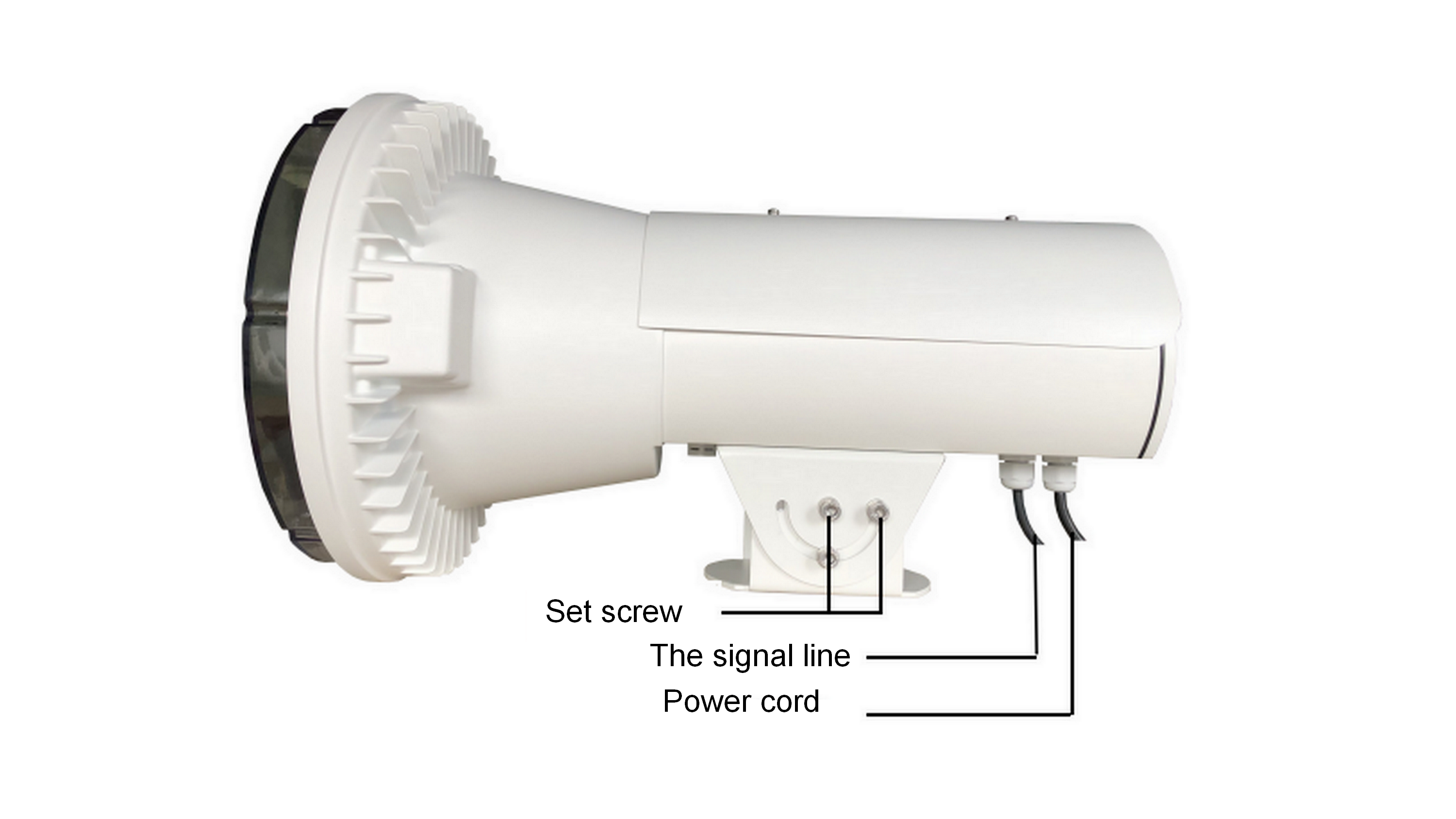

Length of tail line	4.5m
Communication interface	RS485
Operating environment	-40℃～70℃，10~95%RH
