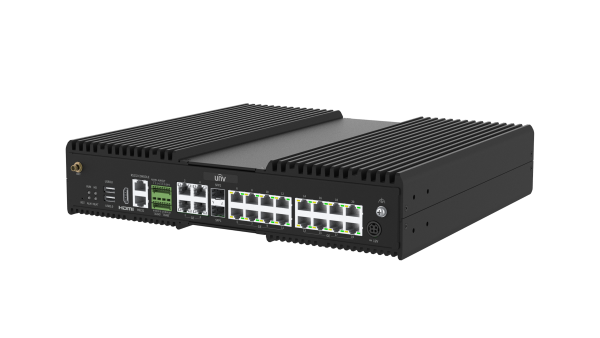

IVT2600@A-A16S-OS | ||||||||
Device Specifications | ||||||||
Video decoding | H.264, H.265 | |||||||
Camera connection | Max 16 channels | |||||||
Image composition | Supports composition of 2, 3, 4, or 6 images | |||||||
Image operations | Image storage, search, view, export, and uploads | |||||||
Image OSD | Text OSD including plate number, time, location, etc., on single or composite images | |||||||
Hard disk storage | Supplied with 1*4TB hard disk Expansion to 4 * 3.5” SATA disk, up to 8TB each | |||||||
External interfaces | ||||||||
Network interface | Dual NICs with support for dual-network isolation dual-network interconnection. NIC1: 16 * Gigabit Ethernet interfaces (RJ45). NIC2: 2 * Gigabit optical interface, 4 * Gigabit Ethernet interfaces (RJ45). | |||||||
USB interface | 2 * USB 3.0, compatible with USB 2.0 | |||||||
Serial interface | 2 x RS-232, 2 x RS-485 | |||||||
Alarm input | 2 x alarm input (phoenix connector) | |||||||
Alarm output | 2 x alarm output (phoenix connector) | |||||||
Power output | DC12V, 500mA | |||||||
Power input | DC12V, 10A | |||||||
Hardware Parameter | ||||||||
Power consumption | < 30W (with 1 HDD, and heating module off) < 85W (with 1 HDD, and heating module on) < 110W (with HDD fully configured, and heating module on) | |||||||
Operating temperature | -30ºC to 70ºC | |||||||
Operating humidity | 5% to 95% (noncondensing) | |||||||
Weight | With 1 supplied HDD: < 7kg Fully loaded with HDD: < 9kg | |||||||
Dimensions | 350mm(W) × 320mm(D) × 72mm(H) | |||||||
Certification | ||||||||
EMC | CE EMC: EN 55032: 2015+A11:2020+A1:2020 EN 55035: 2017+A11:2020 EN 61000-3-3: 2013+ A1:2019+A2:2021 EN IEC 61000-3-2: 2019+A1:2021 | |||||||
Safety | CE LVD:EN IEC 62368-1:2020+A11:2020 |
Class | Date | Title | Language | Type | Download |
Datasheet | 12/19/2024 10:40:13 PM | UNV IVT-2600@A-A16S-OS 16-CH Traffic Recording Terminal Server.pdf | English | Download |
Class | Date | Title | Type | Download |

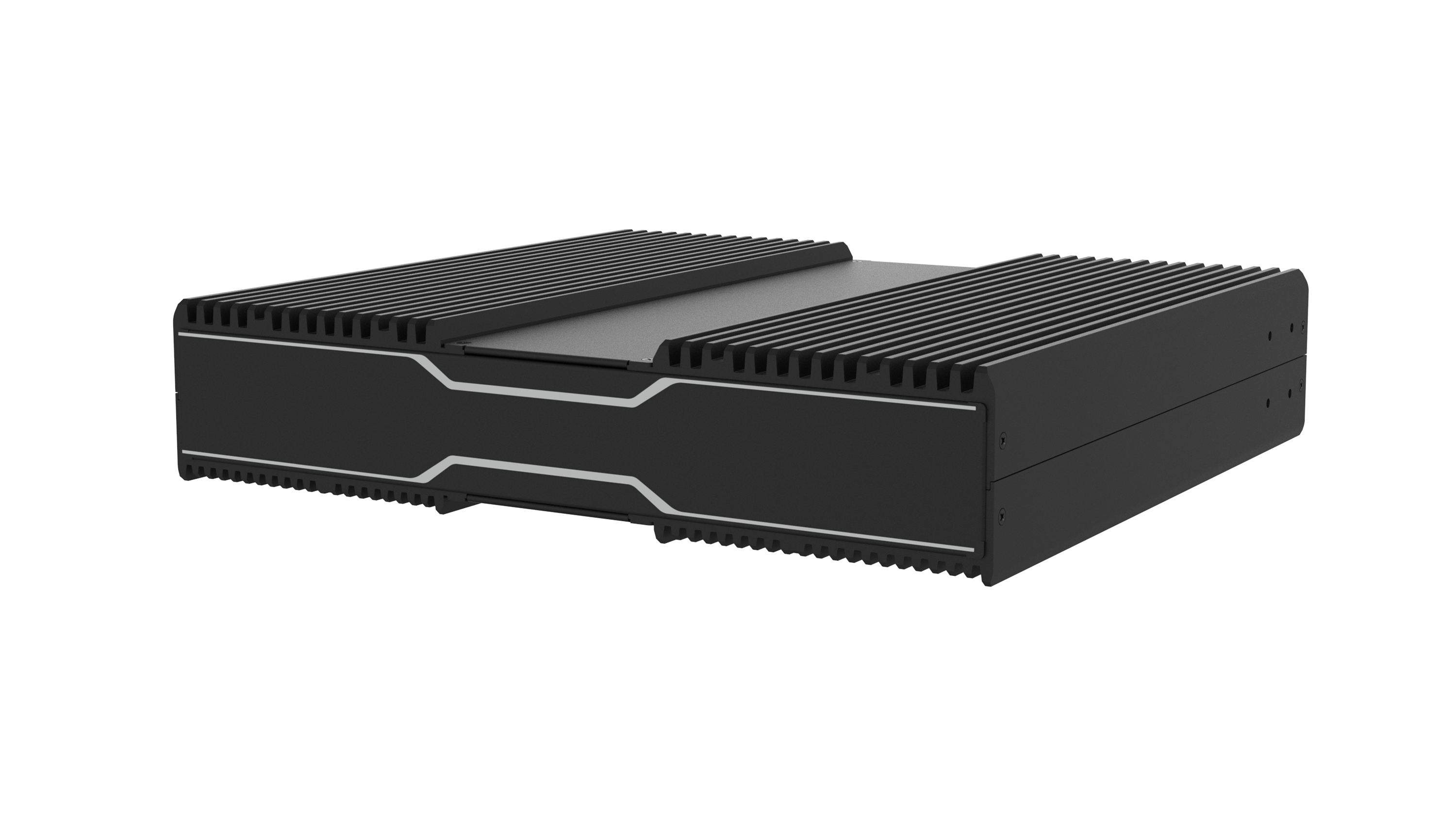

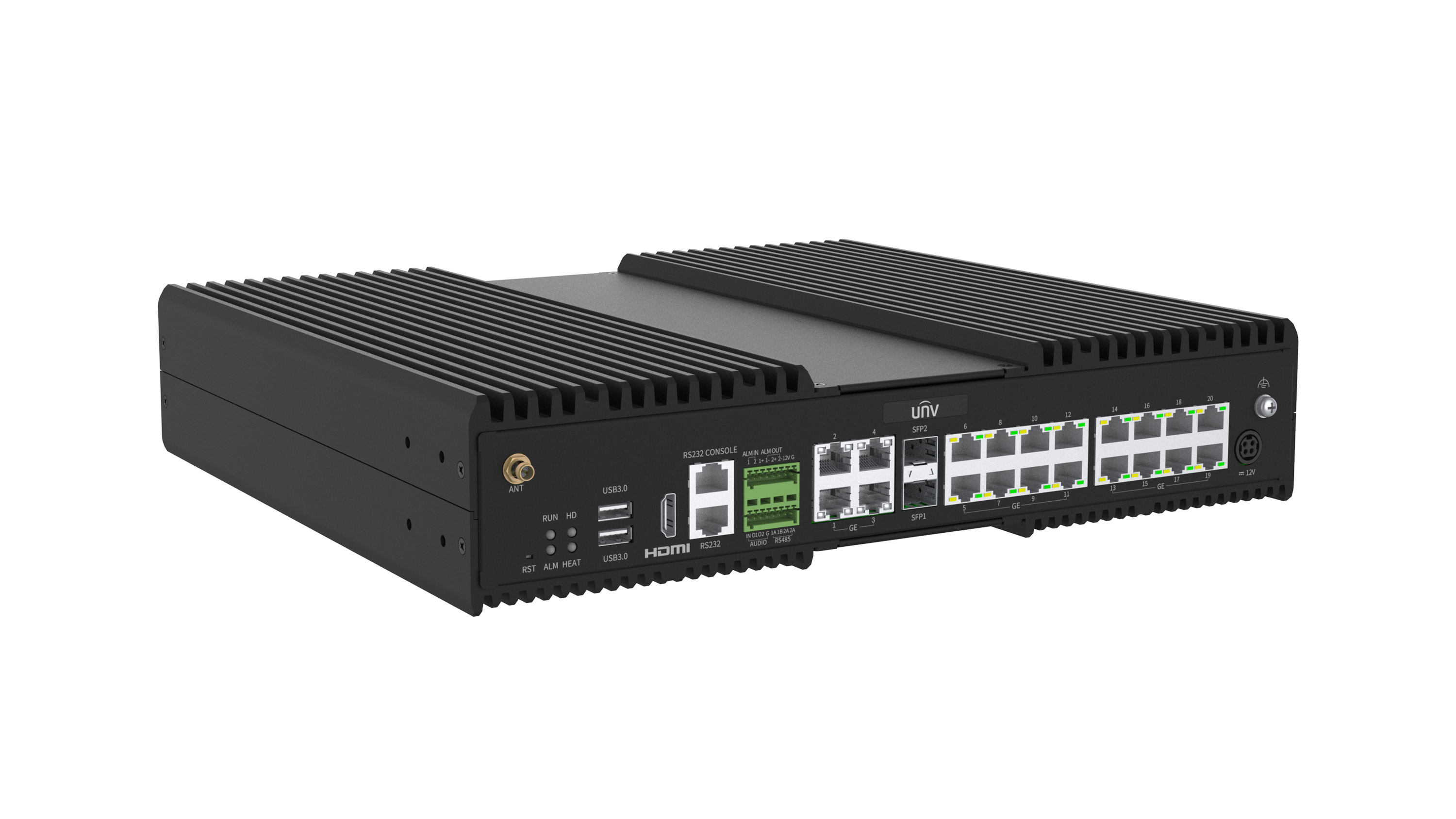

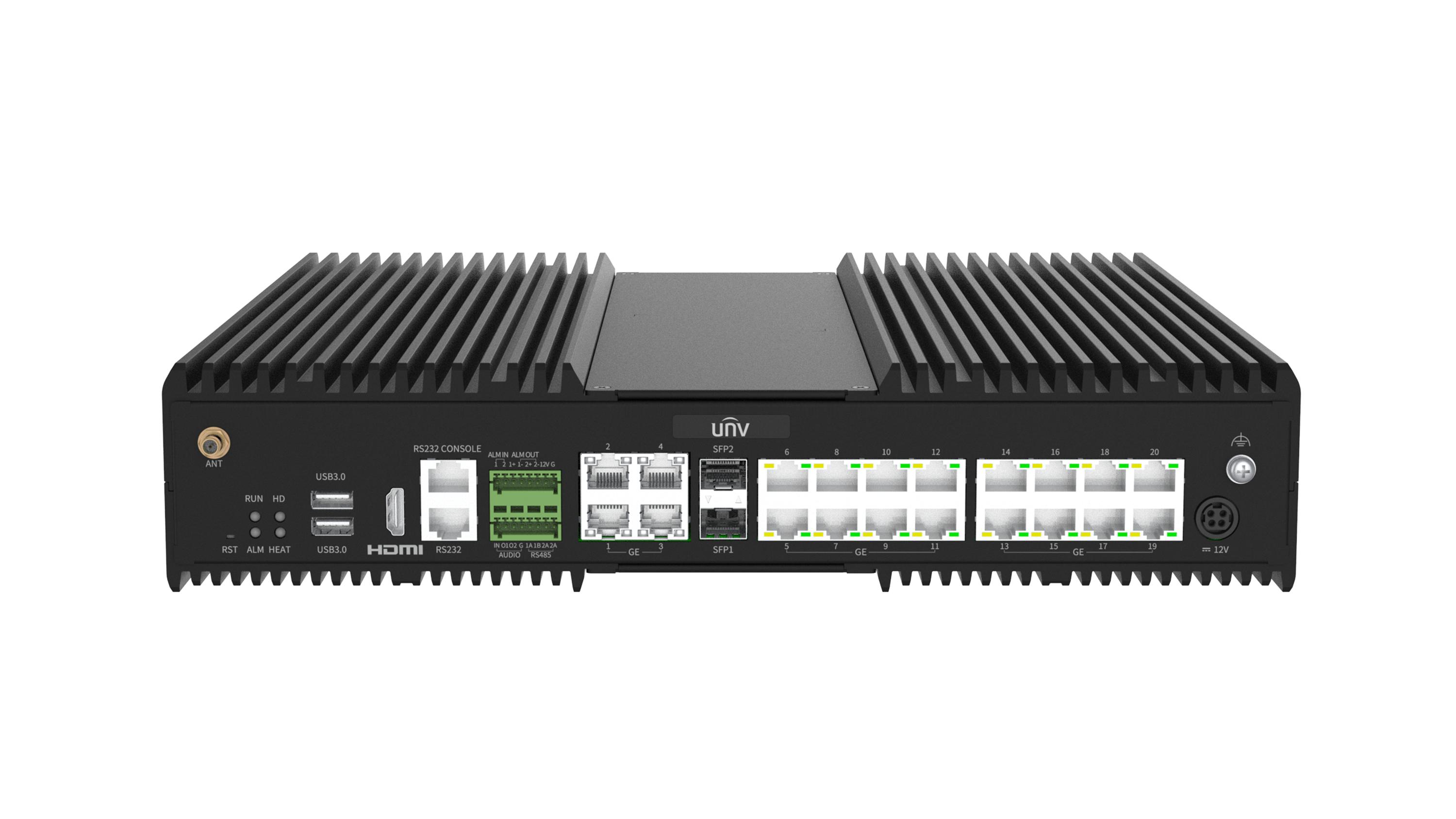

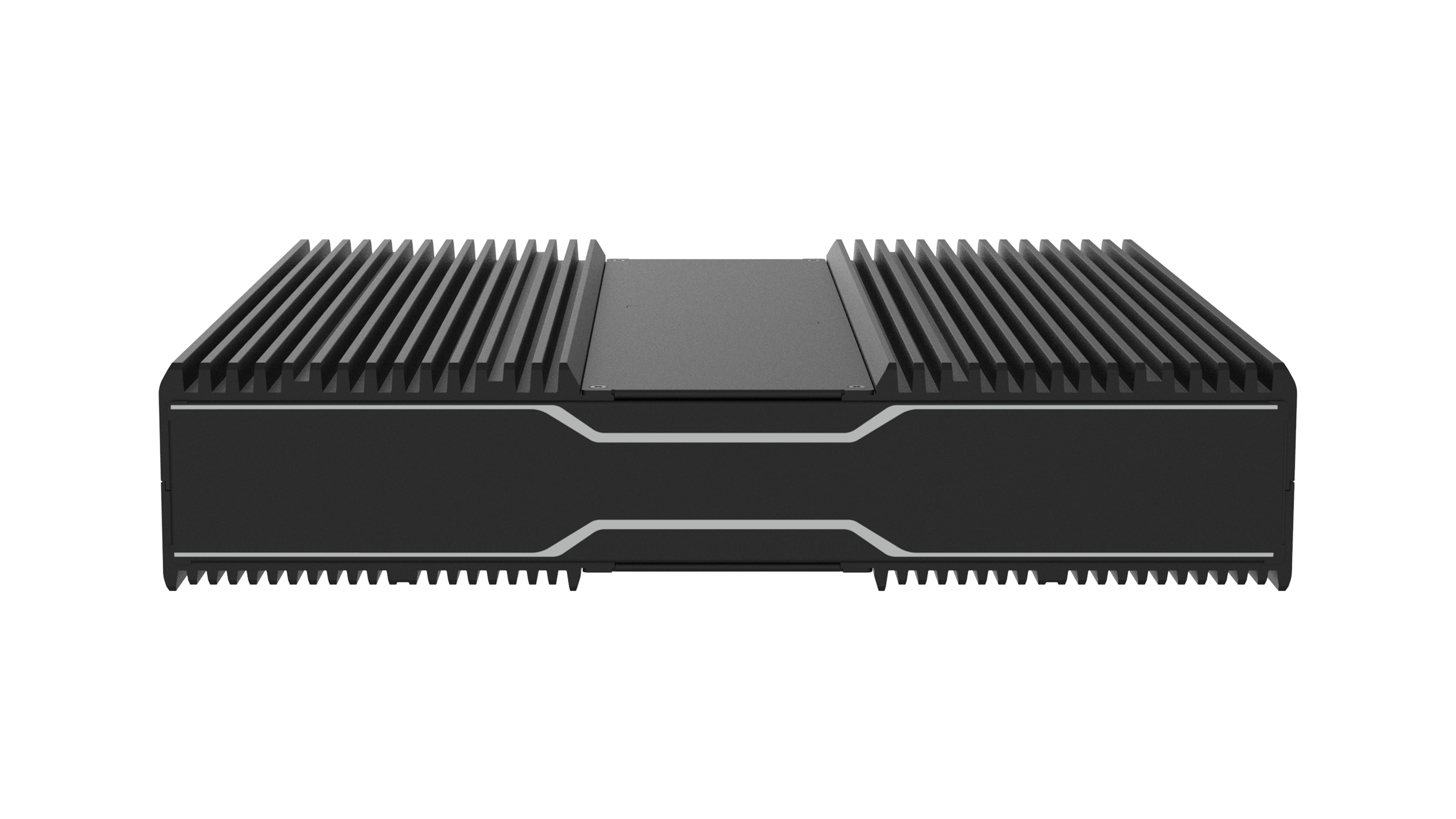

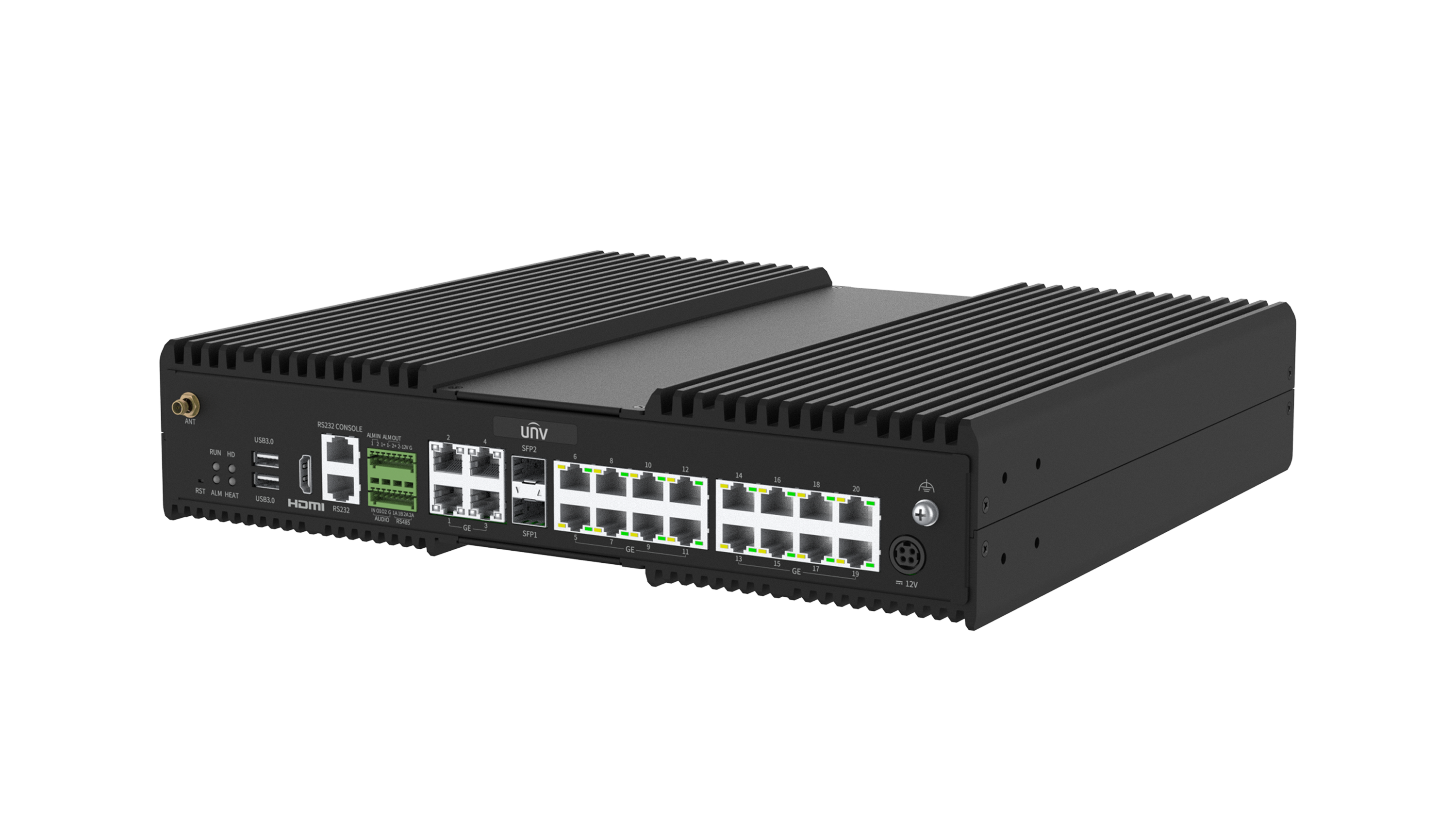

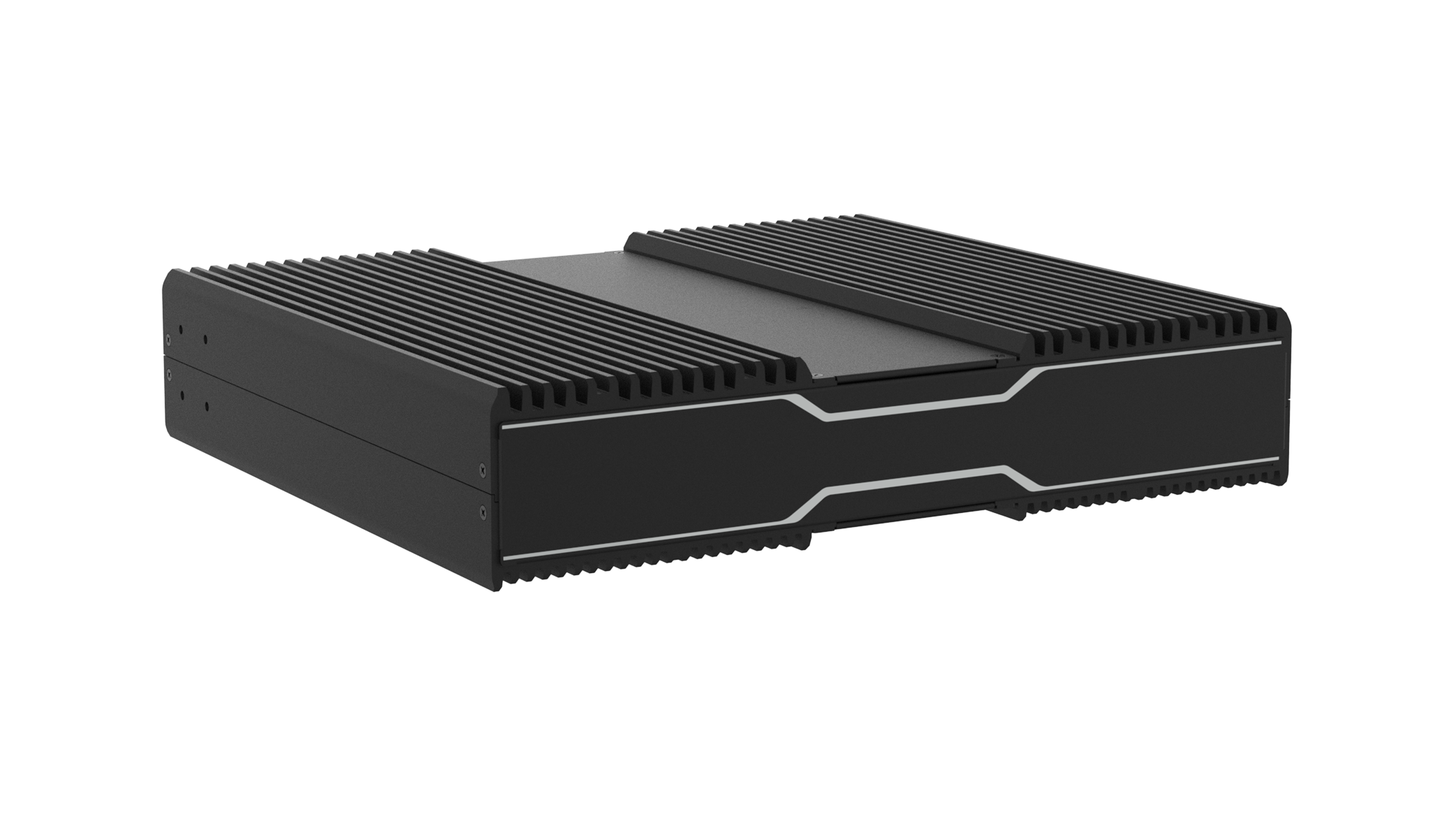

HD Image | 12/14/2024 2:48:58 AM | IVT2600@A-A16S-OS_HD_Image_1.png | png | Download |
HD Image | 12/14/2024 2:48:58 AM | IVT2600@A-A16S-OS_HD_Image_2.png | png | Download |
HD Image | 12/14/2024 2:48:58 AM | IVT2600@A-A16S-OS_HD_Image_3.png | png | Download |
HD Image | 12/14/2024 2:48:58 AM | IVT2600@A-A16S-OS_HD_Image_4.png | png | Download |
HD Image | 12/14/2024 2:48:58 AM | IVT2600@A-A16S-OS_HD_Image_5.png | png | Download |
HD Image | 12/14/2024 2:48:58 AM | IVT2600@A-A16S-OS_HD_Image_6.png | png | Download |
Class | Date | Title | Language | Type | Download |
User Manual | 11/8/2024 6:02:58 PM | 【User Manual】IVT2600@A-A16S-OS User Manual.pdf | English | Download |
Class | Date | Title | Language | Type | Download |
Quick Guide | 8/31/2024 5:39:00 AM | Quick Guide.pdf | English | Download |
Class | Date | Title | Download |
Dimensions | 12/14/2024 2:48:58 AM | IVT2600@A-A16S-OS_Dimensions_1.png | Download |
